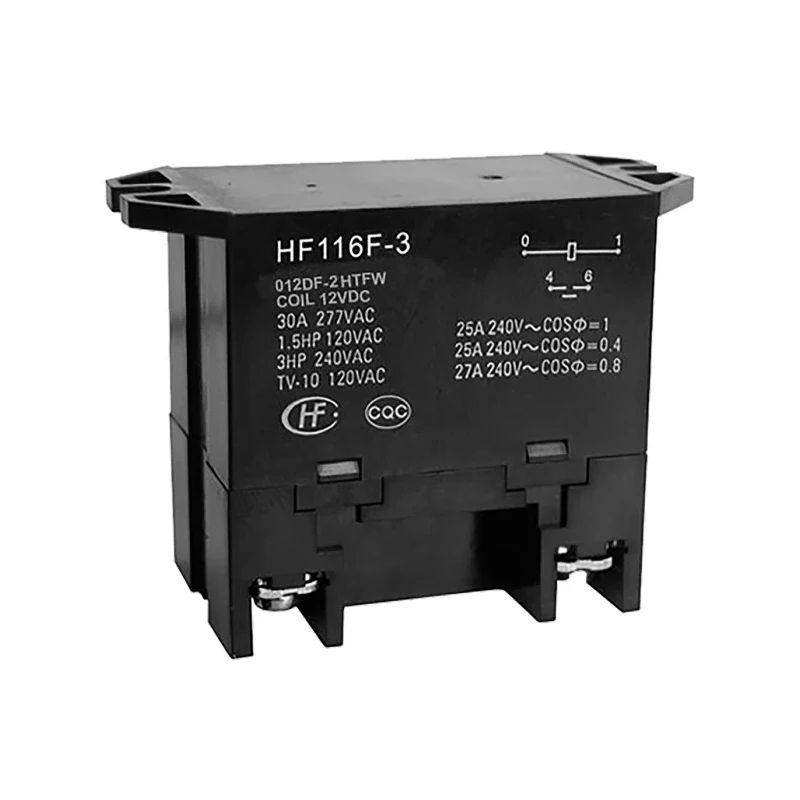

Hongfa Europe GMBH Flange Power Relay, 12V dc Coil, 25A Switching Current, DPST HF116F-3/012DF-2HTFW
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 51mm |
| Length | 68mm |
| Model | HF116F-3/012DF-2HTFW |
| Width | 32.9mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | HF116F-3 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 25A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | cULus, CQC |
| Coil Resistance | 75Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.9W |
Key Features
- This power relay features flange mounting and screw terminals for secure installation.
- Rated for switching power of 6.9kVA and switching AC voltage up to 277V AC.
- Operates within a temperature range of -55°C to 70°C, suitable for varied environments.
- Silver alloy contact material ensures low contact resistance and durability.
- Coil resistance is 75 ohms with a coil power consumption of 1.9 watts.
- Compact dimensions of 68mm length, 32.9mm width, and 51mm height allow versatile applications.
- Certified to meet cULus and CQC standards, ensuring quality and safety compliance.
- Ideal for industrial, automation, and electrical control systems requiring high power relay switching.
Product Description
Hongfa Europe GMBH HF116F-3/012DF-2HTFW is a flange power relay designed for industrial and automation applications. It features a 12V DC coil voltage and a high switching current rating of 25A, providing excellent performance in demanding electrical control environments.
This relay uses a DPST contact configuration and provides switching power up to 6.9kVA, with an AC switching voltage rating of 277V AC. Its flange mount design with screw terminals facilitates secure and stable installation.
It is engineered to operate reliably over a wide temperature range from -55°C to 70°C, allowing use in harsh industrial conditions. The contacts are made of silver alloy, offering low contact resistance (100mΩ) and improved durability. The coil has a resistance of 75Ω, consuming 1.9W of power during operation.
Measuring 68mm in length, 32.9mm in width, and 51mm in height, this compact relay fits easily into various electrical panels or control assemblies. It carries approvals from cULus and CQC, verifying its compliance with international safety and quality standards.
Suitable for power relay needs in electrical, automation, and manufacturing industries, the HF116F-3 series from Hongfa Europe GMBH is reliable and robust, supporting efficient electrical switching tasks.
This power relay features flange mounting and screw terminals for secure installation. Rated for switching power of 6.9kVA and switching AC voltage up to 277V AC. Operates within a temperature range of -55°C to 70°C, suitable for varied environments.
Silver alloy contact material ensures low contact resistance and durability. Coil resistance is 75 ohms with a coil power consumption of 1.9 watts. Compact dimensions of 68mm length, 32.9mm width, and 51mm height allow versatile applications.
Certified to meet cULus and CQC standards, ensuring quality and safety compliance. Ideal for industrial, automation, and electrical control systems requiring high power relay switching. Explore more quality Power Relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 25A.
The coil voltage of this model is 12V DC.
It is rated for a switching power of 6.9kVA.
This relay measures 68mm in length, 32.9mm in width, and 51mm in height.
The relay uses a DPST (Double Pole Single Throw) contact configuration.
It operates within a temperature range of -55°C to 70°C.
This model features screw terminals for secure installation.
The contacts are made of silver alloy, which ensures low contact resistance.
The coil resistance is 75 ohms.
It is certified to meet cULus and CQC standards.
The coil power consumption is 1.9 watts.
This relay is suitable for industrial, automation, and electrical control systems requiring high power relay switching.
