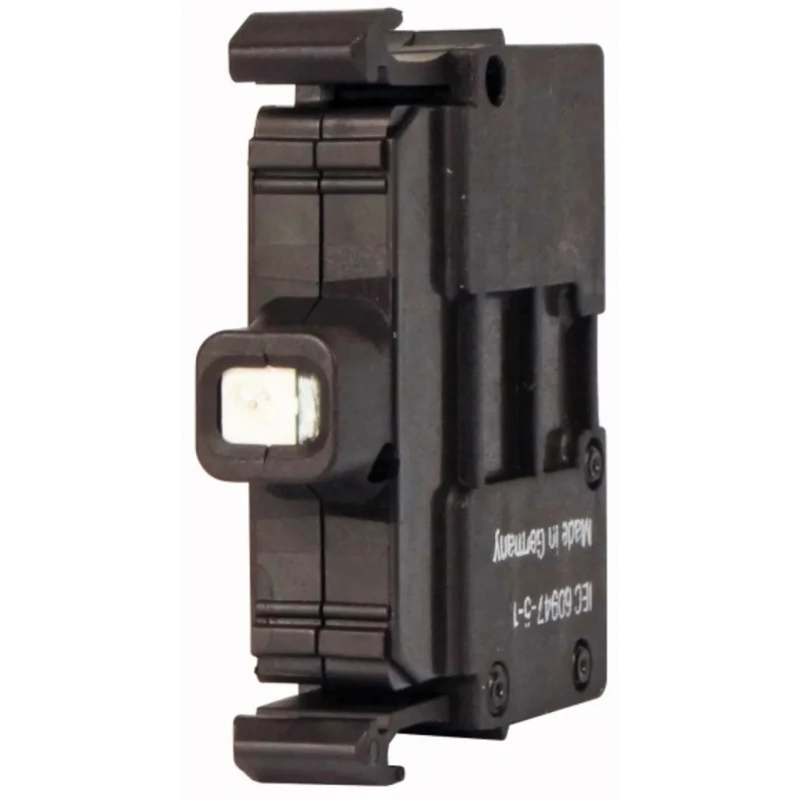

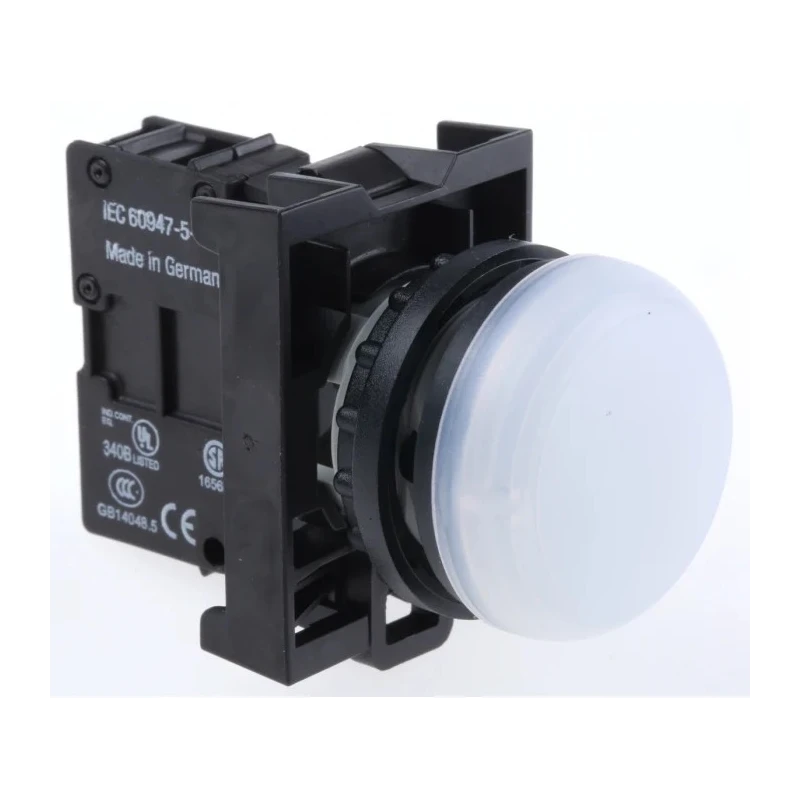

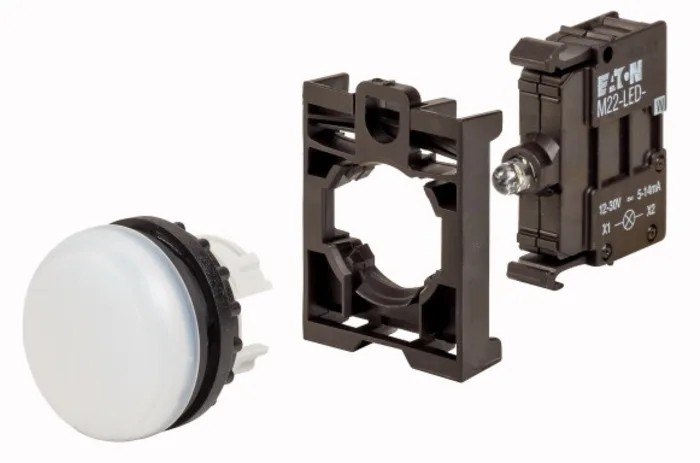

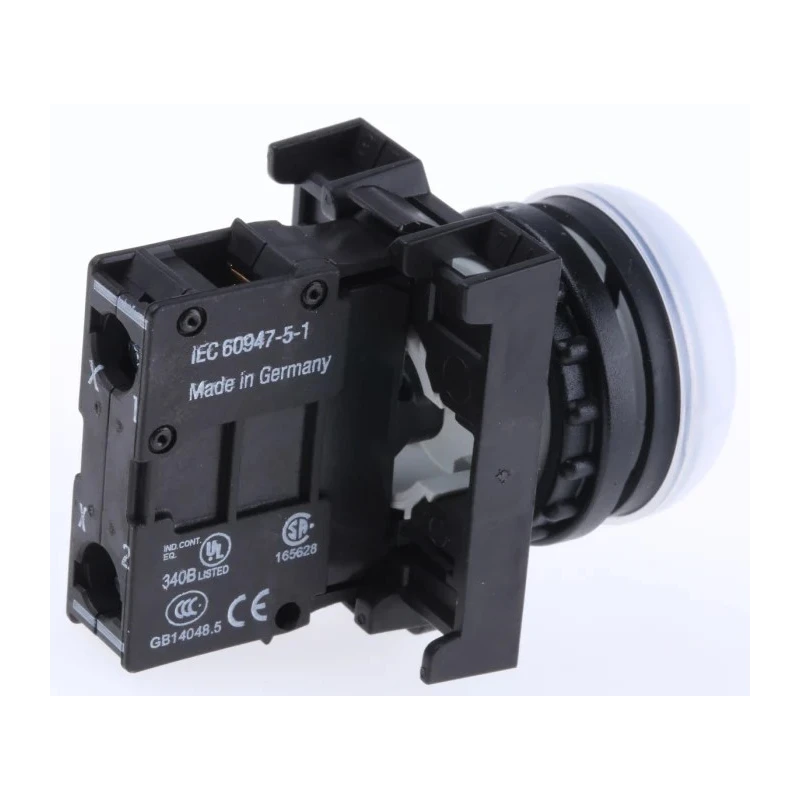

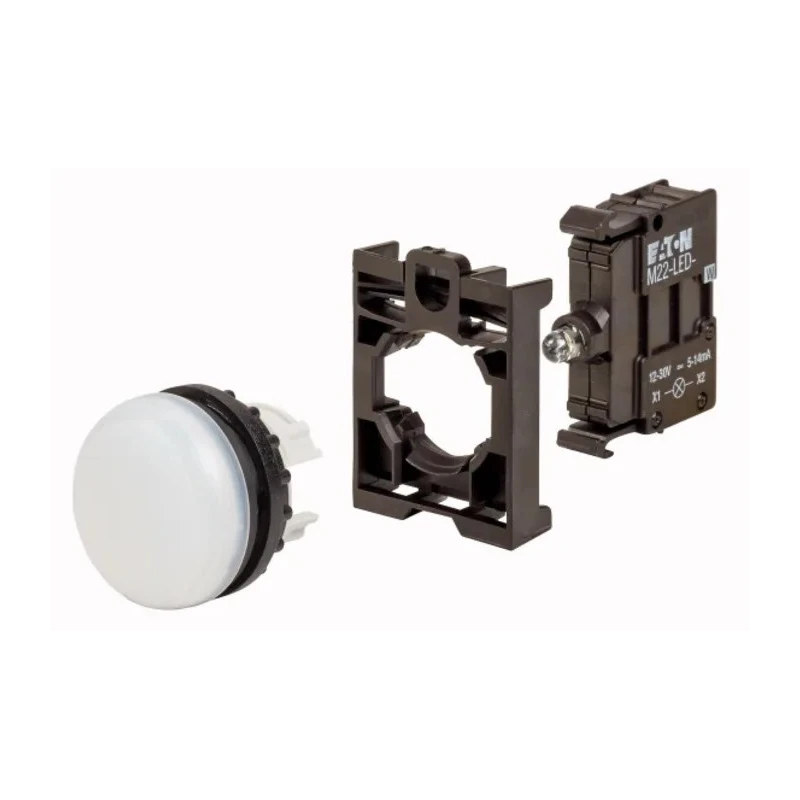

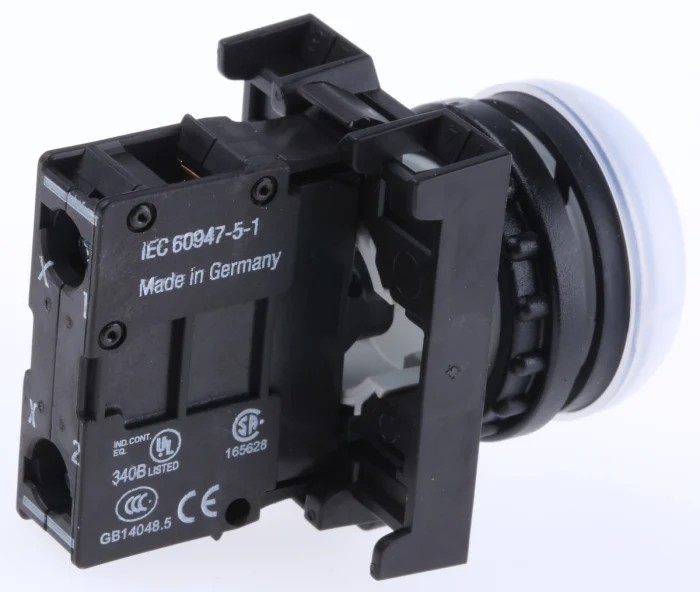

Eaton Flush White LED Pilot Light RMQ Titan M22 22 mm Cutout 12 V 30 V AC/DC IP69K Round 78639220 M22-L-W+M22-A+M22-LED-W

Eaton 78639220 M22-L-W+M22-A+M22-LED-W Flush White LED Pilot Light from the RMQ Titan M22 series is engineered for reliable visual status indication in various industrial and commercial settings. This pilot light features a 22 mm cutout diameter and a round flush-mount design suitable for panel installation requiring clear and robust signaling solutions.

Powered by a bright white LED, the pilot light operates efficiently on a voltage range of 12 to 30 V AC/DC, catering to low power applications while maintaining visibility in most lighting conditions. Its low power consumption of just 0.26 W at 24 V supports energy-efficient operations. Constructed with durable plastic body and bezel materials, this device is rated IP69K, offering dust-tight protection and resistance to high-pressure, high-temperature water jets, making it ideal for demanding, damp, or harsh environments.

The unit includes quick connect terminals, ensuring a secure and vibration-proof electrical connection. It features a current rating of 8 to 15 mA and withstands impulse voltages up to 6000 V AC for surge protection. The operating temperature range from -25°C to +70°C enables its use across varied industrial ambient conditions.

Compliance with certified standards such as UL, CE, and CSA ensures the pilot light meets international safety and quality benchmarks. This product is made in Germany, reflecting superior engineering and manufacturing standards.

Typical applications for this pilot light include usage in automation systems, machinery dashboards, control panels in construction, manufacturing, and HVAC systems. Its flush mount and robust design allow it to withstand rigorous industrial use while providing clear visual feedback to operators.

Operates efficiently across a 12-30 V AC/DC voltage range. Bright white LED illumination for clear visibility. Flush mount design with 22 mm round cutout. Durable plastic body and bezel materials. IP69K rating provides dust and water jet resistance.

Quick connect terminals enable secure electrical connection. Low power consumption conserves energy in operation. Wide temperature range supports harsh environments. Surge resistant with 6000 V AC impulse withstand voltage.

Certified to UL, CE, and CSA standards. Explore more high-quality Eaton Pilot Lights and electrical components at EnvMart for your industrial and commercial automation needs.
