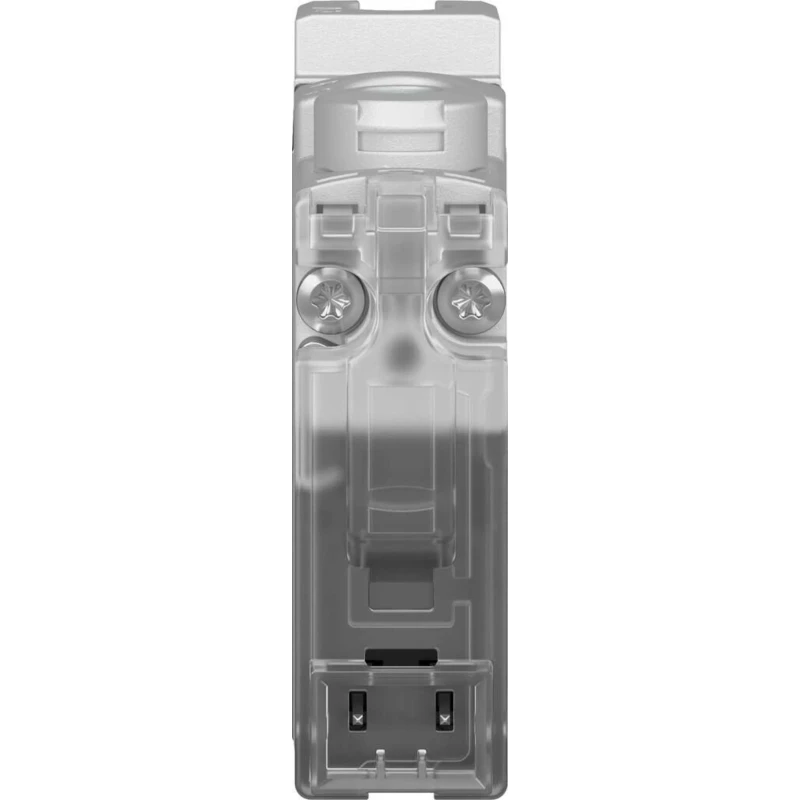

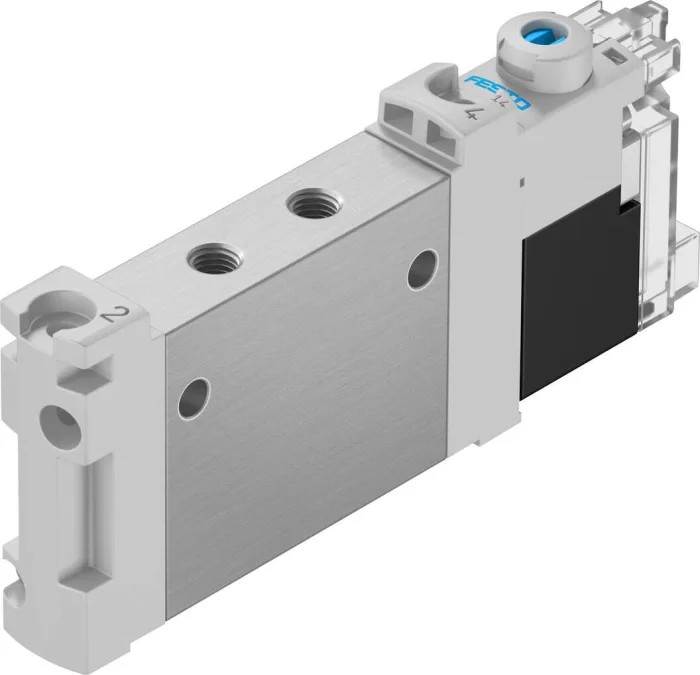

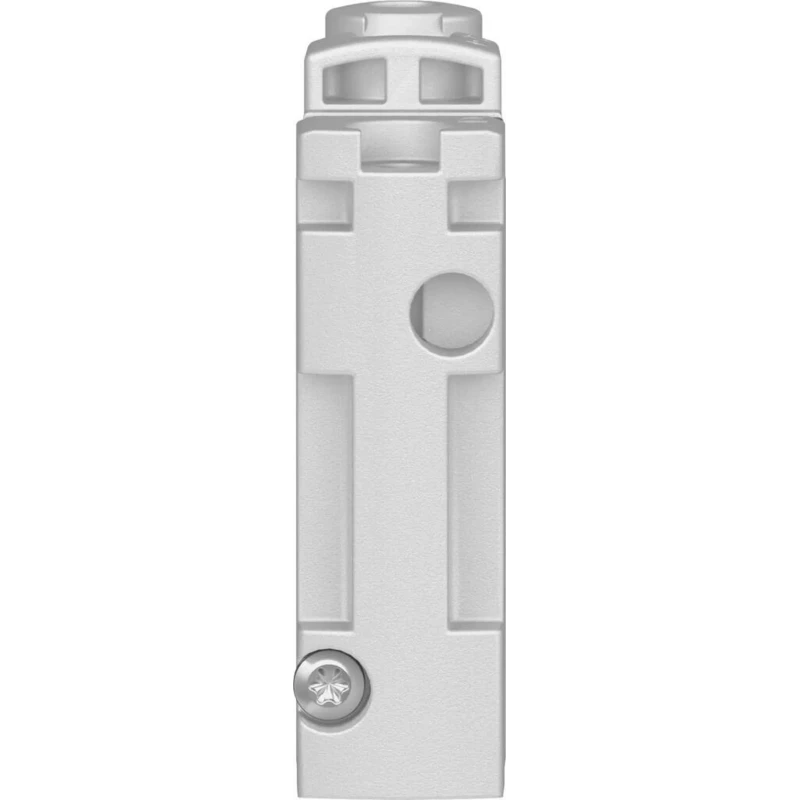

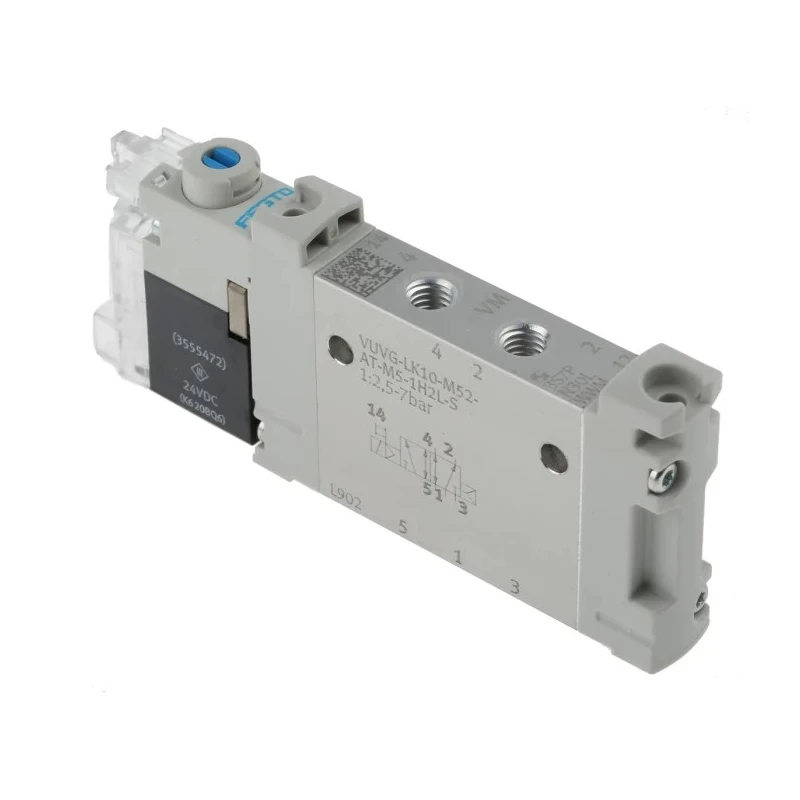

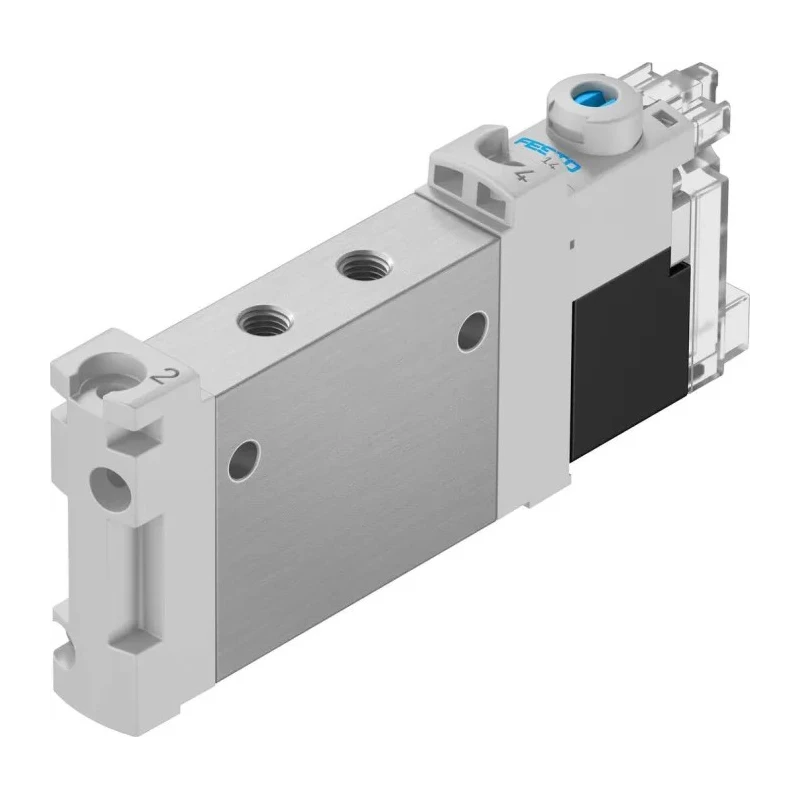

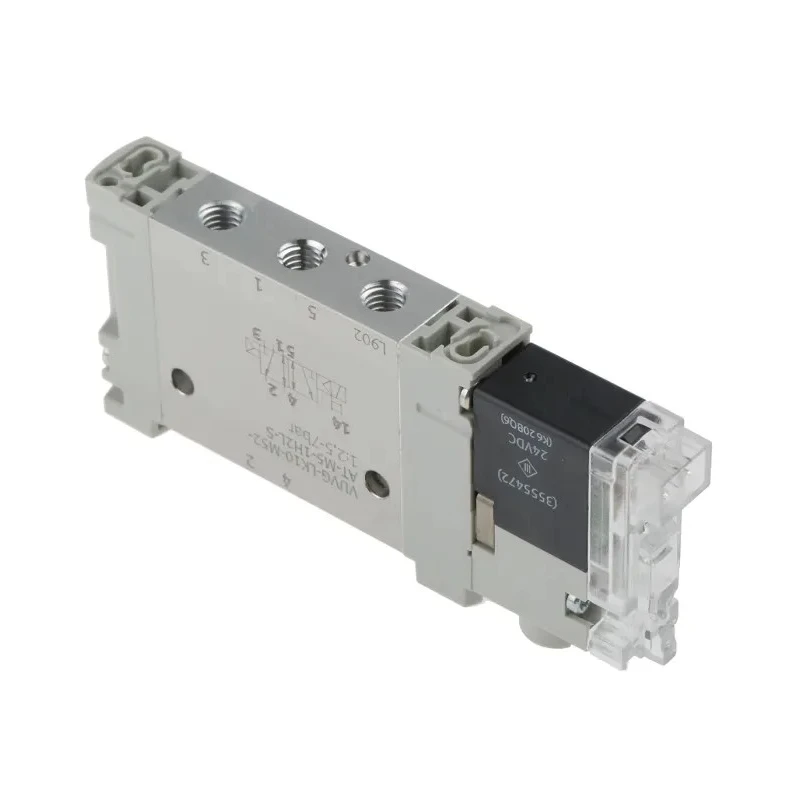

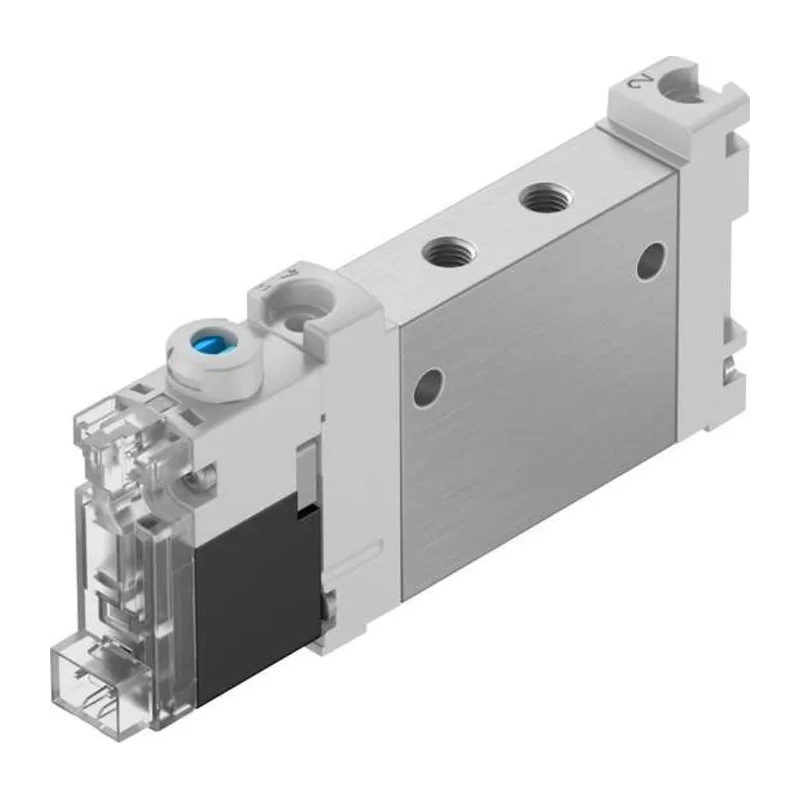

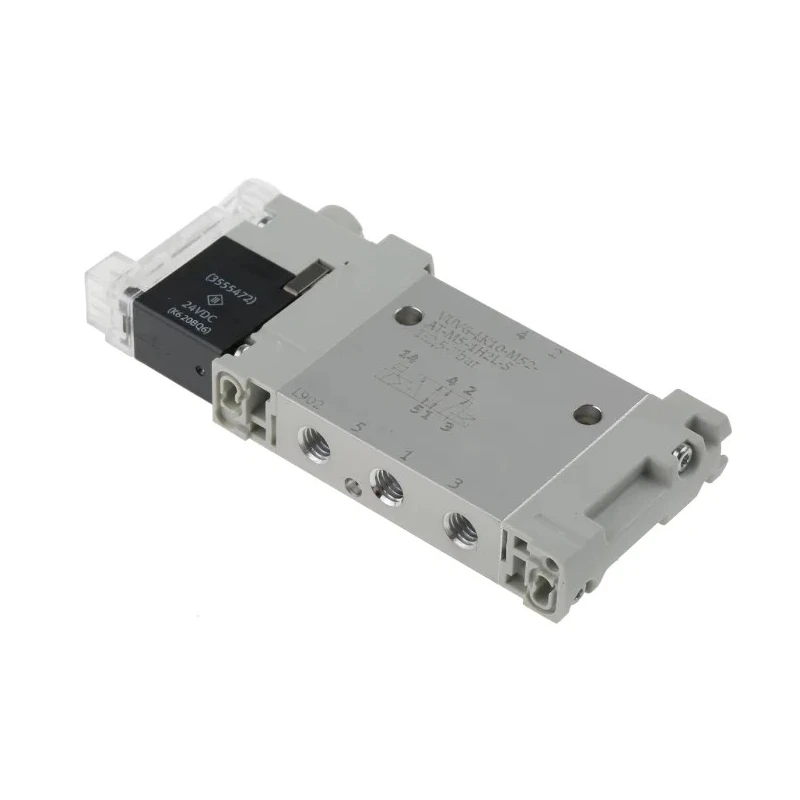

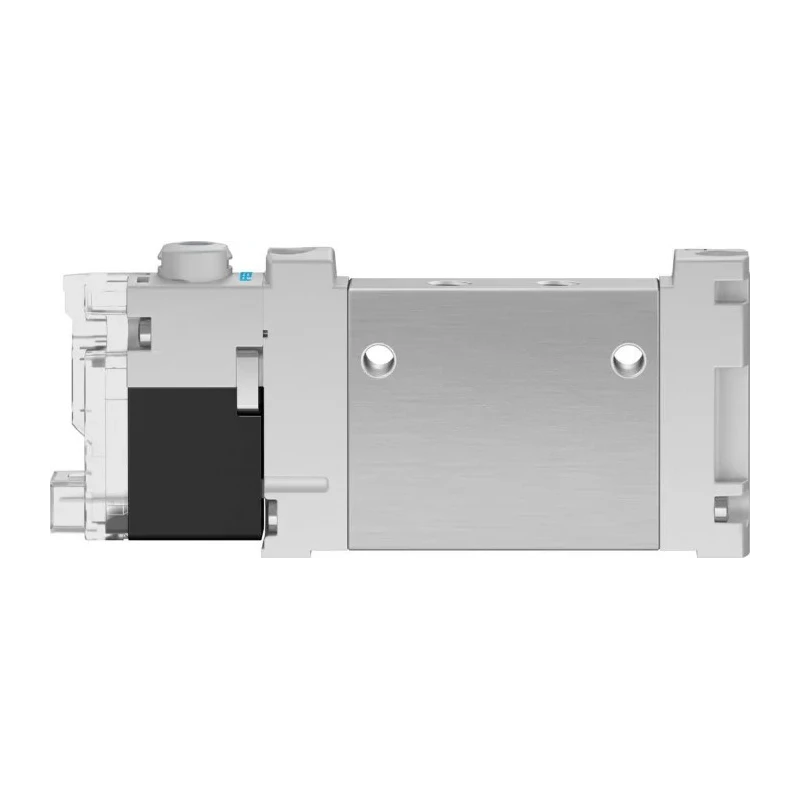

Festo 5/2 Solenoid Valve, Single Solenoid/Spring Actuation, Metric M5 Port, Aluminium Alloy Body VUVG-LK10-M52-AT-M5-1H2L-S

Festo VUVG-LK10-M52-AT-M5-1H2L-S is a 5/2 Pneumatic Solenoid Valve operating at 24V DC, designed specifically for precise control in pneumatic systems. Featuring a robust aluminium alloy body measuring 10mm in width, this valve is engineered to withstand mechanical stress and abrasion typical in industrial environments.

The valve function is monostable with a single solenoid and spring actuation, allowing the valve to return to its rest position when not energized, enhancing safety and reliability during system shutdowns. It includes a metric M5 port size with female port gender, and connects via a 2 Pin Plug electrical interface for seamless integration.

Operating within a pressure range of 2.5 to 7 bar and temperature limits from -5°C to 50°C, the valve is suited to a variety of pneumatic applications including medical devices, pharmaceutical manufacturing lines, and automotive assembly processes. The nitrile rubber (NBR) seals ensure effective pressure retention and resistance to corrosion, minimizing maintenance needs.

The valve facilitates a maximum flow rate of 195 litres per minute and achieves a quick 14 ms switch-on time, which supports high-speed cycling in demanding applications. It complies with EN, ISO, and RoHS standards, and carries no hazardous area certification, emphasizing its suitability for standard industrial environments.

Protection level IP40 safeguards the unit against penetration by solid objects larger than 1 mm, adding to its durability in industrial settings. The compact design with 2 positions and a 10 mm width makes it an ideal choice for installation in tight spaces while maintaining operational efficiency.

5/2 valve function with single solenoid and spring actuation for reliable pneumatic control. Aluminium alloy body ensures robustness and resistance to mechanical wear. Metric M5 ports and inline mounting simplify installation and integration.

Nitrile Rubber seals prevent leakage and resist corrosion. Operating pressure up to 7 bar and temperature range -5°C to 50°C for versatile use. Maximum flow rate of 195L/min suitable for demanding pneumatic systems. Low power consumption of 0.7W enhances energy efficiency.

IP40 rated for protection against solid objects larger than 1 mm. Applicable in medical equipment, pharmaceutical manufacturing, and automotive industries. Explore more pneumatic control solutions and solenoid valves at EnvMart to enhance your industrial automation and fluid power management.
