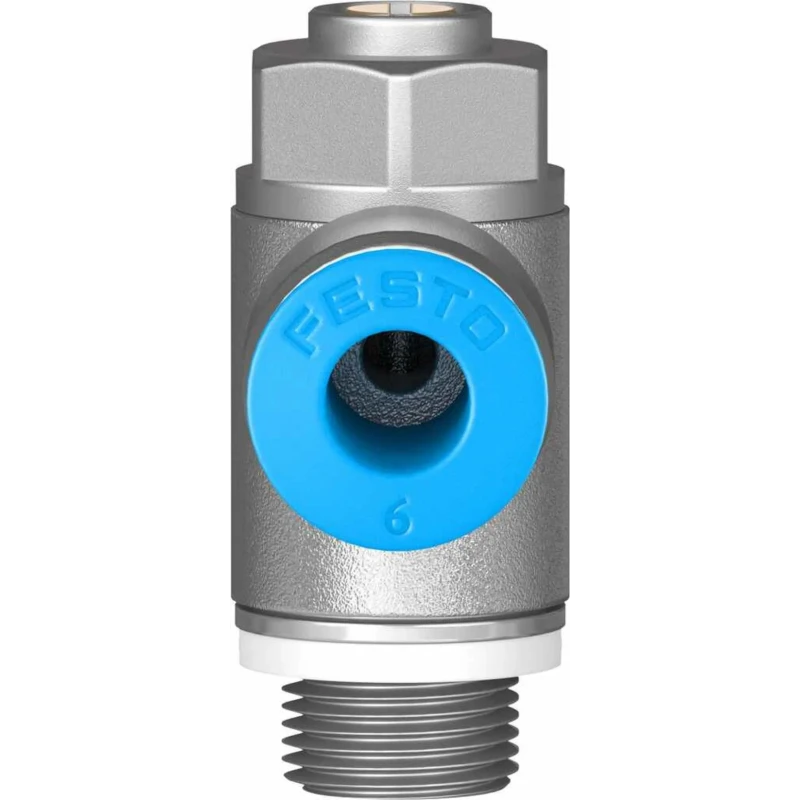

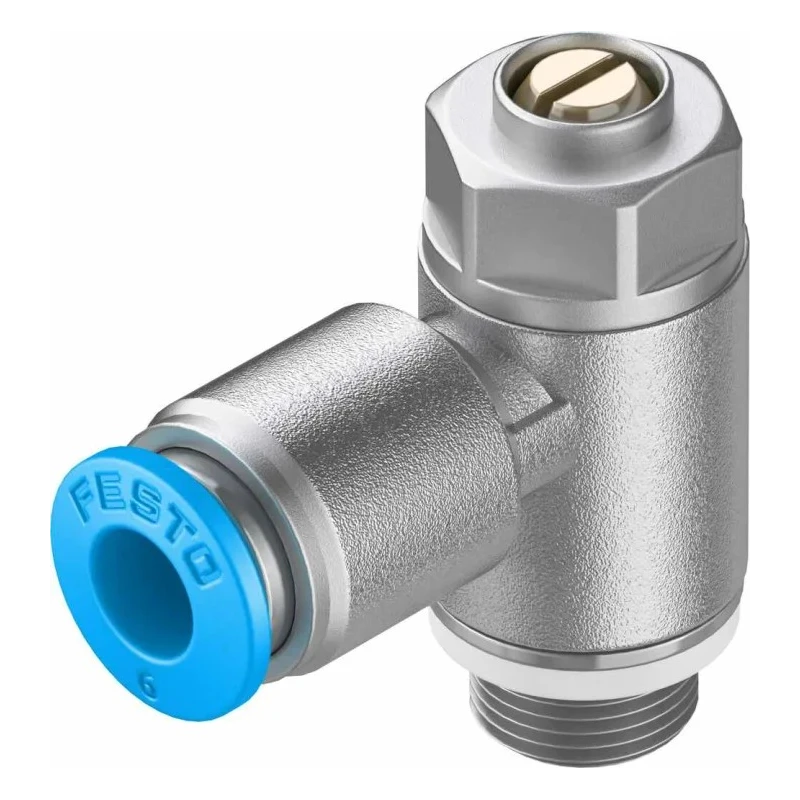

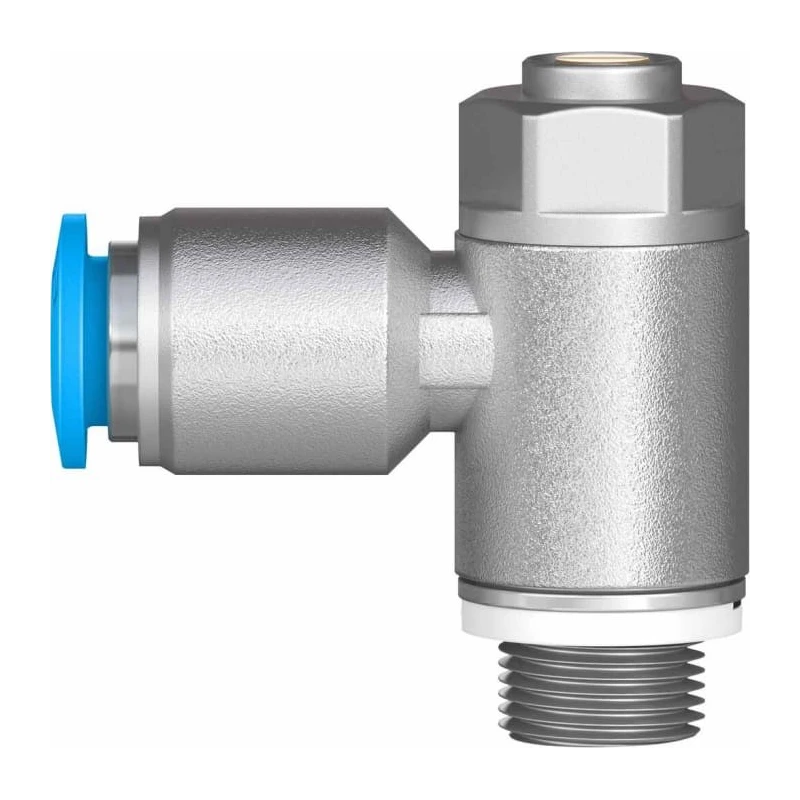

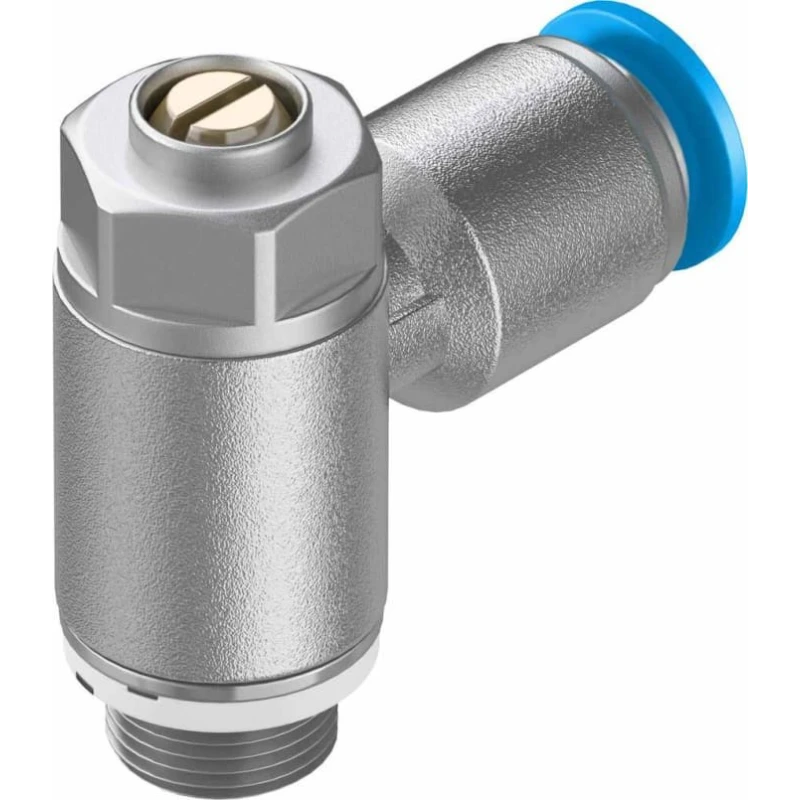

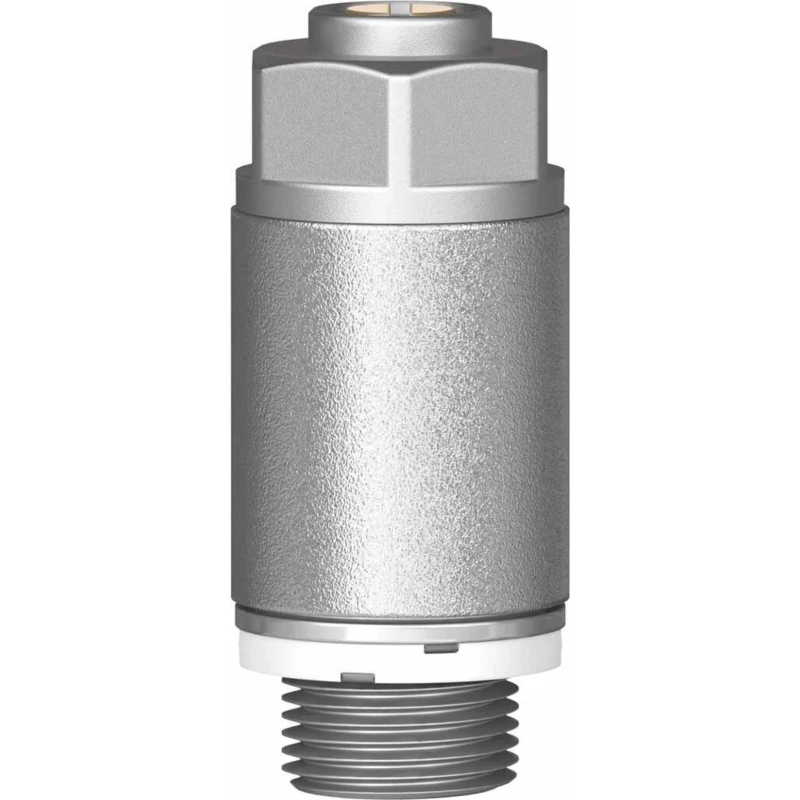

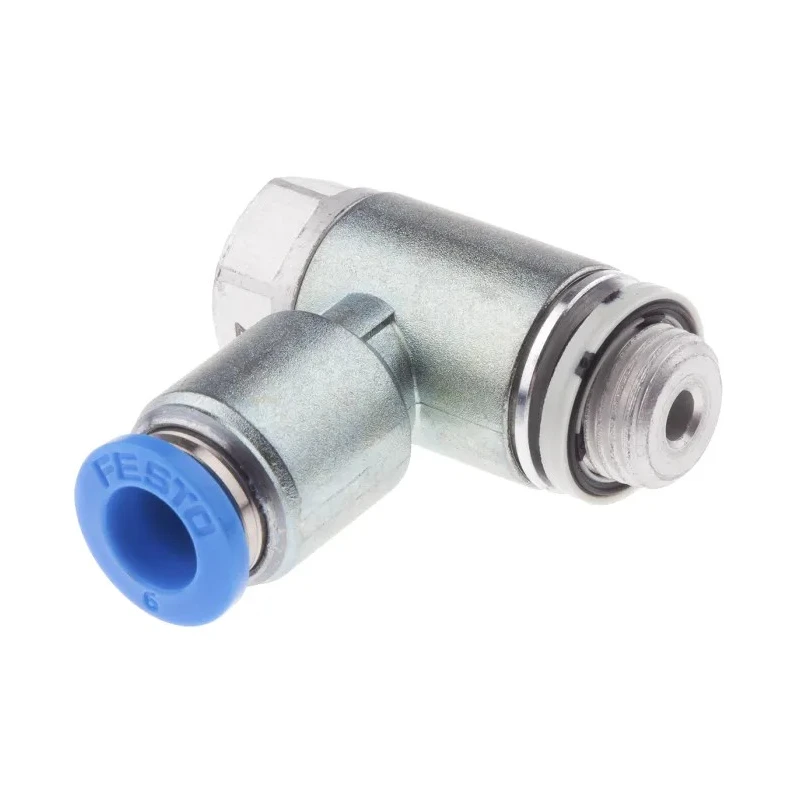

Festo GRLZ Series Flow Regulator 6 mm Tube Inlet Port Threaded Outlet Male GRLZ-1/8-QS-6-D

Festo GRLZ-1/8-QS-6-D Flow Regulator is a high-performance pneumatic Flow Controller specifically designed for controlled piston speeds in pneumatic cylinders. The device features a 6 mm tube inlet port and a male threaded outlet connection with a 1/8 inch G thread size, making it compatible with various pneumatic installations.

Its body is made from anodised wrought aluminium alloy, complemented by materials such as POM, nitrile rubber (NBR), nickel plated brass, fluorelastomer (FPM), brass, stainless steel, die cast zinc, and reinforced polyamide, providing excellent durability and resistance to industrial environments.

The flow regulator supports operating pressures from 0.2 bar up to 10 bar and operates within temperatures ranging from -10°C to 60°C, suitable for many industrial pneumatic use cases. The nominal flow rate in the flow control direction is 185 liters per minute.

Installation is straightforward using the threaded mounting and push-in tube inlet port, allowing efficient coupling and decoupling. The integrated one-directional non-return feature ensures flow is regulated only in the intended direction for piston speed modulation.

This device complies with international standards including ISO 1179-1, ISO 228-1, ISO 8573-1:2010 (7:4:4), Germanischer Lloyd, and RoHS certifications, ensuring reliability and safety in pneumatic systems.

Constructed from anodised aluminium alloy and durable industrial materials for high performance. 6 mm tube inlet port with male threaded outlet for versatile pneumatic connection. Nominal flow rate of 185 l/min suitable for effective flow regulation.

Operating temperature range from -10°C to 150°C for diverse environments. Pressure rating accommodates 0.2 to 10 bar for flexible pneumatic applications. Quick and easy installation with push-in tube and threaded mounting.

One-directional non-return flow function ensures controlled piston movement.

This flow regulator is ideal for industrial, mechanical, pneumatic, and manufacturing applications requiring precise flow control. Its durable construction and compliance with standards make it a reliable choice for pneumatic system builders looking for consistent, adjustable flow regulation in compressed air setups.

Explore the full range of Festo pneumatic components and flow control devices to enhance your industrial system's efficiency and reliability.
