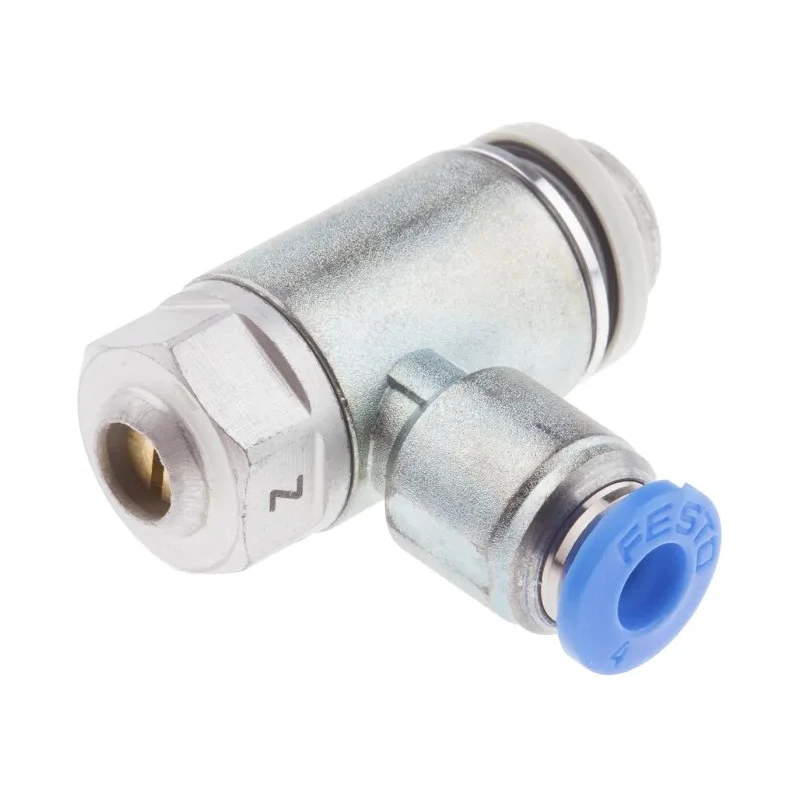

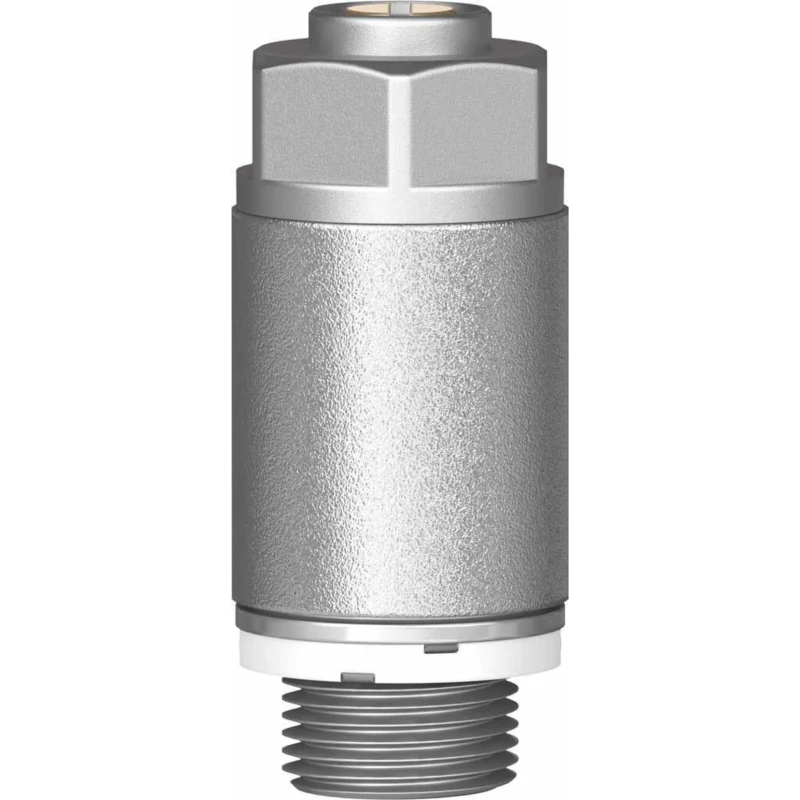

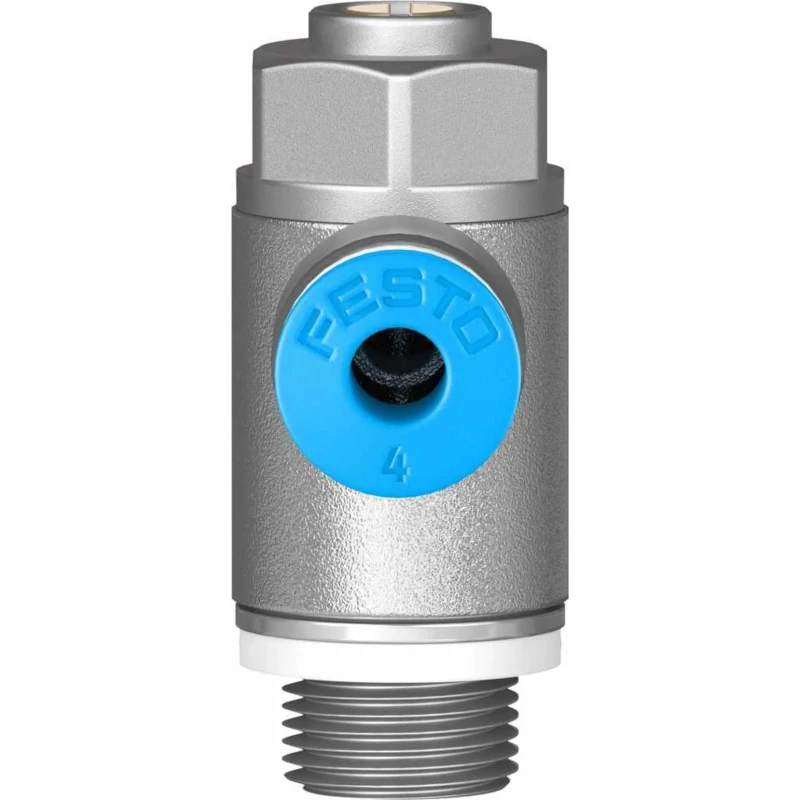

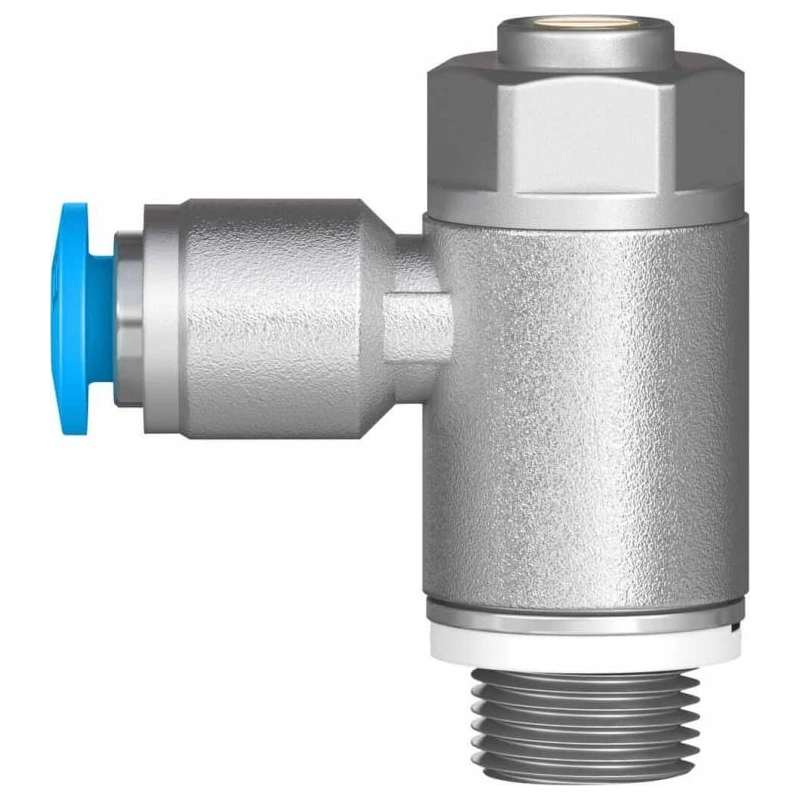

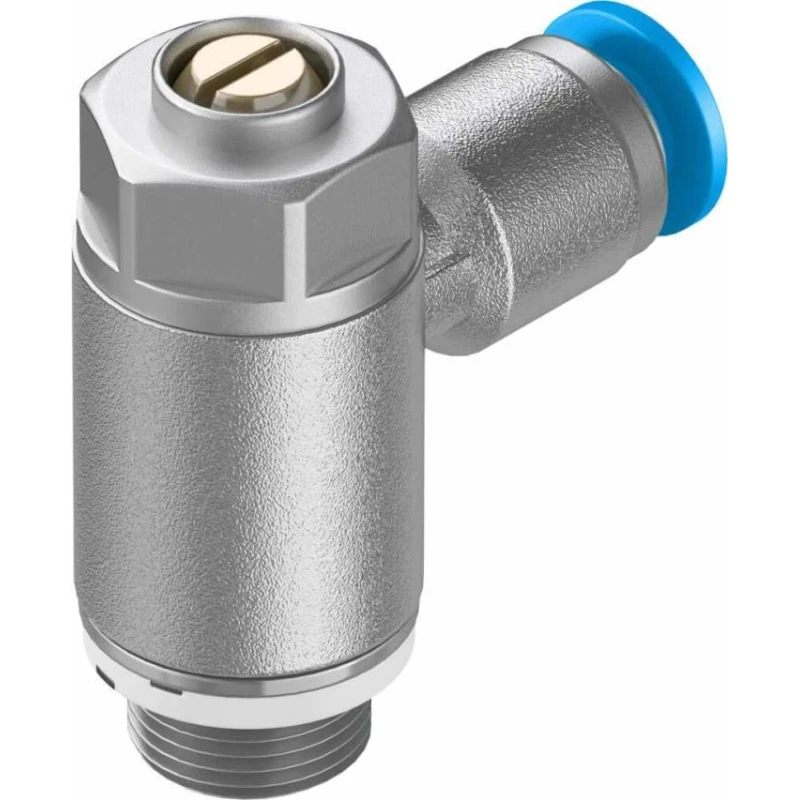

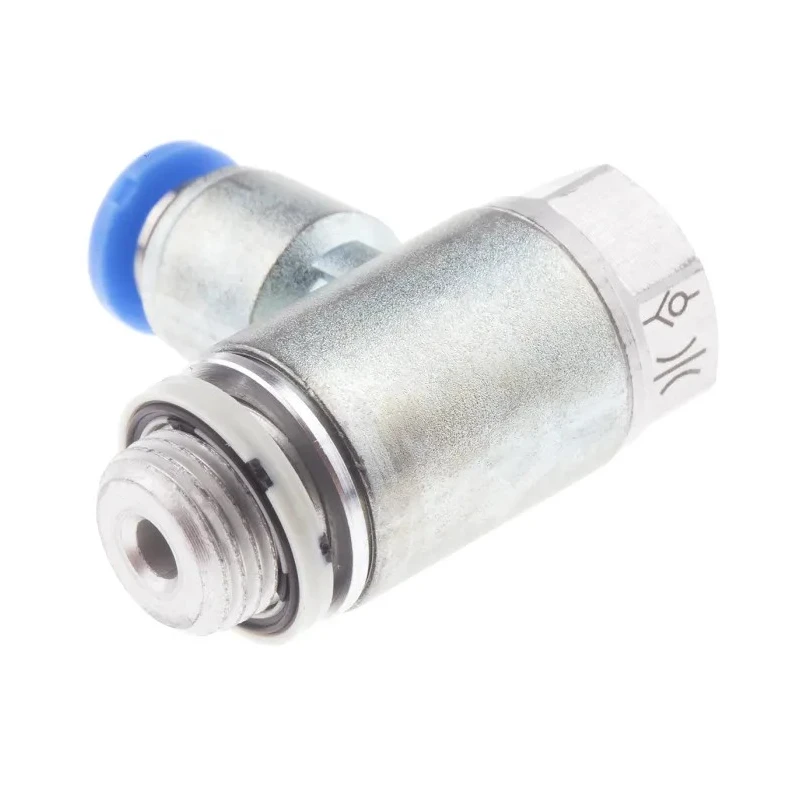

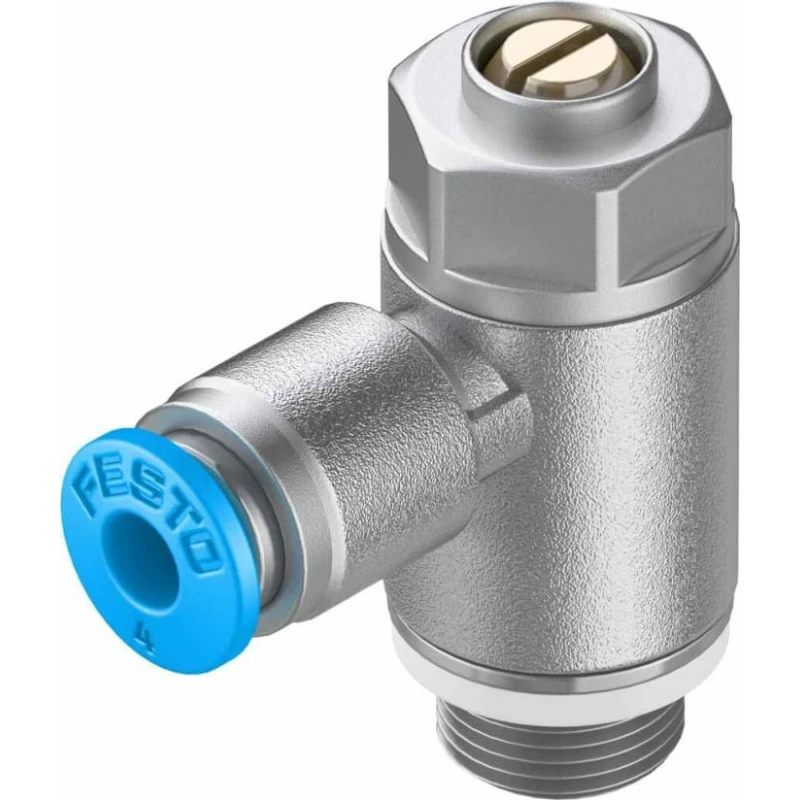

Festo GRLZ Series Flow Controller Flow Regulator 4 mm Tube Inlet Port ISO 1179-1 and ISO 228-1 Threaded GRLZ-1/8-QS-4-D
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Material | Anodised wrought Aluminium Alloy, Brass, Die Cast Zinc, Fluorelastomer (FPM), Nickel Plated Brass, Nitrile Rubber (NBR), Polyamide Reinforced, POM, Stainless Steel |
| Maximum Operating Pressure | 1 bar |
| Outlet Connection Type | Threaded |
| Model | GRLZ-1/8-QS-4-D |
| Series | GRLZ |
| Maximum Operating Temperature | 150°C |
| Sub Type | Flow Controller |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | ISO8573-1:2010 |
| Inlet Thread Standard | ISO 1179-1 and ISO 228-1 |
| Minimum Operating Pressure | 0.2bar |
| ISO8573-1 | 2010 |
| Standards/ApprovalsISO8573-1 | 2010 |
Key Features
- Compact and lightweight design improves compressed-air system efficiency.
- Manual adjustment screw allows precise flow regulation using a screwdriver.
- Suitable for regulating pneumatic piston speed during advance and return strokes.
- Operates with both exhaust and supply air directions within 0.2 bar to 10 bar range.
- Constructed from durable materials including anodised aluminium, brass, zinc, and stainless steel.
- Nitrile rubber (NBR) seals provide abrasion resistance and airtight lock when closed.
- Threaded inlet and outlet connections conform to ISO 1179-1 and ISO 228-1 standards.
- Suitable for applications in manufacturing, robotics automation, electronics industry, and materials handling.
Product Description
Festo GRLZ-1/8-QS-4-D is a high-precision flow controller flow regulator from the GRLZ series featuring a 4 mm tube inlet port and threaded inlet/outlet ports adhering to ISO 1179-1 and ISO 228-1 standards. It is designed for controlling compressed-air flow precisely to regulate the speed of pneumatic drives during their advance and return strokes, supporting both supply and exhaust air directions.
The unit operates efficiently over a pressure range from 0.2 bar to 10 bar and permits manual adjustment through a screwdriver-operated screw. Its robust construction includes anodised wrought aluminium alloy, brass, die-cast zinc, nickel-plated brass, polyamide reinforced POM, stainless steel, and nitrile rubber components for sealing and abrasion resistance, ensuring long service life and reliability in industrial environments.
Its lightweight and compact form factor enhances compressed-air system performance, making it ideal for applications in manufacturing industries, robotic automation tasks, electronics production, and materials handling processes.
Threaded fittings allow hassle-free coupling and uncoupling, and the nitrile rubber seals ensure airtight locking when the valve is closed. The product complies with ISO8573-1:2010 quality standards and has a minimum operating temperature of -10°C and a maximum of 150°C.
Compact and lightweight design improves compressed-air system efficiency. Manual adjustment screw allows precise flow regulation using a screwdriver. Suitable for regulating pneumatic piston speed during advance and return strokes.
Operates with both exhaust and supply air directions within 0.2 bar to 10 bar range. Constructed from durable materials including anodised aluminium, brass, zinc, and stainless steel. Nitrile rubber (NBR) seals provide abrasion resistance and airtight lock when closed.
Threaded inlet and outlet connections conform to ISO 1179-1 and ISO 228-1 standards. Suitable for applications in manufacturing, robotics automation, electronics industry, and materials handling.
This flow controller is an essential component for pneumatic systems requiring reliable and adjustable compressed-air flow. Explore the extensive range of Pneumatic Function Fittings within the Industrial Tools & Equipment category on EnvMart to find compatible accessories and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow regulator operates efficiently within a pressure range of 0.2 bar to 10 bar.
It is constructed from anodised wrought aluminium alloy, brass, die-cast zinc, nickel-plated brass, polyamide reinforced POM, stainless steel, and nitrile rubber for sealing.
The inlet and outlet connections conform to ISO 1179-1 and ISO 228-1 standards.
The maximum operating temperature for this model is 150°C.
Yes, it features a manual adjustment screw that allows for precise flow regulation using a screwdriver.
The minimum operating temperature is -10°C.
It is suitable for applications in manufacturing, robotics automation, electronics industry, and materials handling.
The flow regulator is manufactured in Germany.
The minimum operating pressure is 0.2 bar.
It complies with ISO8573-1:2010 quality standards.
It uses threaded connections for both the inlet and outlet.
It is designed for controlling compressed-air flow to regulate the speed of pneumatic drives during their advance and return strokes.
