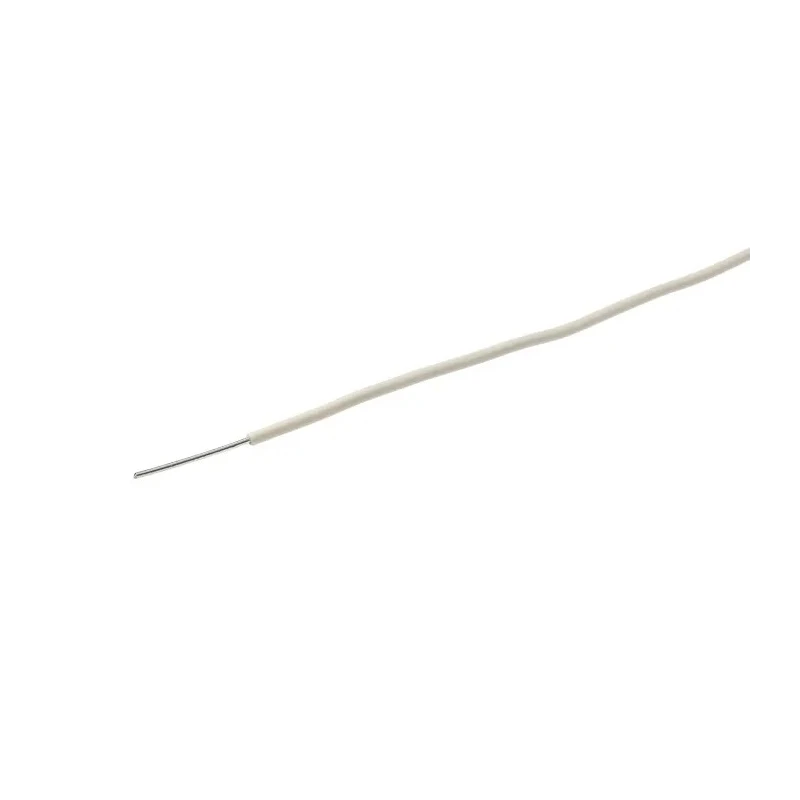

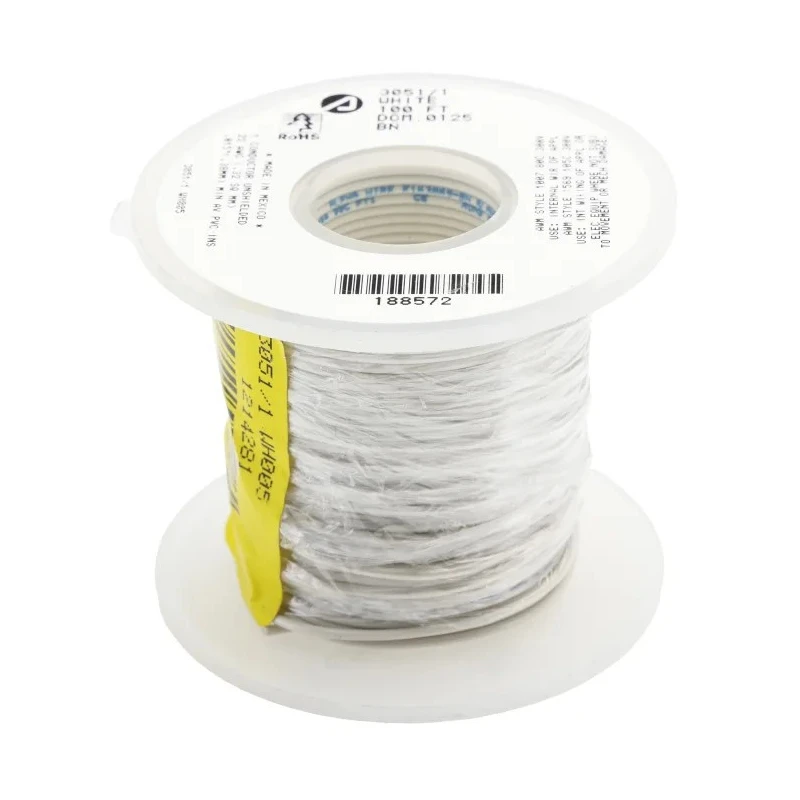

Alpha Wire PVC Series White Hook Up Wire, 22 AWG, 1/0.64 mm Core Strands, 30 m, 300V, Flame Retardant, Model 3051/1 WH005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire PVC Series White Hook Up Wire, 22 AWG, 1/0.64 mm Core Strands, 30 m, 300V, Flame Retardant, Model 3051/1 WH005

Name: Alpha Wire PVC Series White Hook Up Wire, 22 AWG, 1/0.64 mm Core Strands, 30 m, 300V, Flame Retardant, Model 3051/1 WH005
Brand: ALPHA WIRE
SKU: 186294
Price: 37.01 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
Model	3051/1 WH005
Cable Length	30m
Series	Hookup Wire PVC
Outside diameter	1.45mm
Maximum Operating Temperature	105°C
Conductor Material	Tinned Copper
Cable Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Colour	White
Fire Behaviour	Flame Retardant
American Wire Gauge	22AWG
Number of Strands	1
Core Strands	1 x 0.64mm
Size of Strands	0.64mm

Key Features

The wire features a 22 AWG gauge with 1 strand of 0.64 mm core diameter.
It is 30 metres long with a white PVC jacket providing mechanical protection and insulation.
Rated for a maximum operating voltage of 300V and temperature range from -40°C to 105°C.
The conductor is made of tinned copper ensuring reliable conductivity and corrosion resistance.
Flame-retardant construction reduces fire propagation risk for enhanced safety.
Suitable for wiring control panels, terminal blocks, automation equipment, and sensor connections.
Complies with UL AWM 1007/1569 VW-1, CSA, RoHS, and CA Prop 65 standards.

Product Description

Alpha Wire 3051/1 WH005 Hook Up Wire PVC Series white jacketed wire provides a dependable 22 AWG single strand conductor solution for internal wiring in electronic and electrical assemblies. With a core strand size of 0.64 mm and 30 metres length, this wire supports up to 300V voltage requirements and operates safely across temperatures from -40°C to 105°C.

The tinned copper conductor ensures excellent electrical conductivity and resistance to corrosion, making it ideal for industrial, laboratory, and commercial applications including wiring in control panels, terminal blocks, automation equipment, electronic test rigs, prototypes, small motors, and sensor connections.

The PVC insulation offers basic abrasion resistance while maintaining flexibility under varied temperature conditions. Its flame-retardant design limits flame spread without additional fireproofing, supporting enhanced installation safety.

This product fully conforms to applicable industry standards including UL AWM 1007, 1569 VW-1, CSA TR-64 FT1, RoHS compliance, and CA Prop 65, demonstrating its reliability and quality for electrical system wiring.

The wire is single core with 1 strand of 0.64 mm diameter. The cable jacket is white and flame retardant for safety. Rated for 300V operating voltage with a maximum temperature of 105°C and minimum of -40°C. Manufactured using tinned copper for effective conductivity.

Compliant with major electrical wiring safety standards for industrial use. The product is suited for wiring panels, sensors, and electrical appliance repairs. The 30 metre length provides flexibility for various installation needs.

Ideal for use in industrial electrical, automation, manufacturing, and laboratory environments, this Hook Up Wire from Alpha Wire offers reliable performance and regulatory compliance. Explore similar wiring products and cables in the EnvMart Electrical Wires & Cables category for your projects.
