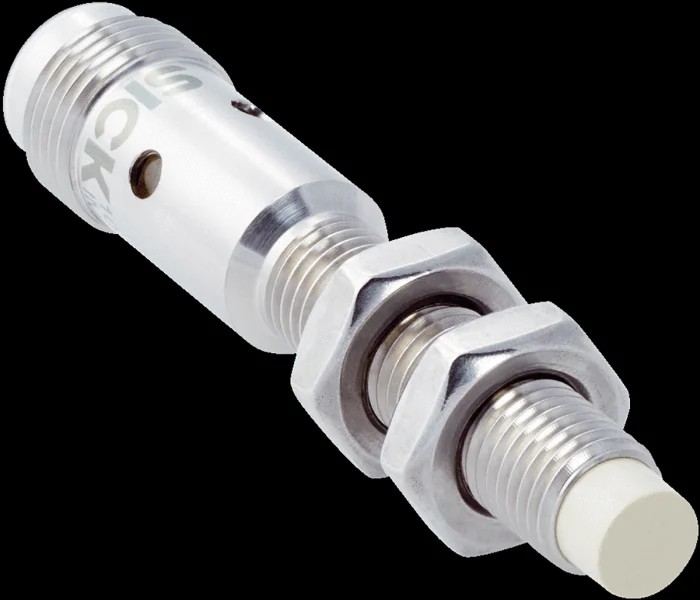

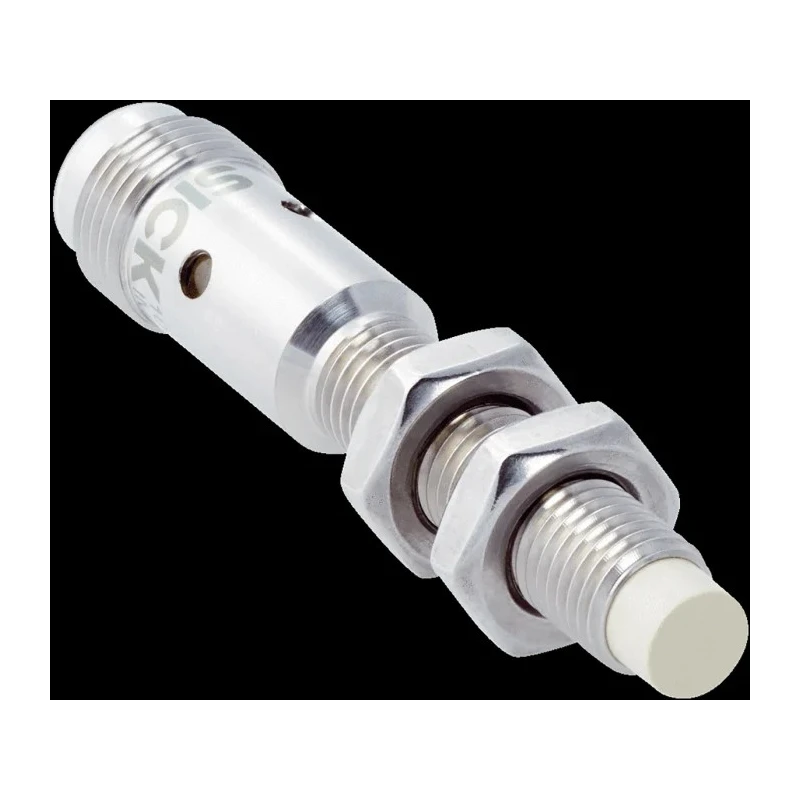

SICK Threaded Barrel Inductive Proximity Sensor M8 30 V DC 200mA PNP Output IMF08-04NPPNC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | −40°C to 100°C |
| Length | 60mm |
| Model | IMF08-04NPPNC0S |
| IP Rating | IP68, IP69K |
| Width | 8.9mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Series | IMF08 |
| Maximum Operating Temperature | 100°C |
| Thread Size | M8 |
| Enclosure Rating | IP68, IP69K |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M12 Male Connector |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 4kHz |
| Standards/Approvals | CE Certified, cULus Listed, EN 60947-5-2, FDA, UL E181493 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 4mm |
| Electrical configuration | DC 3- and 4-wire |
| Sensing ranges | 2 mm ... 20 mm |
Key Features
- Threaded barrel design with M8 thread size ensures secure mounting.
- Stainless steel housing provides robust protection with IP68 and IP69K rating.
- Detects metal targets up to 4 mm with high precision.
- Operates at 30 V DC with maximum switching current of 200mA and PNP output.
- Wide operating temperature range from -40°C to 100°C for diverse environments.
- Equipped with M12 male connector for easy electrical connection.
- Non-flush mount type allowing flexible installation positions.
- Supports switching frequency up to 4 kHz for fast operational response.
Product Description
SICK IMF08-04NPPNC0S is a threaded barrel inductive proximity sensor designed for industrial metal detection with high reliability and precision. Featuring an M8 thread size and stainless steel body, this sensor withstands harsh environments with IP68 and IP69K enclosure ratings.
Operating at 30 V DC with a PNP output type and a maximum switching current of 200mA, it offers excellent performance for automation processes requiring fast and accurate metal presence detection. The sensor detects metal objects within a 4 mm range and supports switching frequencies up to 4 kHz, making it suitable for high-speed industrial applications.
The sensor includes a M12 male connector for secure and straightforward electrical connections. Its non-flush mounting design allows installation flexibility in various machinery and setups. This sensor operates reliably over a wide temperature range from -40°C to 100°C, accommodating diverse industrial environments.
Certified for CE, cULus, EN 60947-5-2, FDA, and UL E181493 standards, the device ensures compliance with strict quality and safety requirements. The robust stainless steel housing and advanced SICK ASIC technology provide excellent stability and durability, including resistance to industrial cleaning agents.
Threaded barrel design with M8 thread size for secure mounting. Stainless steel housing rated IP68 and IP69K for industrial robustness. Maximum metal detection range of 4 mm with high sensitivity. PNP output with 30 V DC supply voltage and 200mA switching current.
Wide temperature operation from -40°C to 100°C. M12 male electrical connector for reliable wiring. Non-flush mount type allowing application versatility. Fast switching frequency up to 4 kHz for dynamic processes. Certified to CE, cULus, EN 60947-5-2, FDA standards.
This Inductive Proximity Sensor is ideal for automation, manufacturing, food processing, and other industrial applications requiring dependable metal detection. Its robust construction and advanced features make it suitable for demanding environments with exposure to contaminants and rigorous cleaning protocols.
Explore more sensors and related automation control products in the Electronics & Electricals category at EnvMart for seamless integration into your industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4 mm for metal targets.
This sensor operates at a maximum supply voltage of 30 V DC.
It features a PNP output type, suitable for various automation applications.
The maximum switching current for this unit is 200 mA.
It operates effectively within a temperature range of -40°C to 100°C.
This model features a non-flush mount type, allowing for flexible installation positions.
The sensor has a length of 60 mm and a width of 8.9 mm.
It is rated IP68 and IP69K, providing robust protection against dust and water.
It is equipped with an M12 male connector for reliable electrical connections.
This sensor is certified for CE, cULus, EN 60947-5-2, FDA, and UL E181493 standards.
The maximum switching frequency supported by this model is 4 kHz.
It is designed to detect metal materials effectively.
