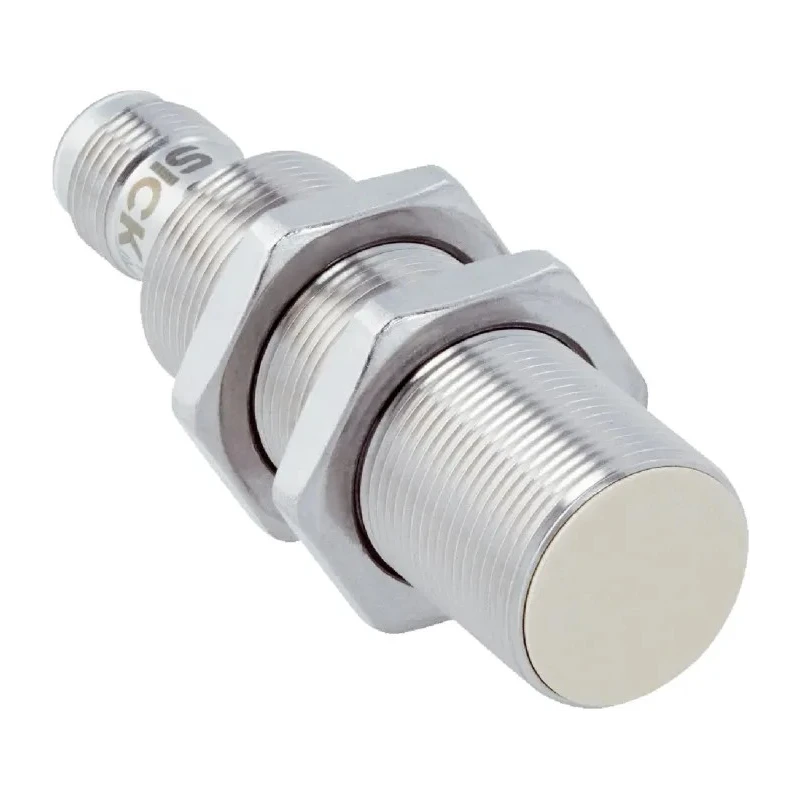

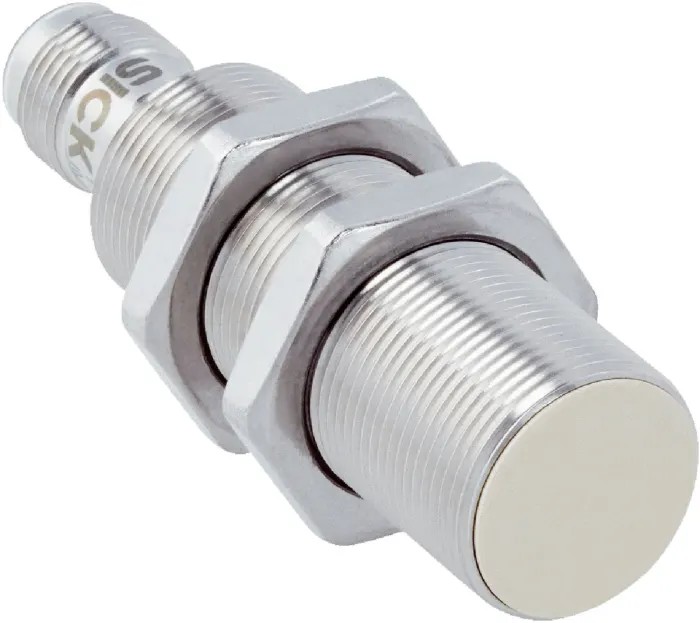

SICK Threaded Barrel Inductive Proximity Sensor M18 PNP 30V DC 200mA IMF18-12NPPNC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | −40°C to 100°C |
| Length | 65mm |
| Model | IMF18-12NPPNC0S |
| IP Rating | IP69K, IP68 |
| Width | 18mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Series | IMF18 |
| Maximum Operating Temperature | 100°C |
| Thread Size | M18 |
| Enclosure Rating | IP68, IP69K |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M12 Male Connector |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | CE Certified, cULus Listed, EN 60947-5-2, FDA, UL E181493 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 12mm |
| Electrical configuration | DC 3- and 4-wire |
| Sensing ranges | 2 mm ... 20 mm |
Key Features
- This sensor has a threaded barrel body style made of stainless steel for high durability.
- It features a non-flush mount type with M12 male connector terminals.
- The sensor has an IP68 and IP69K enclosure rating, making it resistant to industrial cleaning agents and water ingress.
- Operating temperature ranges from -40 degrees Celsius to 100 degrees Celsius, suitable for demanding industrial environments.
- It detects metal objects up to a maximum range of 12 millimeters using unshielded sensing technology.
- The sensor allows a maximum switching frequency of 1 kilohertz for fast response times.
- It supports DC 3- and 4-wire electrical configurations and is IO-Link compatible for flexible automation uses.
- Complies with CE, cULus, EN 60947-5-2, FDA, and UL E181493 standards ensuring quality and safety.
Product Description
The SICK IMF18-12NPPNC0S is a high-quality threaded barrel inductive proximity sensor designed with an M18 thread size and PNP output type, suitable for industrial automation applications.
Powered by 30V DC and capable of a switching current up to 200mA, this sensor delivers consistent and reliable metal object detection with a maximum sensing distance of 12 mm.
Constructed with a stainless steel housing, it withstands harsh environments with an operating temperature range from -40°C to 100°C and an IP68/IP69K rating protecting against dust, water, and industrial cleaning agents.
The sensor features a non-flush mount type and an M12 male connector providing easy integration with standard controls and automation systems. It supports DC 3- and 4-wire configurations and is IO-Link compatible for enhanced flexibility and diagnostics.
Its unshielded design allows for precise sensing in applications with metal detection requirements at switching frequencies up to 1 kHz, making it ideal for fast and accurate industrial processes.
Certified for CE, cULus, EN 60947-5-2, FDA, and UL E181493 standards, this sensor ensures compliance with international quality and safety norms.
Manufactured in Hungary, the IMF18 sensor series by SICK integrates ASIC technology for heightened process reliability and ease of commissioning through visual adjustment indicators.
This sensor has a threaded barrel body style made of stainless steel for high durability. It features a non-flush mount type with M12 male connector terminals. The sensor has an IP68 and IP69K enclosure rating, making it resistant to industrial cleaning agents and water ingress.
Operating temperature ranges from -40°C to 100°C, suitable for demanding industrial environments. It detects metal objects up to a maximum range of 12mm using unshielded sensing technology. The sensor allows a maximum switching frequency of 1 kHz for fast response times.
It supports DC 3- and 4-wire electrical configurations and is IO-Link compatible for flexible automation uses. Complies with CE, cULus, EN 60947-5-2, FDA, and UL E181493 standards ensuring quality and safety. Manufactured in Hungary with robust SICK ASIC technology ensuring precise and stable process control.
Explore more Inductive Proximity Sensors and automation components at EnvMart for comprehensive industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sensing distance of this model is 12 millimeters, allowing it to detect metal objects effectively.
This sensor operates within a temperature range of -40°C to 100°C, suitable for demanding industrial environments.
It features a PNP output type, which is compatible with various industrial automation systems.
The sensor has an IP68 and IP69K enclosure rating, providing protection against dust, water, and industrial cleaning agents.
This unit allows a maximum switching frequency of 1 kilohertz, facilitating fast response times for metal detection.
It supports DC 3- and 4-wire electrical configurations, making it versatile for different applications.
The housing of this sensor is made from stainless steel, ensuring durability in harsh environments.
It features an M12 male connector, allowing for easy integration with standard controls and automation systems.
The sensor complies with CE, cULus, EN 60947-5-2, FDA, and UL E181493 standards, ensuring quality and safety.
This model has a length of 65 mm and a width of 18 mm, making it compact for various installation scenarios.
It utilizes unshielded sensing technology, which allows for precise detection of metal objects.
This sensor is manufactured in Hungary, ensuring adherence to quality standards during production.
