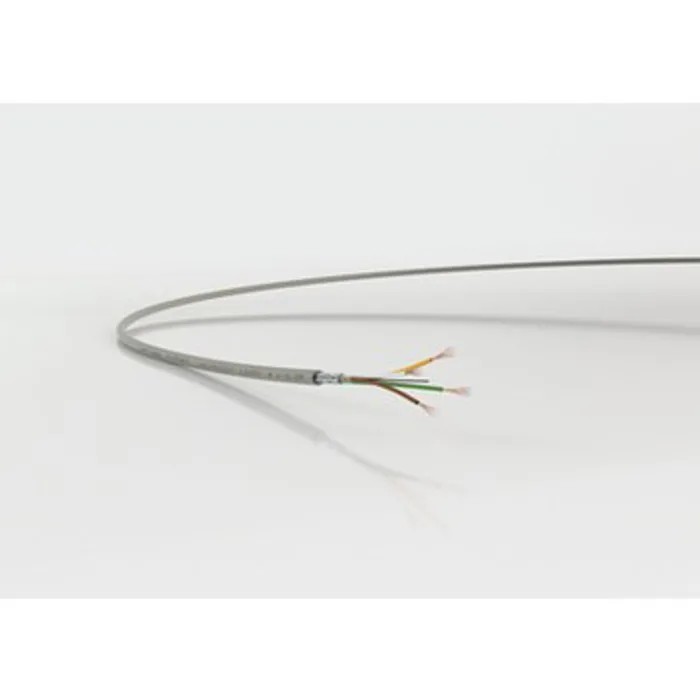

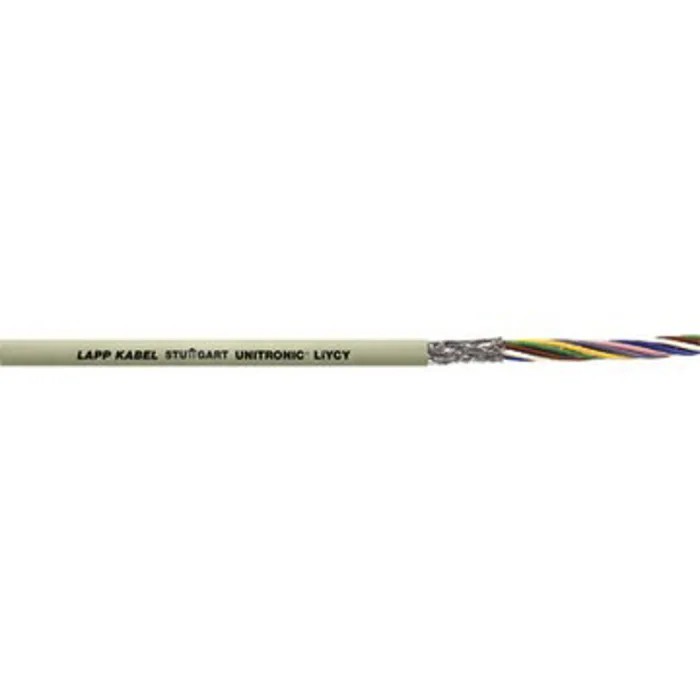

Lapp Unitronic LiYCY Series Screened Data Cable 10 Pairs 10 Cores 0.34 mm² 100m Grey Polyvinyl Chloride Jacket 250V 0034510
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.34 mm² |
| Model | 0034510 |
| Cable Length | 100m |
| Series | UNITRONIC LiYCY |
| Outside diameter | 8.3mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 10 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| Number of Pairs | 10 |
| • Operating temperature with fixed installation | -40°C to +80°C |
Key Features
- This cable features PVC-based core insulation with a flame-retardant sheath for safety in industrial environments.
- The twisted pairs are DIN colour-coded and stranded for optimal signal integrity and flexibility.
- Screened with a tinned copper braid to minimize electromagnetic interference in low frequency applications.
- Designed for fixed installation with an operating temperature range from -40°C up to +80°C.
- Ideal for signal, control, and communication applications such as RS 232 and process control.
- The outer sheath is made from a special transparent PVC mixture, providing mechanical protection and flame retardance.
- Complies with CE and RoHS standards, ensuring reliability and environmental safety.
- Manufactured in Germany, ensuring high quality and conformity to VDE and IEC standards.
Product Description
Lapp 0034510 Unitronic LiYCY Series screened data cable is engineered for precision signal and data transmission in demanding industrial and automation settings. This high-quality cable includes 10 pairs (10 cores) of stranded bare copper conductors each with a cross-sectional area of 0.34 mm², color-coded according to DIN standards for easy identification and installation.
The cable has a grey polyvinyl chloride (PVC) jacket which offers robust mechanical protection with a flame-retardant rating compliant with IEC 60332-1-2 and EN 60332-1-2, making it safe for fixed installations. Its screened construction includes a tinned copper braid to effectively reduce electromagnetic interference, ensuring signal integrity especially in environments with prevalent electrical noise.
Suitable for a broad range of applications including RS 232 interfaces, process control, communications, signal, and broadcast systems, the Unitronic LiYCY cable offers reliable performance within an operating voltage limit of 250V. The cable is designed for fixed installations with operating temperatures ranging from -40°C to +80°C, with the ability to handle occasional flexing between -5°C and +70°C, granting versatility where installation conditions vary.
Core insulation is PVC-based to protect conductors and provide durability. Multiple cores are twisted in layers to reduce crosstalk and improve signal quality. Color coding per DIN ensures easy pairing and maintenance. The braided shield made from tinned wires enhances EMI protection.
The outer jacket’s transparent special PVC mixture safeguards the cable from environmental influences. Flame-retardant properties comply with VDE 0472 and IEC standards. Manufactured in Germany by Lapp, a trusted name in industrial cables.
When combined with compatible accessories such as M16 to M50 Skintop EMC cable glands, this cable ensures a complete solution for secure and efficient cable management in industrial automation and control systems. Purchase from EnvMart for reliable wiring solutions that meet rigorous industrial specifications and standards.
Discover more in our Data Cable category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is +80°C.
This model features 10 cores.
The conductors have a cross-sectional area of 0.34 mm².
The cable features PVC-based core insulation.
The cable has a length of 100 meters.
The voltage rating for this cable is 250V.
It is screened with a tinned copper braid to minimize electromagnetic interference.
The outside diameter of the cable is 8.3 mm.
The cable complies with CE and RoHS standards.
The minimum operating temperature is -40°C.
The conductors are made of bare copper.
This cable is manufactured in Germany.
