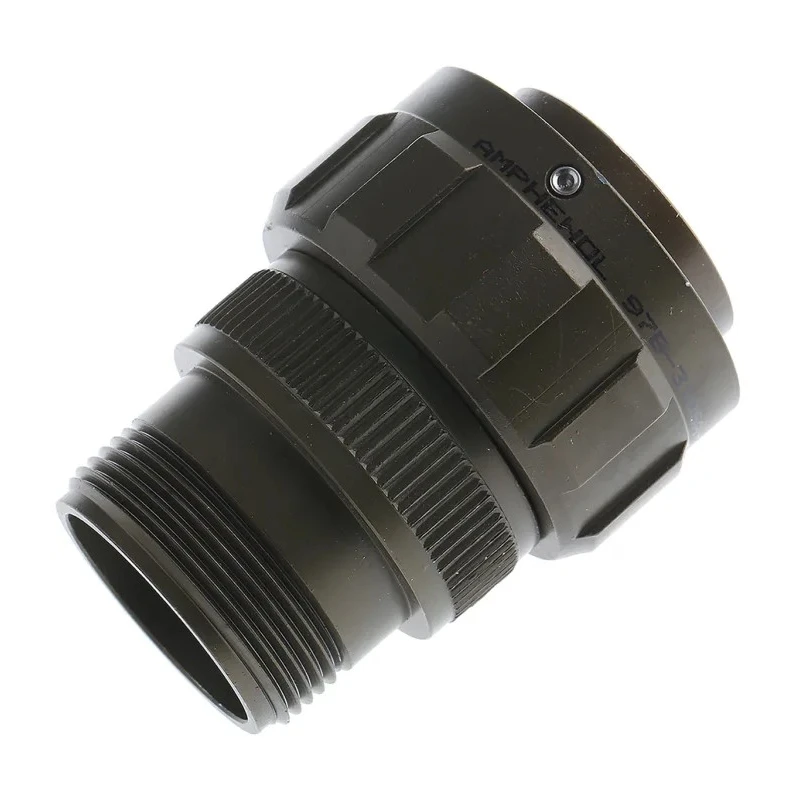

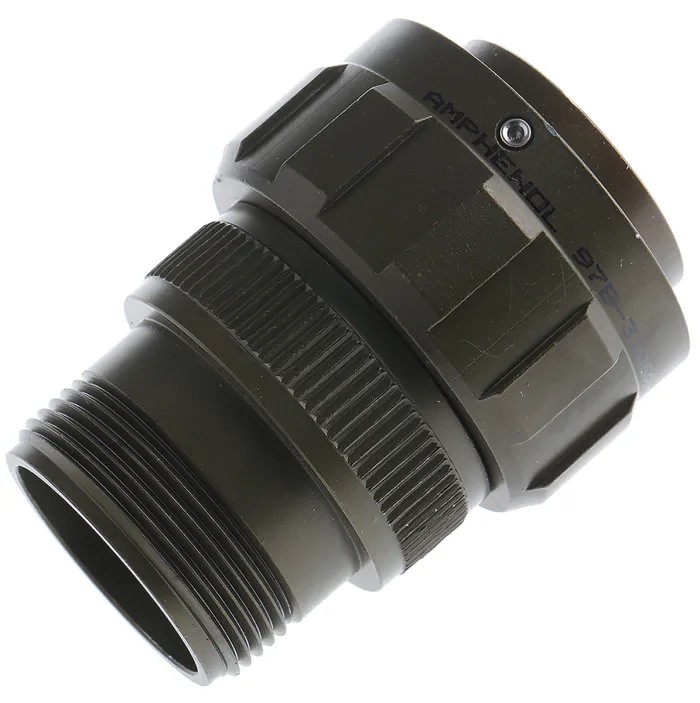

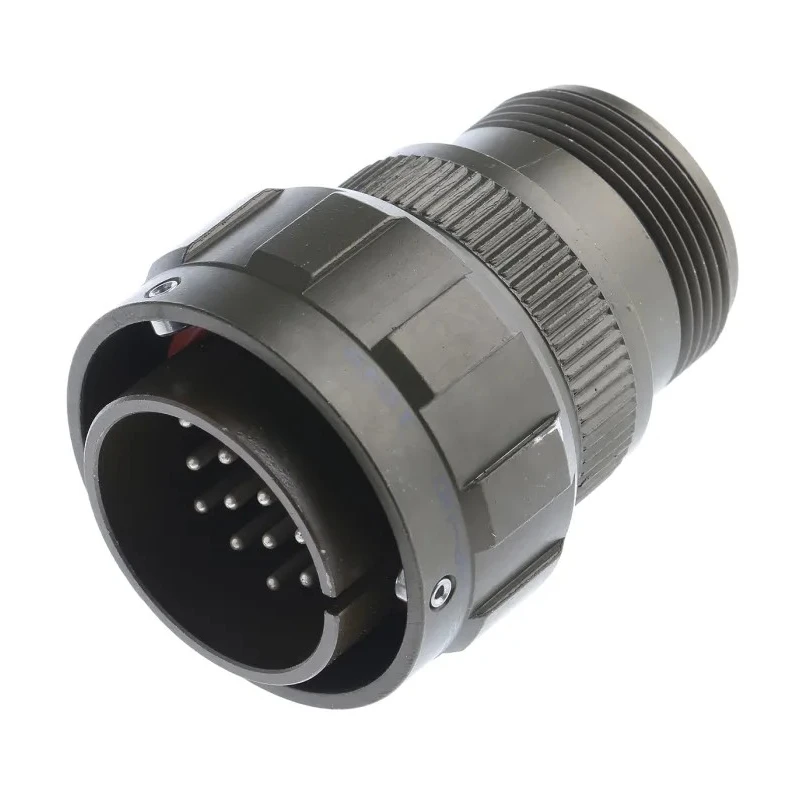

Amphenol Limited MIL Spec Circular Connector 19 Contacts 13A 500V AC Brass Contact Olive Drab Cadmium 97B-3106A-22-14P-HD

Amphenol Limited 97B-3106A-22-14P-HD MIL Spec Circular Connector is a high-quality 19-contact male cable connector designed to meet MIL-DTL-5015 military specifications. This connector ensures secure and robust connections suitable for demanding industrial, military, and aerospace environments.

Its 13A current rating and 500V AC voltage rating provide reliable power and signal transmission. The connector features a bayonet coupling type for easy and secure mating, with a straight orientation and a cable mount type configuration. The shell size 22 aluminium alloy housing is finished with olive drab cadmium plating to enhance corrosion resistance and durability.

The contacts are made from brass and plated with silver for excellent conductivity and reliable performance. The connector also includes strain relief to protect the cable from mechanical stress, increasing the longevity of the connection. Operating temperature ranges from -55°C to 125°C, making it suitable for extreme environments.

This Mil Spec Circular Connector’s design includes an olive-colored shell and polychloroprene insulator, providing environmental protection and ruggedness essential in military and industrial use cases. The connector’s bayonet mating system ensures a fast and secure connection, compatible with BS 9522 F0032 standards.

Typical applications include military communications, aerospace systems, industrial machinery, instrumentation, and power equipment requiring durable and reliable circular connectors. Its compliance with military standards guarantees outstanding quality and resilience under tough usage conditions.

The connector features a bayonet mount type with a straight orientation and shell size 22 for secure cable mounting. Contacts are brass with silver plating, housed in an aluminium alloy body with olive drab cadmium plating.

Designed to meet MIL-DTL-5015 military standards ensuring durability and performance in harsh environments. Operates reliably between -55°C and 125°C with solder termination for secure connections. Strain relief is included to protect against cable stress and prolong connector life.

The olive-colored connector is ideal for industrial, military, and aerospace applications requiring environmental protection and robust performance. Explore the Electronics & Electricals Circular Connectors category at EnvMart for more specialized connectors and accessories from trusted brands like Amphenol Limited.
