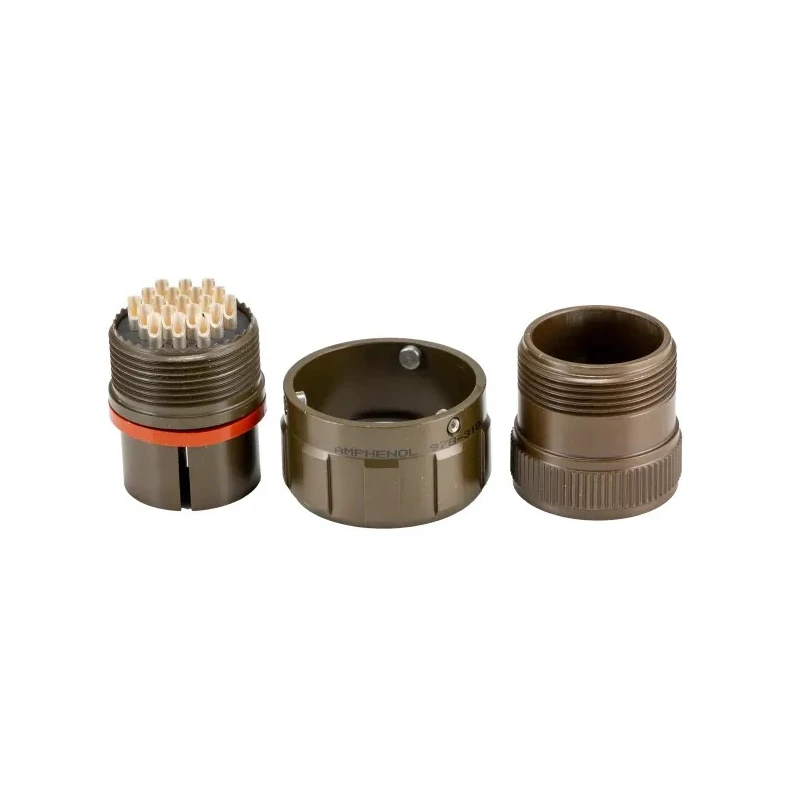

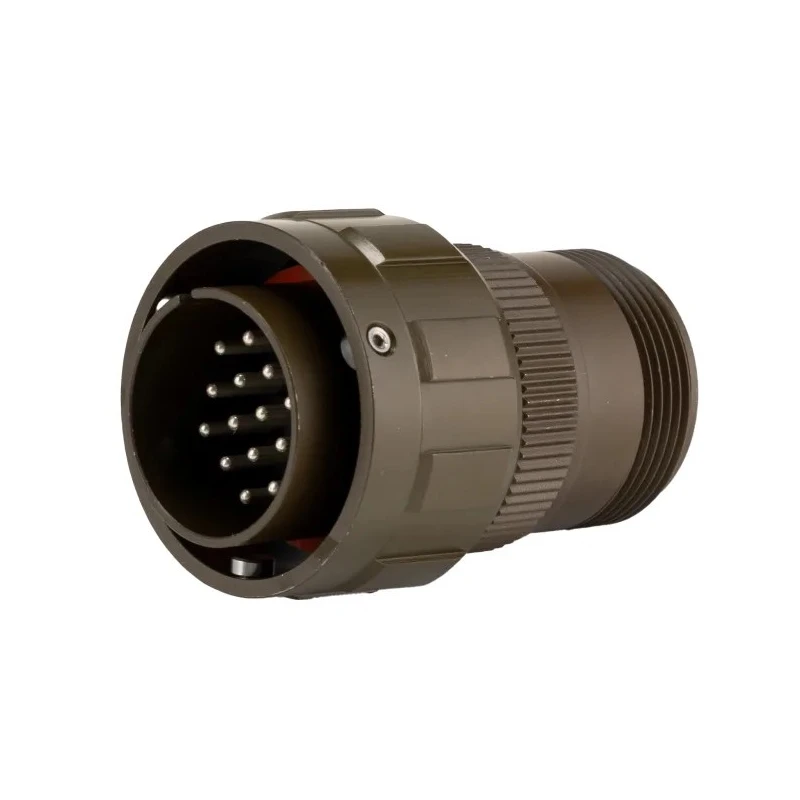

Amphenol Limited MIL Spec Circular Connector 19 Contacts Brass Straight Olive Cable Connector Female 97B-3106A-20-A48P-HD

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Limited MIL Spec Circular Connector 19 Contacts Brass Straight Olive Cable Connector Female 97B-3106A-20-A48P-HD

Name: Amphenol Limited MIL Spec Circular Connector 19 Contacts Brass Straight Olive Cable Connector Female 97B-3106A-20-A48P-HD
Brand: Amphenol Limited
SKU: 185745
Price: 140.83 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Brand	Amphenol Limited
Colour	Olive
Orientation	Straight
Model	97B-3106A-20-A48P-HD
Mount Type	Cable
Contact Material	Brass
Series	97B
Termination Type	Solder
Contact Plating	Silver
Number of Contacts	19
Contact Gender	Male
Connector Gender	Female
Shell Size	20
Military Standard	MIL-DTL-5015
Mating Type	Bayonet
Connector Size	Standard
Shell Plating	Aluminium Alloy

Key Features

Certified MIL-DTL-5015 military standard for rugged use cases.
Bayonet locking coupling ensures reliable and easy mating.
Solder termination type for strong electrical connections.
Strain relief included for durability in harsh environments.
Compatible with female connector gender and male contact gender.
Shell size 20 with olive drab finish for corrosion resistance.
Operates with 19 contacts to support multiple circuits.
Contacts made of brass with silver plating for excellent conductivity.

Product Description

Amphenol Limited 97B-3106A-20-A48P-HD Mil Spec Circular Connector is engineered to meet stringent MIL-DTL-5015 military specifications for circular connectors, ideal for defense, industrial, and aerospace applications that require robust and reliable connections.

This straight cable mount connector features 19 metal contacts arranged for optimal connectivity and data transmission. The contacts are brass with silver plating over nickel, providing superior electrical conductivity and resistance to corrosion. The connector's olive drab aluminium alloy shell offers environmental protection and durability.

The bayonet mating system provides a secure and quick coupling mechanism, reducing installation time while ensuring a strong, vibration-resistant connection. The connector includes strain relief to protect wiring from mechanical stress in demanding conditions.

Designed for use with female connector gender and male contacts, this 97B series connector supports standard cable termination methods with solder bucket contacts for reliable solder connections. Its standard shell size 20 meets dimensional specifications for seamless integration.

Applications include industrial machinery, aerospace systems, military communications, and other environments requiring MIL-STD compliant connectors that deliver high performance under harsh conditions.

Compliant with MIL-DTL-5015 military standard for circular connectors. Bayonet coupling mechanism for secure and fast mating. Robust aluminium alloy shell with olive drab finish. 19 brass contacts with silver plating for conductivity and corrosion resistance.

Strain relief to enhance cable durability. Solder termination type ensuring a strong, reliable electrical connection. Designed for industrial, military, aerospace, and harsh environment use. Discover more connectors and circular connector accessories within the Electronics & Electricals category at EnvMart.
