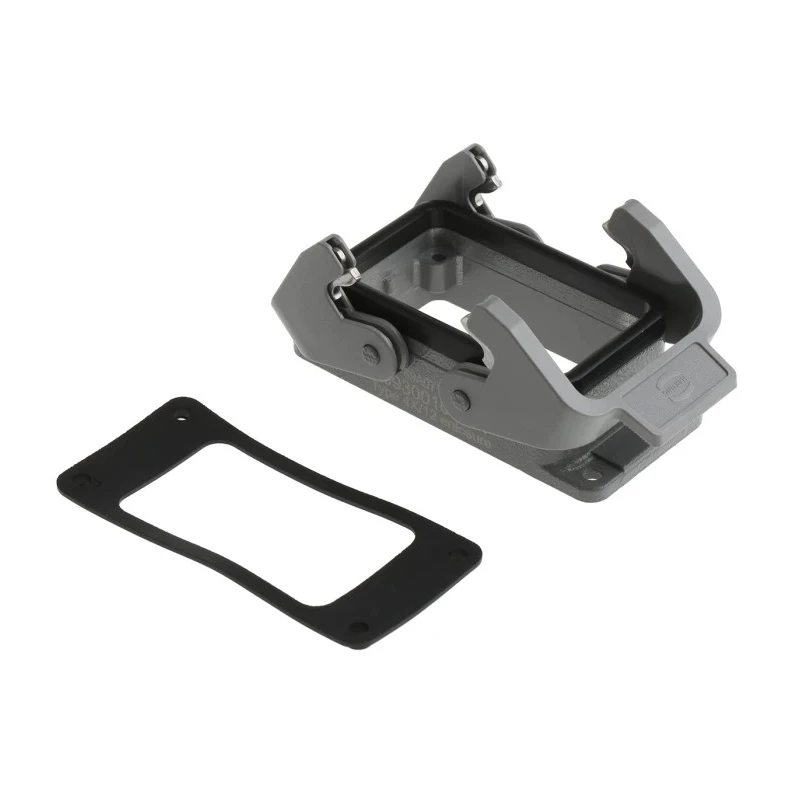

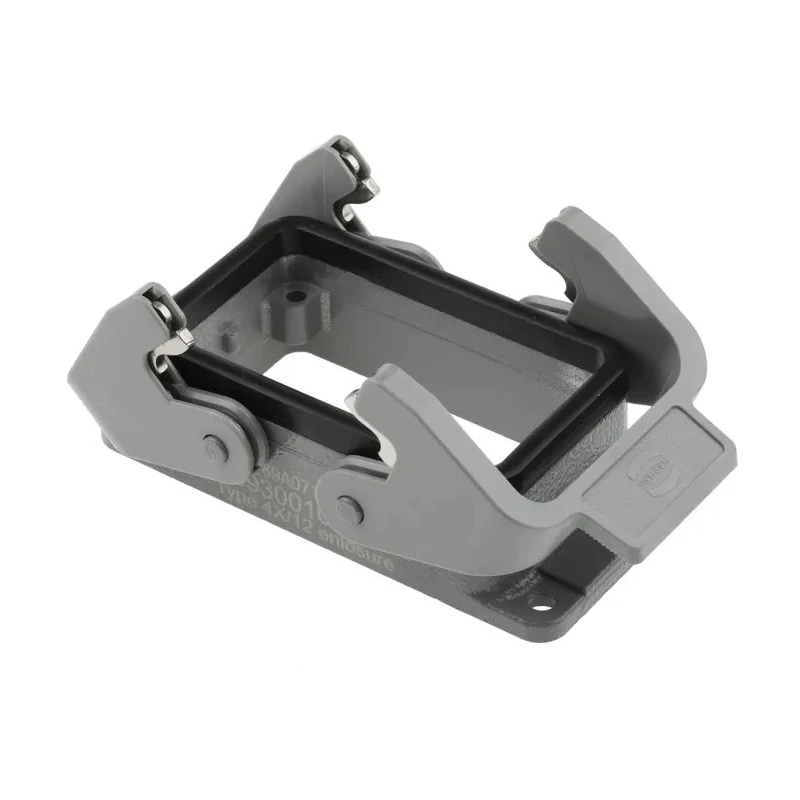

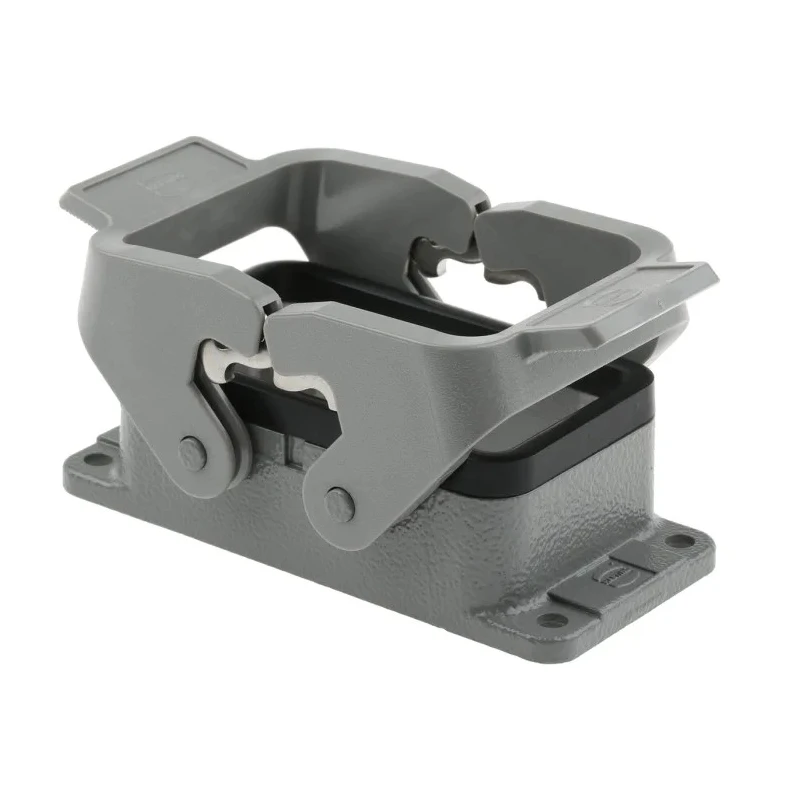

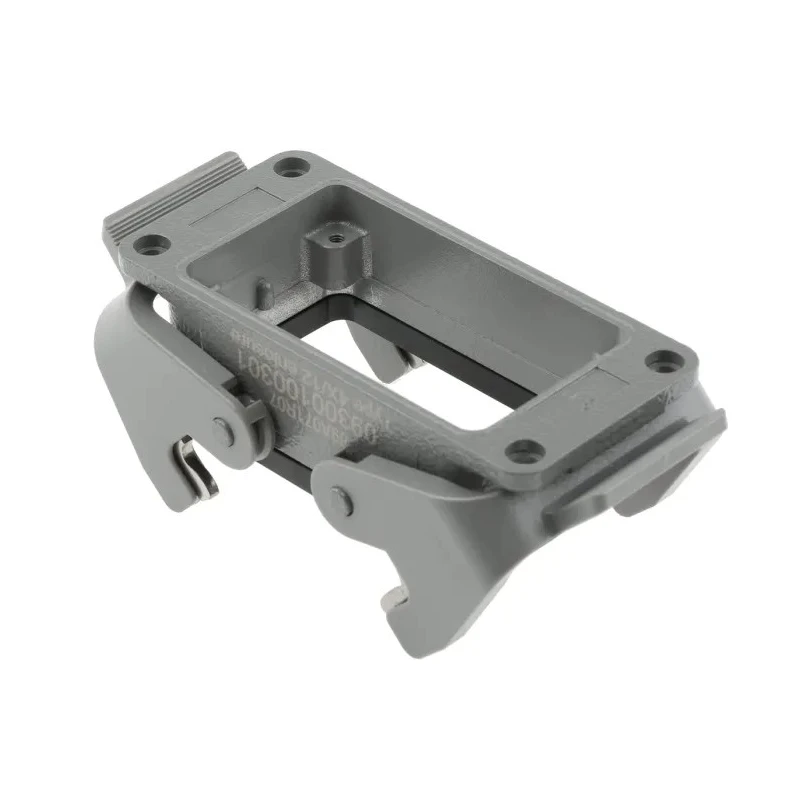

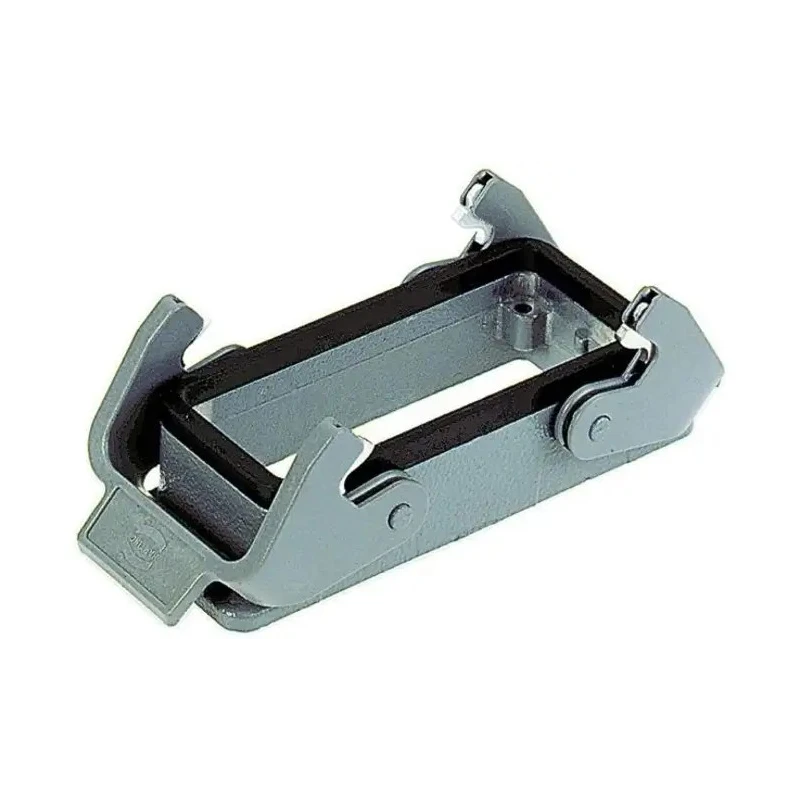

HARTING Han B Range Heavy Duty Power Connector Housing Bulkhead Mount Die Cast Aluminium IP65 09300100301

HARTING 09300100301 Heavy Duty Power Connector Housing is engineered with a die-cast aluminium body for robust, lightweight protection, ideal for industrial electrical system interfaces. Featuring a bulkhead mount design and a dual 2-lever locking mechanism, this connector housing ensures secure and reliable connections in demanding environments. The IP65 rating certifies dust-tight and water-resistant operation suitable for harsh factory and outdoor conditions.

The housing withstands extreme temperatures ranging from −40°C to +125°C and supports over 500 mating cycles, ensuring long-lasting durability in automation and manufacturing applications. The main seal utilizes NBR (Nitrile Butadiene Rubber) material for effective sealing, while locking elements are composed of polycarbonate and stainless steel, contributing to mechanical strength and corrosion resistance.

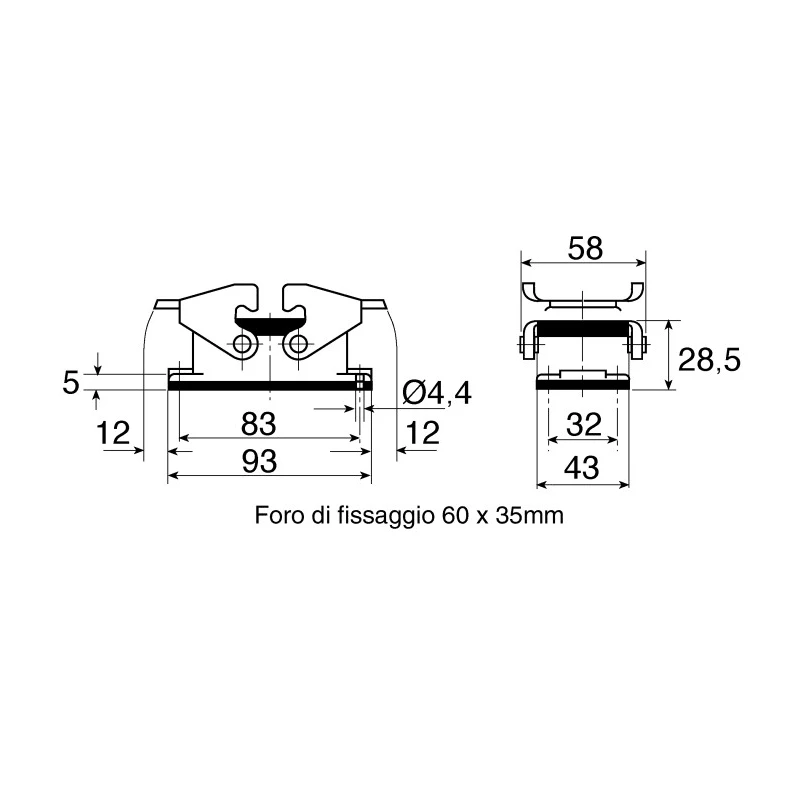

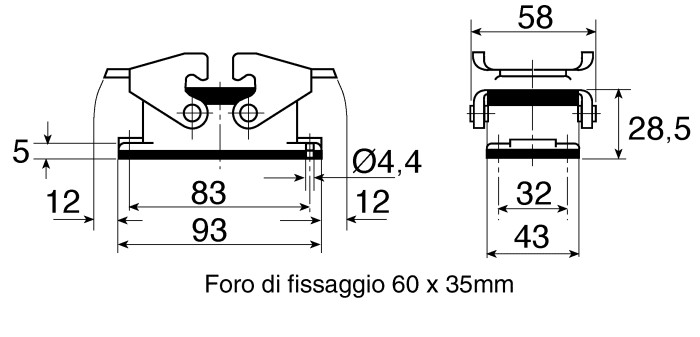

The external surface is treated with a powder-coat finish in RAL7037 dust grey color, providing enhanced corrosion protection for outdoor or industrial harsh-use cases. Installation involves a bulkhead mount utilizing M4 screws tightened to 1 N·m torque ensuring secure attachment to panels or control enclosures.

This connector housing conforms to CE and DNV GL standards, underscoring its quality and reliability. Manufactured in Germany, it is intended as a single unit weighing approximately 90 grams. It is recommended for use in machine tool panel power connections, control cabinet bulkheads, industrial automation distribution modules, and power interfaces on mobile plant equipment.

Note the housing stock no. 114-7964 is compatible only with the Han E AV series connectors. For safety, connectors should not be mated or unmated under electrical load and should be polarized appropriately to prevent incorrect connections.

Die-cast aluminium body for rugged use and light weight. IP65 ingress rating secures protection against dust and water jets. Double 2-lever locking system for secure mechanical retention. Wide operational temperature range from −40°C to +125°C.

Designed for over 500 connection cycles ensuring high reliability. NBR main seal and polycarbonate stainless steel locking parts. Corrosion-resistant powder-coated finish in RAL7037 dust grey. Bulkhead mounting with M4 screws provides safe installation.

CE and DNV GL compliant; German manufactured quality. Weight: approximately 90 grams per unit. Explore our comprehensive selection of Heavy Duty Power Connector Housings at EnvMart for industrial and automation applications.
