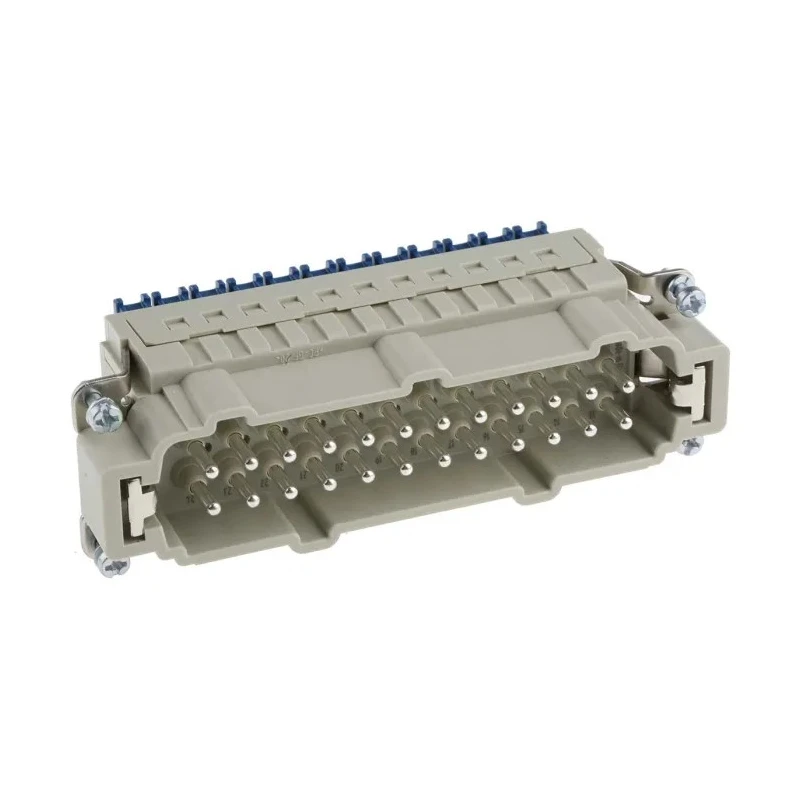

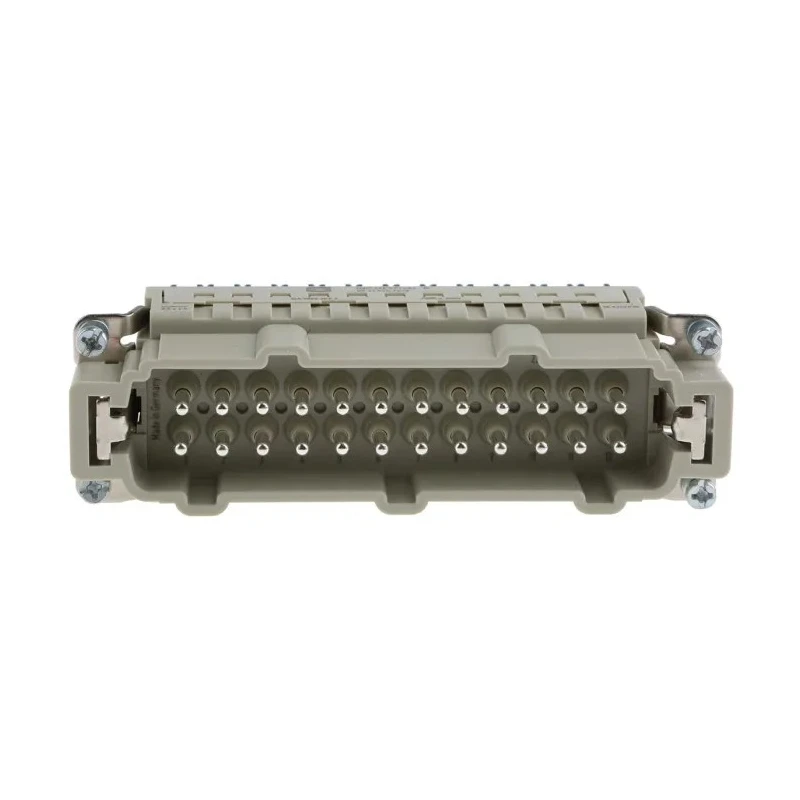

HARTING Heavy Duty Power Connector Insert, 16A, Han ES Press Series Male, 24 Contacts 09330242648

HARTING 09330242648 Heavy Duty Power Connector Insert is designed for industrial and heavy-duty electrical power connection systems. It is a male connector insert from the Han ES Press series, rated at 16 amperes and capable of handling voltages up to 500V. The insert features 24 contacts arranged in two rows, made from copper alloy with silver plating to ensure excellent electrical conductivity and resistance to vibration.

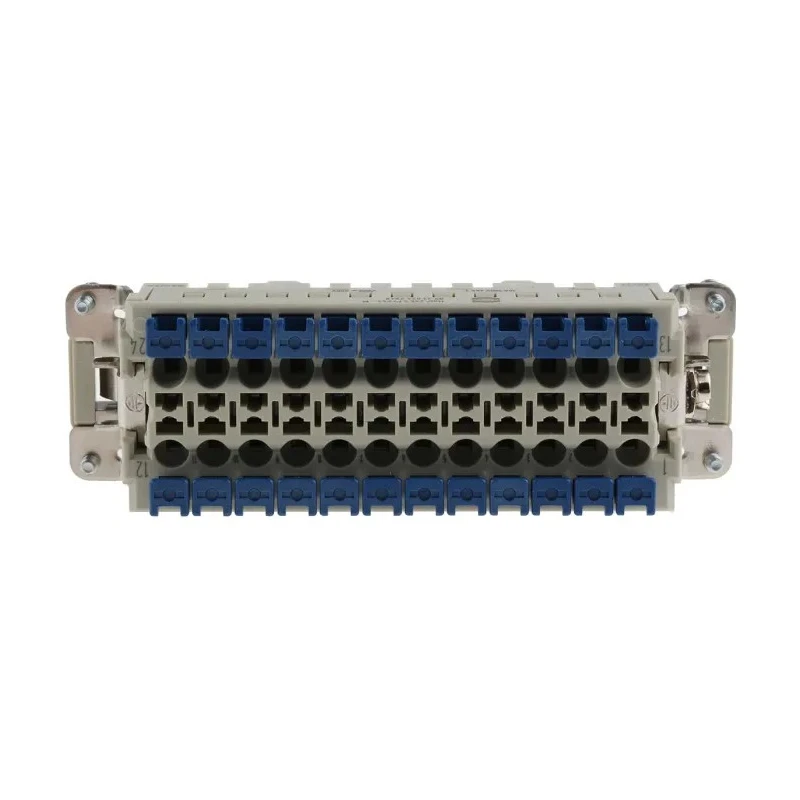

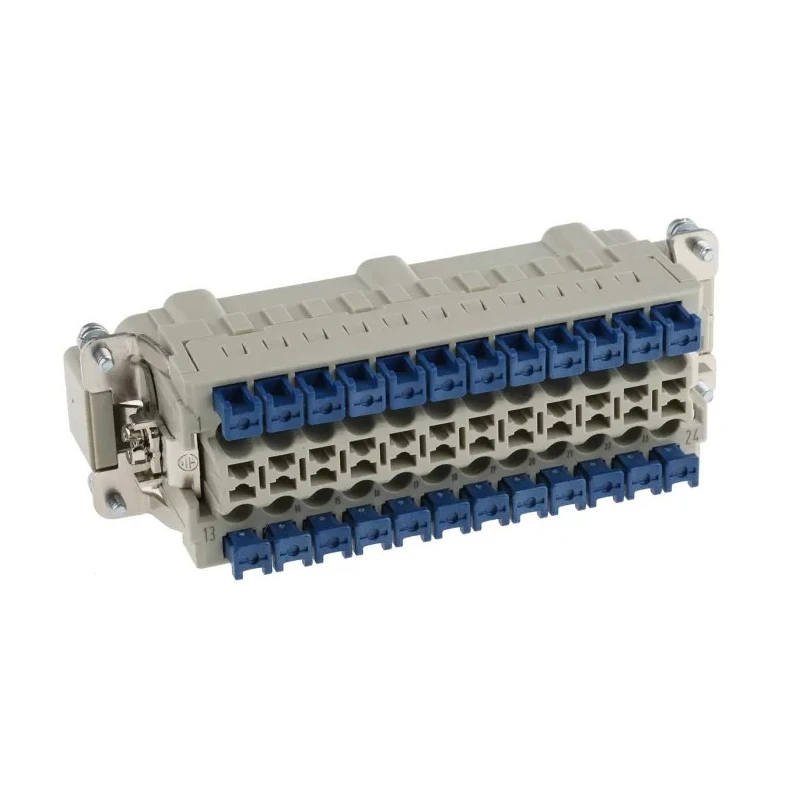

This connector insert employs cage clamp terminations which facilitate quick and reliable wiring without the need for additional tooling. It accommodates a wire size range from 0.14 mm² to 2.5 mm², supporting robust and flexible wiring options according to application requirements.

The panel mount type design allows for straightforward installation into compatible housings and hoods, such as the Han B, Han M, Han EMC, Han Easy Hood, and Han HPR series. The insert's M3 x 10 thread size provides secure mechanical fastening and the straight orientation supports optimal connection layout.

Optional ES Press plug-in jumpers can be employed with this connector insert to easily bridge contacts within the connector, enabling configurations such as Star and Delta motor connections. This flexibility makes the product versatile for various industrial, manufacturing, electrical distribution, and automation applications.

Manufactured in Germany, this HARTING product meets high standards of quality and reliability essential for demanding industrial environments and ensures long operational life. Rated at 16A current for heavy-duty power connector applications.

Features Han ES Press Series, male connector type with 24 contacts in two rows. Supports wire sizes from 0.14 mm² up to 2.5 mm² with cage clamp terminations for easy wiring. Panel mount type with a voltage rating of 500V suitable for industrial electrical equipment.

Constructed with copper alloy contacts plated with silver ensuring high conductivity and vibration proofing. Includes M3 x 10 thread size and straight orientation for secure connections. Compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR series housings and hoods.

Designed and manufactured in Germany, ensuring premium build quality and durability.

This connector insert is ideal for industries such as manufacturing, industrial automation, power distribution, and electrical equipment assembly. It offers reliable connection solutions for demanding applications and environments.
