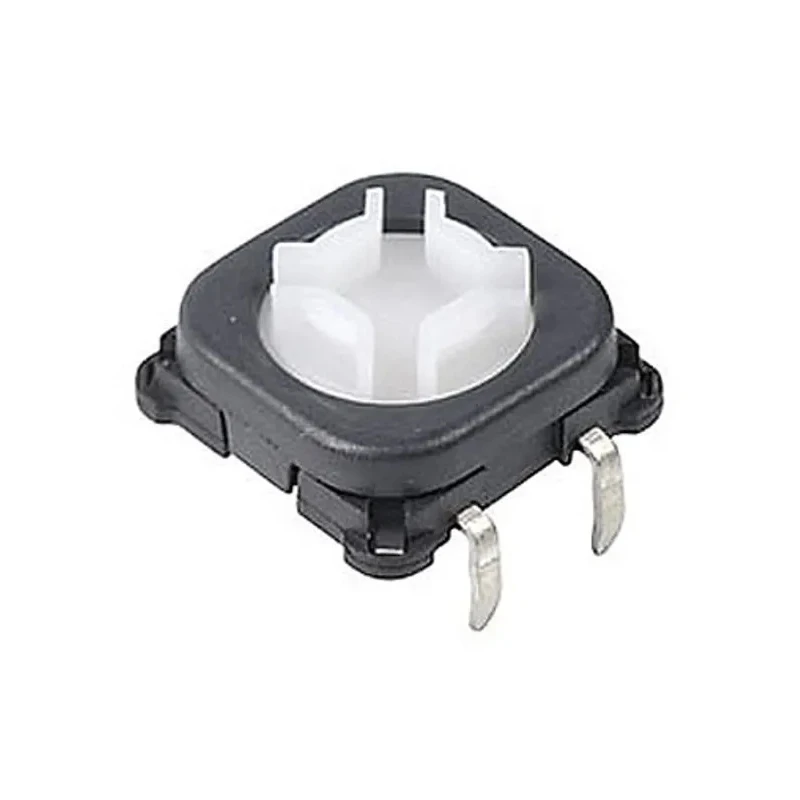

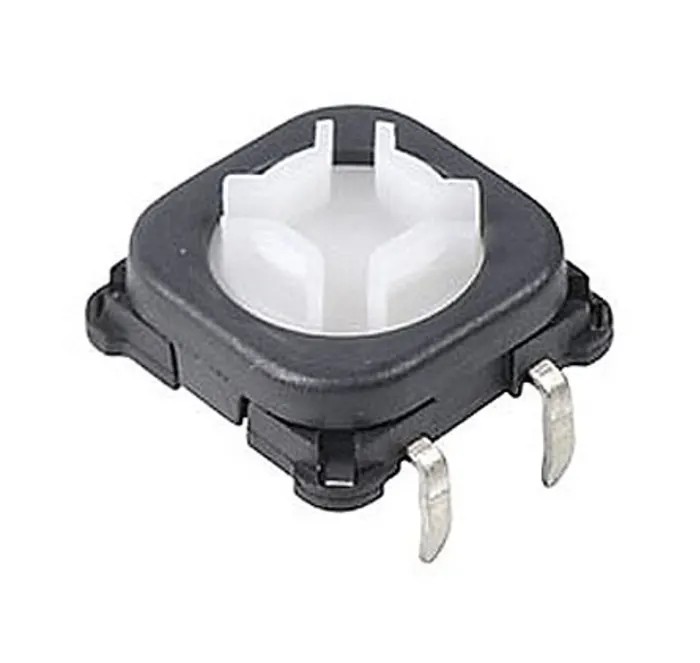

EAO Illuminated Contact Block 42 V AC/DC, 1 Normally Open Contact, LED Included 92-851.342

Free Delivery in India | Lowest Global Shipping Charges

EAO Illuminated Contact Block 42 V AC/DC, 1 Normally Open Contact, LED Included 92-851.342



Category Push Button Contact Blocks & Light Blocks Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Voltage	42, 42V ac
Brand	EAO
Height	9.3mm
Length	16.8mm
Width	12.5mm
Current Rating	100mA
Contact Configuration	1 NO
Terminal type	PC Pin
Illumination type	LED
Block Type	Contact Block

Key Features

Equipped with a built-in LED for clear status indication.
Supports low switching current of 100mA for efficient power consumption.
Features highly conductive gold contacts to resist corrosion.
Designed for secure PCB solder connections via integrated PC pins.
Compact dimensions of 16.8 mm length, 12.5 mm width, and 9.3 mm height.
Suitable for applications in agricultural equipment, vending machines, and medical technology.
Momentary switching action ensures contacts revert automatically after button release.
Offers robust performance in mining and quarrying industries.

Product Description

EAO 92-851.342 Illuminated Contact Block is a precision switch component designed for the reliable operation of electrical systems operating up to 42 V AC or DC. This contact block includes 1 normally open (NO) contact and features an integrated LED illumination, ensuring clear visual indication of switch status during operation. Its compact size of 16.8 mm length, 12.5 mm width, and 9.3 mm height makes it ideal for space-constrained PCB mounting.

The block's contacts are plated with high-quality gold to provide a corrosion-resistant connection, guaranteeing longevity and low contact resistance. With a low switching current rating of 100mA, it achieves minimal power consumption, making it well-suited for sensitive or low-power switching applications.

Equipped with integrated PC pins, the unit facilitates secure and reliable solder connection directly onto printed circuit boards. The momentary switching action ensures that the contacts remain in the switched state only while the actuator is pressed, automatically returning to the original position upon release. This behavior makes it ideal for safety-related controls or temporary actuations in industrial settings.

The contact block forms part of EAO's 92 Halo Series, providing modular illuminated switches that combine multiple indicators within a single unit to maximize application versatility. Common uses include control panels, vehicle operator controls, A/V instrumentation, vending machine interfaces, and call box access.

Equipped with a built-in LED illumination for status indication. Contacts are gold-plated for superior conductivity and corrosion resistance. Low switching current consumption of 100mA suitable for sensitive electronics.

Compact dimensions support PCB mounting in restricted spaces. Momentary switching action for short-term activation controls. Integrated PC pin terminals ensure secure soldering on PCBs. Robust and reliable for industrial, medical, and vending machine applications.

Part of EAO 92 Halo Series modular switches with multi-function illumination.

This contact block is manufactured in Switzerland under high-quality standards and provides dependable operation in demanding environments across agricultural, mining, and medical industries. It is an essential component in electrical automation systems requiring reliable momentary switching with visual feedback.
