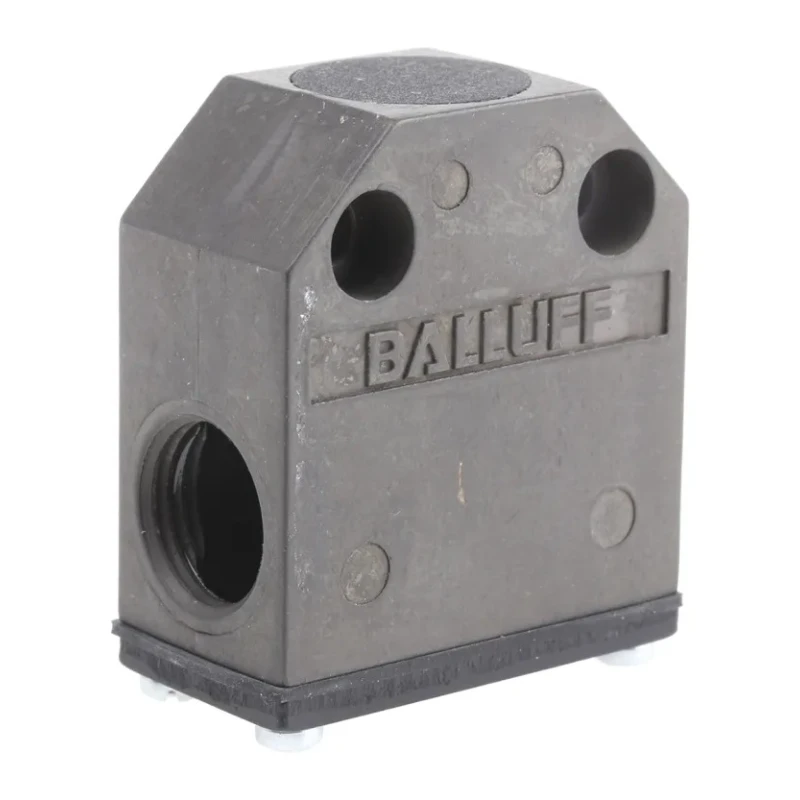

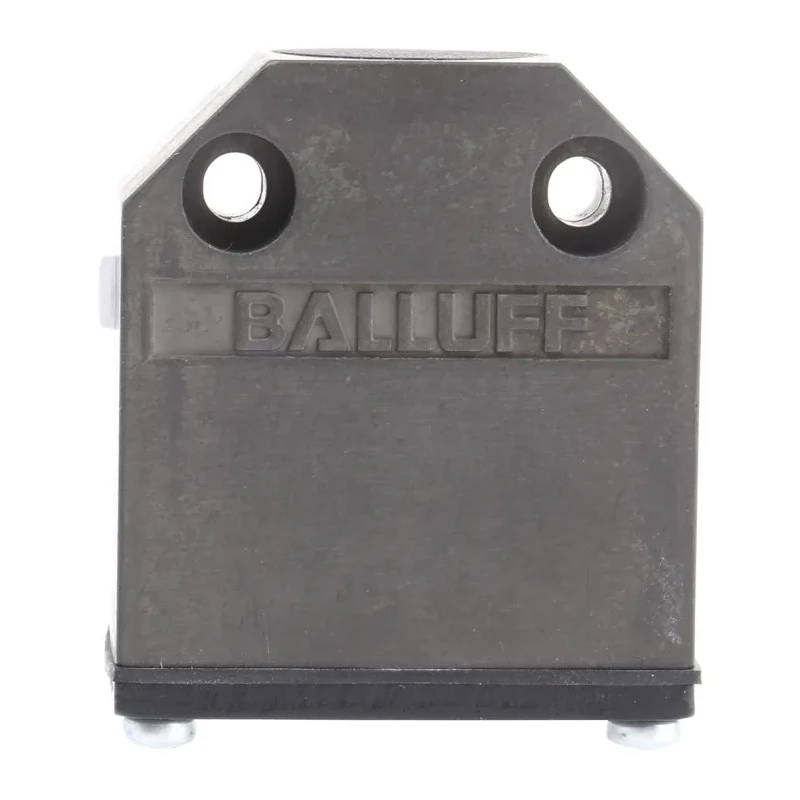

BALLUFF Block Inductive Proximity Sensor 3V Supply Voltage, 5 mm Detection Distance, 30 V DC Max Voltage BES 516-346-H2-Y

BALLUFF BES 516-346-H2-Y Block Inductive Proximity Sensor offers reliable detection of plastic materials with a maximum detection distance of 5 mm. This sensor operates at a supply voltage of 3 V and supports a maximum DC voltage of 30 V, well-suited for various industrial automation tasks.

Its aluminium body housing ensures durability and mechanical protection, while the flush mount style allows for embedding in machinery and panels with minimal intrusion. The device is designed to endure harsh environmental conditions, with an IP67 protection rating and a temperature operating range from -25°C to 70°C.

The output type is PNP providing a switching current capacity of up to 130 mA and supports a switching frequency of 500 Hz, allowing for fast and stable detection performance. The sensor features screw-type terminal connections to secure wiring in place.

Conforming to IEC 60947-5-2 (DIN EN60947-5-2) standards, this sensor is reliable for precision automation. Its compact footprint with length 48 mm, width 42 mm, and depth 22 mm enables flexible installation in tight machine assemblies.

Typical applications include automated manufacturing lines, packaging machines, robotics, and plastic part detection in industrial processes. The sensor’s robustness and precision make it well-suited for industrial, manufacturing, and automation environments.

Block style aluminium housing for durability and mechanical resistance. Flush mounting with IP67 protection for use in wet or dusty conditions. Unshielded design enables detection of plastic materials from up to 5 mm. Operating temperature range from -25°C to 70°C suitable for various industrial settings.

High switching frequency and current enable fast response in automation tasks. Browse the comprehensive range of sensors and proximity detectors at EnvMart, engineered to meet stringent industrial automation requirements.
