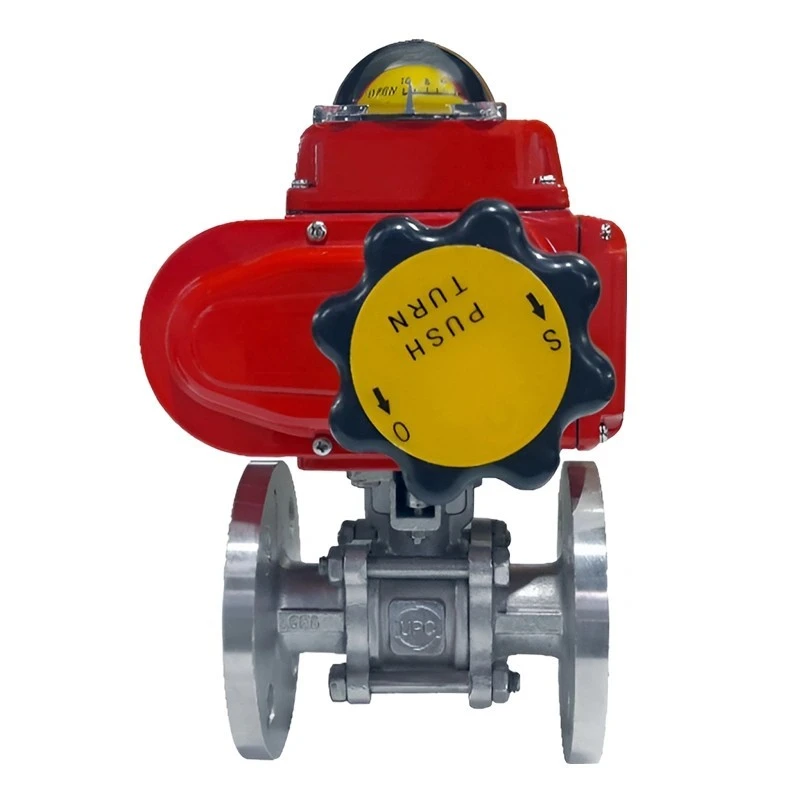

Electric Actuator Operated Three Piece Flanged End Ball Valve With CF8M (Disc)
Size
Specifications
| Brand | UPC |
|---|---|
| Body Material | Cast Stainless Steel (ASTM A351 CF8M) |
| Model | UPC-EAFB-419 |
| Standard | BS 5351 |
| Type of Product | Ball Valve |
| Test Pressure | B.T.P. 30 Bar Hyd. & S.T.P. 22 Bar Hyd. & 7 Bar Air |
| Type of Seat | Renewable Seat |
| Port Opening | Full Bore |
| Type of disc | CF8M |
| Actuator | Electric Motorize Actuator |
| End Details | Flanges as per ASA -150 (Drilled) |
| Trim Stem | Stem & Ball SS (ASTM A351 CF8M) |
| Pressure / Class Rating | Class 150 |
| Seat Ring & Gland Ring Packaging | Teflon (PTFE) |
Key Features
- Three-piece design allows for easy disassembly and servicing
- Flanged-end connection ensures secure and leak-proof installation
- Electric actuator enables automated and remote-controlled operation
- CF8M (316 Stainless Steel) disc provides excellent corrosion resistance
- Low torque operation for energy-efficient performance
- Minimal pressure drop for smooth and efficient fluid flow
- Leak-proof sealing mechanism ensures system reliability
- Ideal for handling corrosive fluids, seawater, and high-temperature applications
- Suitable for industries such as chemical processing, pharmaceuticals, and water treatment
- Durable construction ensures long-lasting performance with minimal maintenance
Product Description
UPC Electric Actuator Operated Three Piece Flanged End Ball Valve With CF8M (Disc) UPC-EAFB-419 is a high-precision, automated valve designed for efficient fluid regulation in industrial, chemical, pharmaceutical, and water treatment systems. Equipped with an electric actuator, it provides remote-controlled operation, ensuring seamless automation and precise flow control.This valve features a three-piece flanged-end design, allowing for easy maintenance, cleaning, and part replacement without removing the entire valve assembly. The CF8M (316 Stainless Steel) disc offers superior corrosion resistance, making it suitable for aggressive chemicals, seawater, and high-temperature fluids. Available on EnvMart, these Ball Valves are designed for efficient flow control with durable construction and reliable sealing. Crafted using high-quality materials, they ensure smooth operation and longevity in industrial, commercial, and domestic applications. Explore a wide range of Industrial Valves & Valve Fittings for precision control and superior performance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum test pressure for this model is 30 Bar for hydraulic testing and 7 Bar for air testing.
This valve features a body made of cast stainless steel (ASTM A351 CF8M) and has a CF8M disc, ensuring excellent corrosion resistance.
This model is available in various sizes including 15 mm, 20 mm, 25 mm, 40 mm, 50 mm, 65 mm, 80 mm, and 100 mm.
It is equipped with an electric motorized actuator for automated and remote-controlled operation.
The pressure class rating for this ball valve is Class 150.
Yes, this valve features a renewable seat, allowing for maintenance and replacement without replacing the entire valve.
The port opening of this model is full bore, allowing for efficient fluid flow.
This valve complies with the BS 5351 standard.
It features a leak-proof sealing mechanism, ensuring system reliability during operation.
The valve has flanged-end connections as per ASA -150 (Drilled), ensuring secure installation.
This valve is suitable for handling corrosive fluids, seawater, and high-temperature applications, making it ideal for industries such as chemical processing and water treatment.
The trim stem is made of stainless steel (ASTM A351 CF8M), which complements the valve's corrosion-resistant properties.
