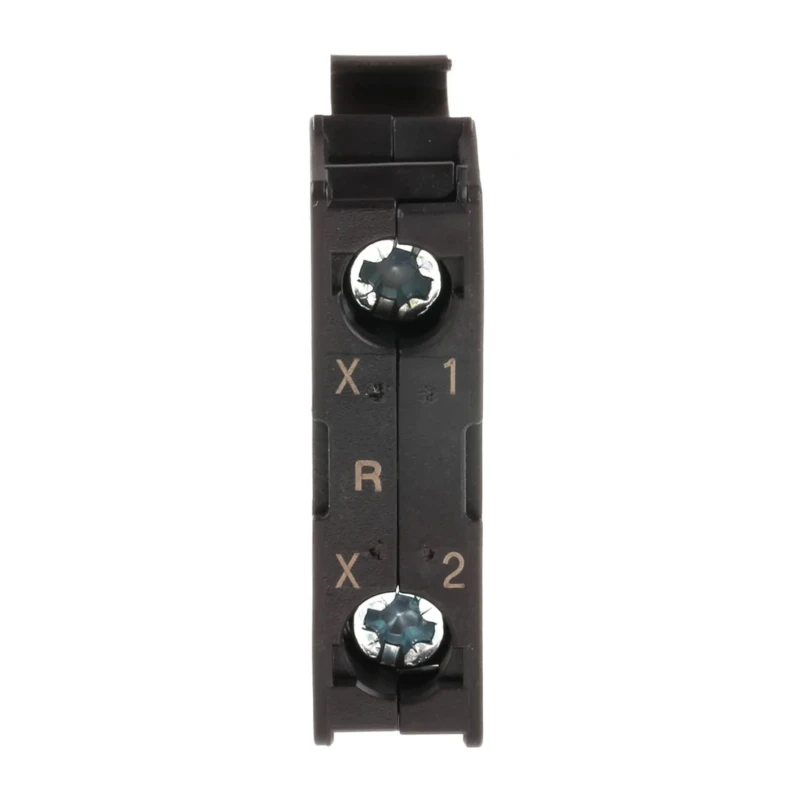

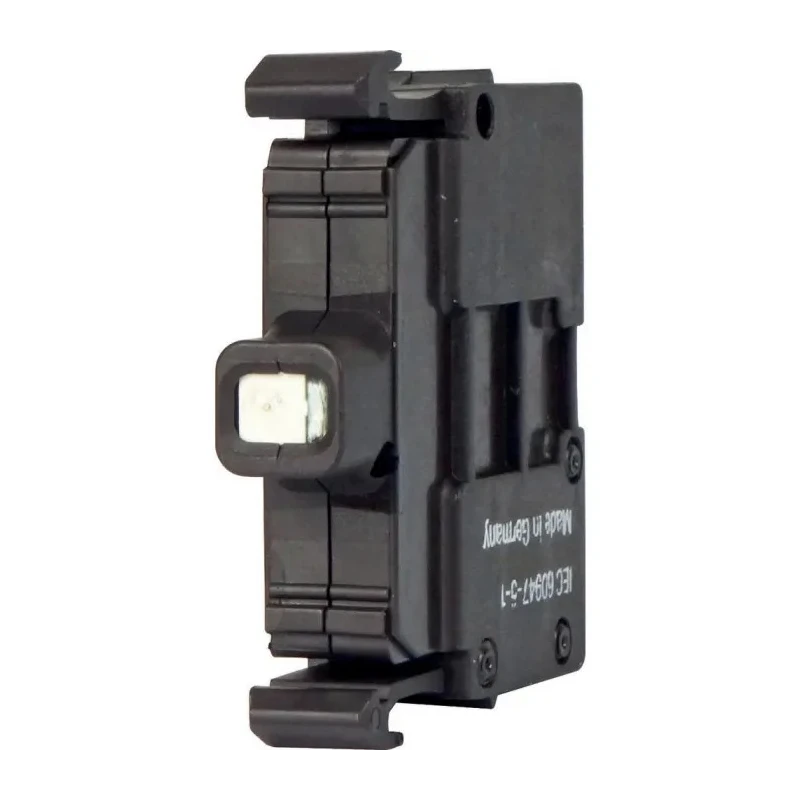

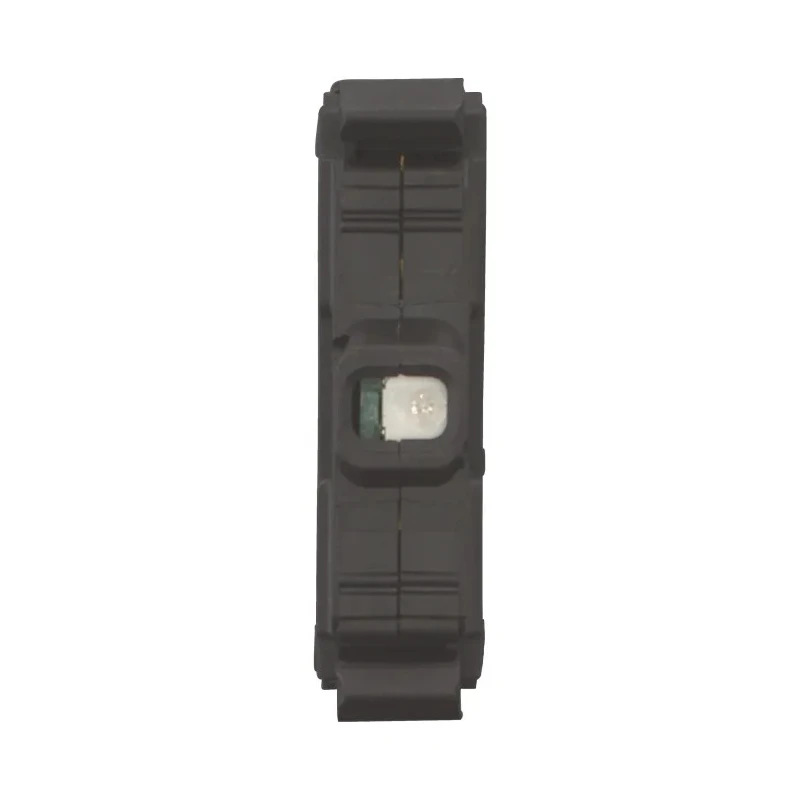

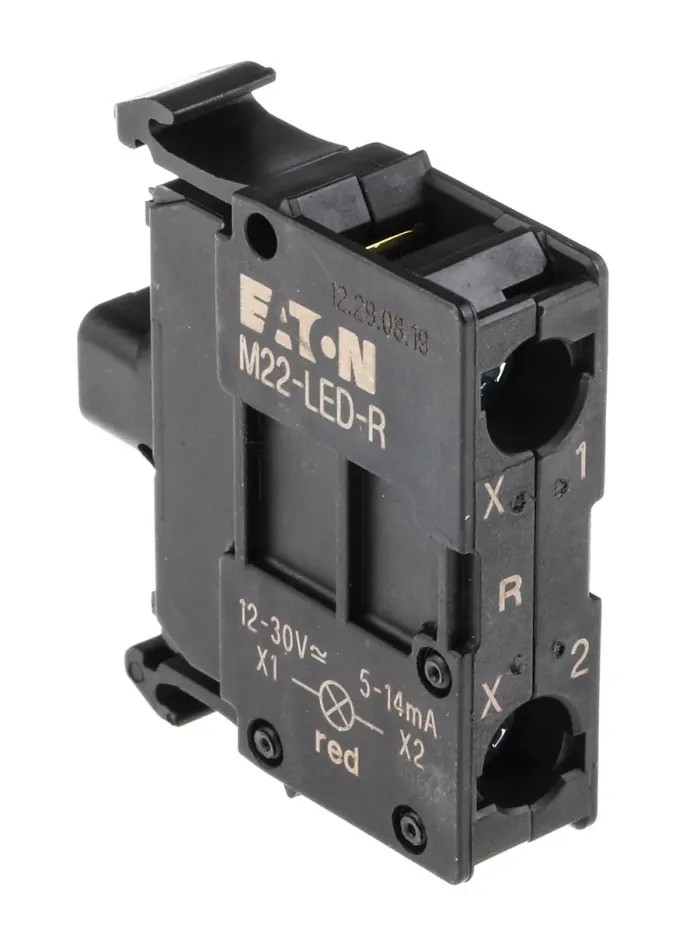

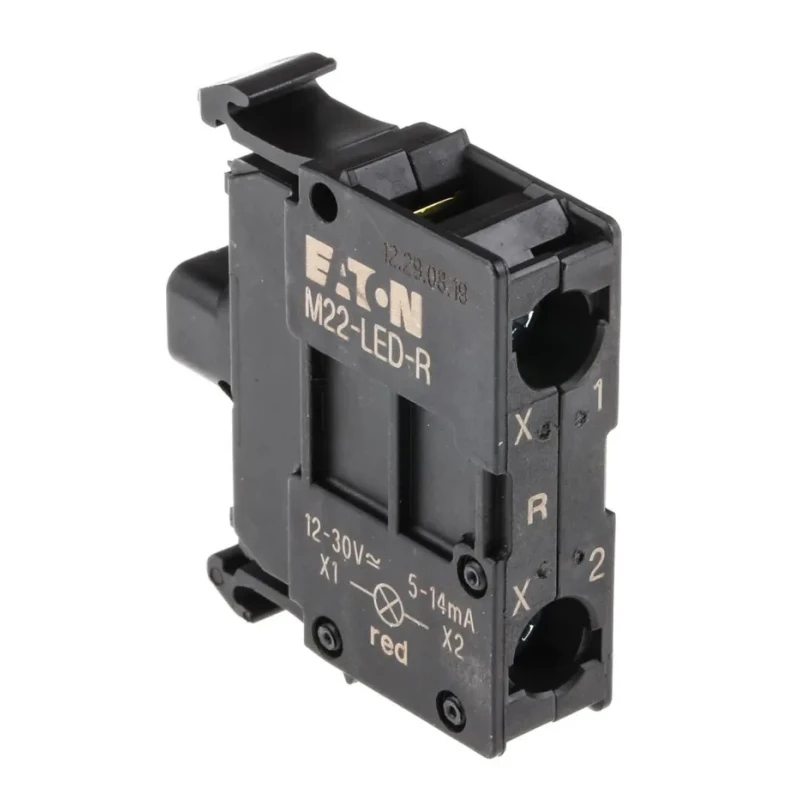

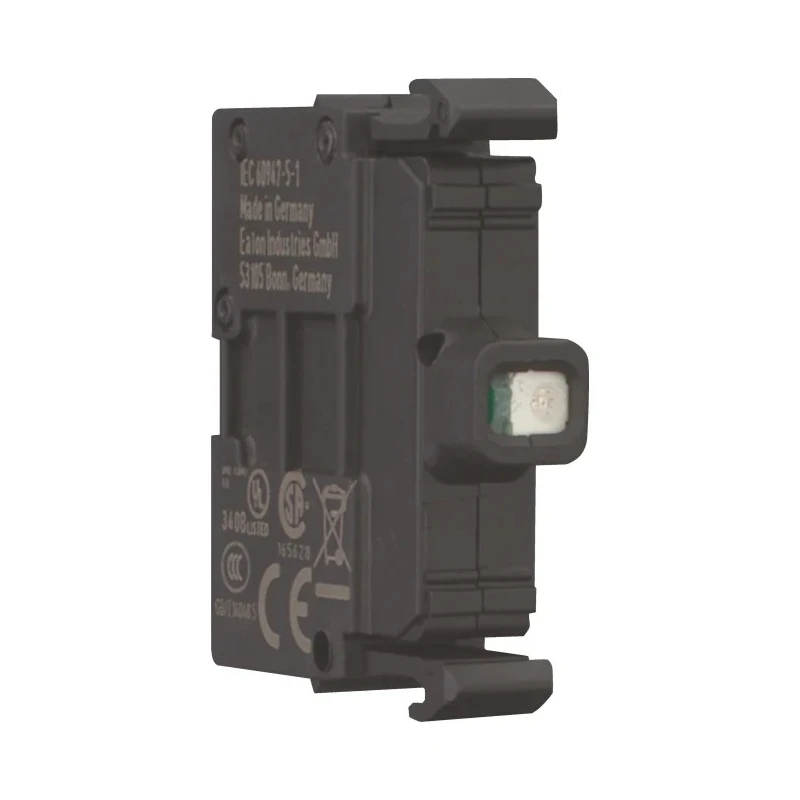

Eaton M22 Series Light Block LED, Red Illumination, 12 V AC/DC, 30 V AC/DC, Screw Terminal, 15mA Current 216558 M22-LED-R

The Eaton 216558 M22-LED-R is a premium LED light block designed for use in industrial automation and electrical control panels. It features a bright red LED illumination that operates efficiently at 12 V and 30 V AC/DC, with a minimal power draw of approximately 0.26W. This light block is ideal for visually indicating the status of push buttons, particularly in critical emergency stop or controlled stop applications.

The device includes a screw-terminal connection type for robust electrical contacts and supports a current rating of 15mA, making it energy efficient. Its operating temperature range from -25°C to 70°C allows it to function reliably in both cold and hot industrial environments.

Engineered for durability, it withholds impulse voltage surges up to 6000V AC and can resist mechanical shocks up to 30g, ensuring longevity even in harsh working conditions. The compact dimensions (71 mm length, 37.2 mm height, 30 mm width) enable easy integration into control panels with a front-fixing, front-fastening design that facilitates seamless installation and maintenance.

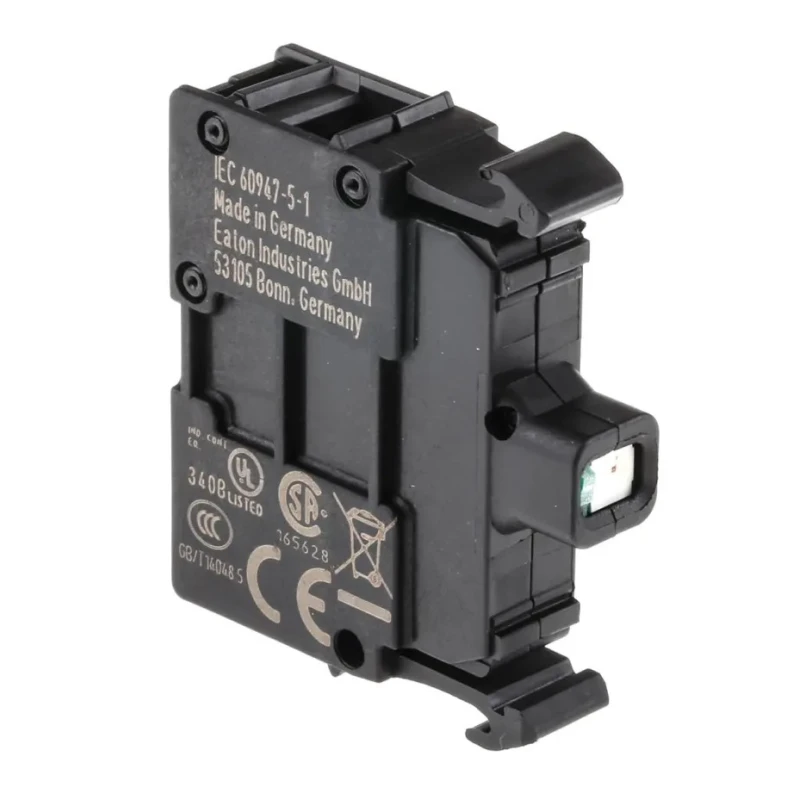

Compliance with international safety and quality standards including UL 508, IEC/EN 60947-5, IEC 60947-5-1, and CSA certifications underlines its suitability for demanding industrial and manufacturing sectors. The red illumination serves as a clear signal for emergency or fault condition reminders, aiding quick operator response.

The light block features a screw terminal for secure connectivity. Designed for a current rating of 15mA to minimize power consumption. Operates reliably in temperatures from -25°C to 70°C for harsh environments. Offers high impulse withstand voltage of 6000V AC for surge protection.

Compact body dimensions suit panel mounting ease. LED illumination helps visually confirm push button status on control panels. Robust design resists mechanical shock up to 30g for industrial use. Meets UL 508, IEC/EN 60947-5, CSA, and CE standards.

Suitable for emergency stop and controlled stop push button applications.

Widely used in electrical, automation, and manufacturing industries, the Eaton M22 Series light block ensures reliable status indication and improved safety in control systems. Browse the Electronics & Electricals category for compatible switches and push button components to build your control panel assembly with confidence.
