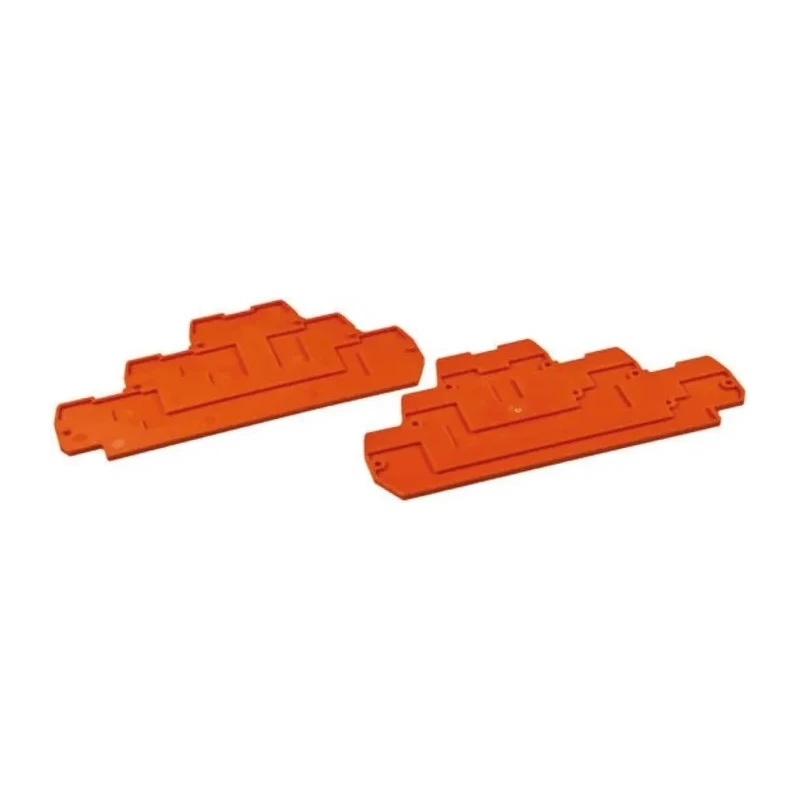

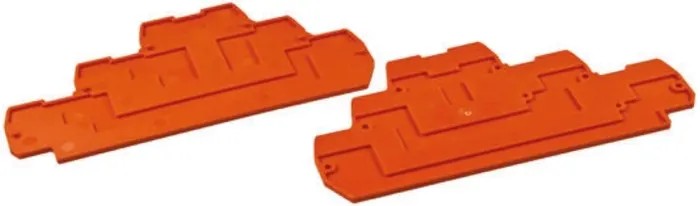

WAGO End & Intermediate Plate Accessory for 870 Series Triple Level Terminal Blocks 870-569
Specifications
| Country of Origin | China |
|---|---|
| Brand | WAGO |
| Material | Polyamide 66 |
| Colour | Orange |
| Model | 870-569 |
| Series | 870 |
| Accessory Type | End & Intermediate Plate |
| For Use With | 870 Series Triple Level Terminal Blocks |
| Jumper bar rated current | 18A |
| Rated at | 500V/6kV/24A |
Key Features
- Constructed from durable polyamide 66 material ensuring electrical insulation and mechanical stability.
- Bright orange colour enhances visibility and identification in electrical assemblies.
- Compatible specifically with 870 Series Triple Level Terminal Blocks for seamless integration.
- Rated for 500V voltage and 6kV impulse withstand voltage with a maximum current of 24A for operational safety.
- Jumper bar rated current is 18A, supporting efficient current distribution.
- Enables organized and compact DIN rail terminal block assemblies, reducing cabinet space requirements.
- Non-hazardous and RoHS compliant, suitable for industrial and commercial electrical applications.
- Manufactured in China ensuring consistent quality under WAGO standards.
Product Description
This component plays a crucial role in providing mechanical separation and electrical insulation between terminal blocks, enhancing the safety and reliability of DIN rail mounted terminal assemblies.
Featuring compatibility with the 870 series triple deck terminals, these plates support rated voltages of 500V and impulse withstand voltages up to 6kV, alongside a rated current of 24A and jumper bar rated current of 18A. The compact size allows for efficient space management in electrical enclosures, making them suitable for industrial control panels, automation systems, and commercial wiring applications.
The polyamide 66 material construction ensures excellent mechanical strength and fire resistance, compliant with relevant industrial requirements. The bright orange colour enhances visibility during inspection and installation, improving maintenance efficiency.
These End & Intermediate Plates are integral to maintaining spacing and structural integrity in multi-level terminal block arrangements, especially where triple level terminal blocks are used. Their robust design supports secure mounting on standard TS35 'Top Hat' DIN rails commonly applied in electrical panel configurations.
Durable polyamide 66 construction for electrical insulation and mechanical stability. Bright orange colour for easy identification and visibility. Designed specifically for 870 Series Triple Level Terminal Blocks compatibility.
Electrical ratings: 500V, 6kV impulse withstand voltage, 24A rated current. Jumper bar rated current of 18A for enhanced current handling. Supports efficient cabinet space utilization with compact form. Manufactured in China maintaining consistent product quality.
Ideal for industrial, commercial, and automation electrical applications.
Use the WAGO 870-569 End & Intermediate Plate to ensure safe, organized, and high-quality DIN rail terminal assemblies. Find similar Terminal Block Accessories and other related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The WAGO End & Intermediate Plate is rated for 500V with an impulse withstand voltage of 6kV and a maximum current of 24A. The jumper bar is rated for 18A.
It is constructed from polyamide 66, which provides electrical insulation and mechanical stability.
This plate is specifically designed for use with the WAGO 870 Series Triple Level Terminal Blocks.
The plate is bright orange, enhancing visibility and identification in electrical assemblies.
It provides mechanical separation and electrical insulation between terminal blocks, enhancing safety and reliability in DIN rail mounted terminal assemblies.
The specific dimensions of the WAGO End & Intermediate Plate are not provided in the available data.
Its compact size allows for efficient space management in electrical enclosures, reducing cabinet space requirements.
Yes, it is non-hazardous and RoHS compliant, making it suitable for industrial and commercial electrical applications.
It is manufactured in China, ensuring consistent quality under WAGO standards.
It is suitable for industrial control panels, automation systems, and commercial wiring applications.
It is designed for secure mounting on standard TS35 'Top Hat' DIN rails commonly used in electrical panel configurations.
The jumper bar rated current of 18A supports efficient current distribution within the terminal block assembly.
