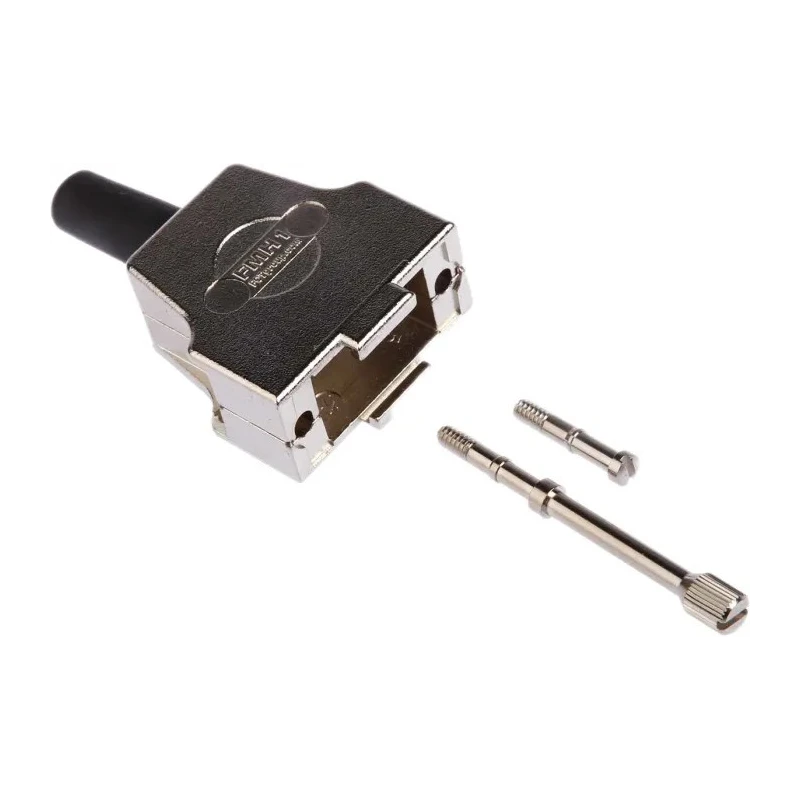

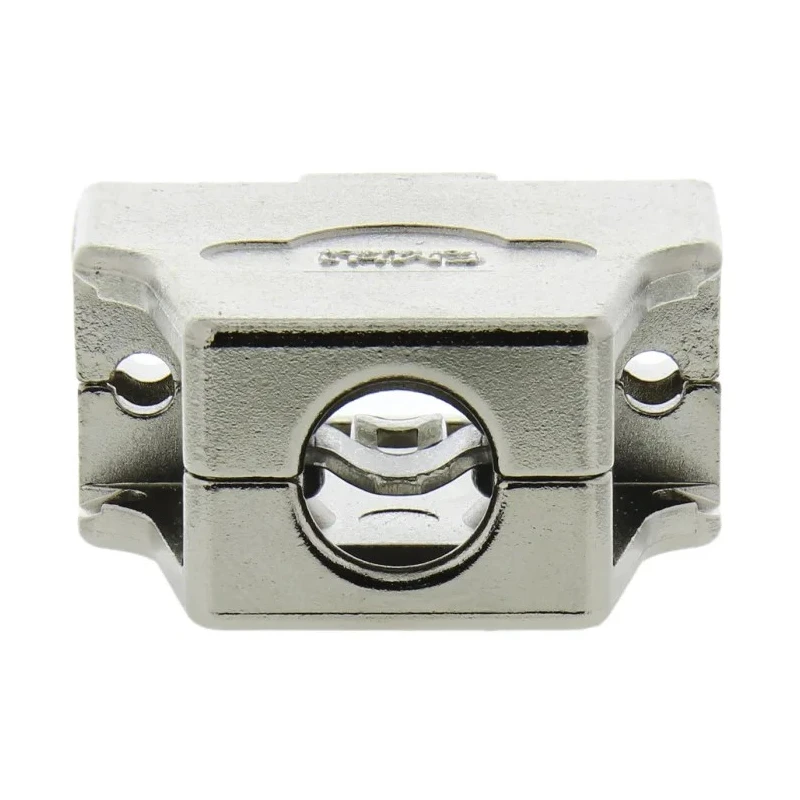

FCT from Molex FMH Series Die Cast Zinc Straight D-Sub Backshell 9 Way Strain Relief FMH1-4381 / 1731110365

FCT from Molex FMH1-4381 / 1731110365 Die Cast Zinc Straight D-Sub Backshell features a robust die cast zinc housing designed to provide reliable protection for cable connectors in industrial settings. The nickel plating on the housing ensures long-term resistance to corrosion, wear, and mechanical impact, making it ideal for environments with vibration and rough handling.

This 9-way backshell with a straight body orientation includes strain relief to prevent cable twisting and mechanical stress. The unit incorporates a rubber bushing, offering enhanced vibration resistance and protecting signal integrity.

The backshell accommodates cable diameters ranging from 6.5 mm to 14 mm, suitable for both flat and round-flat cable types. Installation is facilitated by cable clamp screws that secure the connection and prevent accidental disconnection. The housing halves lock firmly together with jack screws, which can also be retrofitted if necessary.

Operating temperature range is broad, from -35°C to +100°C, allowing deployment in harsh and challenging environments typical of military, aerospace, and mining applications. This backshell is UL recognised under file number E168813 for quality assurance.

The die cast zinc construction provides mechanical strength and durability. Nickel plating prevents corrosion and wear in industrial conditions. Strain relief design reduces cable stress and prevents damage. Rubber bushing enhances vibration absorption and signal protection.

Secure locking with jack screws and a maximum torque of 40Ncm. Wide cable compatibility from 6.5 mm up to 14 mm diameter. Suitable for heavy-duty applications in military and aerospace sectors. Facilitates reliable electromagnetic and radio frequency interference protection.

This product is part of EnvMart's collection of high-quality power connectors and backshells engineered for long-lasting performance in demanding industrial environments.
