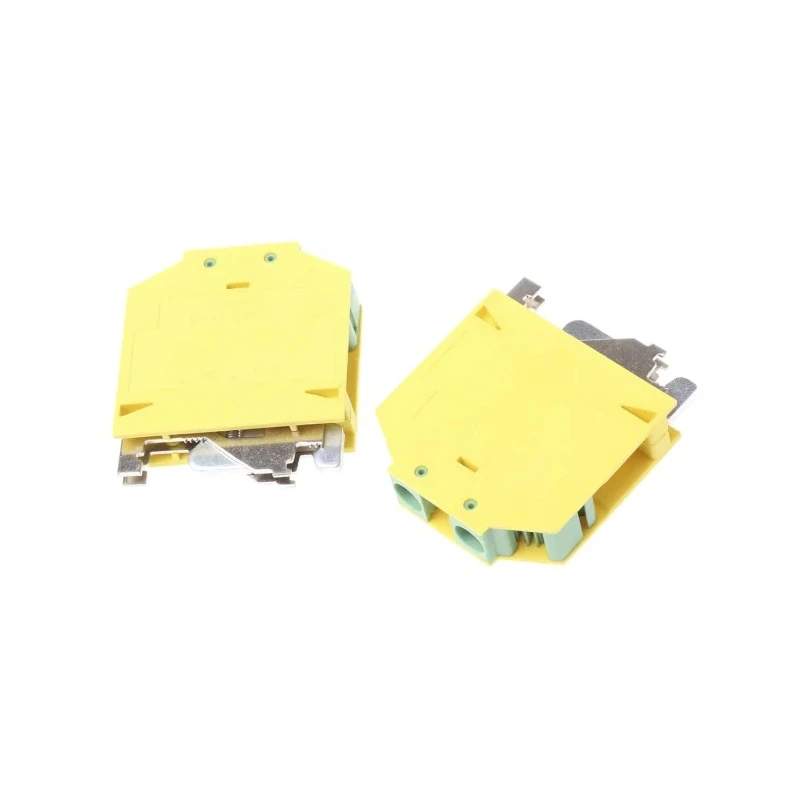

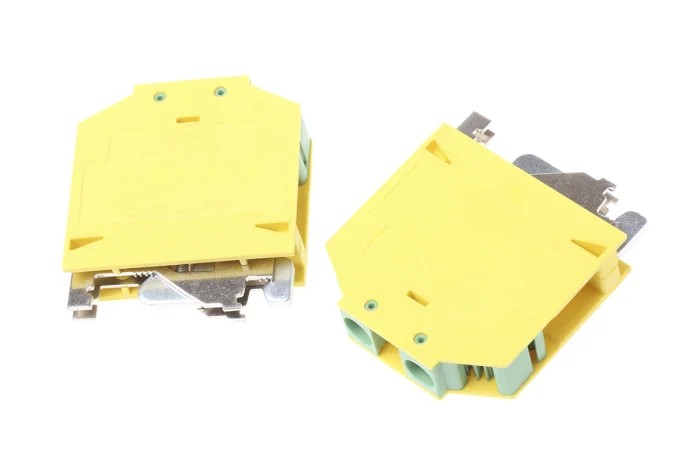

Phoenix Contact OTTA Series Earth Terminal Block 2-Way, 10 AWG, 26 AWG Wire, 41A Current, 800V Screw Termination 0790527
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Green, Yellow |
| Current | 41A |
| Model | 0790527 |
| Number Of Ways | 2 |
| Series | OTTA |
| Termination Type | Screw |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -60°C |
| Wire size | 10, 26AWG |
| Cable CSA | 6mm² |
Key Features
- Constructed with a screw termination for reliable electrical connection.
- Supports wire sizes ranging from 10 AWG to 26 AWG for versatile usage.
- Capable of operating between -60°C and 130°C, suitable for harsh environments.
- Includes folding hinged cover wings to secure terminal nuts and prevent shocks.
- Designed for mounting on both top-hat and G-profile DIN rails.
- Color coded green and yellow for clear earth terminal identification.
- Equipped with concealed captive spring-loaded spacers to prevent loosening from vibration.
- Complies with no hazardous area certification and lacks formal standards approvals.
Product Description
Phoenix Contact 0790527 OTTA Series Earth Terminal Block is a high-performance 2-Way terminal block designed for secure earth connections in electrical and electronic assemblies. This terminal block supports wire sizes from 10 AWG to 26 AWG, accommodating cable cross-sectional areas up to 6mm² and is rated for a current of 41A and voltage endurance of 800V.
The screw termination type ensures a solid mechanical and electrical connection. The terminal block features a unique hinged cover wing system that facilitates quick and secure connection by holding the nut in place during assembly. When folded up, the bolt accepts the ring terminal, and closing the wings covers live metal parts, reducing the risk of electrical shock. The spring-loaded spacers maintain screw tension, preventing loosening due to vibration during operation.
Designed for industrial electrical use, the universal foot allows easy mounting on both 'top-hat' and 'G' profile DIN rails, making it compatible with various control panels and distribution boards. The green and yellow color coding clearly identifies the earth terminal function, aiding maintenance and installation tasks.
This terminal block operates efficiently in challenging temperature environments with a minimum operating temperature of -60°C and a maximum of 130°C. However, it does not carry hazardous area certifications or standards approvals, so it is intended for standard electrical applications.
Constructed with screw termination for reliable electrical connection. Supports wire sizes from 10 AWG to 26 AWG, enabling flexible use. Current rated at 41A and voltage endurance of 800V for robust performance. Hinged cover wings secure connection and provide shock prevention.
Universal foot supports installation on 'top-hat' and 'G' DIN rails. Color coded green and yellow for earth terminal identification. Spring-loaded spacers prevent screw loosening from vibrations. Suitable for industrial, electrical panels, machinery, and distribution boards.
Use this Phoenix Contact OTTA Series Earth Terminal Block for secure and efficient grounding in electrical and industrial automation systems. Browse more Terminal Blocks and connectors on EnvMart to find the right components for your electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 41A, making it suitable for various electrical applications.
It is rated for a voltage endurance of 800V, ensuring reliable performance in electrical systems.
This terminal block supports wire sizes ranging from 10 AWG to 26 AWG, accommodating a variety of cable types.
It features a screw termination type, ensuring a solid mechanical and electrical connection.
It includes hinged cover wings that secure terminal nuts and prevent shocks, enhancing user safety during operation.
The terminal block is color coded green and yellow for clear identification of its earth terminal function.
It accommodates cable cross-sectional areas up to 6mm², allowing for flexible wiring options.
This model does not carry hazardous area certifications, making it suitable for standard electrical applications only.
The Phoenix Contact OTTA Series Earth Terminal Block is manufactured in India.
