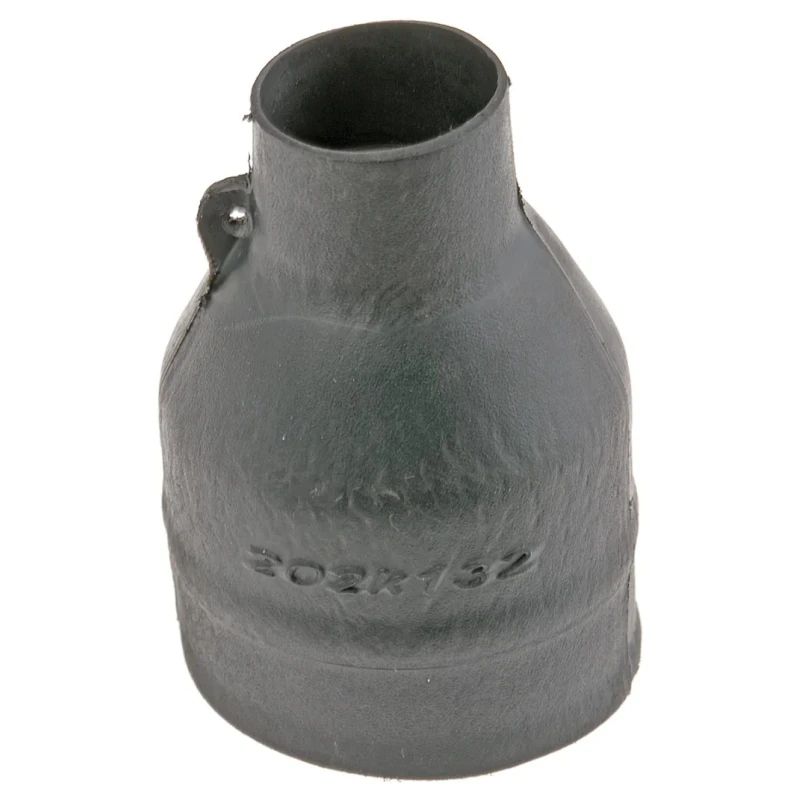

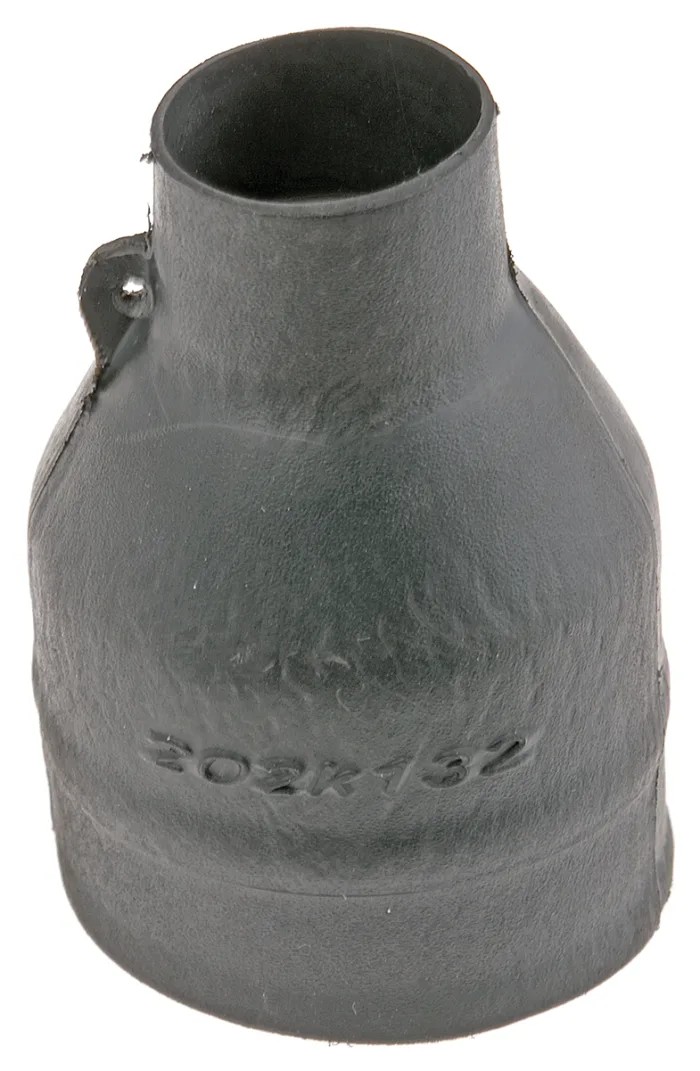

TE Connectivity Straight Heat Shrink Boot LFH Polyolefin Black 30 mm 202K132-100-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Material | LFH Polyolefin |
| Colour | Black |
| Model | 202K132-100-0 |
| Series | 202K1 |
| Maximum Operating Temperature | 105°C |
| Dielectric strength | 15MV/m |
| Sub Type | Straight |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | RoHS |
| Number of Breakouts | 1 |
| Shrink Temperature | 100°C |
| Minimum Inside Diameter | 15mm |
| Maximum Shrunk Diameter | 14.2mm |
| Minimum Shrunk Diameter | 5.9mm |
| Maximum Inside Diameter | 30mm |
| TE Connectivity Cable Boot 222K1 Black, Polyolefin, 30 mmBrand | TE Connectivity |
| TE Connectivity Straight Cable Boot, LFH Polyolefin, 30mmBrand | TE Connectivity |
Key Features
- Provides low smoke and low emission properties suitable for fire hazard reduction.
- Made from zero halogen LFH Polyolefin for high specification applications.
- Operates within a temperature range of -30°C to 105°C.
- Features excellent sealing and strain relief for cable protection.
- Dielectric strength rating of 15 MV/m ensures electrical insulation.
- Designed to fit a maximum inside diameter of 30 mm and minimum inside diameter of 15 mm.
- Shrinks down to a minimum diameter of 5.9 mm and maximum shrunk diameter of 14.2 mm at 100°C shrink temperature.
- Approved to DEF STAN 59/97 issue 3 Type DF for marine, transport, offshore, and industrial use.
Product Description
TE Connectivity 202K132-100-0 is a straight heat shrink boot manufactured from LFH Polyolefin, designed for critical applications where fire hazard reduction is essential. It features zero halogen properties, low smoke, and low emission characteristics, making it ideal for use in marine, transport, offshore, and other high specification industrial environments. The boot provides secure sealing and strain relief to protect cable joints and terminations.
Operating temperature ranges from -30°C to 105°C, with a shrink temperature of 100°C, allowing it to reliably shrink to diameters between 5.9 mm and 14.2 mm. The boot accommodates cables with a maximum inside diameter of 30 mm and minimum inside diameter of 15 mm. It meets stringent standards including RoHS compliance and DEF STAN 59/97 issue 3 Type DF.
Dielectric strength is rated at 15 MV/m, ensuring excellent electrical insulation performance. This product does not have adhesive backing but can be used in conjunction with compatible sealant kits where zero halogen properties are not required.
Common applications include electrical insulation protection and strain relief in electrical, automation, marine, and transport industries. The boot enhances reliability and safety by reducing smoke and toxic emissions during fire incidents.
Set a high standard for safety with the TE Connectivity 202K132-100-0 heat shrink boot, meeting demanding industry requirements and approved for use in specialized environments. Explore more Heat Shrink Boot products from TE Connectivity on EnvMart for diverse industrial and commercial applications.
Provides low smoke and low emission properties suitable for fire hazard reduction. Made from zero halogen LFH Polyolefin for high specification applications. Operates within a temperature range of -30°C to 105°C. Features excellent sealing and strain relief for cable protection.
Dielectric strength rating of 15 MV/m ensures electrical insulation. Designed to fit a maximum inside diameter of 30 mm and minimum inside diameter of 15 mm. Shrinks down to a minimum diameter of 5.9 mm and maximum shrunk diameter of 14.2 mm at 100°C shrink temperature.
Approved to DEF STAN 59/97 issue 3 Type DF for marine, transport, offshore, and industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can accommodate a maximum inside diameter of 30 mm and a minimum inside diameter of 15 mm.
The operating temperature range is from -30°C to 105°C.
The dielectric strength is rated at 15 MV/m, ensuring excellent electrical insulation performance.
When shrunk at 100°C, it can shrink down to a minimum diameter of 5.9 mm and a maximum shrunk diameter of 14.2 mm.
It is made from LFH Polyolefin, which has zero halogen properties.
It is RoHS compliant and approved to DEF STAN 59/97 issue 3 Type DF for marine, transport, offshore, and industrial use.
No, this heat shrink boot does not have adhesive backing but can be used with compatible sealant kits.
The heat shrink boot is black in color.
It provides low smoke and low emission properties, which are suitable for reducing fire hazards.
It is suitable for electrical insulation protection and strain relief in electrical, automation, marine, and transport industries.
The series name is 202K1.
The country of origin for this product is India.
