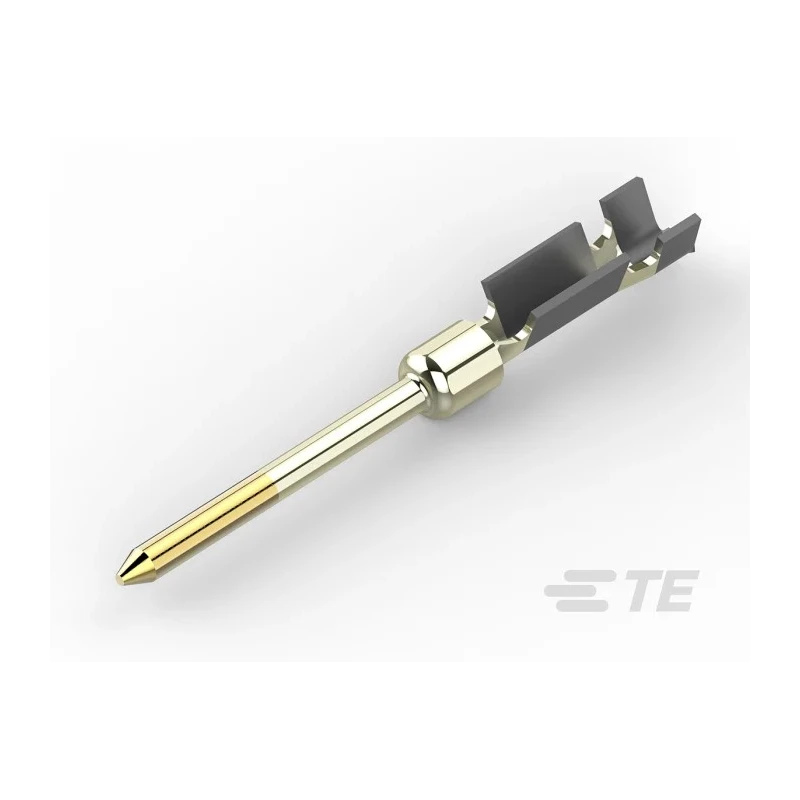

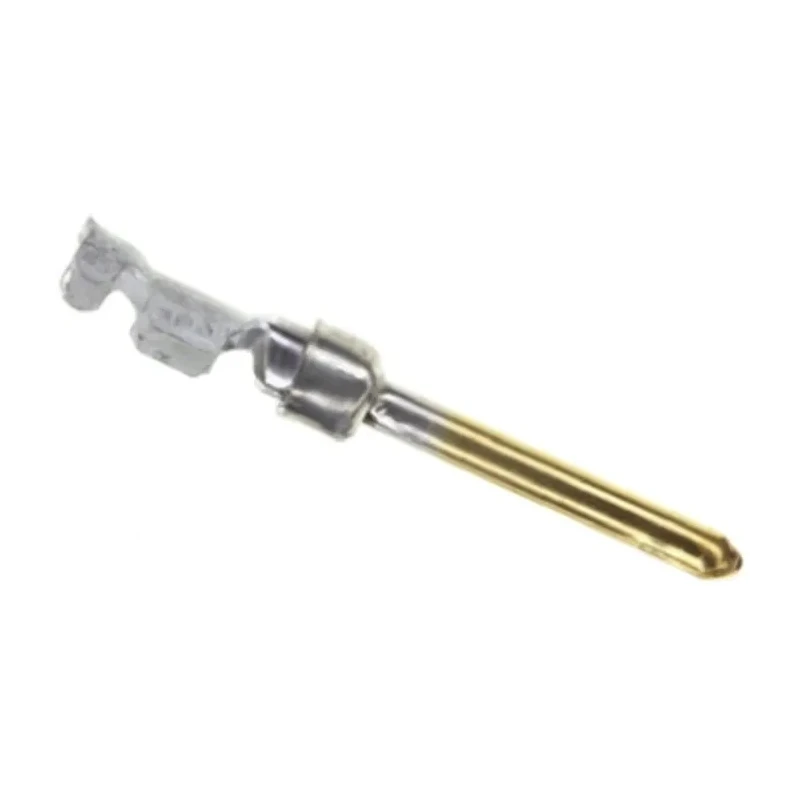

TE Connectivity AMPLIMITE HDP-22 Series Size 22 Male Crimp D-Sub Connector Contact Gold over Nickel 22 AWG 1658670-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-22 Series Size 22 Male Crimp D-Sub Connector Contact Gold over Nickel 22 AWG 1658670-2

Name: TE Connectivity AMPLIMITE HDP-22 Series Size 22 Male Crimp D-Sub Connector Contact Gold over Nickel 22 AWG 1658670-2
Brand: TE Connectivity
SKU: 180556
Price: 0.29 USD
Availability: InStock



Category D-Sub Connector Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Gender	Male
Contact Material	Brass
Series	AMPLIMITE HDP-22
Termination Type	Crimp
Contact Type	Signal
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.076mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Contact Size	22
• Pin diameter	0.76 mm

Key Features

Contact size 22 suitable for signal transmission.
Constructed from brass with gold over nickel plating for corrosion resistance.
Supports wire sizes from 28 to 22 AWG (0.08 to 0.4 mm²).
Pin diameter of 0.76 mm ensures precise fit and connection.
Termination via crimp for secure and durable contacts.
Rated for 1.9A contact current capacity.
Snap-fit design allows easy assembly into HDP-22 housings.
Manufactured in the United States ensuring quality standards.

Product Description

TE Connectivity 1658670-2 AMPLIMITE HDP-22 Series Size 22 Male Crimp D-Sub Connector Contact is engineered to provide reliable and efficient signal transmission for electronic devices and industrial equipment. This precision-formed crimp contact is made from brass with a durable gold over nickel plating that enhances corrosion resistance and electrical performance.

Its 0.76 mm pin diameter and contact size 22 allow it to integrate seamlessly with the AMPILITE HDP-22 D-sub connectors, offering a secure snap-fit assembly. The contact is designed for crimp termination compatible with wire sizes ranging from 28 to 22 AWG (0.08 to 0.4 mm²), supporting reliable connections with a current rating of 1.9A.

Manufactured in the United States, this component meets demanding industrial requirements for durability and performance in electronics manufacturing, HVAC systems, telecommunications, and computing hardware.

The crimp contacts offer easy installation using compatible PRO-CRIMPER II hand tools and insertion/extraction tools, facilitating efficient assembly and maintenance. These male crimp contacts are especially suited for signal applications where consistent electrical contact is essential.

Contact size 22 suitable for signal transmission. Constructed from brass with gold over nickel plating for enhanced durability and corrosion resistance. Compatible with wire sizes 28 to 22 AWG (0.08 to 0.4 mm²). Pin diameter: 0.76 mm for secure fit in housing.

Crimp termination type for reliable electrical connection. Rated for contact current of 1.9A. Snap-fit design enables straightforward assembly into HDP-22 series connectors. Manufactured in the USA assuring high-quality standards.

This product is a critical element in the construction of robust and efficient D-Sub connector assemblies for use in industrial electronics, communications infrastructure, manufacturing equipment, and laboratory devices. Its rugged design ensures longevity and maintains signal integrity even in challenging environments.

Explore the TE Connectivity range of AMPLIMITE components and more on EnvMart for high-quality connector solutions.
