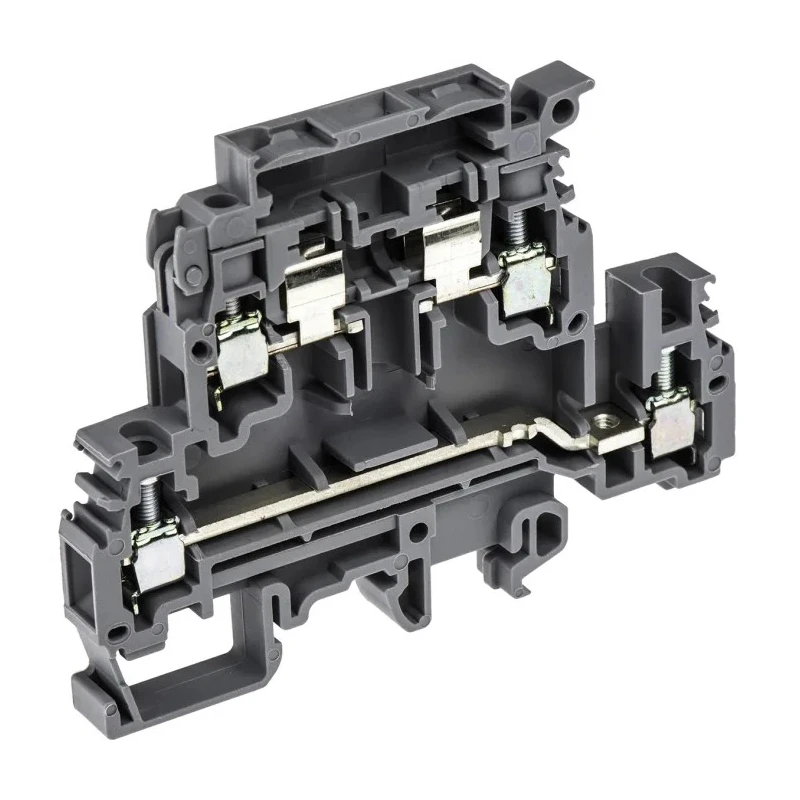

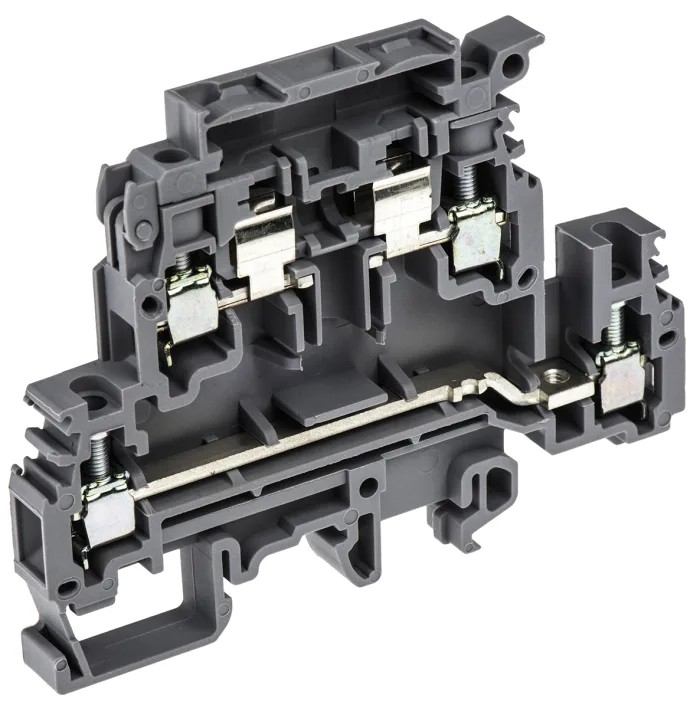

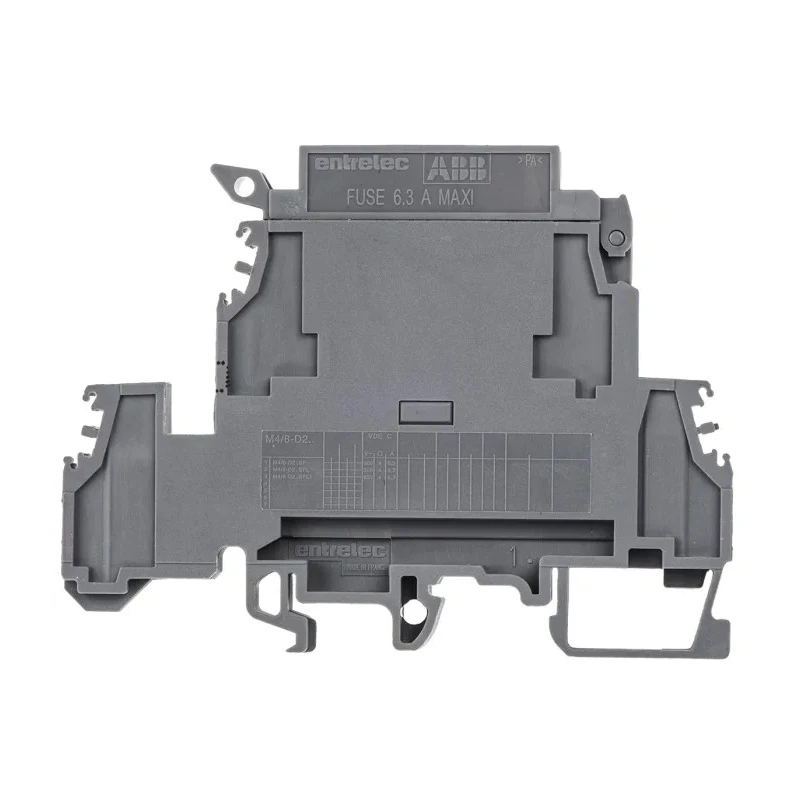

Entrelec M Series 2-Level Fused DIN Rail Terminal Block Grey, 4mm² to 6mm², Screw Termination, 630V, 6.3A 1SNA115604R2100
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 630V |
| Brand | Entrelec |
| Colour | Grey |
| Model | 1SNA115604R2100 |
| Series | M |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 2 |
| Minimum Operating Temperature | -55°C |
| Pitch | 8mm |
| Standards/Approvals | cUL, EU Directive 2002/95/EC, CE, CSA |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 4, 6mm² |
| Terminal Block Current | 6.3A |
Key Features
- Constructed with flame-resistant polyamide 6.6 for durability.
- Universal mounting on asymmetric 'G' profile and Top hat DIN rails.
- Accepts 20x5mm and 25x5mm fuses with lever-action carrier.
- Provides 2-level fused feedthrough for enhanced circuit protection.
- Operating temperature range from -55°C to 110°C.
- Grey housing for easy identification and installation.
- Captive terminal screws have hardened heads to prevent burring.
- Complies with cUL, EU Directive 2002/95/EC, CE, and CSA standards.
Product Description
Entrelec 1SNA115604R2100 M Series Fused DIN Rail Terminal Block is designed for industrial and commercial electrical applications requiring reliable fused feedthrough and multiple level connections. It supports cables from 4mm² to 6mm² with a maximum terminal block current of 6.3A and voltage rating of 630V. The terminal block features screw-type terminations ensuring secure and robust wiring, suitable for heavy-duty use in automated manufacturing, electrical panels, HVAC systems, and power distribution units.
The terminal block's housing is made of high-quality, flame-resistant polyamide 6.6, granting excellent thermal stability withstanding operating temperatures ranging from -55°C up to 110°C. Its construction supports mounting on both asymmetric 'G' profile and Top hat DIN rails, providing versatile installation options. The lever-action carrier design accommodates 20x5mm and 25x5mm fuses, facilitating versatile protection schemes tailored to circuit requirements.
This product adheres to international standards such as cUL, EU Directive 2002/95/EC (RoHS compliance), CE marking, and CSA certifications, ensuring quality and safety compliance in diverse industrial environments. The terminal block includes captive terminal screws with hardened heads to minimize wear and maintain secure connections over time.
Flame-resistant polyamide 6.6 housing for durability. Universal mounting suitable for asymmetric 'G' profile and Top hat DIN rails. 2-level fused feedthrough for enhanced circuit protection. Lever-action carrier supports 20x5mm and 25x5mm fuses.
Secure screw termination with hardened captive screws. Wide temperature range from -55°C to 110°C for industrial resilience. Nominal voltage rating of 630V and current of 6.3A. Pitch spacing of 8mm for compact wiring solutions.
Grey color coding for clear identification in panels. Manufactured in France ensuring strict quality standards.
The Entrelec 1SNA115604R2100 is ideal for use in industrial automation, electrical distribution panels, power supply units, and HVAC systems where reliable fused protection and secure terminal connectivity are vital. Its adaptable mounting and diverse fuse compatibility make it a preferred choice for maintenance-friendly and durable electrical installations.
Explore more DIN Rail Terminal Blocks by Entrelec and related power connector products on EnvMart for comprehensive electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this terminal block is 630V.
This terminal block has a maximum current capacity of 6.3A.
It accepts cables with a cross-sectional area of 4mm² to 6mm².
This model features screw-type terminations for secure wiring connections.
The operating temperature range is from -55°C to 110°C.
It complies with cUL, EU Directive 2002/95/EC, CE, and CSA standards.
The pitch spacing is 8mm, allowing for compact wiring solutions.
It accommodates 20x5mm and 25x5mm fuses with a lever-action carrier design.
This terminal block is manufactured in France, ensuring strict quality standards.
The housing is grey, which aids in easy identification during installation.
The captive terminal screws have hardened heads to prevent burring and maintain secure connections over time.
