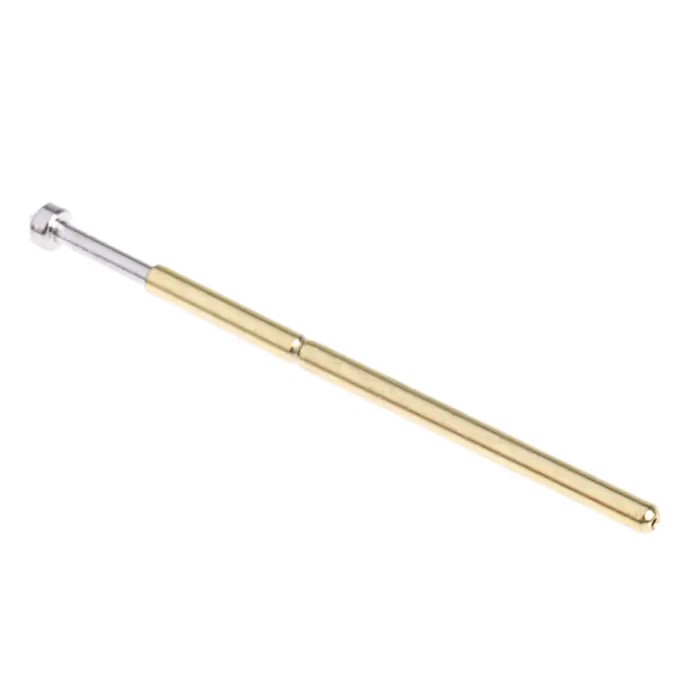

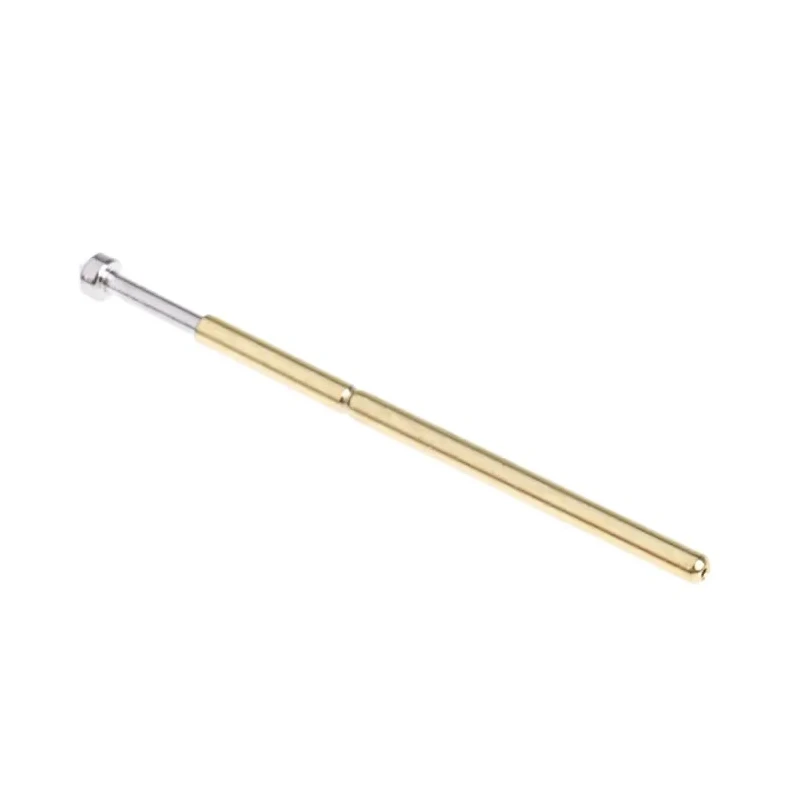

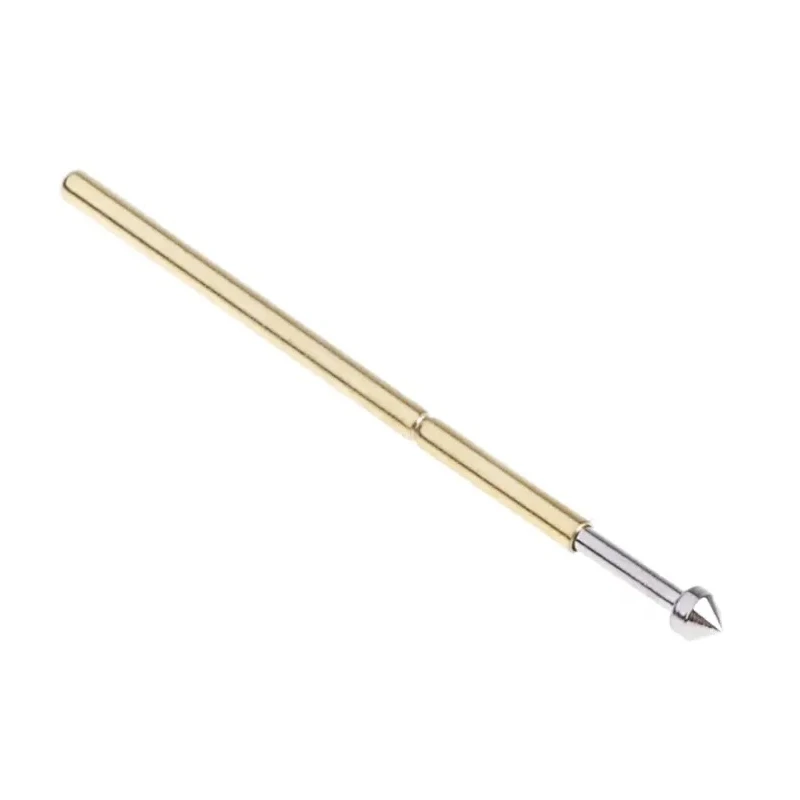

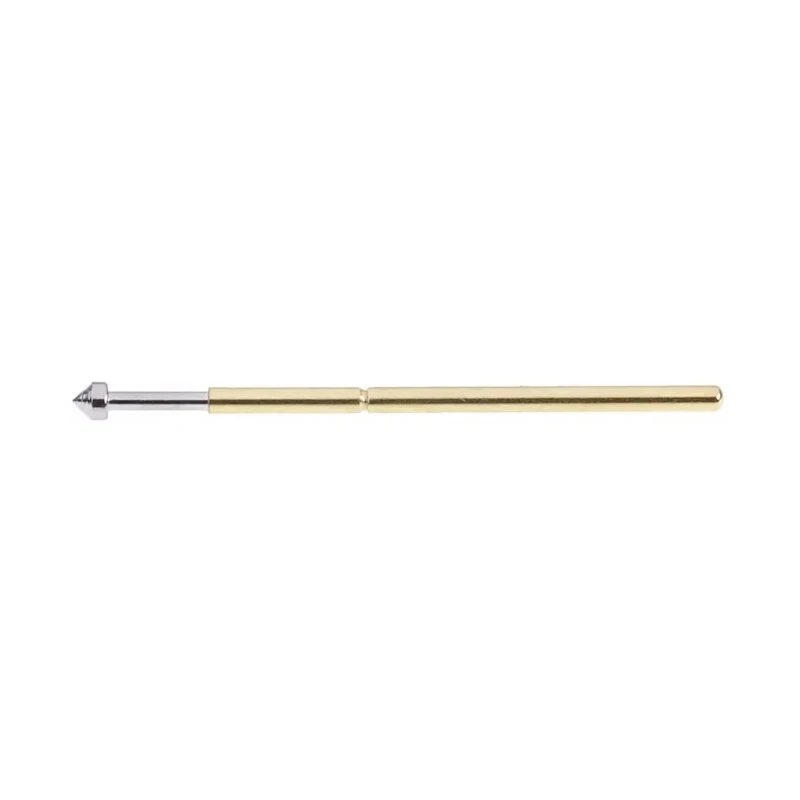

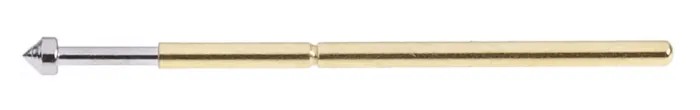

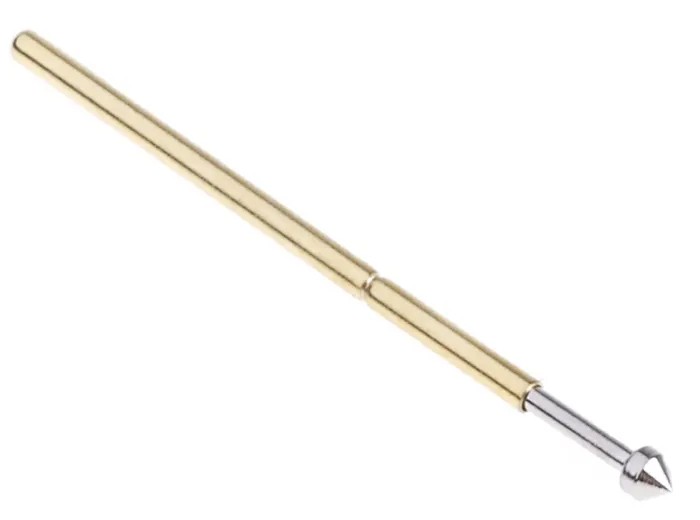

RS PRO Test Pin 1.5A Gold Plated Phosphor Bronze Contact Male Spring Terminal 1.27 mm Pitch 261-5137

RS PRO 261-5137 Test Pin is a male spring test probe engineered for reliable testing of printed circuit boards in industrial and laboratory environments. Rated for 1.5 amperes current, it features a gold plated phosphor bronze contact that ensures optimal conductivity and resistance to corrosion.

The test pin has a pointed tip designed to access plated-through holes and contamination-free board areas precisely. Its 1.27 mm pitch and spring terminal termination provide secure and flexible mounting in various test setups, compatible with receptacles sold separately. The spring pressure of 1.47 N guarantees firm contact without damaging the PCB.

Measuring 16.55 mm in length with a mounting hole size of 1.7 mm and a probe depth of 1.8 mm, this component is tailored for efficient integration into automated test systems and manual multipoint test jigs. The probe’s design prioritizes leaving no indentations or marks on circuit boards, ensuring repeated use reliability.

Manufactured in Taiwan, Province Of China, RS PRO maintains rigorous quality testing standards assuring product consistency and trustworthiness. This test pin suits applications in electronics manufacturing, research laboratories, quality assurance, and industrial test stations.

The probe features a pointed tip for precise contact on plated-through holes. Manufactured from phosphor bronze with gold plating for excellent conductivity and corrosion resistance. Rated current capacity of 1.5 amperes.

Uses spring terminal termination for secure and reliable connection. Standard 1.27 mm pitch ensures compatibility with common test jigs and receptacles. Length of 16.55 mm and mounting hole size of 1.7 mm enable easy installation.

Spring pressure of 1.47 newtons ensures consistent contact without damage to boards. Ideal for use in automated test systems and manual test jigs. Designed to leave no marks or damage on PCB contact surfaces during testing.

Country of origin is Taiwan, Province Of China. Explore more RS PRO products on EnvMart for comprehensive solutions in test and measurement instrumentation.
