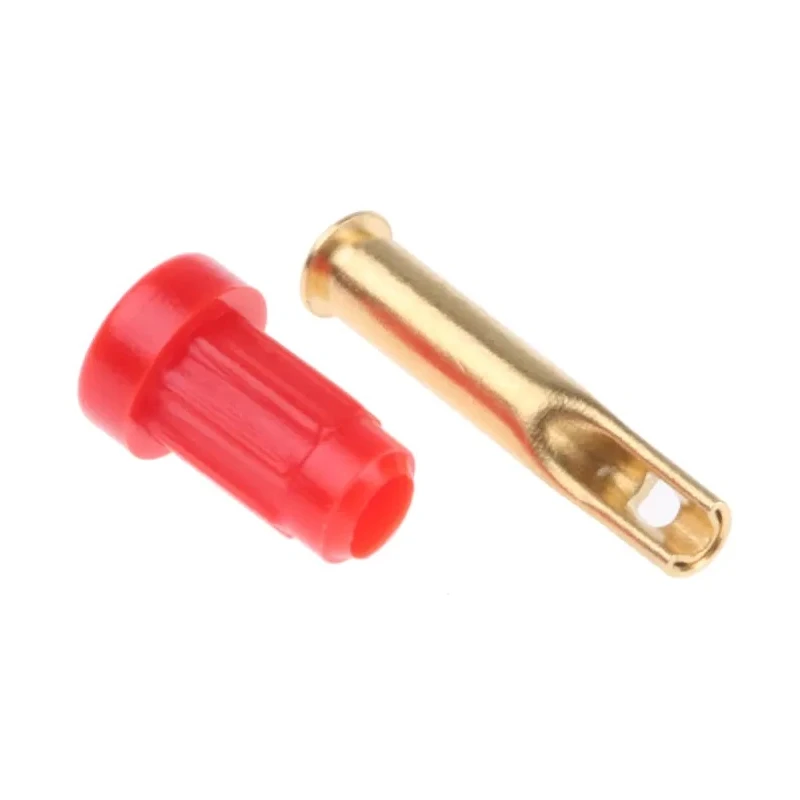

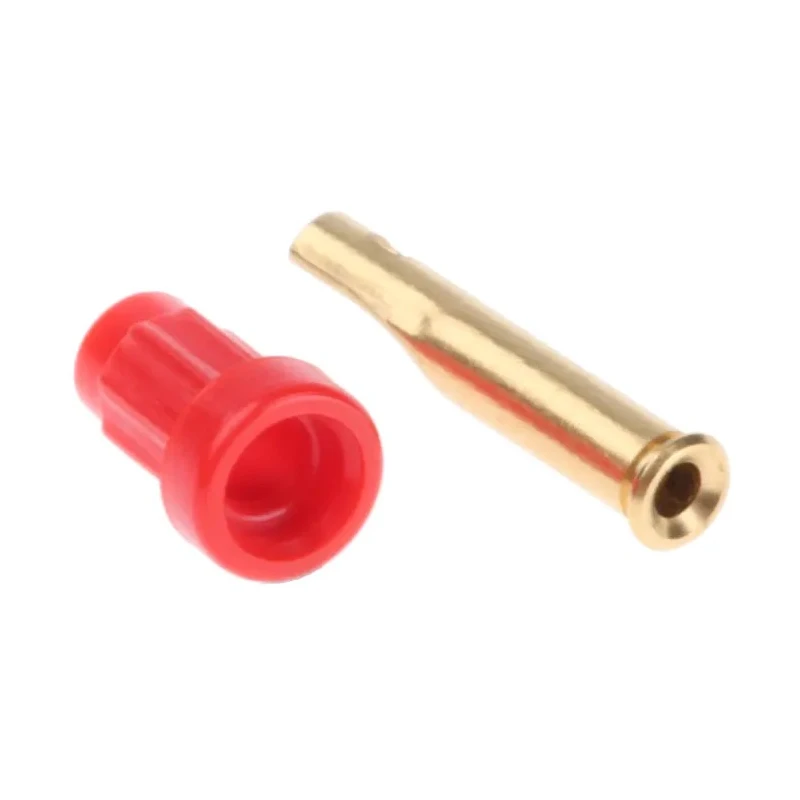

Staubli Red Female Banana Socket 1 mm Connector Solder Termination 30 V 60V DC 20A Gold Plating 23.1010-22

Staubli 23.1010-22 red female banana socket is a precision electrical connector designed for professional test and measurement applications. It features a 1 mm connector size and utilizes solder termination to ensure a stable and durable electrical connection. This banana socket supports operation at 30 V AC and 60 V DC with current carrying capability up to 20A, making it suitable for a broad range of electrical testing setups and instrumentation.

The connector is color-coded red for clear polarity identification and enhanced safety in complex wiring configurations. It has gold-plated brass contacts that provide low resistance and excellent corrosion resistance, thereby maintaining signal integrity and electrical reliability over time. The thermoplastic elastomer insulation material offers excellent electrical insulation while resisting environmental factors.

This product integrates a spring contact mechanism for consistent electrical contact under vibration or movement, ensuring dependable performance even in demanding industrial environments. The connector length is 10.5 mm, supporting installation through panels with a maximum thickness of 3 mm, while the mounting hole diameter is precisely 2.7 mm.

With compliance to CE and ULC standards, this banana socket guarantees adherence to international electrical safety and quality requirements. It is manufactured in Switzerland, reflecting high build quality and engineering standards typical of Staubli products.

This banana socket is colored red for easy identification and efficient panel wiring. Features female gender connector with solder termination method for secure attachment. Operates at voltages of 30 V AC and 60 V DC with a maximum current of 20 amperes.

Has gold-plated brass contacts which enhance corrosion resistance and electrical conductivity. Incorporates a spring contact and thermoplastic elastomer insulation for reliable performance and durability. Measures 10.5 mm in length and supports panel thickness up to 3 mm.

Designed with a 2.7 mm mounting hole diameter and offers low contact resistance of 1 milliohm. Complies with CE and ULC standards ensuring quality and safety in electrical applications.

This banana socket is ideal for industrial electrical testing, laboratory instrumentation, and maintenance applications where reliable connector performance and safety standards compliance are critical. It supports various test and measurement devices and can be used in electrical panels, test rigs, and custom instrumentation setups requiring high-current banana connectors.
