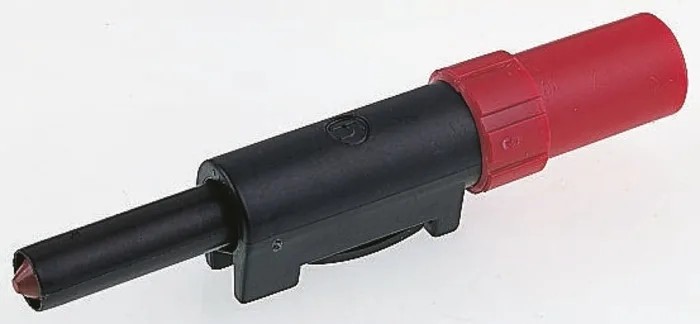

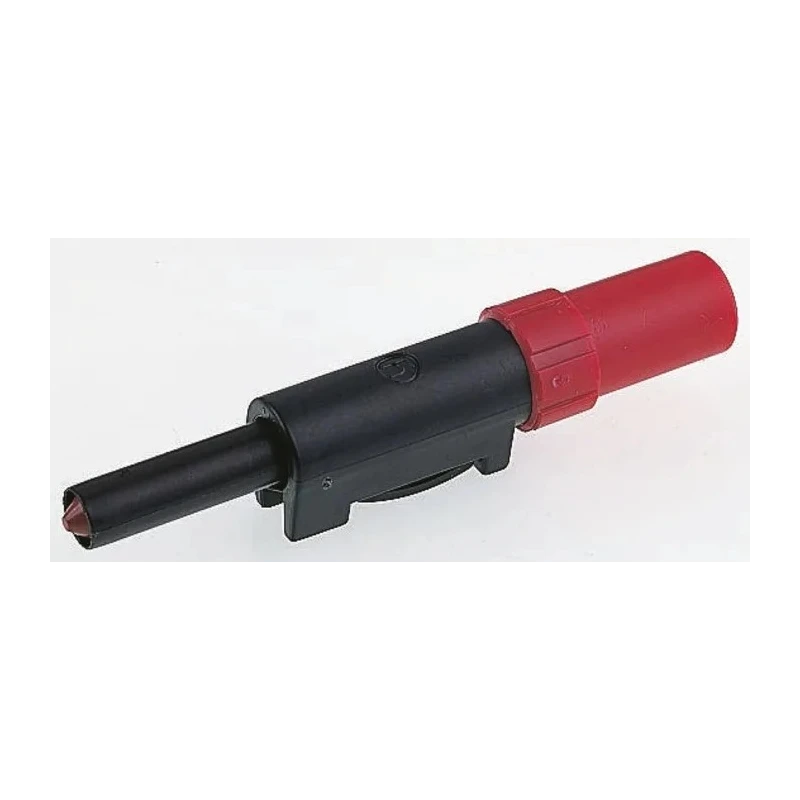

Hirschmann Test & Measurement Red Male Banana Plug 4 mm Connector Screw Termination 60V dc 16A Nickel Plating 931825101

Hirschmann Test & Measurement 931825101 Red Male Banana Plug is a precision 4 mm connector designed for safe and reliable electrical testing and measurement applications. Rated at 60 volts dc and 16 amperes, this plug features nickel plating on the contact for corrosion resistance and longevity.

The male banana plug employs screw termination, enabling secure attachment to conductors up to 1.5 mm² cross-section. Its spring contact is manufactured from high-quality beryllium copper alloy providing excellent conductivity and mechanical robustness.

With a length of 67 mm, the connector ensures stable connectivity and easy handling during test procedures. The insulating sleeve made of polyoxymethylene guarantees touch-safe operation by fully covering the conductive parts until proper pressure is applied to the side locking springs.

This banana plug is suitable for industrial, laboratory, and electrical test environments requiring reliable and safe connectors rated for 60V dc and 16A continuous current. The design promotes operational safety and longevity in demanding electrical measurement setups.

The product is manufactured in Germany, ensuring high standards of quality and precision engineering. It finds wide applications in electrical test and measurement equipment, guaranteeing consistent performance across cycles of use.

Constructed with a nickel-plated beryllium copper alloy contact spring for durability. Features a fully insulated and touch-safe design with spring insulating sleeve. Screw termination supports a maximum conductor size of 1.5 mm².

Connector length is 67 mm ensuring secure and stable connectivity. Compatible with test and measurement equipment requiring 4 mm banana connectors. Insulation material made of durable polyoxymethylene for electrical safety.

Engineered for reliability in electrical test applications at up to 60V dc and 16A current.
