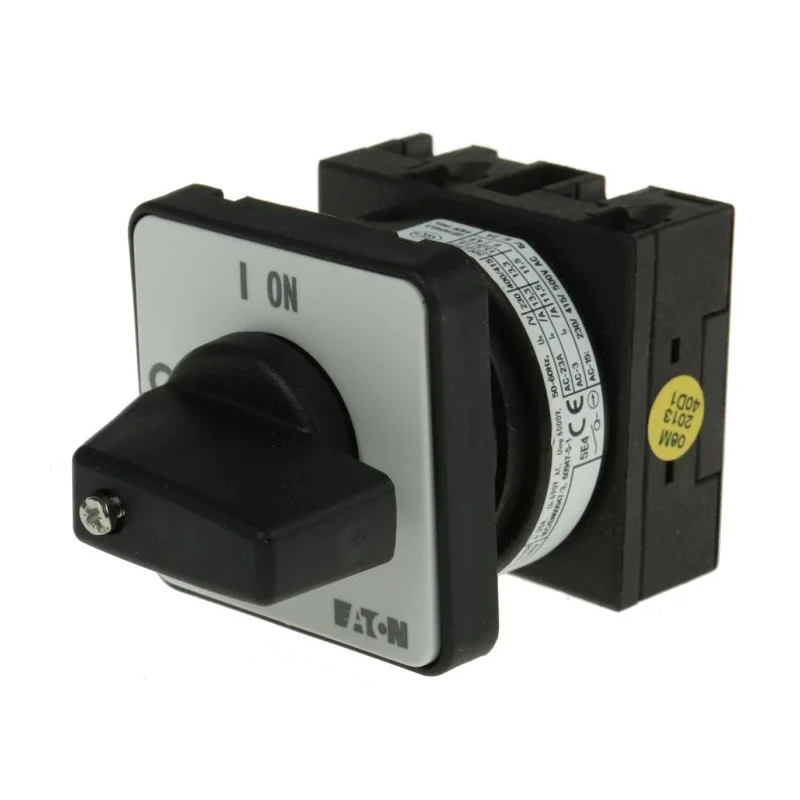

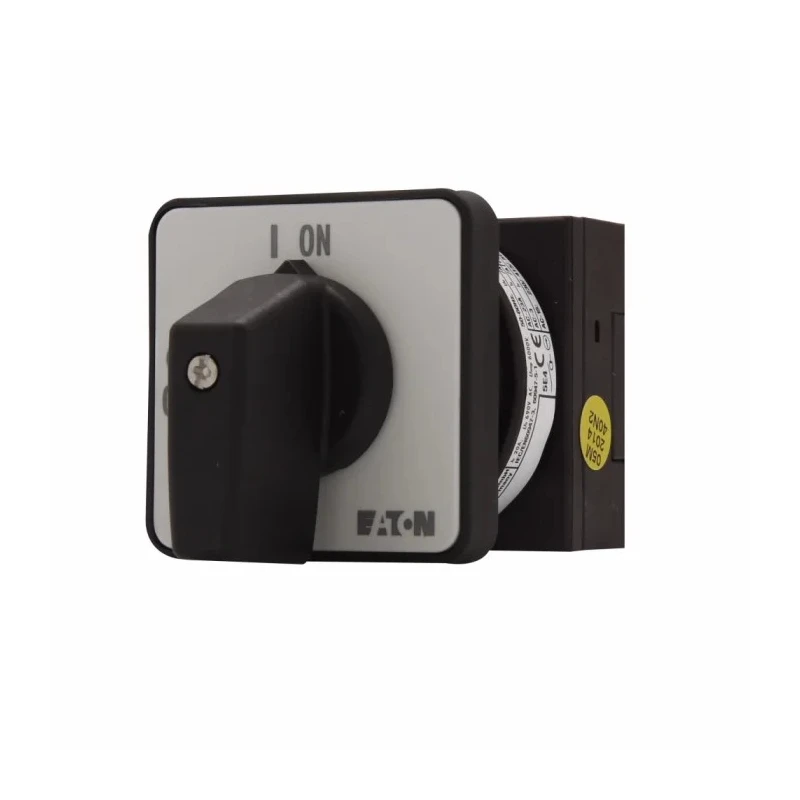

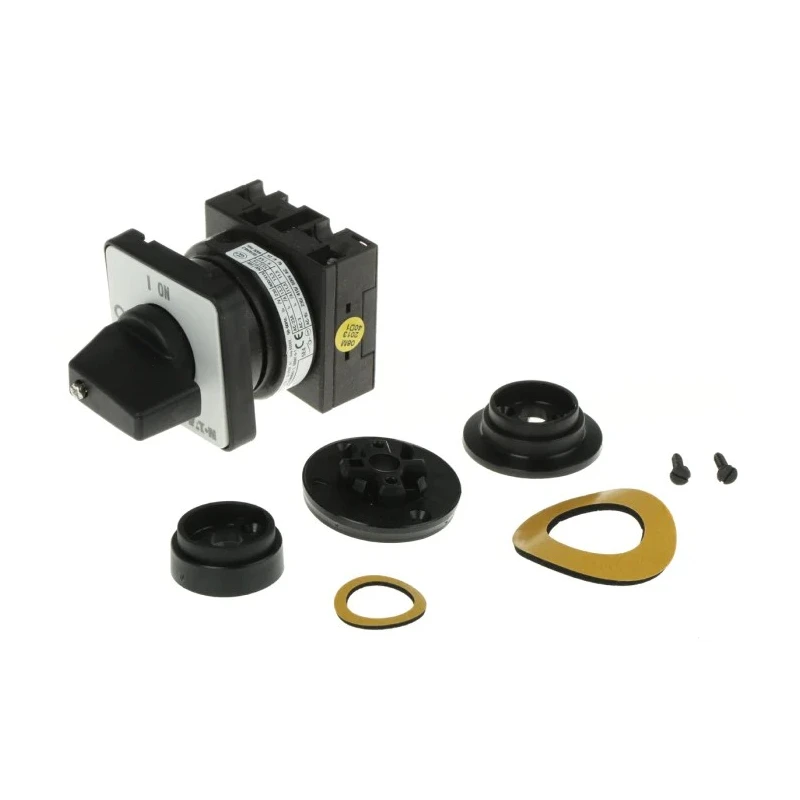

Eaton 2 Position 90 ° Rotary Actuator 20 A 690V AC Flush Mount Screw Terminal IP65 78627785 T0-1-8200/E/EZ-P1(RS257-9520)

Eaton 78627785 T0-1-8200/E/EZ-P1(RS257-9520) is a 2 position, 90° rotary actuator cam switch designed for industrial electrical applications requiring safe manual disconnection and isolation of equipment. It operates at a maximum of 20A current and 690V AC voltage, with a flush mounting style and screw type terminals that ensure robust and secure conductor attachment.

This actuator features an IP65 rated enclosure that offers strong ingress protection from dust and water jets, making it suitable for harsh industrial and manufacturing environments. Its durable construction supports a mechanical lifespan of one million operations, ensuring long-term reliability in applications such as machine safety isolation, circuit control, and servicing maintenance.

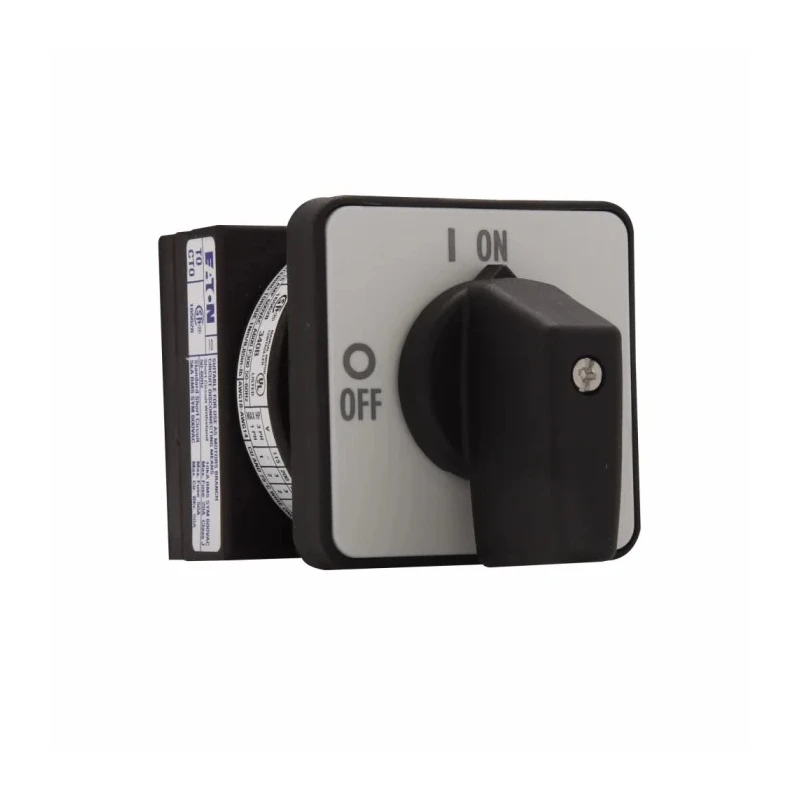

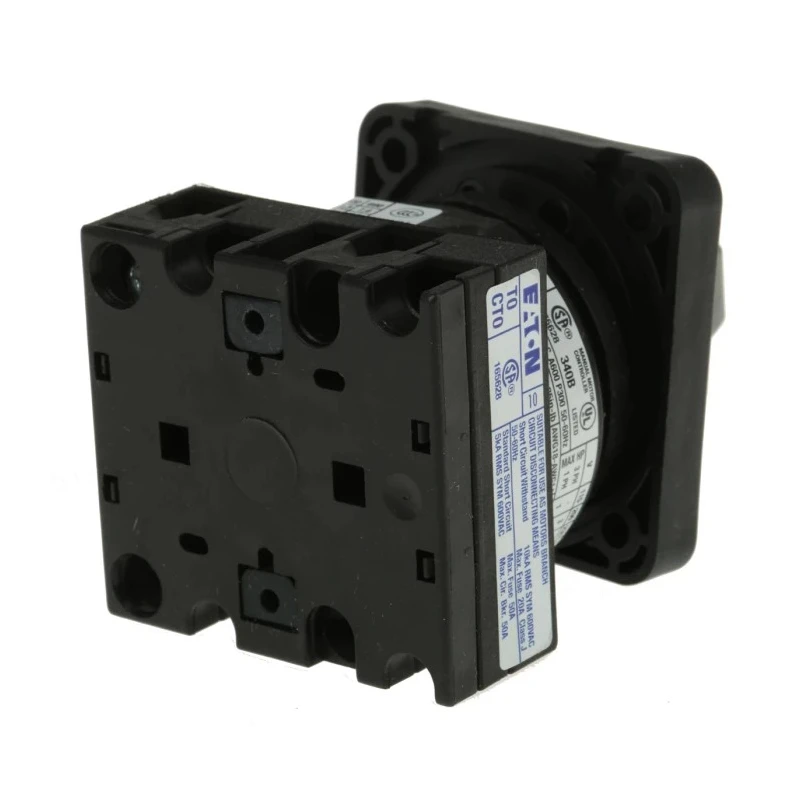

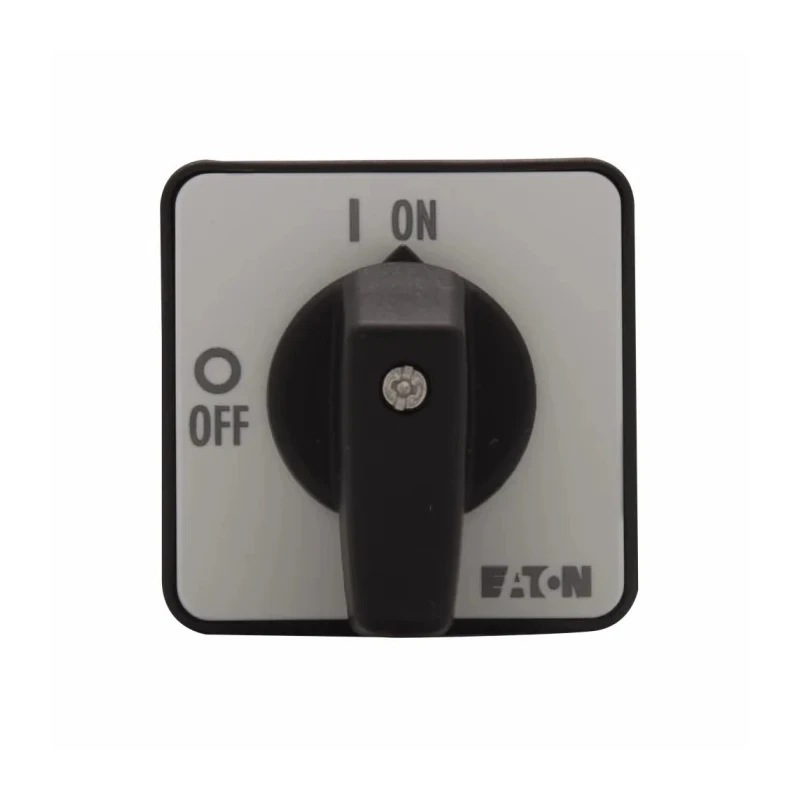

The device is clearly marked with ON and OFF positions, utilizing a thumb grip actuator to facilitate secure and ergonomic manual operation. It accommodates both solid and flexible conductors, with its screw terminals designed to withstand impact and prevent accidental loosening of wires.

The product complies with IEC/EN 60947 standards and holds IECEx certification for hazardous area use, guaranteeing safety and performance in demanding electrical installations. It operates effectively within a temperature range of -25°C up to 50°C, thereby catering to a wide range of climatic conditions.

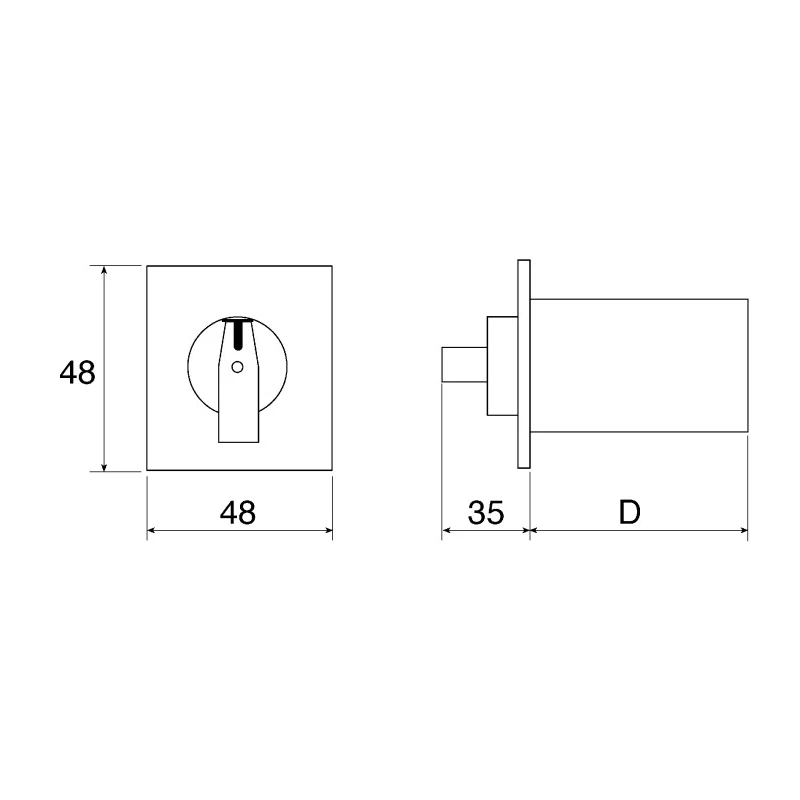

Physical dimensions include a compact footprint of 48 mm width, 48 mm length, and 76 mm depth, suitable for flush mounting in control panels and switchboards.

This Eaton rotary cam switch is ideal for electrical, automation, manufacturing, and industrial sectors where reliable manual power isolation and control are critical. Its proven robustness and compliant features support safe operation and equipment protection, enhancing productivity and safety standards.

Compact and robust flush mounted cam switch with IP65 protection. Capable of handling 20A current at up to 690V AC voltage. Long mechanical life of 1,000,000 operations ensures durability. Complies with IEC/EN 60947 standards and IECEx hazardous area certification.

Suitable for industrial applications requiring safe power isolation and manual control. Flush mount style with screw terminals accommodates solid and flexible conductors securely. Operates reliably in temperatures ranging from -25°C to 50°C.

Compact size with dimensions 48 mm × 48 mm × 76 mm supports ease of installation. Explore our range of industrial Cam Switches for robust and certified switchgear solutions at EnvMart.
