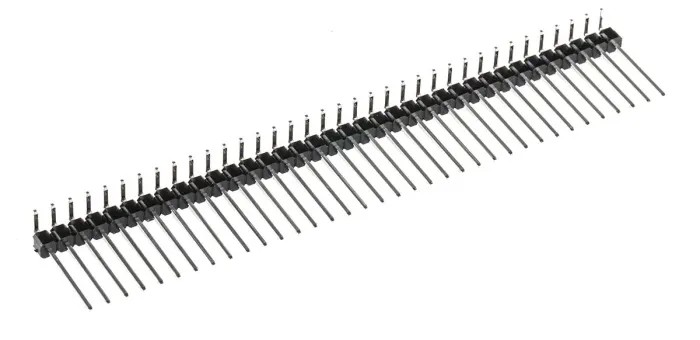

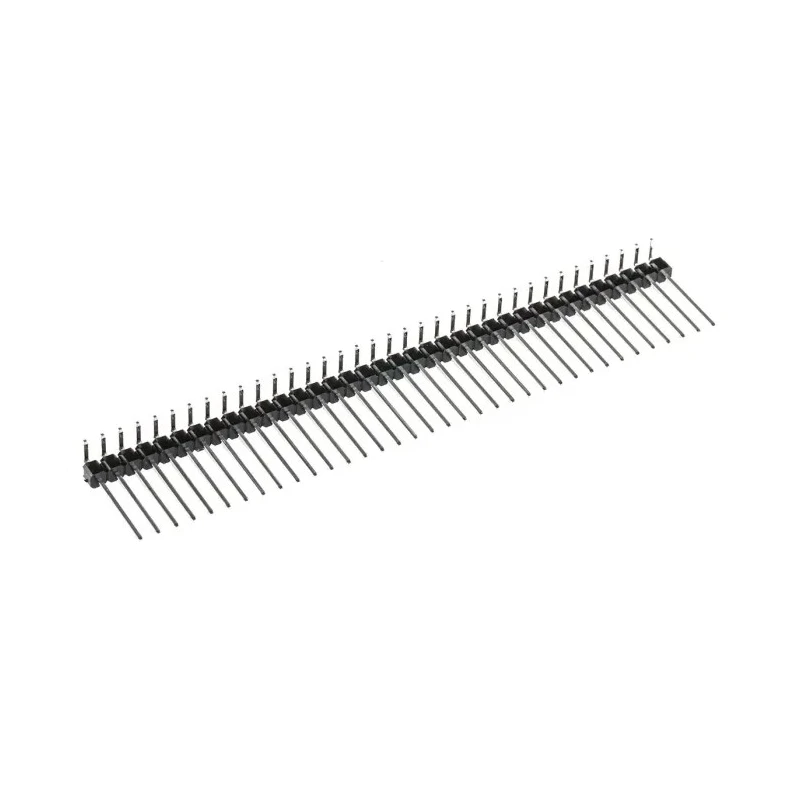

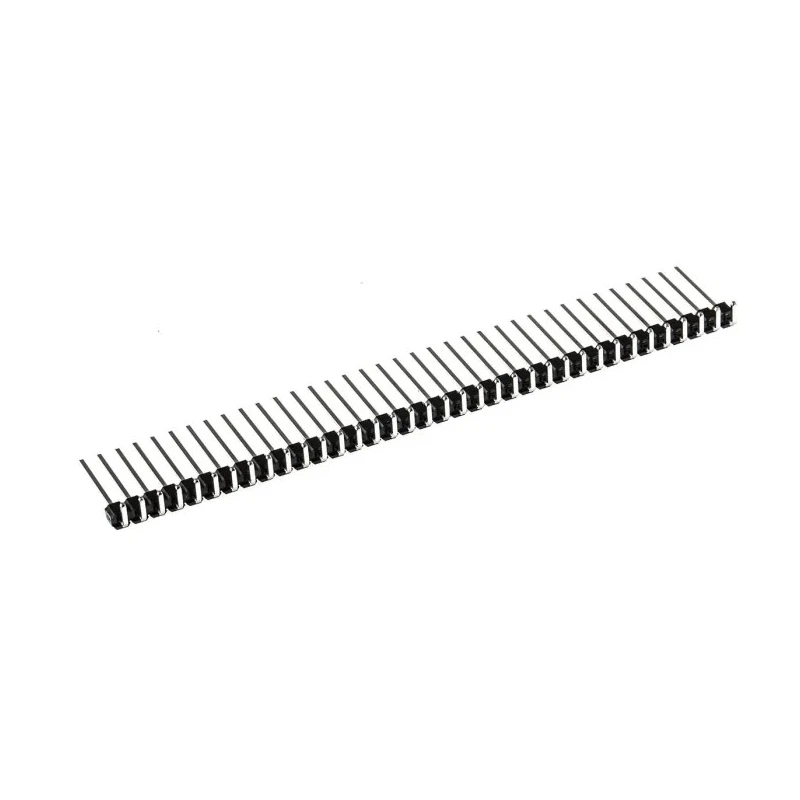

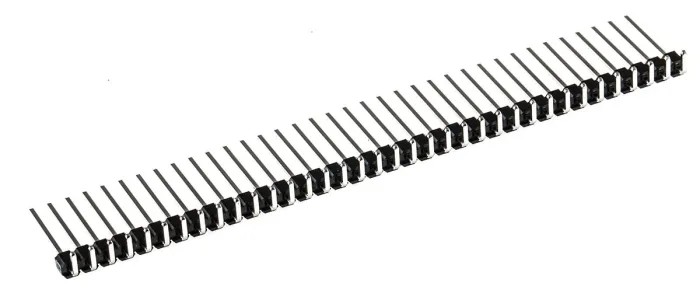

RS PRO Right Angle Through Hole Pin Header 36 Contacts 2.54 mm Pitch 1 Row Unshrouded 251-8452

RS PRO 251-8452 is a Right Angle Through Hole Pin Header featuring 36 contacts arranged in a single row with a 2.54 mm pitch, designed for reliable PCB connections. It is unshrouded and configured for right angle orientation, making it ideal for compact and space-saving circuit board layouts by redirecting pin connections at 90 degrees.

The pin header is made with brass contact material plated in tin, which ensures excellent conductivity and resistance to corrosion. Its solder termination type and through hole mount allow secure and durable attachment to PCB boards, suitable for manufacturing, repair, and prototyping applications.

This model supports a maximum operating voltage of 650 volts and a current rating of 1 ampere, suitable for low power electronic components. It operates efficiently in a wide temperature range from -65°C up to 150°C, ensuring stable performance in diverse environmental conditions.

The contact pins have a mating pin length of 12.5 mm and a tail pin length of 2.54 mm. The pin size is a 0.64 mm square cross section, compatible with standard 2.54 mm pitch PCB holes. The unshrouded design facilitates easy custom length modifications by snapping pins as required.

RS PRO 251-8452 is RoHS compliant, confirming it meets environmental standards by restricting the use of hazardous materials. This product is widely used in industrial electronics manufacturing, laboratory equipment, prototyping, and repair of electronic devices including multi-rotor flight boards.

Right angle body orientation accommodates compact PCB designs. Brass contacts with tin plating ensures conductivity and solderability. Rated for 1 ampere current and 650 volts operating voltage. Pin header has 36 contacts in a single row with 2.54 mm pitch.

Through hole solder termination offers strong PCB connection. Operates in temperature ranges from -65°C to 150°C for reliability. Unshrouded pins facilitate easy soldering and custom length adjustments. Mating pin length of 12.5 mm and tail pin length of 2.54 mm.

Complies with RoHS environmental and safety standards.

This pin header is an essential component for electronics assembly, offering durability and dependable connections for industrial and commercial PCB solutions. Explore the RS PRO range for additional PCB connectors and accessories at EnvMart.
