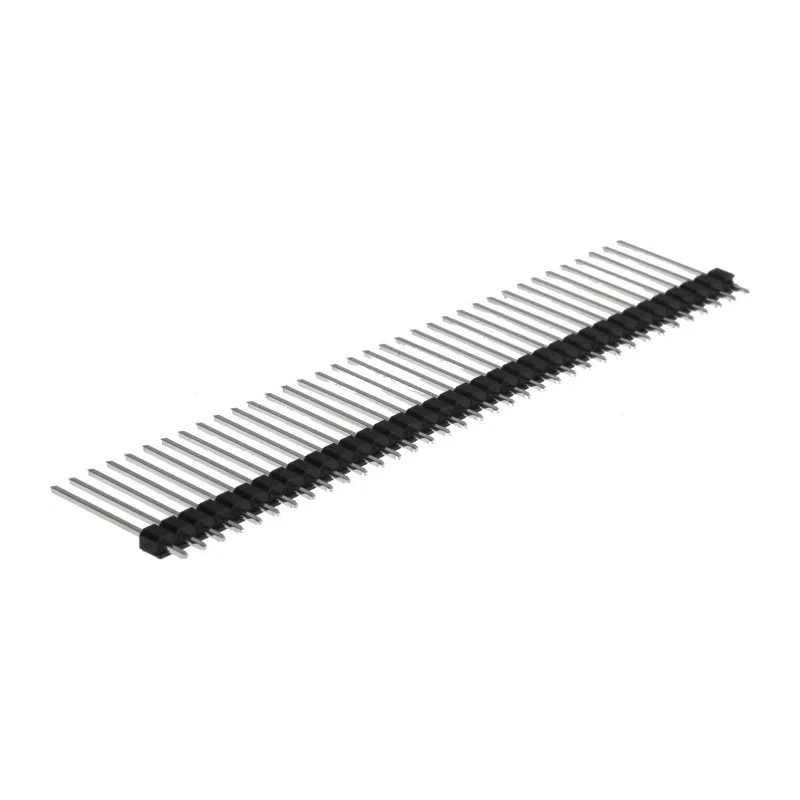

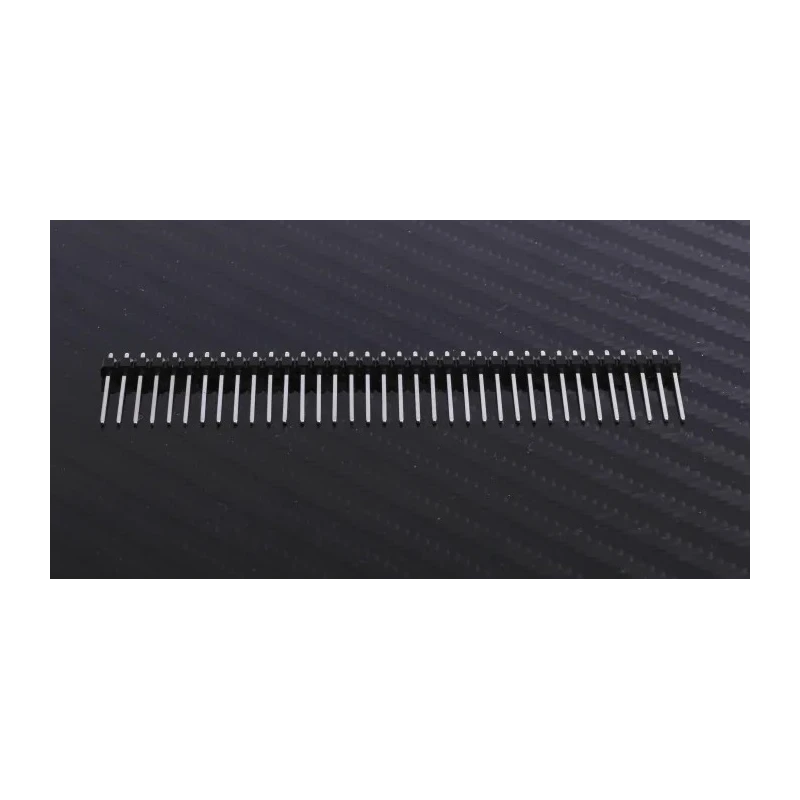

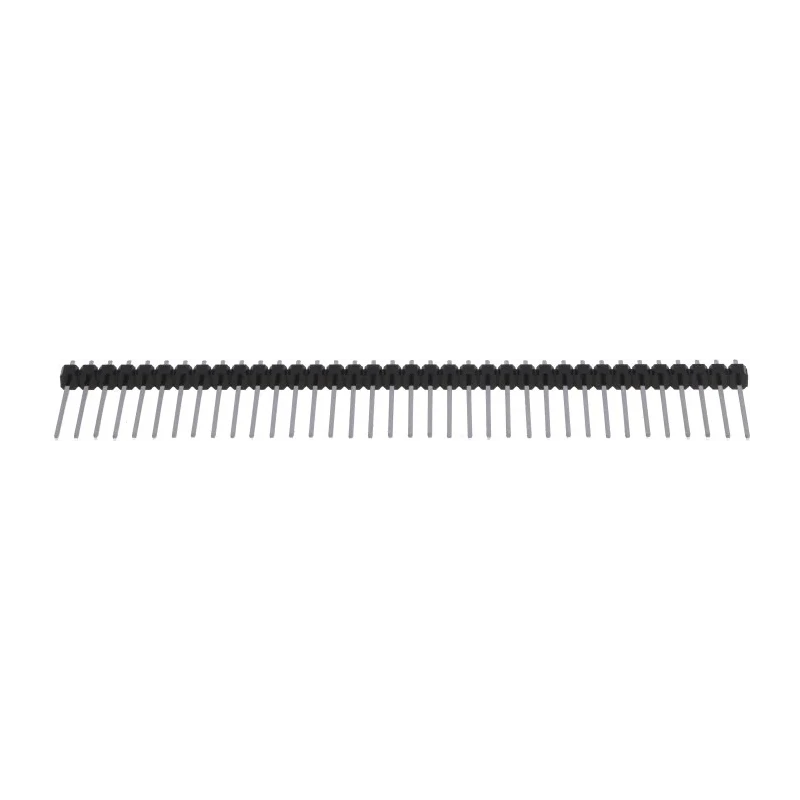

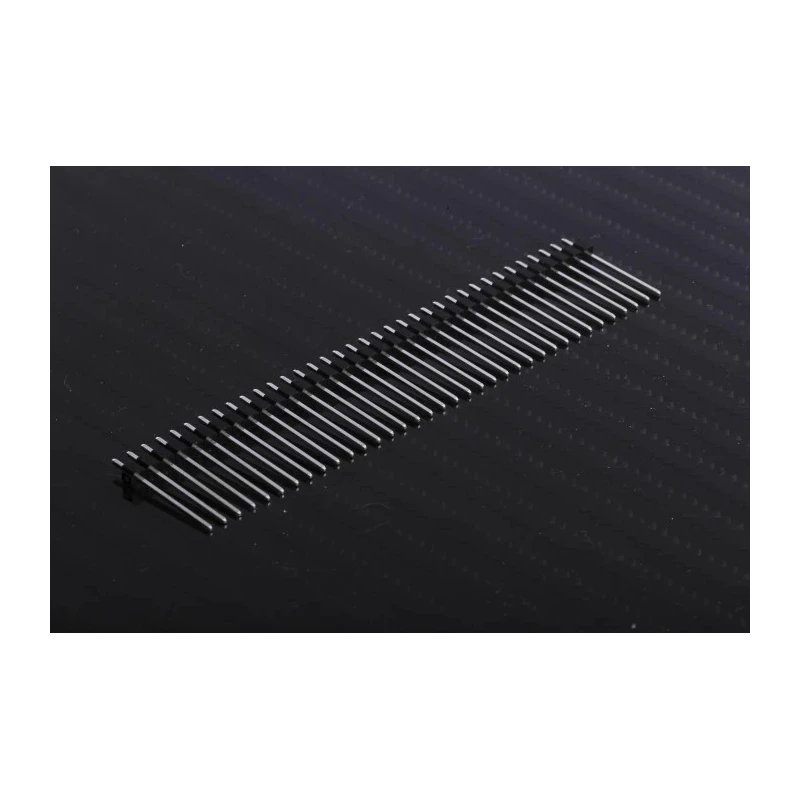

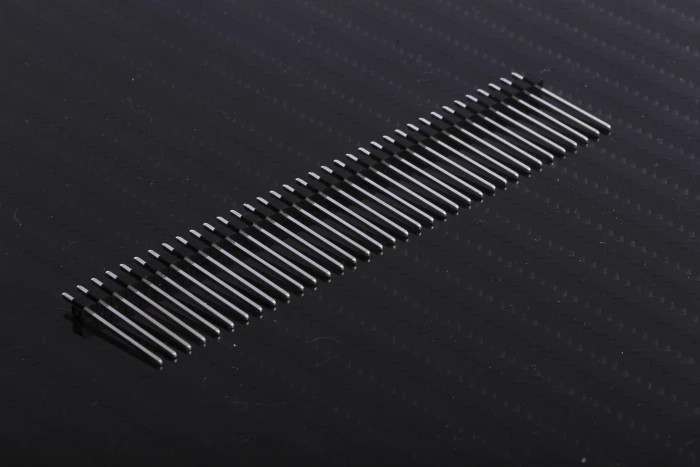

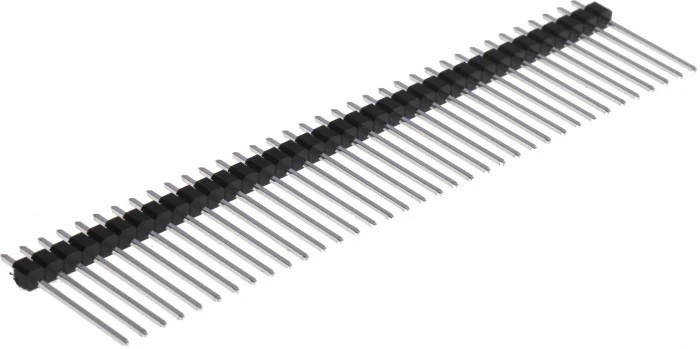

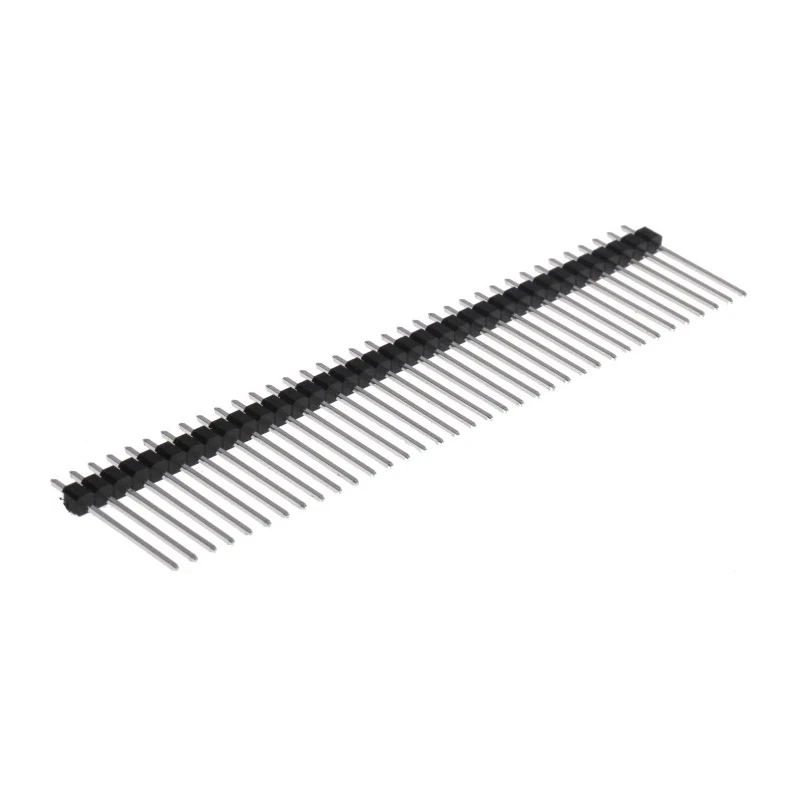

RS PRO Straight Through Hole Pin Header 36 Contacts 2.54 mm Pitch 1 Row Unshrouded 251-8367

RS PRO 251-8367 Straight Through Hole Pin Header is a high-quality PCB connector designed for electrical and electronic applications requiring a reliable interface. It features 36 male brass contacts arranged in a single row, spaced at the standard 2.54 mm pitch, suitable for through-hole mounting on printed circuit boards.

The contacts are tin plated for enhanced conductivity and corrosion resistance, providing durability and performance stability over time. The housing is constructed from polybutylene terephthalate, a glass-reinforced thermoplastic known for its robust mechanical properties and heat resistance up to 150°C, making it suitable for harsh industrial and commercial environments.

This pin header supports a current rating of 1 ampere and can handle voltages up to 650 volts, making it ideal for low power signal and data connections, commonly used in computers, automation systems, instrumentation, and automotive electronics. The product’s operating temperature range from -65°C to 150°C ensures functionality in both extreme cold and high temperature applications.

Designed with a straight orientation and unshrouded style, this connector facilitates easy access for manual or machine-driven soldering, offering versatility in assembly processes. The tail pin length of 2.96 mm and a mating pin length of 14.5 mm optimize the physical connection within circuit assemblies.

Environmental compliance is demonstrated through RoHS certification and adherence to electrostatic discharge control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, ensuring safety and reliability in sensitive electronics manufacturing.

The pin header offers through-hole mounting for increased mechanical stability in PCB designs. Its unshrouded configuration allows for flexible and customizable length by snapping individual headers. The robust PBT housing material provides excellent durability and thermal stability.

Tin plating on brass contacts prevents oxidation and enhances electrical performance. Rated to operate safely under a wide temperature range from -65°C to 150°C. Current capacity of 1A and voltage rating of 650V make it suitable for various low-power applications.

Complies with international RoHS and electrostatic discharge standards for quality and safety.

This RS PRO pin header is a dependable choice for electronic manufacturing, supporting applications in industrial, computing, automotive, and laboratory environments. It contributes to efficient electronic system assembly with its standardized pitch and reliable electrical properties.
