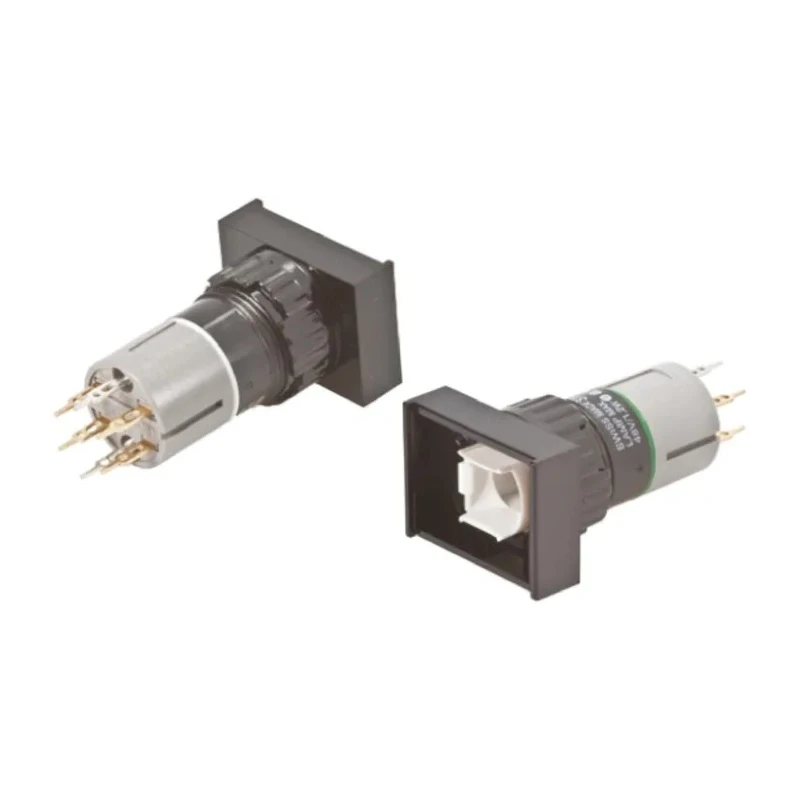

EAO Illuminated Push Button Switch 31 Series, Button Actuator, RoHS Compliant, Switzerland Origin 31-463.036



Category Push Button Switches & Components Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Actuator Type	Button
Standards/Approvals	RoHS
EAO Push Button SwitchBrand	EAO

Key Features

The switch fits 16mm panel cutouts and supports panel thicknesses from 1.5 to 6 mm.
Available with snap action or low level switching elements offering momentary or maintained switching modes.
Illumination via T1 3/4 midget filament lamp or single chip LED with 6 V to 48 V options.
Complies with Class II safety and withstands electric strength of 2500 Vac at 50 Hz for one minute.
Durable construction with self-extinguishing housing and stable contact resistance.
Suitable for process control, panel building, machinery and instrumentation industries.
Configurable normally open or normally closed contacts.
Compatible with a range of lenses, filament lamps, LEDs, and tool kits for customization.

Product Description

EAO 31-463.036 illuminated push button switch from the 31 series features a button actuator type designed for reliable human machine interface (HMI) control panels in industrial environments. This Swiss-manufactured switch complies with RoHS and IEC safety standards, making it suitable for diverse industrial, manufacturing, and process control applications.

The switch requires a 16mm panel cutout and accommodates panel thicknesses between 1.5 mm and 6 mm. It offers configurations with snap action or low level switching elements supporting momentary or maintained switching actions to suit specific circuit needs. Snap action elements provide self-cleaning double-break contacts with solder terminals, while low level elements enable switching of low power electronic loads from 10μA at 100μV up to 100mA at 42Vac/dc, terminating via universal terminals compatible with soldering or PCB mounting.

Illumination options include T1 3/4 midget groove filament lamps or single chip LEDs rated from 6 V to 48 V, with external resistors required for voltages exceeding 48 V. The switch housing and actuator are made of self-extinguishing materials, ensuring Class II compliance and an electric strength rating of 2500 Vac at 50 Hz for one minute between all terminals and earth, adhering to IEC 60512-2-11 standards.

This illuminated push button switch offers a raised button profile for ergonomic operation and stable contact resistance over long operational life and short rebound times. It is suitable for panel builders, machinery controls, instrumentation, and other industries requiring reliable push button solutions.

The switch fits 16 mm panel cut-outs and panel thicknesses of 1.5 to 6 mm. Available in snap action or low level switching elements with momentary or maintained actions. Illumination options include T1 3/4 filament lamps and single chip LEDs from 6 V to 48 V.

Self-extinguishing housing material and Class II compliance for enhanced safety. Electric strength of 2500 Vac at 50 Hz as per IEC 60512-2-11. Suitable for Process Control, Panel Building, Machinery, and Instrumentation applications.

Various configurations including normally open or normally closed contacts. Accessory compatibility with lenses, filament lamps, LEDs, and tool kits for easy customization.
