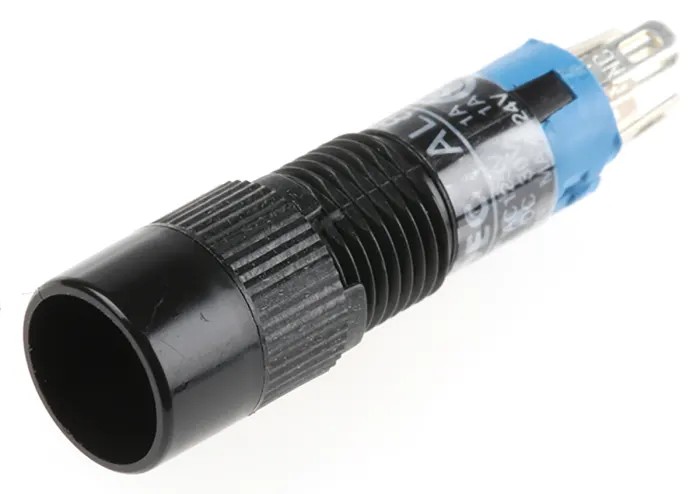

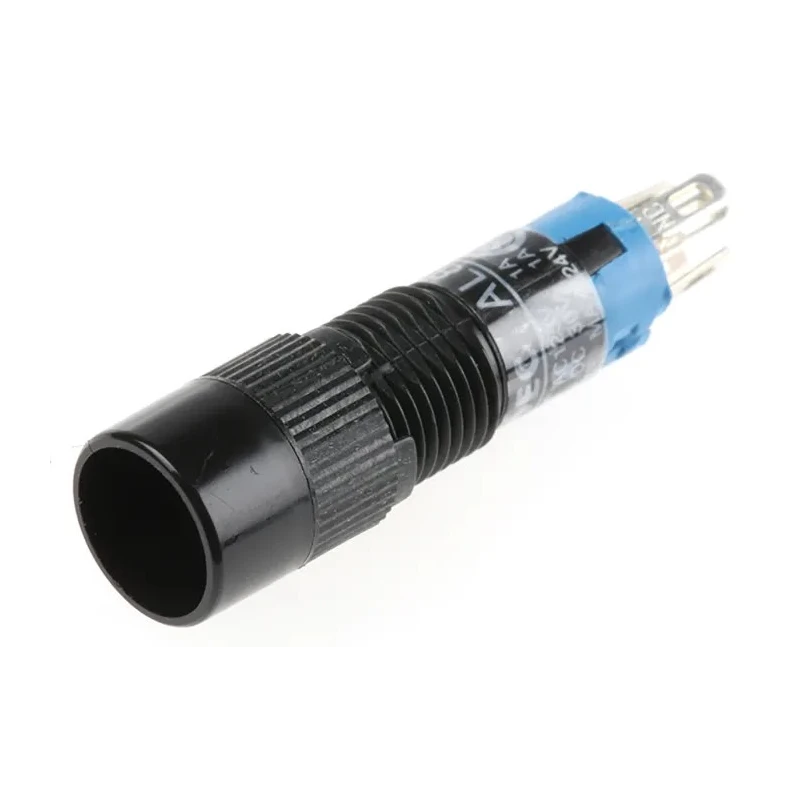

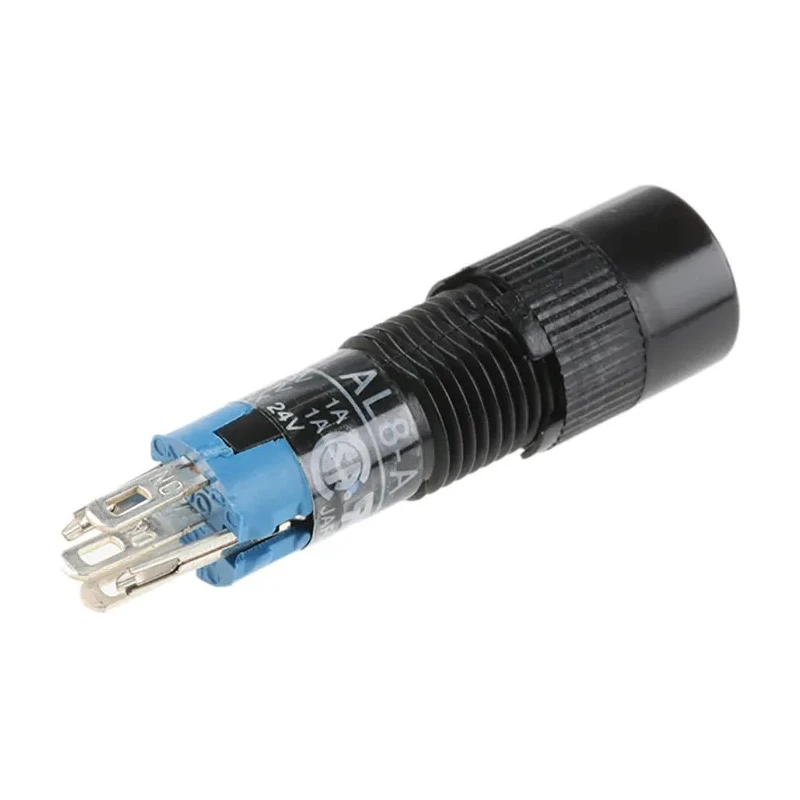

Idec Illuminated Miniature Push Button Switch, Latching, Panel Mount, 8 mm Cutout, SPDT, IP40, 125 V AC AL8M-A100
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Model | AL8M-A100 |
| IP Rating | IP40 |
| Mount Type | Panel |
| Series | AL |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Note | When not illuminated, the green LED appears to be yellow |

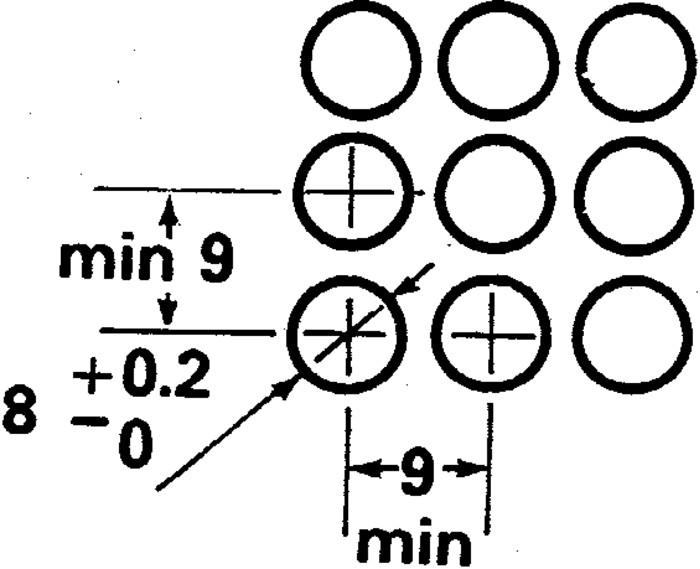

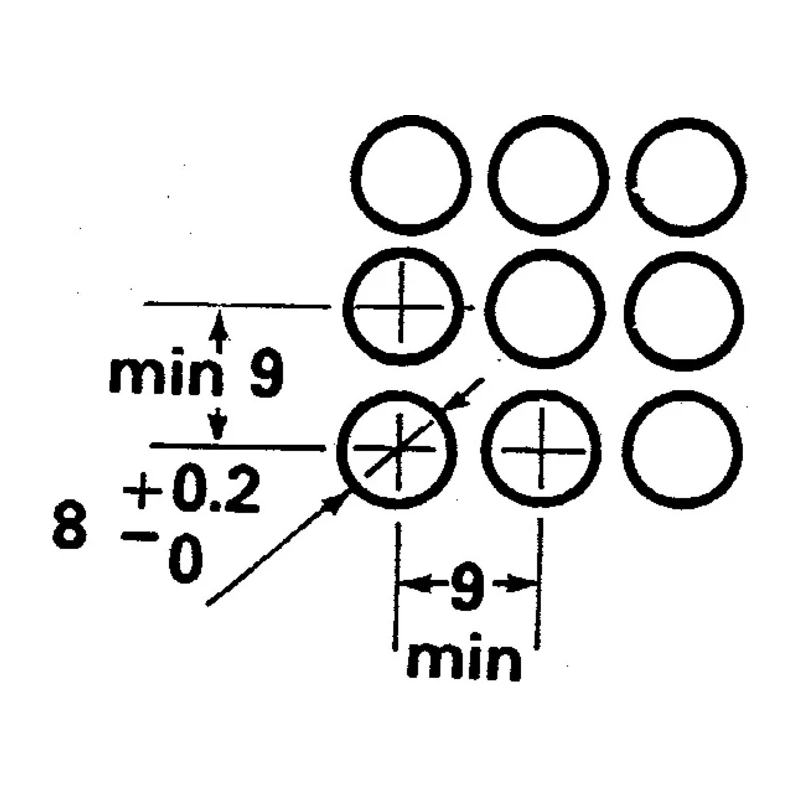

| Panel Cutout Size | 8 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Switch Operation | Latching |
| Actuator Colour | Grey |
| Actuator Style | Cylinder |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 125V ac |
| SUB-MIN ILLUM SW ALT RNDBrand | NEUTRAL |
Key Features
- The switch features a compact 8 mm panel cutout design for sub-miniature installations.
- Equipped with LED illumination for visual status indication, compatible with supplied LEDs.
- The actuator is styled as a cylinder with a grey color for standardized panel aesthetics.
- Rated at IP40 for ingress protection, suitable for controlled environments.
- Switch contacts support a current rating of 100 mA at 125 V AC, ideal for signal-level switching.
- The switch operates with a latching mechanism enabling On-Off control configuration.
- Designed to withstand maximum operating temperature of 120°C, ensuring durability in demanding industrial applications.
- Solder terminal type facilitates reliable PCB or wiring connections.
Product Description
Idec AL8M-A100 is an illuminated miniature push button switch designed for precise panel mounting with an 8 mm cutout. It features a latching switch operation and a SPDT contact configuration, optimized for 125 V AC electrical systems. This panel-mounted switch integrates LED illumination, with LEDs supplied separately, providing clear visual feedback.
The grey cylindrical actuator ensures consistent tactile response and aesthetic integration in control panels. Its IP40 rating protects against ingress of solid objects greater than 1 mm, making it suitable for indoor and controlled industrial environments.
This switch supports a contact current of 100 mA and complies with CSA and UL certifications, reflecting its quality and safety for industrial automation and electrical control applications. The solder terminal type supports secure and durable electrical connections, and the switch maintains reliable service up to 120°C ambient temperature.
The sub-miniature design allows integration into compact systems requiring space-efficient control switches. When not illuminated, the green LED indicator appears yellow, providing an additional visual cue for operators. The two-part lens design combines a diffuser with a transparent colored cover, enhancing switch function identification.
The switch features latching operation for On-Off control applications. Panel mount design with 8 mm cutout suitable for compact installations. SPDT contact configuration supports versatile switching requirements. LED illumination supplied separately with specific voltage and current limits.
Rated IP40 for protection against solid foreign objects. Solder terminals facilitate reliable wire connections. Operating temperature rating up to 120°C for demanding environments. Certified to CSA and UL standards ensuring safety and compliance.
This product suits industrial automation, electrical control panels, manufacturing machinery controls, HVAC systems, and instrumentation requiring reliable user interface components. Explore more Push Button Switches and related components across EnvMart for optimized industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
It is rated for a maximum operating temperature of 120°C, making it suitable for demanding industrial environments.
The switch requires an 8 mm cutout for panel mounting, designed for compact installations.
The switch supports a contact current rating of 100 mA at 125 V AC, suitable for signal-level switching.
It features LED illumination, which is supplied separately, providing visual feedback when activated.
This model has an IP40 rating, protecting against solid objects larger than 1 mm, suitable for controlled environments.
It utilizes solder terminals, facilitating secure and durable electrical connections.
The actuator is styled as a grey cylindrical design, ensuring consistent tactile response and aesthetic integration.
It is certified to CSA and UL standards, reflecting its quality and safety for industrial applications.
The switch operates with a latching mechanism, enabling On-Off control configuration.
This switch is suitable for industrial automation, electrical control panels, and manufacturing machinery controls, among other applications.
When not illuminated, the green LED appears yellow, providing an additional visual cue for operators.
