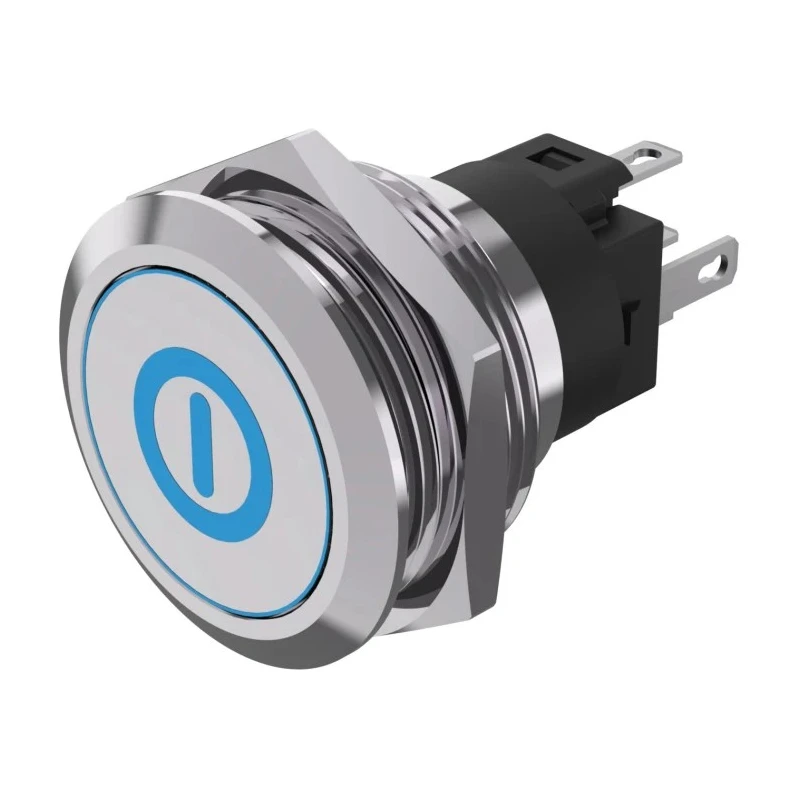

EAO 82 Series Illuminated Push Button Switch Momentary Panel Mount SPDT Blue LED 22.3 mm Cutout IP65 IP67 82-6151.1A24.B001



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	82-6151.1A24.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Momentary
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, UL, cUL, CCC
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off

Key Features

The actuator has a silver color finish providing a sleek industrial look.
Designed with momentary switch operation for precise control.
Featuring SPDT contact configuration suited for versatile switching applications.
IP65 and IP67 rated for high protection against dust and water ingress.
Operates reliably between -30°C to 70°C temperature range.
Rated for 240V AC and 240V DC operation with a 3A contact current.
Constructed with vandal-resistant and impact-resistant materials meeting IK10 standards.
Ideal for use in industrial machinery, building security systems, and public equipment.

Product Description

EAO 82-6151.1A24.B001 Illuminated Push Button Switch is a category 82 series momentary push button designed for panel mounting. It features a precise 22.3 mm cutout and a silver-colored actuator providing durability and aesthetic appeal. The switch is equipped with a blue LED illumination for easy visual indication.

This push button switch supports SPDT contact configuration and is suitable for switching applications up to 240V AC and 240V DC, carrying 3A current load. The device is IP65 and IP67 rated, ensuring excellent protection against dust and water, making it suitable for harsh environments.

Built to withstand challenging industrial conditions, the switch has vandal-resistant characteristics with impact resistance certified to IK10 standards. It operates reliably within the temperature range of -30°C to 70°C, ensuring versatility across different climates.

Its robust stainless steel 304 finish provides corrosion resistance and a long operational lifespan exceeding one million cycles. This switch is particularly well-suited for industrial machinery, factory equipment, building access control systems, security systems, medical devices, audio-video equipment, and food industry applications.

Applications include exposed public areas such as ticketing and vending machines, elevators, and people movers, where reliability and clear indication are essential. The actuator has a silver color finish providing a sleek industrial look.

Designed with momentary switch operation for precise control. Featuring SPDT contact configuration suited for versatile switching applications. IP65 and IP67 rated for high protection against dust and water ingress. Operates reliably between -30°C to 70°C temperature range.

Rated for 240V AC and 240V DC operation with a 3A contact current. Constructed with vandal-resistant and impact-resistant materials meeting IK10 standards. Ideal for use in industrial machinery, building security systems, and public equipment.
