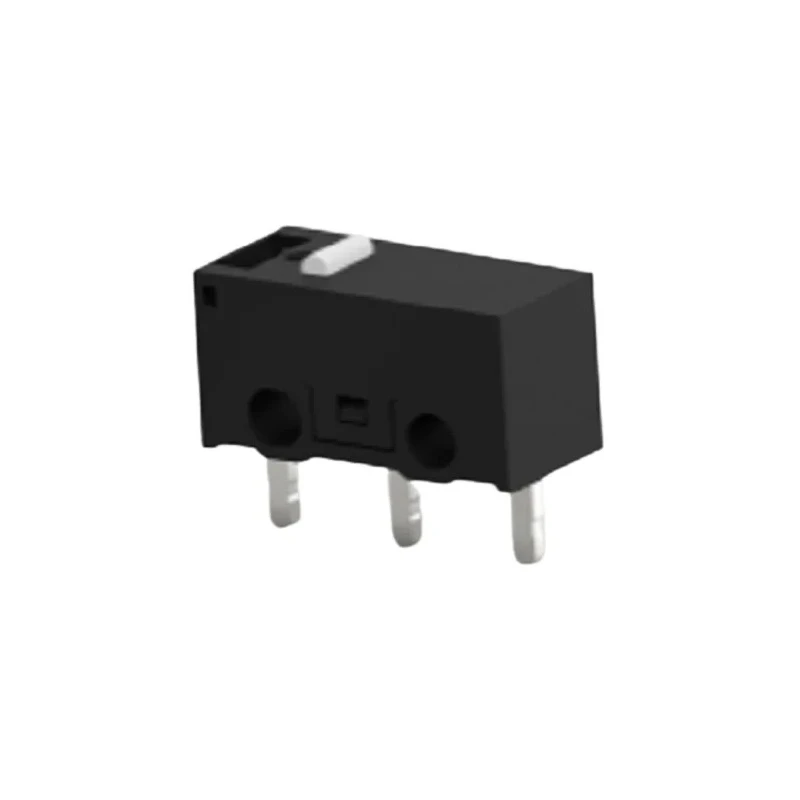

TE Connectivity Pin Plunger Snap Action Micro Switch, PCB Terminal, 3A, SPDT SAJ13XXPP0N88SDTPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ13XXPP0N88SDTPTQ |
| Series | SAJ |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Operating Force | 0.75N |
| Mechanical Life | 500000Cycles |
| Microswitch Type | Miniature |
Key Features
- This miniature snap action switch provides reliable SPDT contact configuration.
- Operates at a low force of 0.75N ensuring precise actuation.
- Designed to function between -25°C to 75°C operating temperatures.
- Offers a mechanical life rating of 500,000 cycles for long-lasting durability.
- Complies with RoHS standards ensuring environmental safety.
- Suitable for home appliances, consumer electronics, and factory automation.
- PCB terminal design enables easy mounting in electrical circuits.
- Dimensional compatibility with several popular brands facilitates replacement.
Product Description
TE Connectivity SAJ13XXPP0N88SDTPTQ is a pin plunger snap action micro switch designed for precise and reliable electrical control applications. It features a SPDT contact configuration capable of handling up to 3A of current, making it suitable for a wide range of industrial and domestic applications including home appliances, consumer electronics, and factory automation systems.
This miniature micro switch operates with an actuator type pin plunger and is mounted via PCB terminal for convenient installation. It requires an operating force of 0.75N, enabling sensitive actuation responses. Engineered to perform reliably in environments ranging from a minimum temperature of -25°C to a maximum of 75°C, it ensures robust operation in varied conditions.
The switch provides exceptional mechanical lifespan, rated for 500,000 cycles, offering long-term durability even under frequent cycling. Furthermore, the device complies with RoHS standards, supporting environmentally responsible manufacturing.
Its dimensions are identical to many other popular brands, facilitating seamless replacement or integration into existing designs. The switch is highly resistant to flux, enhancing reliability during soldering and assembly processes on PCBs.
Applications span across electrical control in household appliances, consumer electronics, industrial machinery, and automation systems where precise snap action switching is essential.
This miniature SPDT Micro Switch withstands extensive mechanical cycling with high reliability. Environmentally compliant with RoHS for safe usage and disposal. Pin plunger actuator ensures accurate and repeatable switch operation.
PCB terminal design offers versatile and secure mounting options. Suitable for industrial, commercial, and home automation use cases. Explore more electronic switches and components in the Electronics & Electricals category on EnvMart for reliable industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 75°C.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The switch can handle up to 3A of current.
It uses a pin plunger actuator type for actuation.
The operating force required for actuation is 0.75N.
The mechanical life rating of this switch is 500,000 cycles.
The minimum operating temperature for this switch is -25°C.
It features a PCB terminal design for easy mounting.
Yes, it complies with RoHS standards for environmental safety.
This model is suitable for applications in home appliances, consumer electronics, and factory automation.
The country of origin for this micro switch is China.
It is highly resistant to flux, enhancing reliability during soldering and assembly processes on PCBs.
