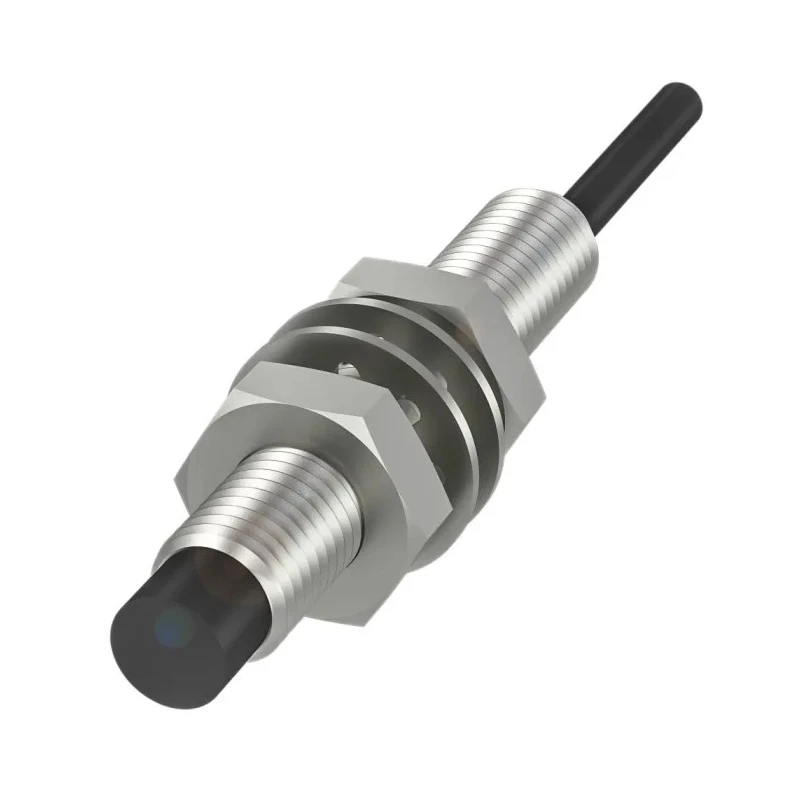

BALLUFF Threaded Barrel Inductive Proximity Sensor M8 x 1, NPN Output, 30 V dc, 200mA, 3.2 mm Detection BES046Z

BALLUFF BES046Z is a high-quality threaded barrel inductive proximity sensor designed for precise object detection within metal environments. Featuring an M8 x 1 thread size and a compact 50 mm body length, this sensor delivers industrial-grade performance with robust stainless steel housing that ensures long-term durability and resistance to wear and corrosion.

This sensor operates with a non-flush mount type and comes equipped with a cable terminal type, simplifying installation in automation systems. The unshielded sensor design enables accurate detection up to 3.2 mm range, making it ideal for metal part detection in manufacturing, robotics, and process control applications.

Operating within a temperature range of -25°C to 70°C and carrying an IP68 rating, the BES046Z sensor performs reliably in extreme and harsh industrial environments, including those exposed to dust and water ingress. It supports a maximum switching frequency of 4 kHz, allowing for rapid detection cycles essential in high-speed automation processes.

The sensor output is of NPN type, capable of handling switching currents up to 200 mA at a maximum operating voltage of 30 V dc. Certification standards such as CE, cULus, EAC, WEEE, and IEC 60947-5-2 underline the product's compliance with international safety and quality norms.

BES046Z is part of the renowned BALLUFF BES series sensors, known for their versatility and reliability across various industrial sectors including manufacturing, automotive, packaging, and robotics.

Constructed with stainless steel housing for durability and corrosion resistance. Equipped with NPN output and cable terminal type for versatile connectivity. Operates reliably from -25°C to 70°C temperature range. Designed as a non-flush mount sensor with IP68 protection rating for harsh environments.

Supports maximum switching frequency of 4 kHz for fast response in automation. Unshielded sensor optimized for metal object detection in industrial applications. Supplies a maximum current of 200 mA with a 30 V dc operating voltage.

Complies with standards CE, cULus, EAC, WEEE, and IEC 60947-5-2 for safety and quality assurance. Explore the BALLUFF BES046Z sensor and related Inductive Proximity Sensors on EnvMart for your electrical automation and control needs.
