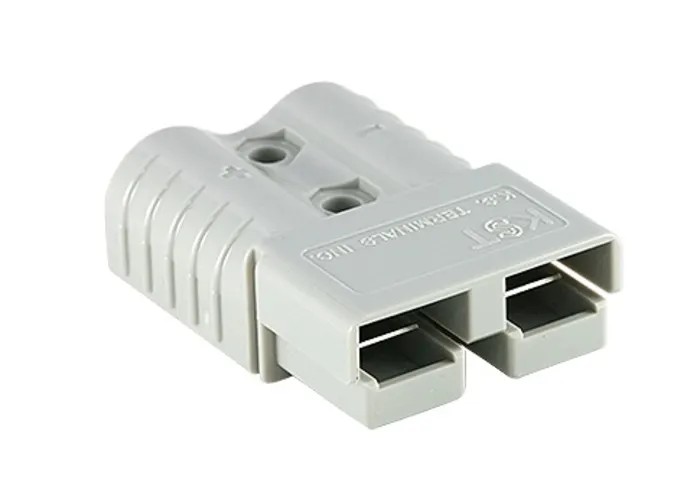

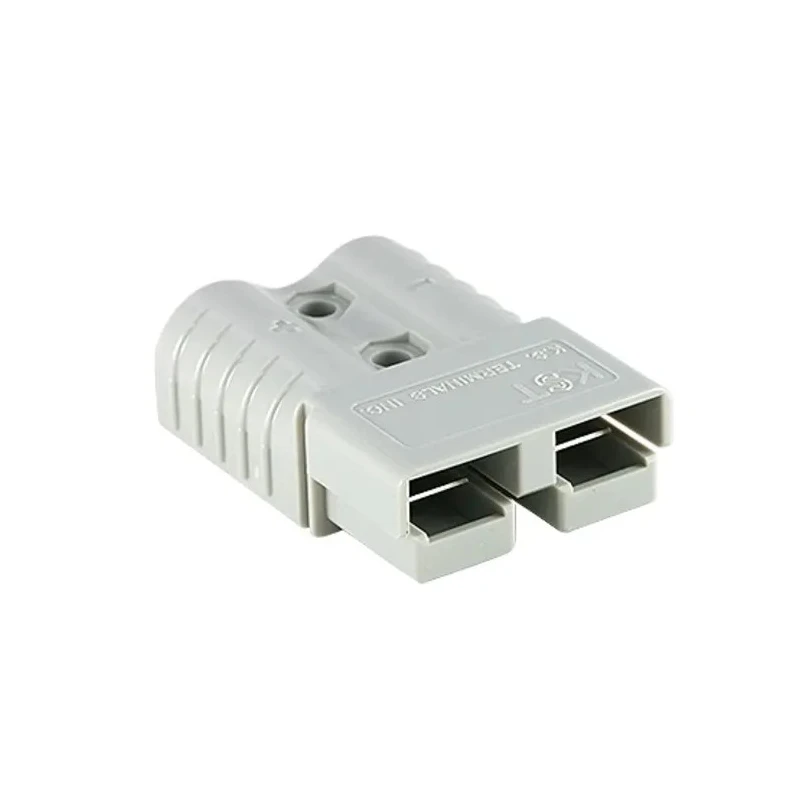

RS PRO 2 Way Male/Female Modular Battery Contact, Straight Orientation, Cable Mount, 600V, 100A Current Rating 237-8780

Name: RS PRO 2 Way Male/Female Modular Battery Contact, Straight Orientation, Cable Mount, 600V, 100A Current Rating 237-8780
Brand: RS PRO
SKU: 175785
Price: 12.86 USD
Availability: InStock



Category Battery Connectors Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	600V
Brand	RS PRO
Orientation	Straight
Operating Temperature	-20 to +125 °C
Current	100A
Model	237-8780
Mount Type	Cable
Housing Material	Polycarbonate
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-20°C
Wire size	22 mm
Dimensions (LxWxD)	63.51 x 44.4 x 20.4 mm
Standards/Approvals	REACH, UL, RoHS
Contact Plating	Silver
Number of Contacts	2
Contact Gender	Male
Connector Gender	Male/Female
Housing Current Rating	120 A / Contact Current Rating: 100 A

Key Features

Constructed with robust polycarbonate housing for excellent impact resistance.

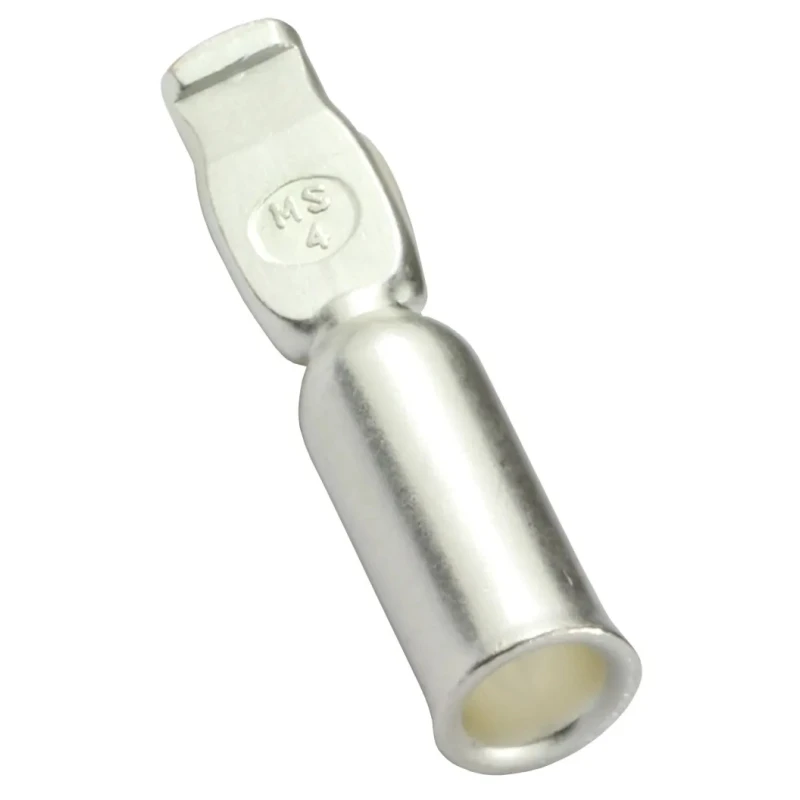

Silver plated copper contacts ensure superior conductivity and durability.
Rated for 600V continuous AC/DC operation and 100A contact current capacity.
Operates efficiently within -20°C to +125°C temperature range.
Designed for male and female connector interfaces offering modular connectivity.
Complies with REACH, UL, and RoHS standards ensuring safety and compliance.
Typical applications include UPS systems, telecommunications, forklift trucks, electric vehicles, and chargers.
Compact dimensions of 63.51 x 44.4 x 20.4 mm and supports 22 mm wire size.

Product Description

RS PRO 237-8780 2 Way Male/Female Modular Battery Contact is designed for reliable power connection in commercial and industrial environments. The straight orientation cable-mounted connector is constructed with high-strength polycarbonate housing to withstand mechanical stresses while maintaining electrical integrity. Silver plated copper contacts provide excellent conductivity and increased connector life.

Supporting a voltage rating of 600V and contact current rating of 100A, this modular battery contact delivers high-performance electrical connection for critical applications. It operates effectively under wide temperature conditions from -20 degrees Celsius to +125 degrees Celsius, making it suitable for various demanding environments.

This RS PRO series connector features 2 contacts with male and female genders, optimized for modular battery connections that enforce color management to reduce pairing errors and enhance user safety. The product complies with international safety and environmental standards including REACH, UL, and RoHS directives, guaranteeing quality and regulatory adherence.

Applications of the 237-8780 battery modular connector are diverse, including uninterrupted power supply (UPS) systems, telecommunication infrastructure, electric vehicles and charging stations, as well as forklift trucks in industrial settings. Its compact size of 63.51 mm length, 44.4 mm width, and 20.4 mm depth make it highly adaptable for various panel designs.

Robust polycarbonate housing for impact resistance. Silver plated copper contacts for exceptional conductivity. High voltage and current ratings suitable for commercial usage. Operating temperature range from -20 to +125 °C.

Compliant with REACH, UL, and RoHS certifications. Designed specifically for modular battery connection systems. Ideal for heavy-duty and industrial power applications. Supports wire size of 22 mm for cable mounting.

Ensure reliable and safe battery connections with the RS PRO 237-8780 Modular Battery Contact, optimized for electrical and electronic components requiring durable and efficient connectivity. Explore related battery contact products in the Electronics Components category at EnvMart.
