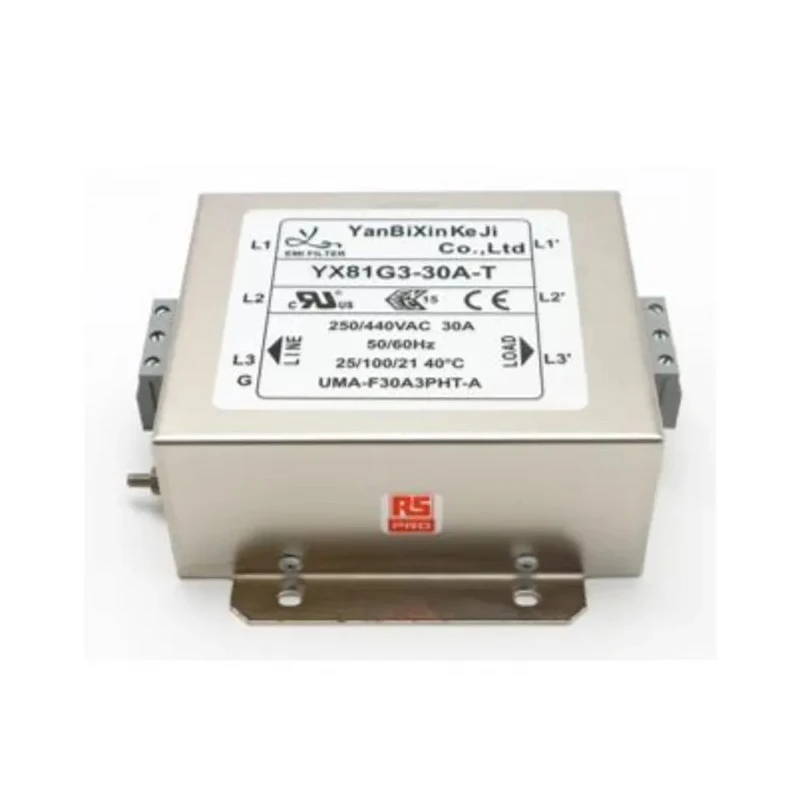

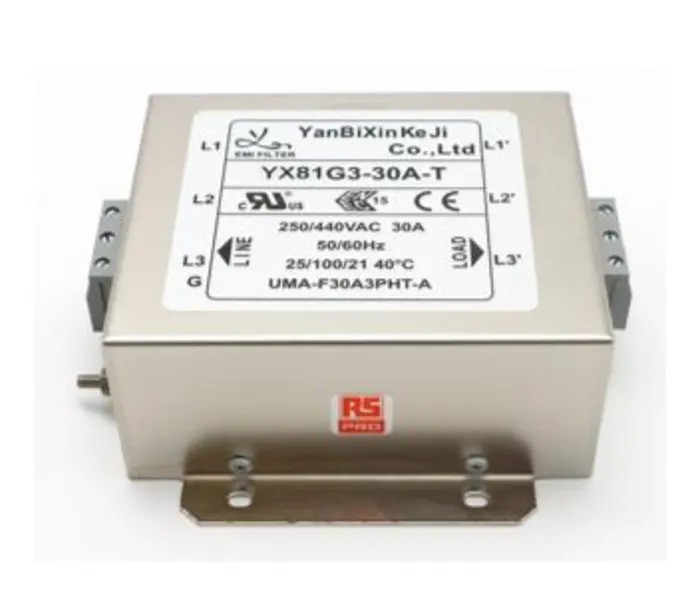

RS PRO Chassis Mount Power Line Filter 30 A 520V AC 50Hz/60Hz Terminal Block 3 Phase 237-8745

RS PRO 237-8745 chassis mount power line filter is engineered for industrial and commercial three-phase power applications, designed to deliver superior suppression of electromagnetic interference (EMI) and radio frequency interference (RFI). The filter operates effectively at 30 A maximum current with a voltage rating of 520V AC across the standard utility frequencies of 50Hz and 60Hz.

This power line filter connects via terminal block termination, providing secure and stable installation on chassis mount setups. The single-stage filter design integrates a capacitance of 0.68μF and inductance of 0.8mH, optimizing noise reduction while maintaining low leakage current at 3.7mA.

Measured at 130mm in length, 120mm in depth, and 50mm in height, its compact form factor is suitable for space-constrained panels and machinery. The device functions reliably across a broad temperature range from -25°C to +85°C, accommodating diverse environmental conditions.

The filter complies with international safety and performance standards including UL1283, CSA C22.2 No.8, EN 60939, and IEC, providing trusted protection against voltage spikes and noise in sensitive electronic equipment. Its rugged design safeguards industrial machines, household equipment, medical devices, and sensitive electronics from potential damage caused by electrical noise and transient spikes.

Rated maximum current of 30 A ensures suitability for medium power applications. Operating voltage up to 520V AC supports industrial and commercial usage. Chassis mount design with terminal block termination for secure installation.

Single stage filter construction for effective EMI/RFI suppression. Compact dimensions optimize installation in constrained spaces. Capacitance and inductance values achieve strong filtering characteristics. Low leakage current reduces operational power loss.

Wide operating temperature range for environmental versatility. Compliance with major international standards for reliability and safety. Manufactured in China ensuring quality in line with RS PRO standards.

RS PRO is recognized globally for manufacturing reliable electronic components that meet demanding industry standards. This Power Line Filter represents a high-quality solution for ensuring power integrity and prolonging equipment lifecycle in electrical, manufacturing, and commercial sectors.
