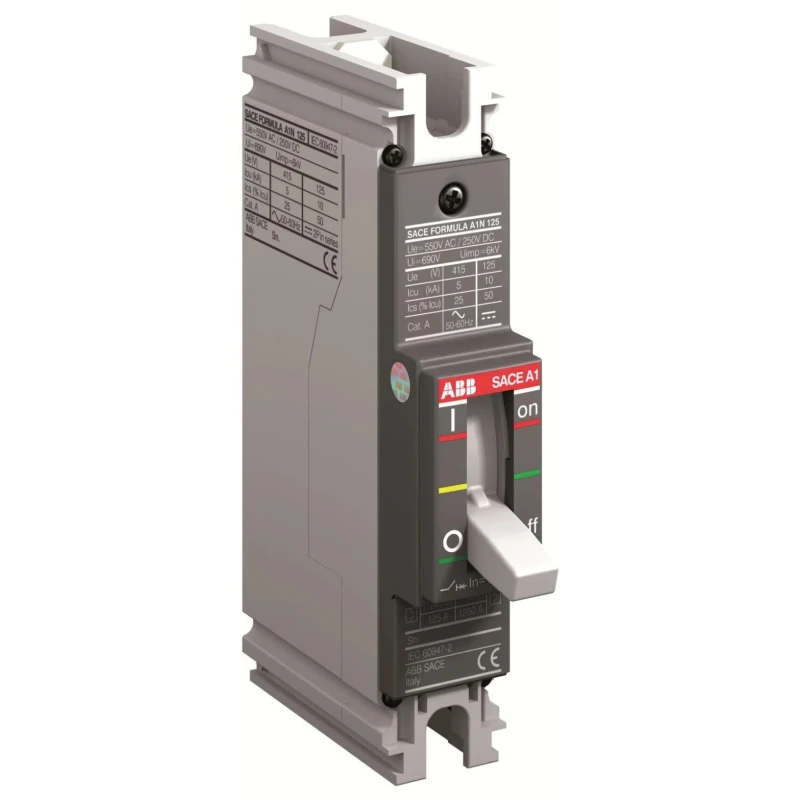

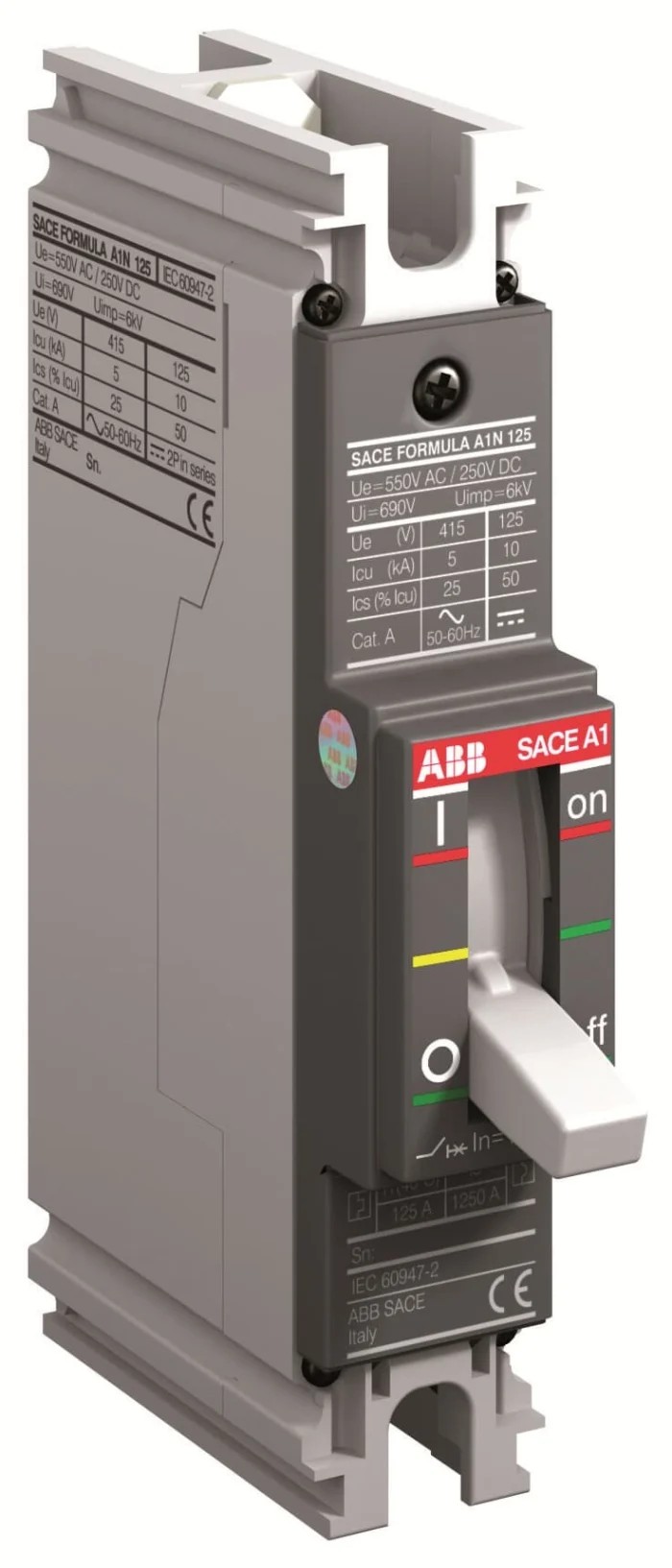

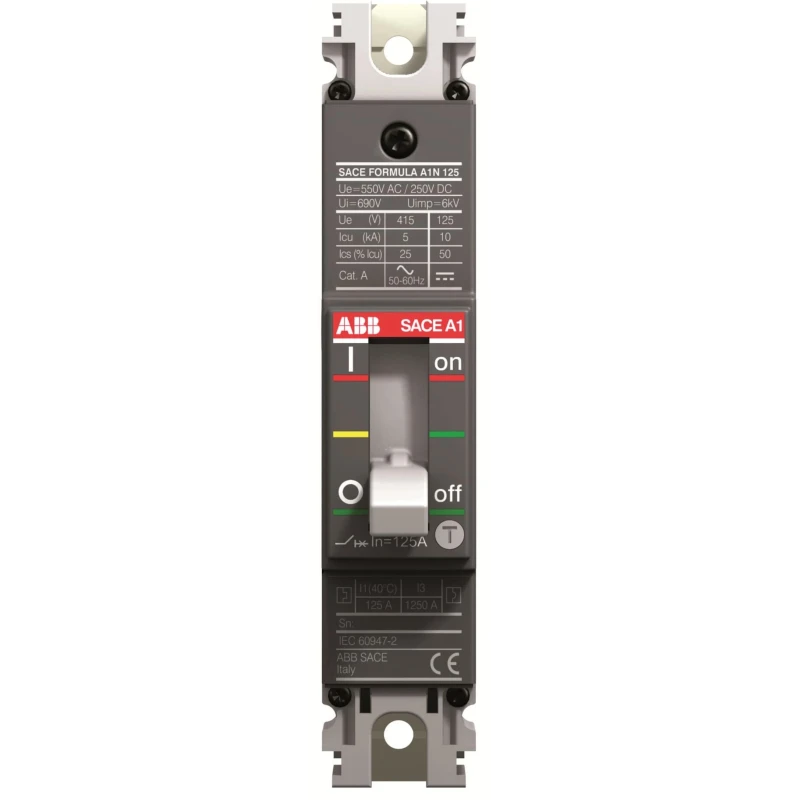

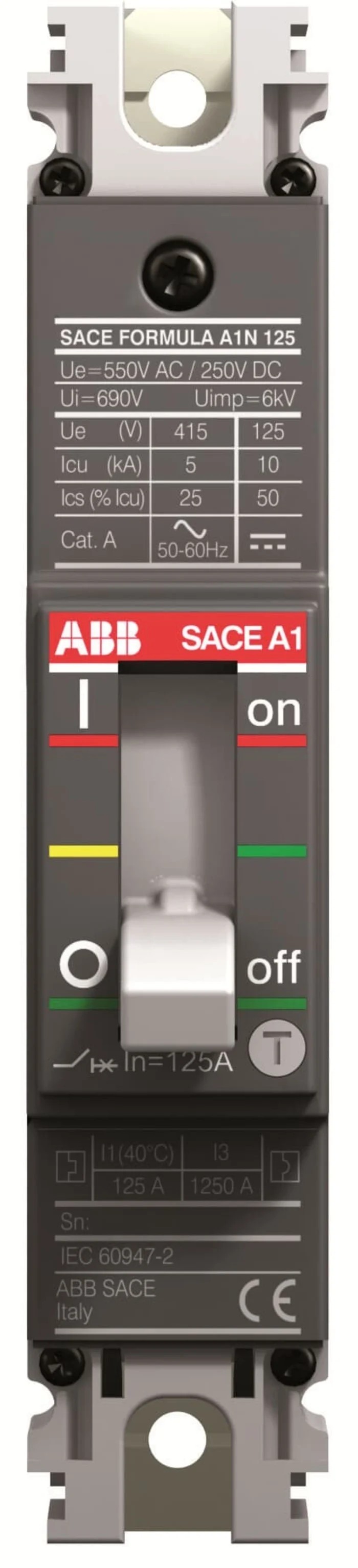

ABB Formula DSA Molded Case Circuit Breaker 1-Pole 125A 25kA Breaking Capacity Fixed 1SDA066696R1
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Formula DSA |
| Brand | ABB |
| Height | 130mm |
| Model | 1SDA066696R1 |
| Depth | 60mm |
| Width | 25.4mm |
| Mount Type | Fixed |
| Current Rating | 125A |
| Series | 1SDA06 |
| Terminal type | Front |
| Breaking Capacity | 25kA |
| Number of Poles | 1 |
| Standards/Approvals | CE, IEC |
| Rated AC Voltage | 415V ac |
| Rated DC Voltage | 125V dc |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
Key Features
- Provides overcurrent protection for single-phase industrial and commercial control systems.
- Rated current of 125A supports high continuous load handling.
- Breaking capacity of 25kA limits prospective short-circuit energy effectively.
- Thermal-magnetic trip mechanism delivers combined overload and fault protection.
- Single-pole configuration enables selective supply isolation for system safety.
- Front-terminal design allows easy wiring without panel removal.
- Lever reset actuator permits quick manual reclosure after trip events.
- Fixed mounting ensures secure installation inside panels or enclosures.
Product Description
ABB 1SDA066696R1 Formula DSA Molded Case Circuit Breaker features a 1-pole design capable of handling 125A current with a 25kA breaking capacity, suitable for fixed mounting in industrial and commercial electrical installations.
This circuit breaker is equipped with a thermal-magnetic tripping mechanism for efficient protection against both overloads and short circuits in single-phase installations. Designed with front access terminals, it allows straightforward wiring and maintenance without the need to remove panels.
Its lever reset actuator facilitates easy manual resetting after trip events, enabling quick restoration of power. The product meets CE and IEC standards, assuring compliance with international safety and performance requirements.
Applications include safeguarding motor-control circuits in factories, protecting distribution panels in automation systems, and use in control cabinets within electrical and electronic workshops. It is also suitable for single-phase protection in mechanical plant installations where reliable and selective isolation is required.
Overcurrent protection for industrial and commercial single-phase control systems. High continuous load handling with 125A rating. 25kA breaking capacity for effective short-circuit energy limitation. Thermal-magnetic trip for combined overload and fault protection.
Single-pole configuration for selective supply isolation. Front-terminal design for easy wiring access and maintenance. Lever reset actuator allows quick manual reclosure. Fixed mounting for secure panel installation. Compliance with CE and IEC standards ensures quality and safety.
Rated for 415V AC and 125V DC operation.
This ABB Molded Case Circuit Breaker is a robust and reliable solution for protection in automation, manufacturing, HVAC, and electrical distribution environments. Explore more ABB products and circuit breakers on EnvMart for trusted industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This molded case circuit breaker has a current rating of 125A, making it suitable for high continuous load handling.
The breaking capacity of this circuit breaker is 25kA, which effectively limits prospective short-circuit energy.
It features a thermal-magnetic tripping mechanism that provides combined overload and fault protection.
The dimensions of this circuit breaker are 130mm in height, 60mm in depth, and 25.4mm in width.
This model is rated for 415V AC operation.
Yes, it is designed for single-phase industrial and commercial control systems.
The front-terminal design allows for easy wiring and maintenance without the need to remove panels, facilitating straightforward installation.
It uses a lever reset actuator, which allows for quick manual reclosure after trip events.
The product complies with CE and IEC standards, ensuring adherence to international safety and performance requirements.
This circuit breaker is designed for fixed mounting, ensuring secure installation inside panels or enclosures.
It is suitable for applications such as safeguarding motor-control circuits, protecting distribution panels, and use in control cabinets within electrical workshops.
The country of origin for this molded case circuit breaker is Italy.
