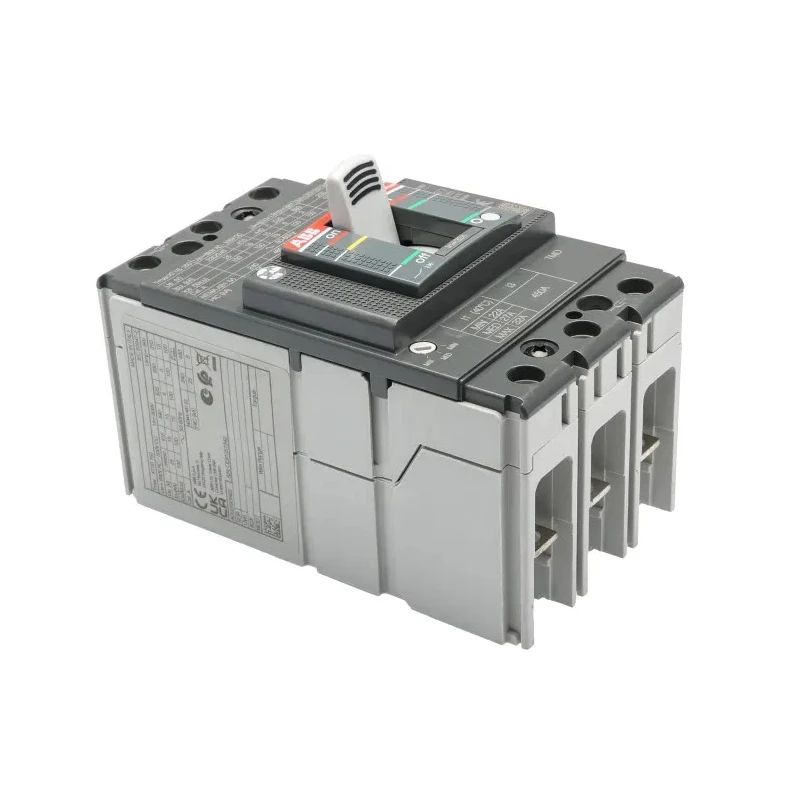

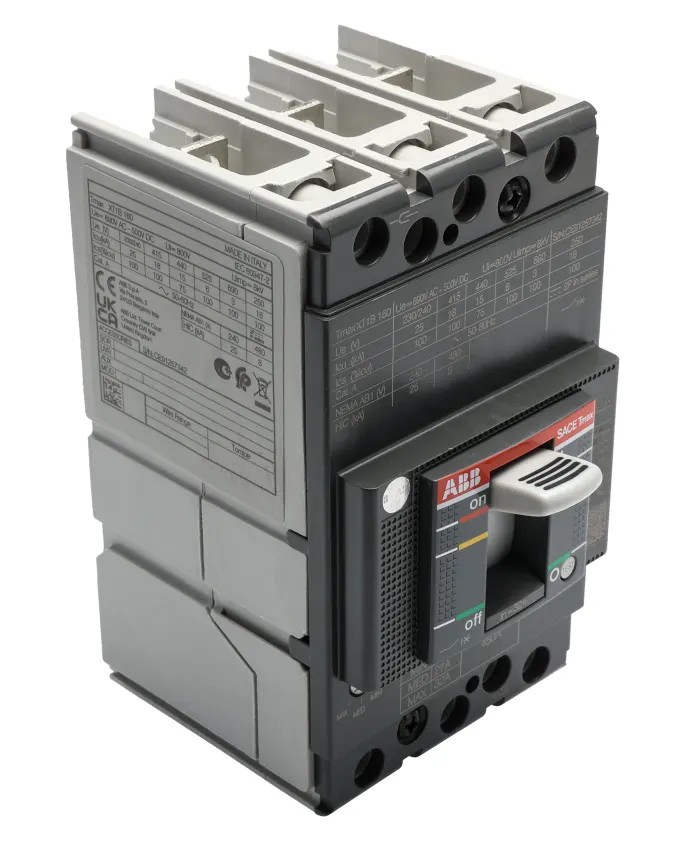

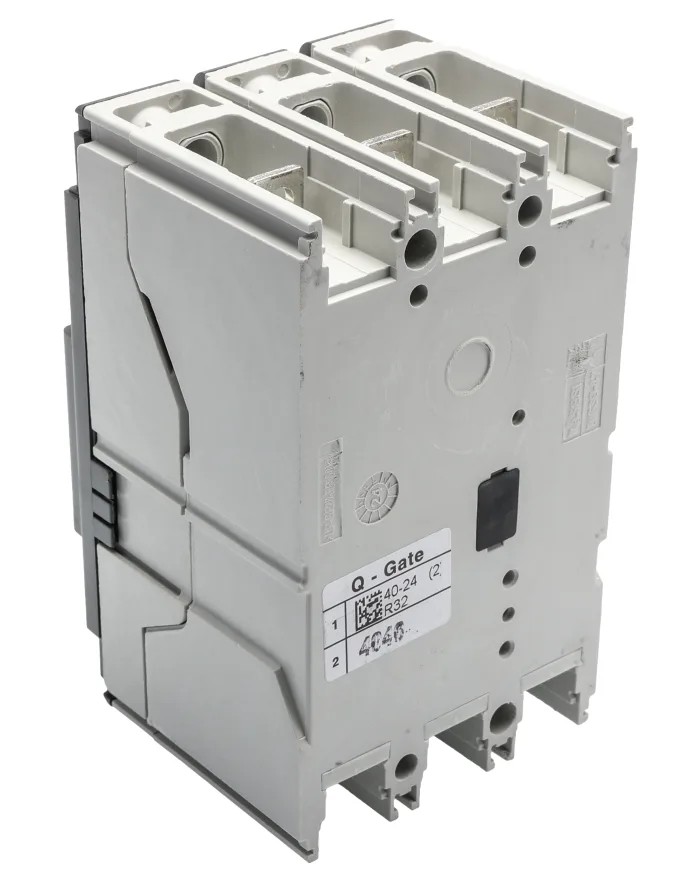

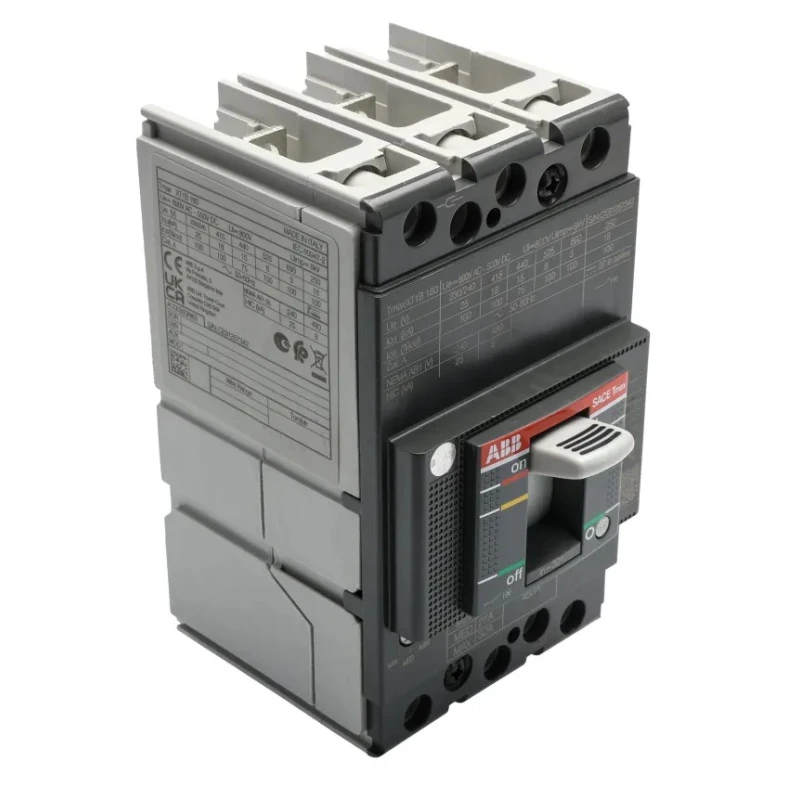

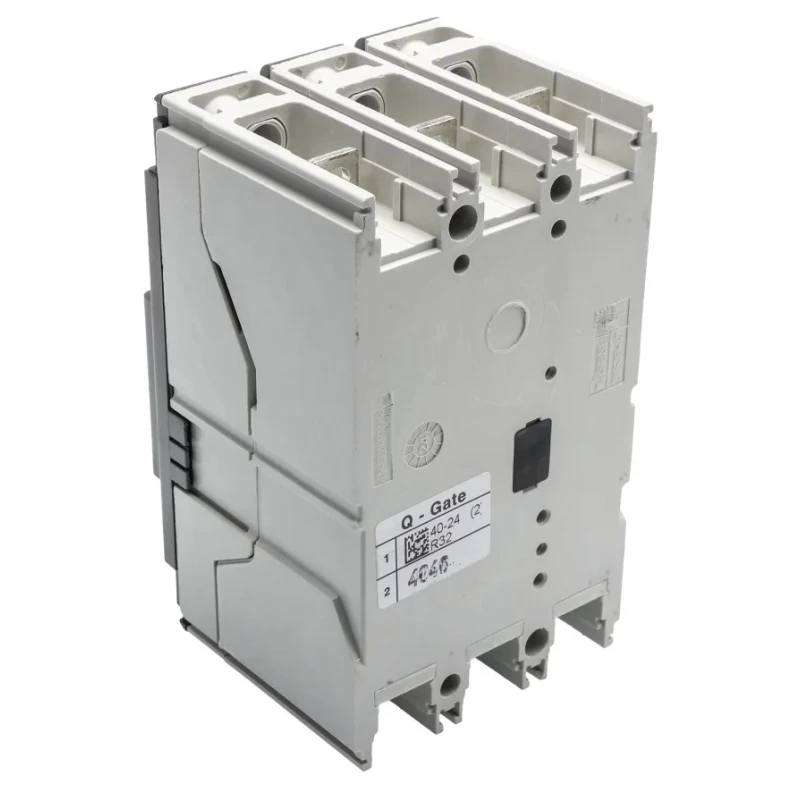

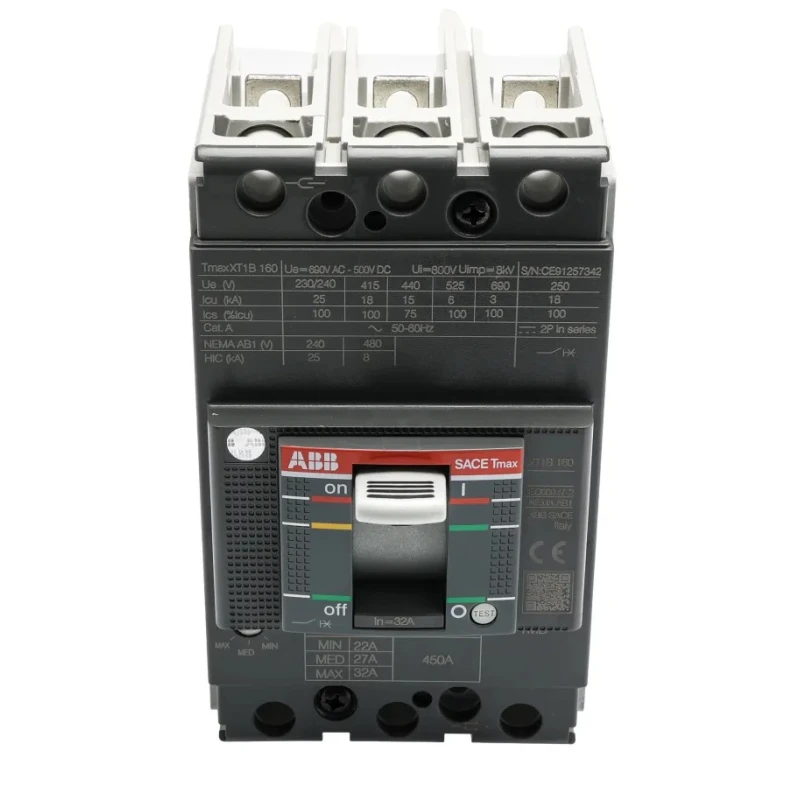

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 32A Breaking Capacity 25 kA Fixed Mount 1SDA066802R1 XT1B 160 TMD 32A FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 130mm |
| Model | 1SDA066802R1 XT1B 160 TMD 32A FF |
| Depth | 70mm |
| Width | 76.2mm |
| Mount Type | Fixed |
| Current Rating | 32A |
| Series | Tmax XT |
| Terminal type | Fixed |
| Breaking Capacity | 25kA |
| Number of Poles | 3 |
| Standards/Approvals | CE, IEC, RoHS |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 500V dc |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Equipped with a reliable thermal magnetic tripping mechanism for dual overload and short circuit protection.
- Rated AC voltage of 690V and DC voltage of 500V for versatile electrical system compatibility.
- Designed for fixed mounting with robust bolt terminal contacts for secure connections.
- Compact dimensions of 130mm height, 76.2mm width, and 70mm depth for space-efficient installation.
- Toggle switch actuator enables quick and easy resets after trips.
- Mechanical durability rated for 25,000 operation cycles ensuring long-term reliability.
- Complies with CE, IEC, and RoHS standards for quality and safety assurance.
Product Description
ABB 1SDA066802R1 XT1B 160 TMD 32A FF Molded Case Circuit Breaker (MCCB) is engineered for industrial, commercial, and automation applications requiring dependable circuit protection. With a 3-pole structure and a 32A current rating, this breaker offers robust protection against electrical faults.
The thermal magnetic tripping mechanism provides immediate response to overloads and short circuits, enhancing safety for power distribution networks and electrical machinery. Its rated AC voltage of 690V and DC voltage of 500V allow integration with diverse high-voltage systems.
Designed for fixed mounting, the device features secure bolt terminal connections and a toggle switch for quick resetting after a trip event. Compact dimensions (130mm height, 76.2mm width, 70mm depth) enable space-efficient installation in control panels and electrical enclosures.
Mechanical durability rated at 25,000 cycles ensures reliable performance over extended operating periods, minimizing maintenance needs. The product conforms to CE, IEC, and RoHS standards, confirming compliance with international safety and environmental regulations.
Reliable thermal magnetic tripping mechanism enhancing protection. Versatile voltage ratings at 690V AC and 500V DC for various systems. Fixed mounting with durable bolt terminal contacts. Compact form factor fitting standard electrical setups.
Toggle switch for easy manual reset operations. Highly durable to withstand 25,000 mechanical cycles. Certified with CE, IEC, and RoHS compliances.
This MCCB from ABB is ideal for industrial power distribution, high-capacity electrical systems, automation, manufacturing lines, and commercial building installations that demand reliable and quick circuit protection. It offers optimized safety and operational efficiency in demanding environments.
Discover more high-quality circuit protection products in the Molded Case Circuit Breaker category at EnvMart to support your electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This molded case circuit breaker has a current rating of 32A.
The breaking capacity of this model is 25 kA.
It has a rated AC voltage of 690V and a rated DC voltage of 500V.
This unit features a 3-pole configuration.
It utilizes a thermal magnetic tripping mechanism for overload and short circuit protection.
The dimensions are 130mm in height, 76.2mm in width, and 70mm in depth.
This model is designed for fixed mounting.
It features a toggle switch as the reset actuator type.
The mechanical durability is rated for 25,000 operation cycles.
It complies with CE, IEC, and RoHS standards.
It is suitable for industrial power distribution, high-capacity electrical systems, and automation applications.
This unit features durable bolt terminal connections for secure installation.
