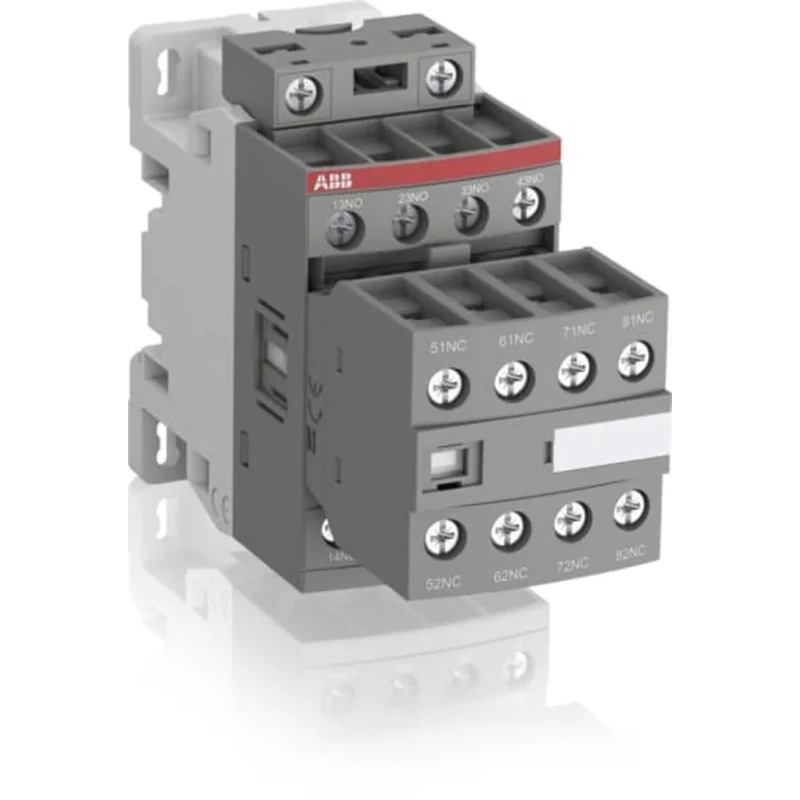

ABB NFZ Contactor Relay 130V, 48V Coil, 8-Pole, 16A, 140W, 7 NO/1 NC, 690V 1SBH136001R2271

Free Delivery in India | Lowest Global Shipping Charges

ABB NFZ Contactor Relay 130V, 48V Coil, 8-Pole, 16A, 140W, 7 NO/1 NC, 690V 1SBH136001R2271



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Function	Self Locking
Length	110.5mm
Model	1SBH136001R2271
Depth	110.5mm
Width	45mm
Mount Type	DIN Rail
Series	NFZ
Power Rating	140W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw Terminal
Number of Poles	8
Contact Voltage	690V
Coil Voltage	130, 48V
Normal State Configuration	7 NO/1 NC
Contact Current	16A
Number of Auxiliary Contacts	8
Auxiliary Contact Configuration	7 NO/1 NC
Operational Current Ie	6A
Control Circuit Voltage Uc	130V dc
Contactor Application	Auxiliary Contactor
Pole and Throw Configuration	8

Key Features

The relay supports a contact voltage of 690V and a contact current of 16A.
Power rating is 140W with a robust NFZ series design.
Mount type is DIN rail with screw terminal connections ensuring secure installation.
Equipped with 7 normally open and 1 normally closed auxiliary contacts for versatile control.
Operates reliably within -40°C to 70°C temperature range.
Compact dimensions with length and depth of 110.5mm and width of 45mm.
Meets UL 508, IEC 60947-5-1, EN 60947-5-1, and CSA C22.2 N°14 standards for safety and quality.
Ideal for auxiliary and control circuit switching in industrial automation setups.

Product Description

ABB 1SBH136001R2271 NFZ Contactor Relay offers reliable circuit control and automation with its high-quality 8-pole design and robust electrical specifications. This self-locking relay operates with a coil voltage of 130V and 48V, supporting contact voltages up to 690V and contact currents of 16A, making it suitable for demanding industrial environments.

This relay integrates surge protection to mitigate voltage spikes, enhancing system reliability. Its compact dimensions (110.5mm length and depth, 45mm width) facilitate space-saving DIN rail mounting with secure screw terminals for connections.

The 7 normally open and 1 normally closed auxiliary contacts are mechanically linked to ensure consistent operation. It functions optimally between -40°C and 70°C, guaranteeing performance across a wide temperature range. Compliance with UL 508, IEC 60947-5-1, EN 60947-5-1, and CSA C22.2 N°14 standards assures safety and quality for industrial applications.

This contactor relay is extensively used for switching auxiliary and control circuits in automation, offering high efficiency for industrial and manufacturing operations, including applications involving PLC direct control and environments with voltage dips.

The 8-pole configuration enhances circuit flexibility and operational performance. DIN rail mount type simplifies installation and maintenance. Screw terminal type offers dependable electrical connections. Surge protection is built-in to prevent damage from voltage spikes.

Designed for auxiliary contactor applications requiring robust switching. Wide operational temperature range ensures versatility across environments. Compact size supports installation in limited spaces. Conforms to multiple international safety and quality standards.

Designed and manufactured in France, this ABB NFZ series contactor relay is a premium choice for electrical, automation, and industrial control applications on the EnvMart platform.
