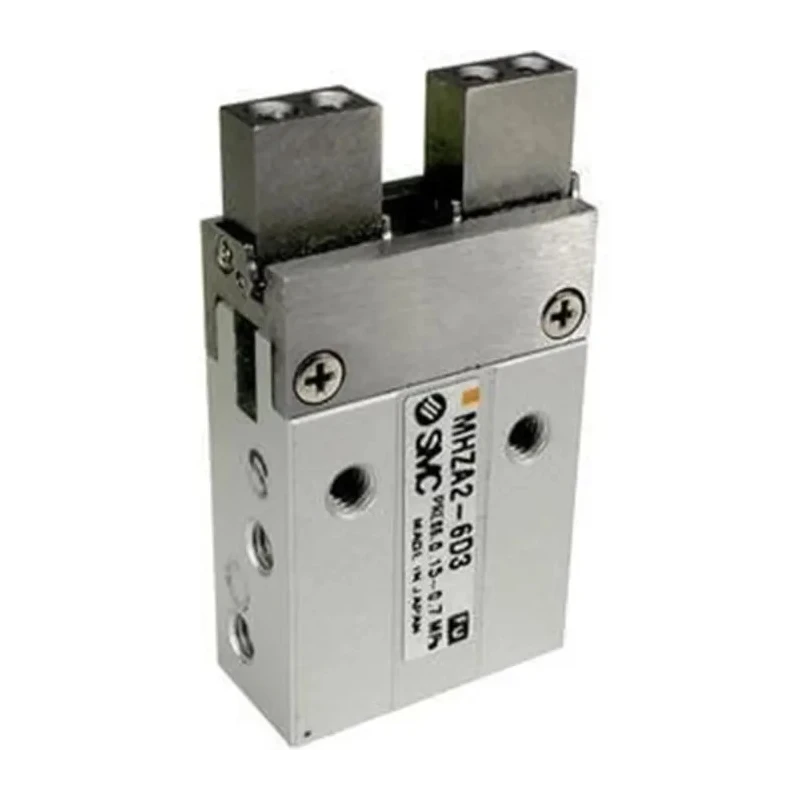

SMC 2 Finger Single Acting Parallel Pneumatic Gripper, Bore Diameter 6mm, Max Operating Pressure 7 bar, MHZA2-6S

Free Delivery in India | Lowest Global Shipping Charges

SMC 2 Finger Single Acting Parallel Pneumatic Gripper, Bore Diameter 6mm, Max Operating Pressure 7 bar, MHZA2-6S



Category Pneumatic Gripper Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	7 bar
Height	10mm
Length	44mm
Model	MHZA2-6S
Gross Weight	26g
Width	20mm
Series	MHZAJ2-6
Maximum Operating Temperature	60°C
Port Size	M3
Minimum Operating Temperature	-10°C
Bore Diameter	6mm
Action Type	Single Acting
Standards/Approvals	RoHS
Number of Fingers	2
Gripping Type	Parallel
Gripping Force - External	1.9N

Key Features

The gripper features a bore diameter of 6mm and supports maximum operating pressure up to 7 bar.
Compact form factor with length 44mm, width 20mm, height 10mm, and weight of 26 grams.
Mounting versatility on three sides in five configurations for flexible installation.
Integrated linear guide with dowel pins ensures high rigidity and prevents guide slippage.
Auto switch compatible and option for NSF-H1 food grade lubricant available.
Supports a maximum operating frequency of 180 cycles per minute.
Operates within temperature range -10°C to 60°C suitable for various industrial environments.
High repeatability of ±0.01 mm for precise gripping operations.

Product Description

SMC MHZA2-6S is a high-quality pneumatic gripper with 2 fingers and single acting parallel gripping action. It has a bore diameter of 6mm and can operate at a maximum pressure of 7 bar, making it ideal for precise gripping and automation tasks.

This gripper incorporates an integrated linear guide that enhances rigidity and ensures accurate positioning with two dowel pins to eliminate guide slippage. The compact size (44mm length, 20mm width, 10mm height) and lightweight design (26 grams) lend themselves well to space-constrained applications in industrial automation.

Installation flexibility is achieved through mounting options on three sides and five different configurations, allowing adaptation to various mechanical setups. The gripper is compatible with auto switches and provides the option to use NSF-H1 food grade lubricant, extending its usability to hygienic or food-related environments.

It supports a maximum operating frequency of 180 cycles per minute and functions reliably within a temperature range from -10°C to 60°C, suitable for industrial and manufacturing conditions.

The MHZA2 series gripper boasts high repeatability of ±0.01 mm and features external gripping force of 1.9N, ensuring precise and consistent performance for mechanical, fluid power, and pneumatic system applications.

The gripper is designed with a parallel gripping type and single acting action for controlled operation. Compact dimensions and lightweight support integration into automated machinery. Mounting versatility and durable build from integrated linear guides maintain performance over high-frequency cycles.

Auto switch capable with options for food grade lubrication enhances application scope. Operating temperature range and high repeatability provide reliability in varied industrial environments.

This Pneumatic Gripper is ideal for use in manufacturing, automation, packaging, electronics assembly, and laboratory automation where precise gripping is essential. Its robust construction and flexible mounting options make it a dependable choice for pneumatic tooling needs.
