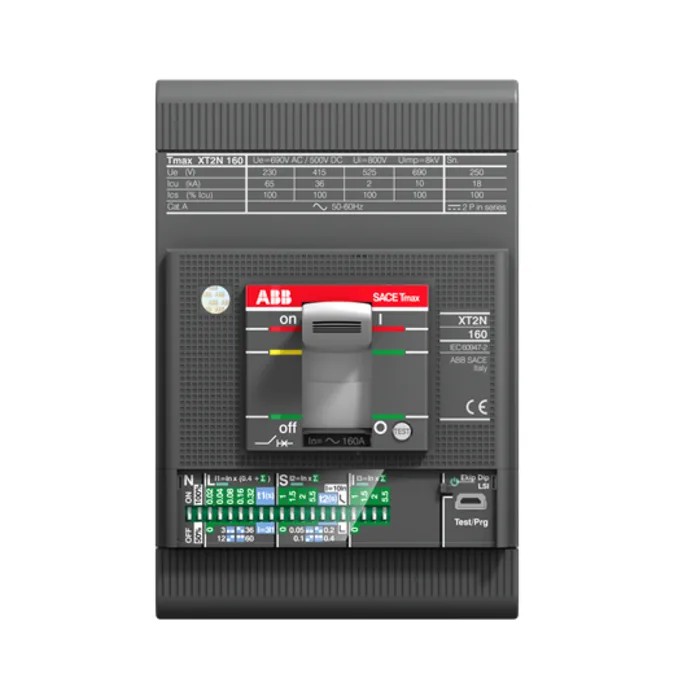

ABB Molded Case Circuit Breaker Tmax XT 3-Pole 25A 690V AC Breaking Capacity 150 kA 1SDA067915R1 XT2L 160 Ekip LS/I 25A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Molded Case Circuit Breaker Tmax XT 3-Pole 25A 690V AC Breaking Capacity 150 kA 1SDA067915R1 XT2L 160 Ekip LS/I 25A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	130mm
Model	1SDA067915R1 XT2L 160 Ekip LS/I 25A FF
Depth	82.5mm
Width	90mm
Mount Type	Fixed
Current Rating	25A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	150kA
Number of Poles	3
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Rated current (In)	25 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Solid state tripping mechanism for reliable circuit protection.
Front fixed terminals ensure secure electrical connections.
Compact dimensions with 130mm height, 90mm width, and 82.5mm depth.
Complies with CE, IEC, and RoHS standards for safety and environmental compliance.
Includes lever type reset actuator for easy manual control.
Designed with Better World principles including disassembly and sustainability.
Rated impulse withstand voltage of 8 kV for high surge tolerance.
Operates at rated frequency of 50/60 Hz.

Product Description

ABB 1SDA067915R1 XT2L 160 Ekip LS/I 25A FF Molded Case Circuit Breaker from the Tmax XT range is engineered for industrial and commercial electrical circuit protection. It features a 3-pole configuration with a fixed mounting design, offering a rated current of 25 amperes and an exceptional breaking capacity of 150 kiloamperes suitable for high-load conditions.

This breaker operates at a rated AC voltage of 690 volts and supports a frequency range of 50/60 Hz, making it suitable for diverse electrical networks. Its robust solid state tripping mechanism ensures precise and reliable interruption of fault currents to protect sensitive equipment and maintain electrical safety.

The device includes fixed front terminals for secure and stable electrical connectivity. Compact sizing with dimensions 130mm (height), 90mm (width), and 82.5mm (depth) allows for efficient panel space utilization.

ABB's Better World product certification highlights its sustainable design emphasizing ease of disassembly for recycling and environmental impact reduction. The circuit breaker is compliant with key international standards including CE, IEC, and RoHS, ensuring safety, reliability, and environmental responsibility.

3 poles with a current rating of 25A provide robust circuit protection. Breaking capacity of 150 kA suitable for heavy electrical loads. Rated voltage 690V AC and impulse withstand voltage 8 kV ensure high performance under electrical surges.

Lever reset actuator allows easy manual reset after tripping. Solid state trip unit enhances protection accuracy and response time. Designed for fixed mounting with front terminals for secure connections. Complies with CE, IEC, and RoHS safety and environmental standards.

Compact dimensions optimize panel installation space.

This circuit breaker is ideal for use in industrial automation, electrical distribution boards, manufacturing plants, and commercial building electrical systems. It provides reliable protection against overloads, short circuits, and electrical faults ensuring safety and operational continuity.

Explore more ABB Molded Case Circuit Breakers and electrical protection solutions on EnvMart for industrial and commercial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The breaking capacity of this molded case circuit breaker is 150 kiloamperes (kA).

This model has dimensions of 130mm in height, 90mm in width, and 82.5mm in depth.

The rated current for this circuit breaker is 25 amperes (A).

It operates at a rated AC voltage of 690 volts.

This model features a solid state tripping mechanism for reliable circuit protection.

It complies with CE, IEC, and RoHS standards for safety and environmental compliance.

It includes a lever type reset actuator for easy manual control after tripping.

Yes, this circuit breaker is designed for fixed mounting with front terminals for secure connections.

The rated impulse withstand voltage is 8 kV, providing high surge tolerance.

It supports a rated frequency range of 50/60 Hz.

The country of origin for this circuit breaker is Italy.

This circuit breaker is suitable for industrial automation, electrical distribution boards, manufacturing plants, and commercial building electrical systems.
