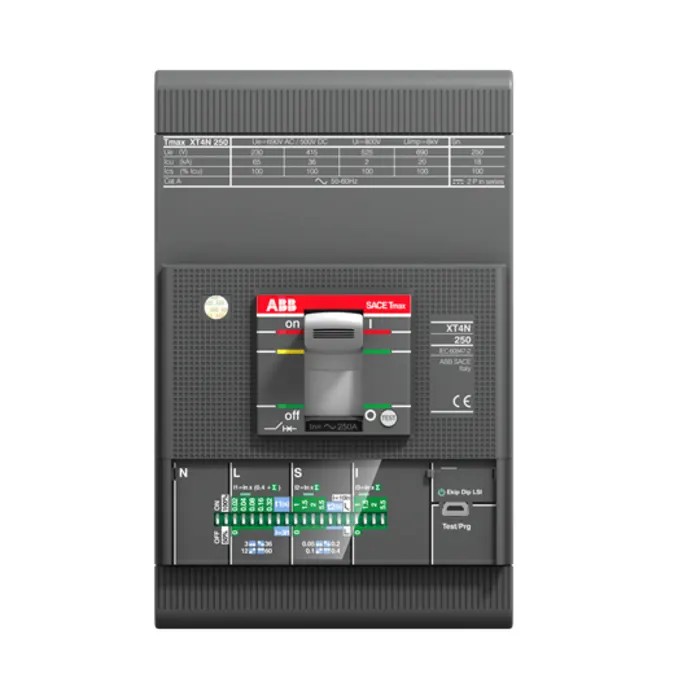

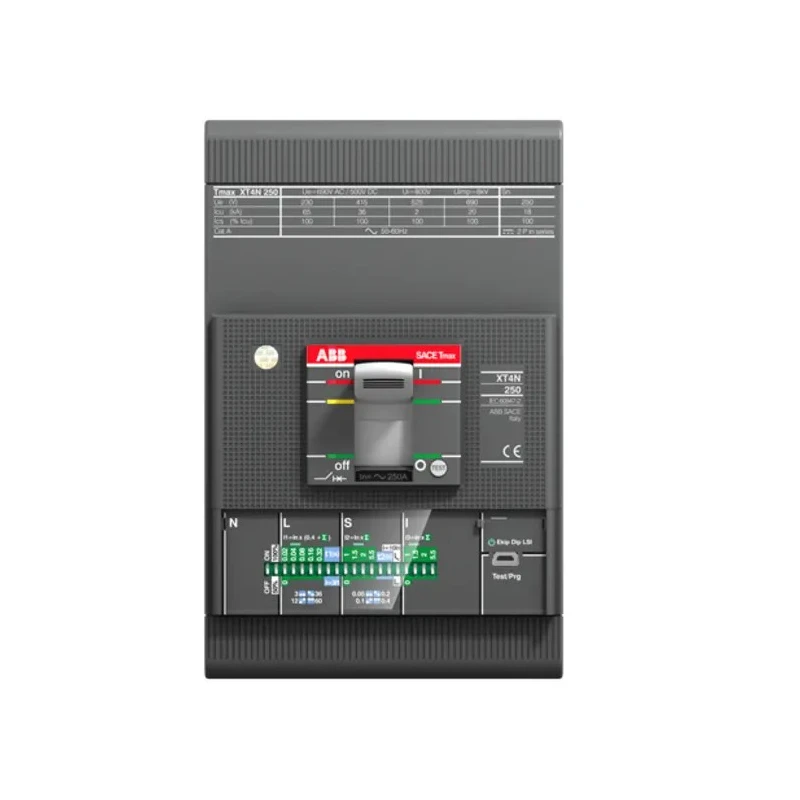

ABB Molded Case Circuit Breaker 3-Pole 160A 690V AC Fixed Terminal Solid State Tripping XT4H 1SDA06 1SDA068514R1

Free Delivery in India | Lowest Global Shipping Charges

ABB Molded Case Circuit Breaker 3-Pole 160A 690V AC Fixed Terminal Solid State Tripping XT4H 1SDA06 1SDA068514R1



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	XT4H
Brand	ABB
Height	160mm
Model	XT4H
Depth	82.5mm
Width	105mm
Mount Type	Fixed
Current Rating	160A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	100kA
Number of Poles	3
Standards/Approvals	IEC, RoHS, CE
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Short circuit performance level	H

Key Features

Rated operational voltage of 690V AC for reliable circuit protection.
Compact dimensions measuring 160mm height, 105mm width, and 82.5mm depth.
Equipped with a solid state tripping mechanism for precise and secure operation.
Fixed terminal design ensures stable and safe electrical connections.
Compliance with IEC, RoHS, and CE standards guarantees quality and safety.
Lever type reset actuator facilitates easy manual resetting.
Designed for disassembly supporting sustainability goals.
Manufactured in Italy ensuring high production standards.

Product Description

ABB XT4H 1SDA06 molded case circuit breaker is a high-performance industrial electrical protection device designed for safe and reliable operation in electrical distribution systems. This 3-pole fixed breaker is rated at 160 amperes with a breaking capacity of 100 kiloamperes, suitable for applications requiring robust fault interruption capability.

The unit operates at an AC rated voltage of 690V, with an insulation voltage of 1000V, making it compatible with medium voltage electrical systems. The device features a solid state release tripping mechanism under the AC Ekip LS/I configuration, providing fast and consistent operation under overcurrent conditions.

Physically, the breaker measures 160 millimeters in height, 105 millimeters in width, and 82.5 millimeters in depth. It incorporates a lever-type reset actuator to allow straightforward manual resetting after trip events. The fixed terminal mounting type ensures secure electrical connections, suitable for permanent installation in switchgear or control panels.

Constructed to meet IEC, RoHS, and CE standards, this Molded Case Circuit Breaker aligns with international quality and environmental regulations. Additionally, it is certified as a Better World product with a designed-for-disassembly claim, supporting environmentally conscious practices.

Manufactured in Italy, the product combines advanced technology with rigorous quality control processes to deliver durability and performance. This circuit breaker is ideal for industrial, manufacturing, commercial, and electrical infrastructure applications, protecting circuits from overload and short circuit faults effectively.

Rated current: 160 A. Breaking capacity: 100 kA. Number of poles: 3. Mounting type: Fixed. Terminal type: Fixed. Reset actuator type: Lever. Tripping mechanism: Solid state. Standards compliance: IEC, RoHS, CE. Explore the wide range of ABB electrical protection components and ensure optimal circuit safety and performance for your installations.
