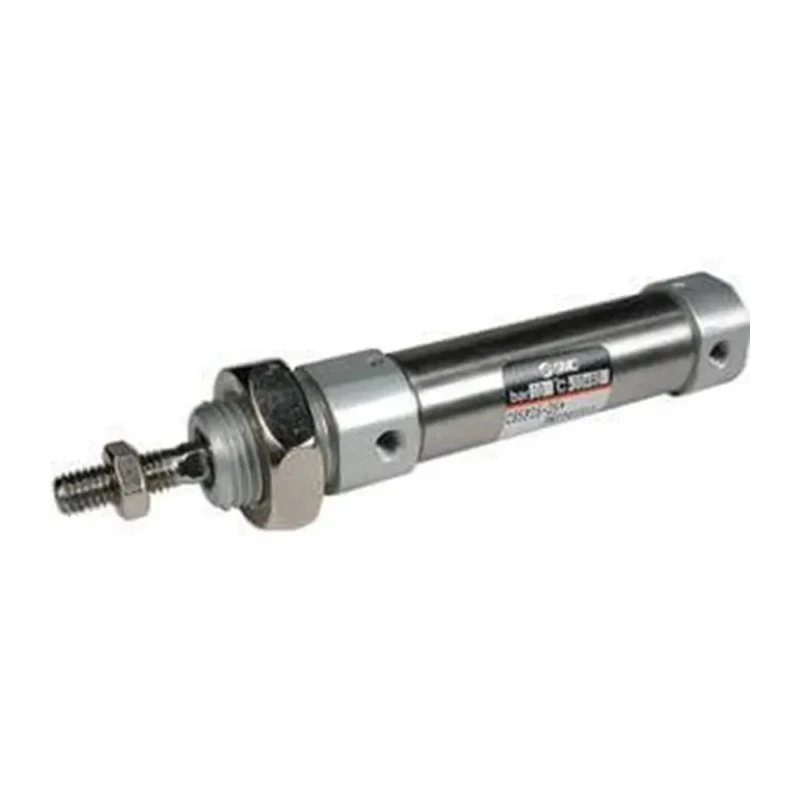

SMC 60 mm Stroke Double Acting Pneumatic Cylinder Aluminium Alloy Body Clevis Mount CD85

SMC CD85N20-60-B is a double acting pneumatic cylinder from the CD85 series, featuring a 60 mm stroke length and an aluminium alloy body that balances strength with lightweight performance. It is engineered to provide reliable linear actuation in industrial pneumatic systems commonly used in manufacturing automation and mechanical assemblies.

This cylinder operates by supplying compressed air alternately to both sides of the piston, enabling controlled extension and retraction. The clevis mount facilitates simple pivot linkage installation, making it adaptable to diverse mechanical setups. Rubber bumper cushioning minimizes impact forces and vibration, enhancing durability and operation smoothness.

The single-rod design includes a male piston rod with an M8 metric thread, compatible with standard fasteners for easy mechanical attachment. It is rated for continuous use at temperatures up to 80°C, suitable for moderately elevated temperature environments. With a maximum piston speed of 1500 mm/s, it supports rapid actuation cycles essential for efficient industrial processes.

This cylinder conforms to ISO 6432 standards, ensuring dimensional compatibility and quality assurance. Ideal industrial applications include pick-and-place tasks on assembly lines, valve actuation within control panels, product indexing on conveyor systems, and small actuator roles on testing rigs. Its compact form factor suits installations where space is restricted.

Equipped with a lightweight aluminium alloy body for durability and reduced weight. Double acting operation for precise bidirectional control of the piston. Clevis mount supplied to simplify linkage connections through pivoting pins.

Rubber bumper cushioning enhances system longevity by reducing impact. M8 male piston rod thread ensures compatibility with metric fastenings. Rated for maximum operating temperature of 80°C, suitable for elevated temperature uses.

Designed to ISO 6432 standards for pneumatic cylinder dimensions and quality. Maximum piston speed of 1500 mm/s supports rapid actuation cycles.

This pneumatic cylinder is an essential component for industrial automation, laboratory pneumatic controls, manufacturing equipment, and fluid power systems requiring accurate linear motion. It ensures reliable operation in harsh industrial environments such as manufacturing plants, HVAC systems, automotive assembly, and robotic actuation.
