SMC 2 Finger Double Acting Action Pneumatic Gripper 20mm Bore Diameter Stroke 10mm MHZ2-20DN

Free Delivery in India | Lowest Global Shipping Charges

SMC 2 Finger Double Acting Action Pneumatic Gripper 20mm Bore Diameter Stroke 10mm MHZ2-20DN



Category Pneumatic Gripper Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	50mm
Length	84.8mm
Model	MHZ2-20DN
Gross Weight	235g
Width	27.6mm
Series	MHZ2
Maximum Operating Temperature	60°C
Port Size	M5 x 0.8
Minimum Operating Temperature	-10°C
Stroke Length	10mm
Bore Diameter	20mm

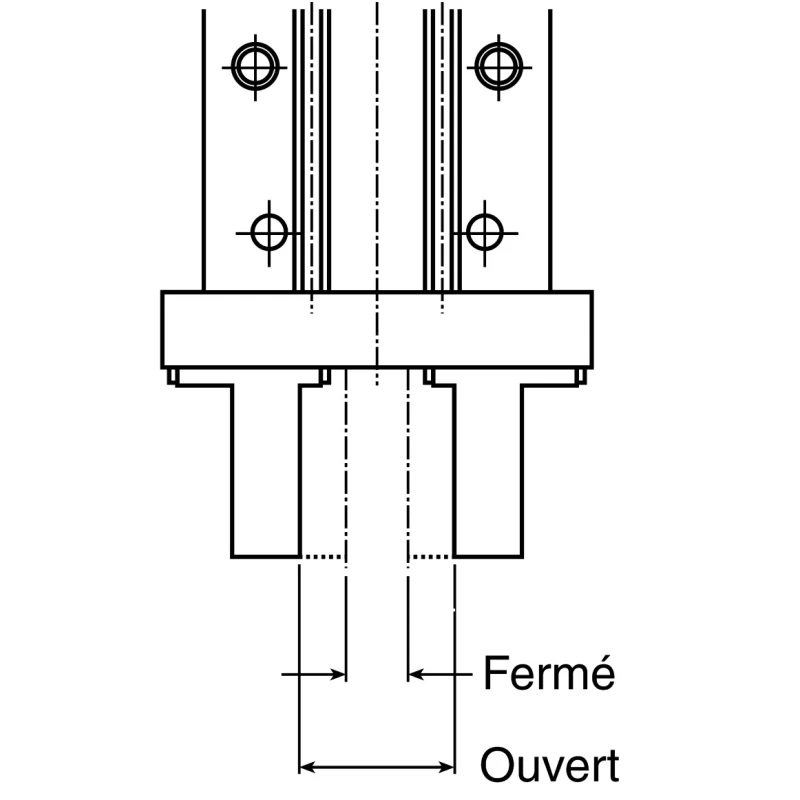

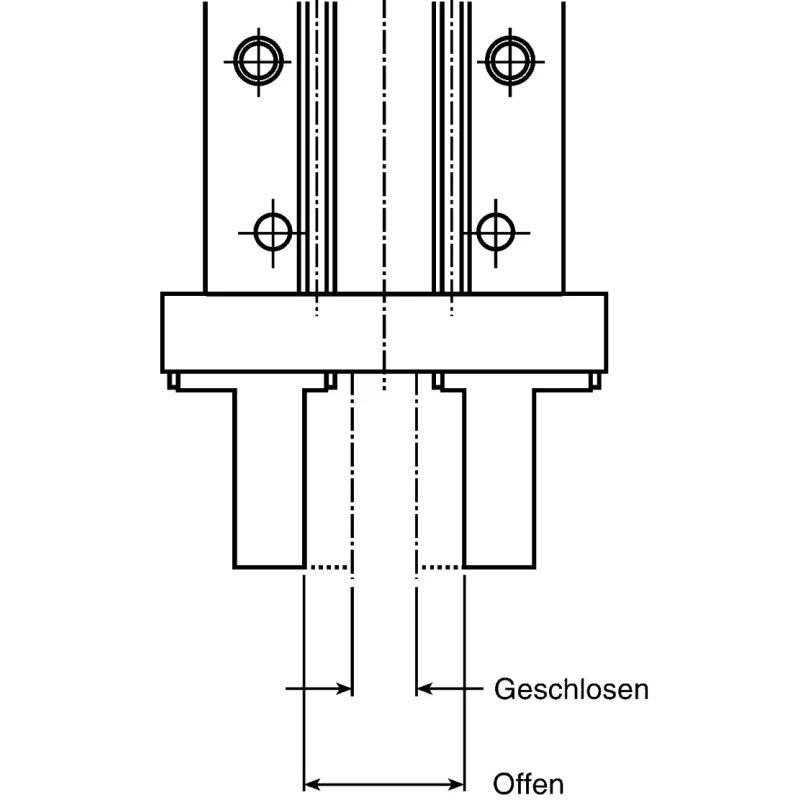

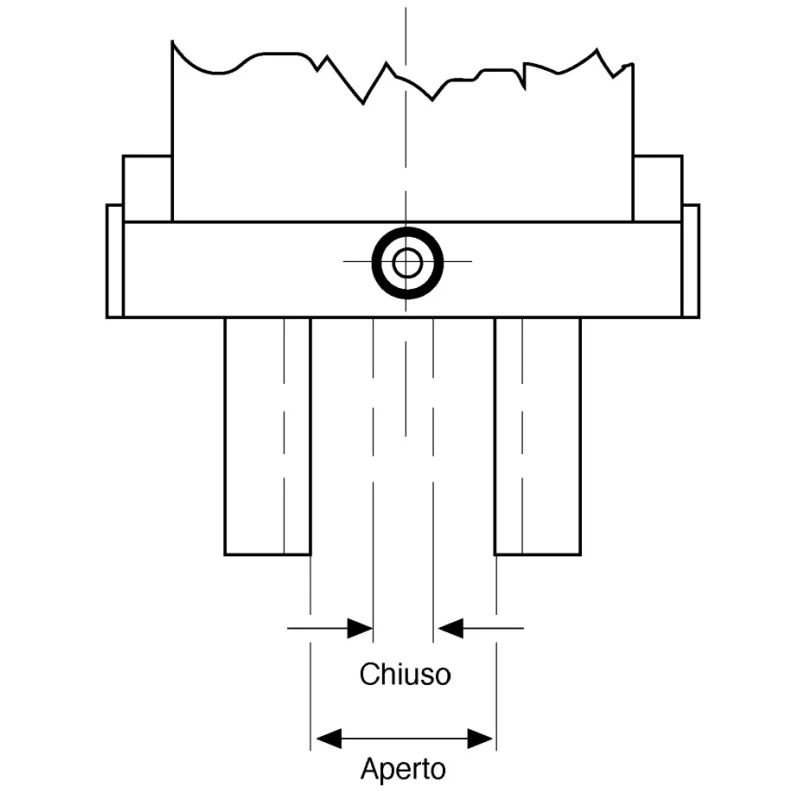

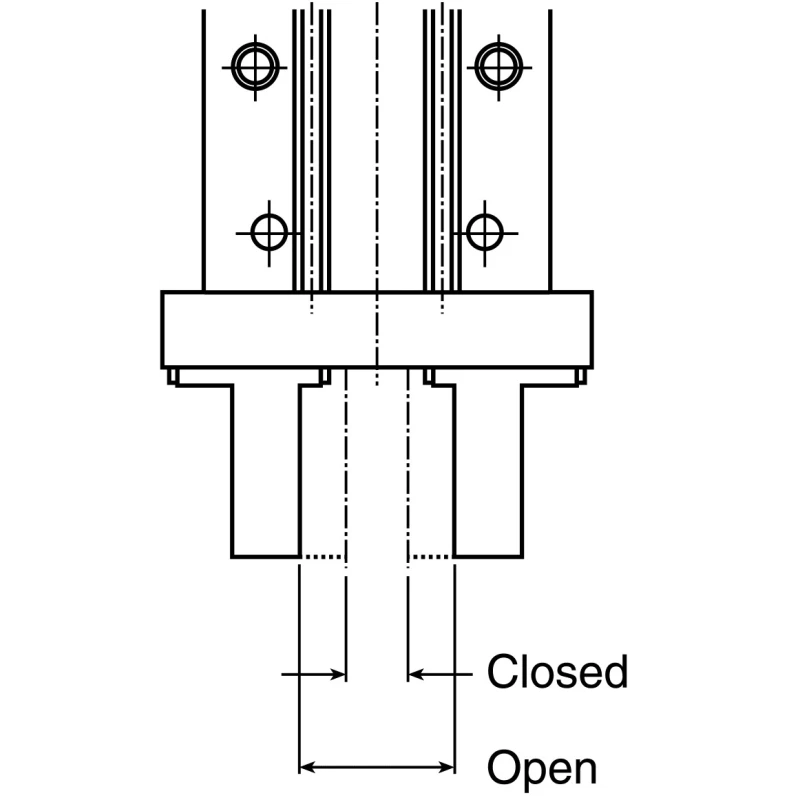

Open Width	26.3mm
Action Type	Double Acting
Number of Fingers	2
Gripping Type	Parallel
Gripping Force - Internal	66N
Closed Width	16.3mm
Gripping Force - External	42N
GRIPPER 20MM D/ABrand	SMC

Key Features

Equipped with two fingers enabling parallel gripping action.
Double acting mechanism for reliable gripping and releasing.
20mm bore diameter with a 10mm stroke for moderate gripping range.
Maximum operating pressure up to 0.7 MPa for efficient performance.

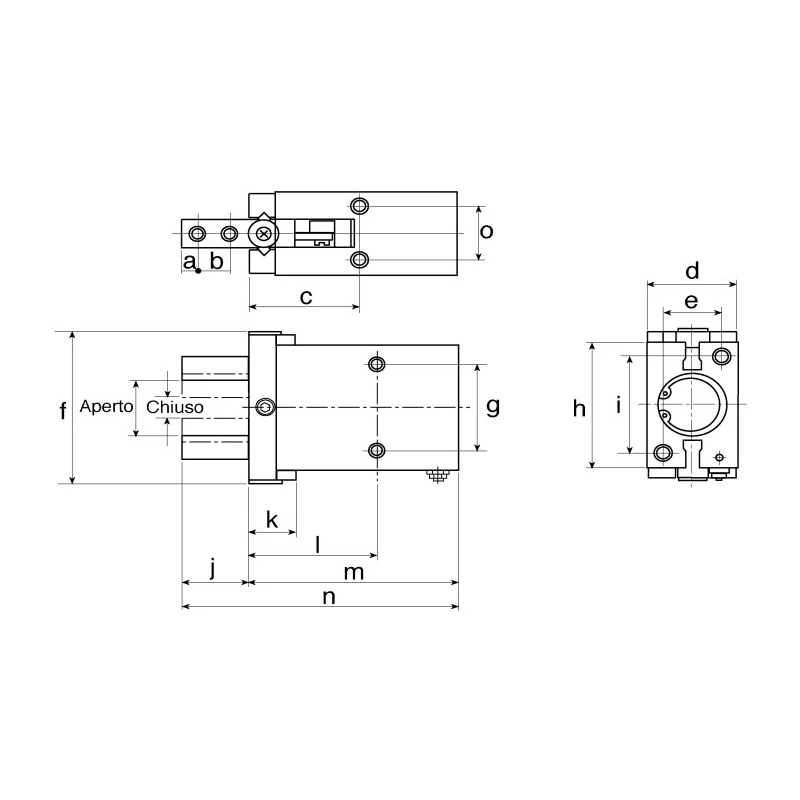

Compact design with length 84.8mm, height 50mm, and width 27.6mm.
High repeat accuracy and integral guide construction ensure durability.
Standard magnetic sensing included for positional feedback.
Wide operating temperature range from -10°C to 60°C.

Product Description

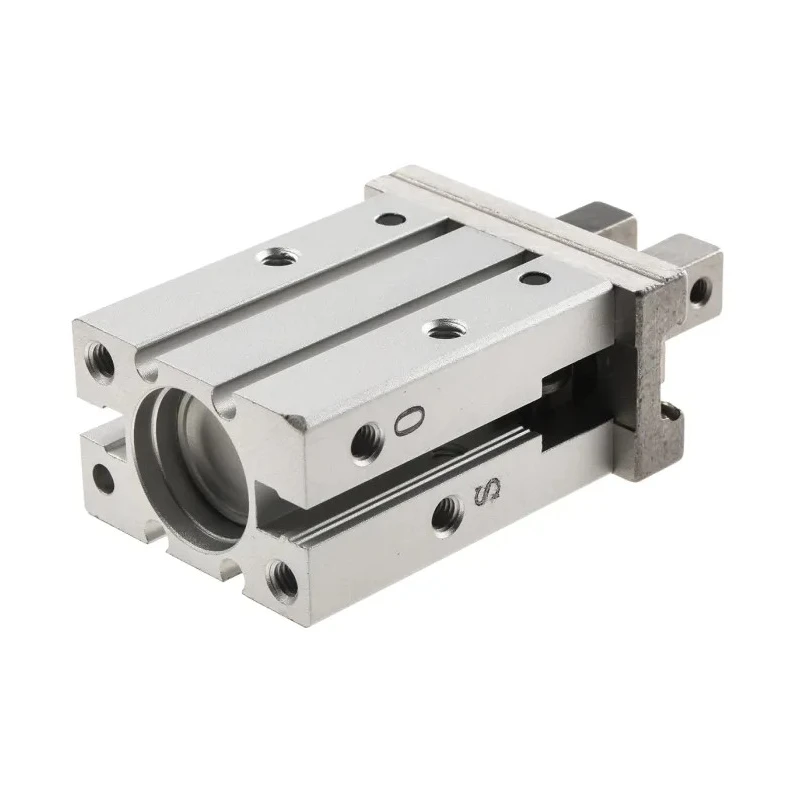

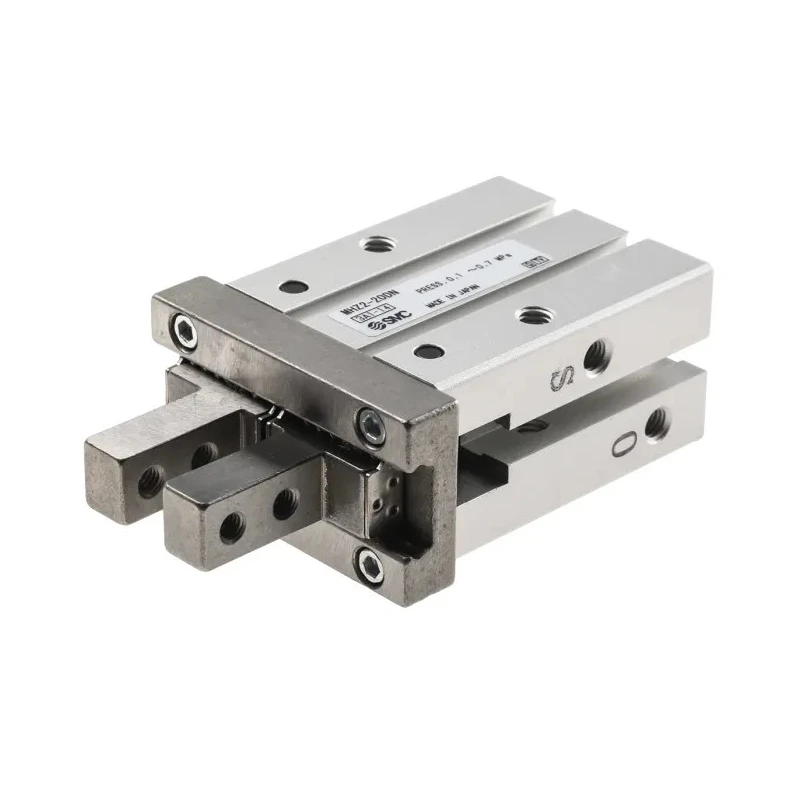

SMC MHZ2-20DN is a 2 Finger Double Acting Pneumatic Gripper designed for precise parallel gripping in industrial automation and fluid power applications. It features a 20mm bore diameter with a 10mm stroke length delivering strong gripping forces in compact form factor.

The gripper integrates an integral guide construction and high accuracy mounting for repeatable, reliable operation. Standard magnetic sensing facilitates feedback for automated systems. Rounded, abrasion-resistant fingers provide durability in continuous use. The device operates efficiently at pressures up to 0.7 MPa, with a maximum operating frequency of 180 cycles per minute.

Its mechanical dimensions of 84.8mm length, 50mm height, and 27.6mm width make it suitable for tight spaces while maintaining robustness. The design supports operating temperatures from -10°C to 60°C, covering diverse environments.

This pneumatic gripper is ideal for manufacturing assembly lines, robotics, packaging, and other industrial sectors requiring precise handling of components with reliable gripping force. The double acting action ensures smooth opening and closing of the two parallel fingers.

Two finger parallel gripping action optimized for diverse industrial tasks. Double acting pneumatic operation enables consistent gripping and release. 20mm bore diameter and 10mm stroke length balance reach and force. Maximum operating pressure of 0.7 MPa for effective gripping strength.

Compact and lightweight (235g) with robust metal and abrasion-resistant finger materials. Standard magnetic sensing for integration with control systems. Operating temperature range from -10°C to 60°C adapts to various conditions.

High positional accuracy and repeatability support precise automation processes.

The package includes the SMC MHZ2-20DN pneumatic gripper configured with standard ports and design optimized for industrial pneumatic actuator systems. This product significantly enhances operational efficiency in fluid power and mechanical automation environments.

EnvMart offers this product under the Pneumatic Gripper category for industrial tool and equipment users seeking quality pneumatic gripping solutions.
