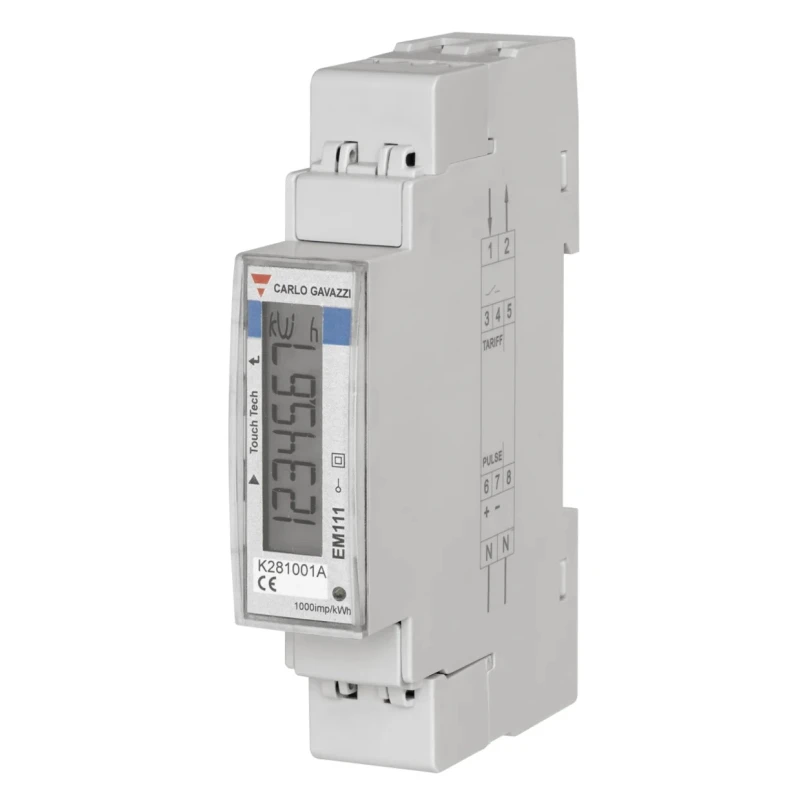

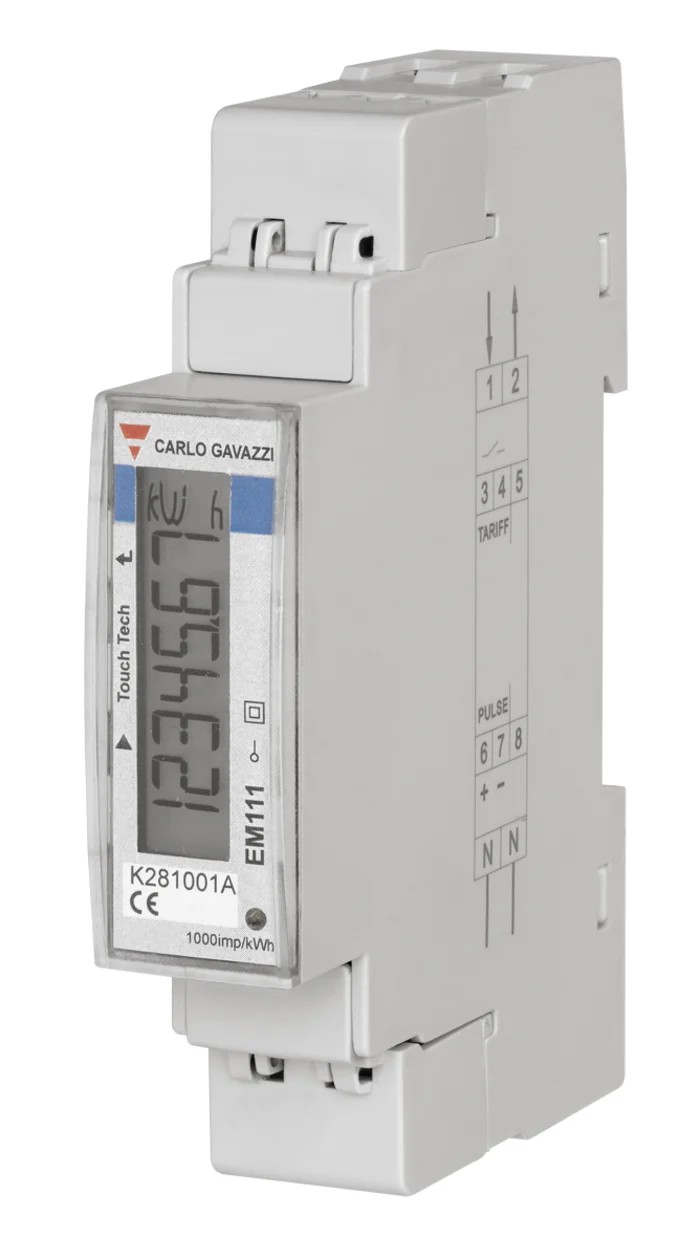

Carlo Gavazzi Single Phase LCD Energy Meter EM111DINAV51XS1X with ±0.5% Accuracy, 7-Digit Display, Pulse Output, 1 Phase
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Carlo Gavazzi |
| Model | EM111DINAV51XS1X |
| Depth | 63mm |
| Number of inputs | 1 |
| Series | EM111 |
| Maximum Operating Temperature | 65°C |
| Meter Type | Single Phase |
| Number Of Digits | 7 |
| Meter Accuracy | ±0.5 % |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Number of Phases | 1 |
| Standards/Approvals | cULus (AV7 option only), EN50470-3, MID (option PF only), EN62053-21 |
| Cutout Height | 91.5mm |
| Cutout Width | 17.5mm |
| Minimum Measurement | 0.25 |
| Maximum Measurement | 45 |
Key Features
- Features a 7-digit backlit LCD display with integrated touch keypad.
- Measures imported and exported energy or can be programmed for imported energy only.
- Supports pulse output, single phase, and dual tariff management.
- Offers easy connection and wrong current direction detection for reliable usage.
- Operates within a temperature range of -25°C to 65°C with protection degree IP51.
- Mounts on DIN-rail for convenient installation.
- Meets standards including cULus (AV7 option), EN50470-3, MID, and EN62053-21.
Product Description
Carlo Gavazzi EM111DINAV51XS1X is a single phase LCD energy meter offering precise energy measurement with an accuracy of ±0.5%. It is equipped with a 7-digit backlit LCD display and integrated touch keypad, enabling users to easily monitor energy consumption.
This energy analyser measures both imported and exported energy, or can be set to consider only imported energy, making it suitable for active energy metering and cost allocation in applications up to 32 A. It supports dual tariff management for flexible energy monitoring.
The meter includes pulse output and provides features such as easy connection and detection of wrong current direction, enhancing reliability and safety in electrical installations. It is designed to operate in a temperature range from -25°C to 65°C and has an IP51 protection degree ensuring protection against dust and limited water ingress.
Installation is facilitated by DIN-rail mounting, making it compatible with standard switchgear. The meter complies with relevant standards including cULus, EN50470-3, MID, and EN62053-21, ensuring quality and safety compliance.
Typical use cases include industrial, commercial, and residential energy monitoring, cost allocation in multi-user environments, and energy management systems. 7-digit backlit LCD display with touch keypad. Measures imported and exported energy; programmable for imported energy only.
Pulse output and dual tariff management capability. Accurate measurement with ±0.5% accuracy. DIN-rail mounting and IP51 protection rating. Operating temperature range from -25°C to 65°C. Compliance with cULus, EN50470-3, MID, and EN62053-21 standards.
Explore the Carlo Gavazzi Energy Meter range on EnvMart for reliable energy management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The energy meter has an accuracy of ±0.5%.
It operates within a temperature range of -25°C to 65°C.
This model mounts on a DIN rail, making installation convenient and compatible with standard switchgear.
It features a 7-digit backlit LCD display with an integrated touch keypad.
It measures both imported and exported energy, and can be programmed for imported energy only.
The meter has a depth of 63mm, a height of 91.5mm, and a width of 17.5mm.
Yes, it includes a pulse output feature for energy monitoring.
It complies with standards including cULus (AV7 option), EN50470-3, MID, and EN62053-21.
The maximum measurement capacity is 45.
The minimum measurement capability is 0.25.
This energy meter operates on a single phase.
It offers easy connection and wrong current direction detection, enhancing reliability in electrical installations.
