RS PRO Thermocouple Panel Mounting Socket Connector for Use with Type J Thermocouple IEC RoHS Compliant 219-5009

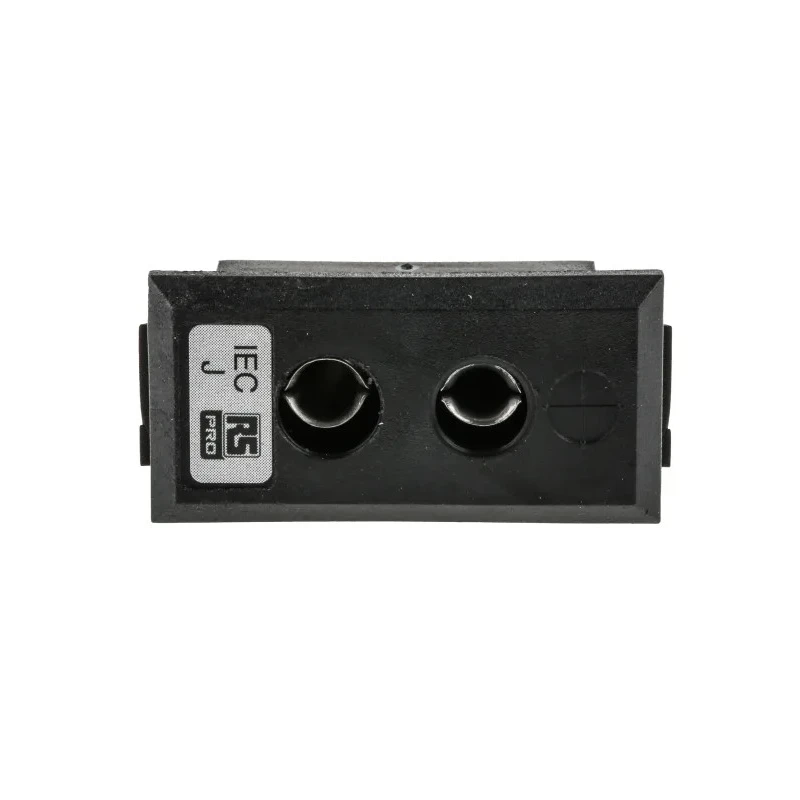

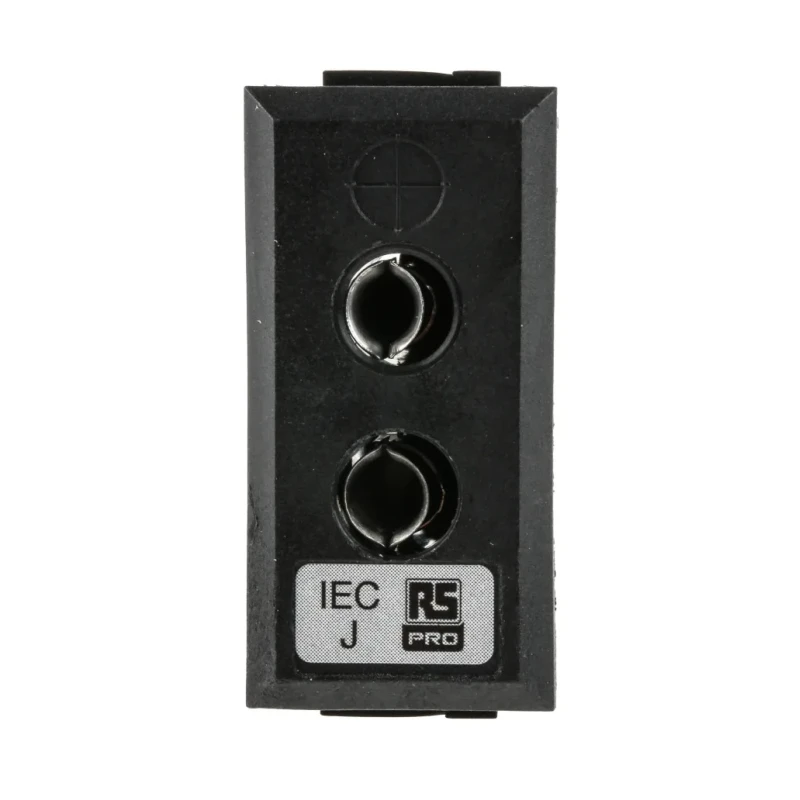

RS PRO 219-5009 Thermocouple Panel Mounting Socket Connector is engineered specifically for use with Type J Thermocouples, featuring compliance with IEC and RoHS standards to ensure safety and quality in temperature sensing systems. The panel mounting connector features a moulded fascia that fits flush with the front panel, providing a neat and professional installation.

This connector is produced from a rugged glass-filled thermoplastic material, providing excellent durability and resistance in industrial environments. It is colour-coded according to IEC specifications to facilitate quick identification of thermocouple type and polarity, reducing wiring errors.

Contacts are fabricated from true thermocouple alloys or compensating materials to ensure accurate signal transmission, which is critical for precise temperature measurement. The design accepts polarized round pins, preventing incorrect connections and ensuring reliable contact.

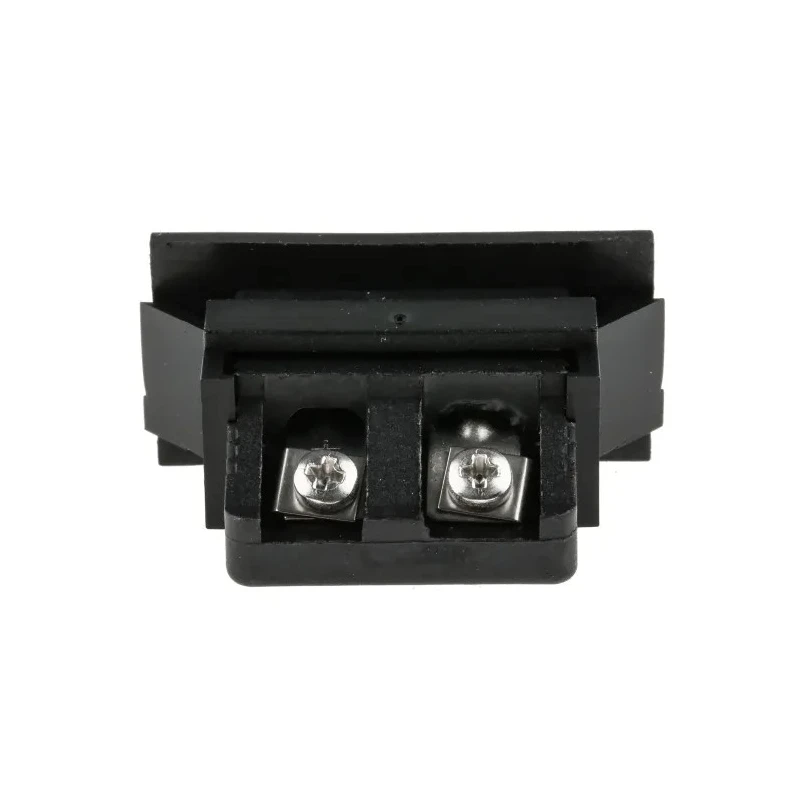

The connector includes captive screw clamps that allow the thermocouple wires to be securely fixed with ease, improving assembly efficiency. It withstands operating temperatures up to 120°C, making it suitable for a wide range of industrial and laboratory temperature measurement applications.

A clip is supplied for fast and secure mounting behind the panel, enhancing installation convenience. The socket housing is labeled with clear polarity and type markings to minimize confusion during setup and maintenance.

These thermocouple panel connectors are commonly used in industrial temperature measurement systems, instrumentation, HVAC monitoring, manufacturing processes, water treatment plants, and laboratory equipment setups where reliable and precise temperature data acquisition is essential.

Manufactured from rugged glass-filled thermoplastic for durability. Colour-coded fascia for quick thermocouple identification per IEC standards. Contacts made from true thermocouple alloys or compensating materials ensure signal integrity.

Accepts polarized round pins to assure accurate connection. Simple captive screw clamp connections for easy installation. Withstands temperatures up to 120°C for demanding environments. Polarity and thermocouple type markings reduce wiring errors.

Supplied with a mounting clip for secure panel installation. Explore the wide selection of Thermocouple Connectors and sensor accessories in the Electronics & Electricals category at EnvMart to enhance your temperature measurement system.
