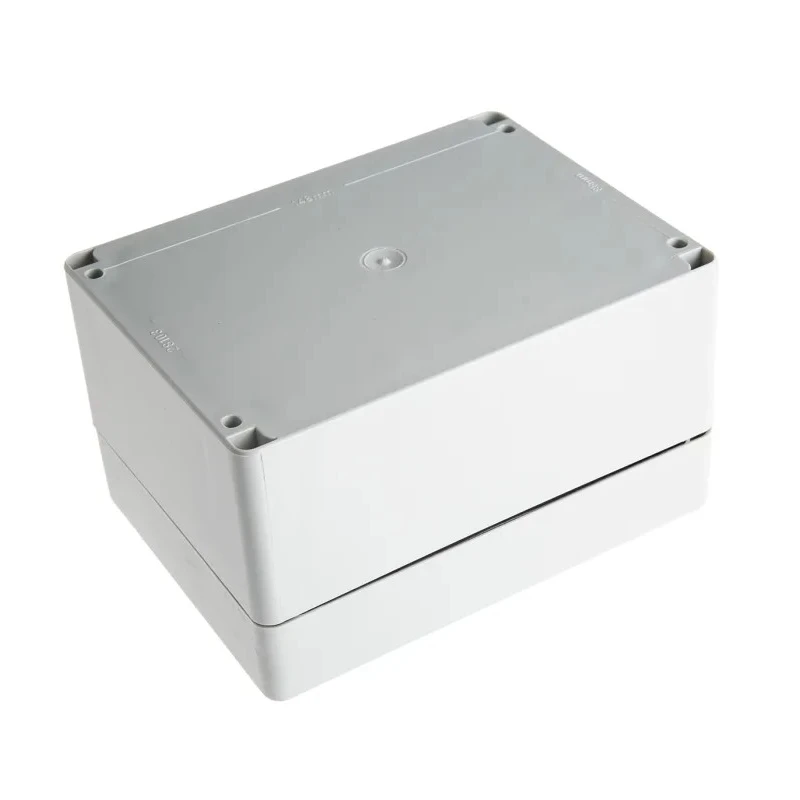

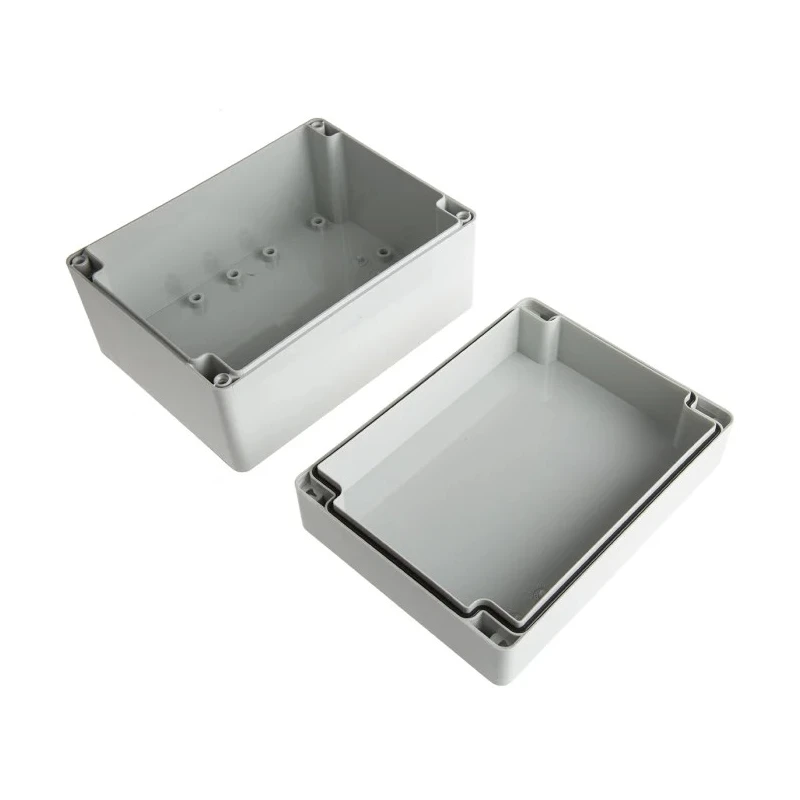

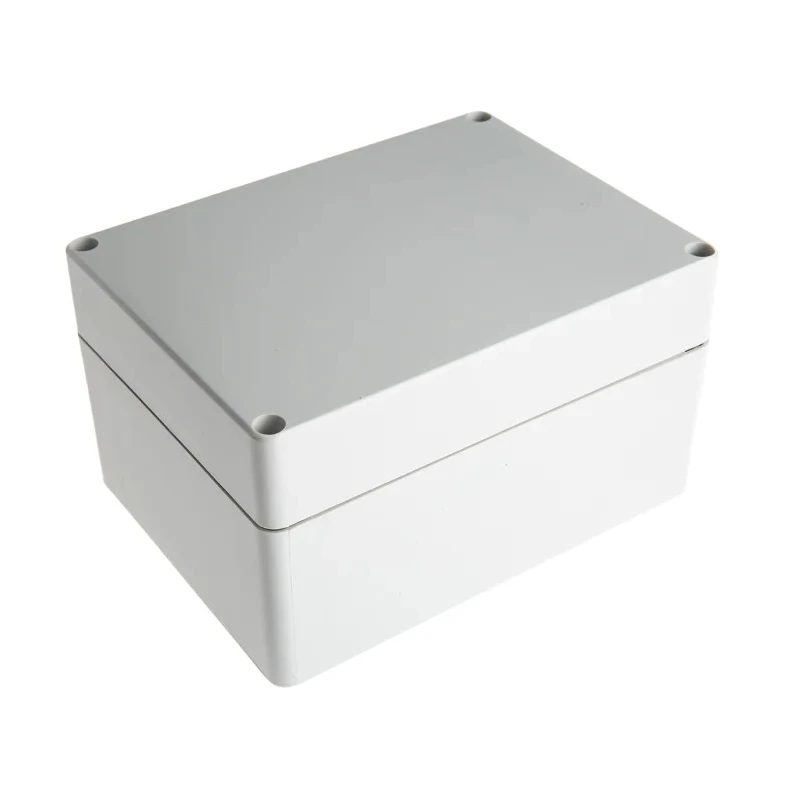

Fibox Euronord II Series Grey Grey Lid Polycarbonate Enclosure, IP66, IP67, IK07, IK08, 90 mm x 160 mm x PC 121609 ENCLOSURE

Fibox PC 121609 ENCLOSURE is a polycarbonate enclosure from the Euronord II series designed for general-purpose electrical applications. Measuring 90 mm in height, 160 mm in length, and 120 mm in width, it offers a robust and smooth outer surface to facilitate label placement or screen printing. The enclosure is constructed from high-quality polycarbonate material and includes a grey lid and base, colored RAL 7035.

This enclosure is engineered for housing DIN Rail-mounted terminal blocks and a variety of sensor types used in industrial automation systems. It is built to withstand continuous temperatures from -40°C up to +80°C, with short-term tolerance up to +120°C, making it suitable for a wide range of industrial environments. The cover screws are captive and fully tighten with four revolutions, providing secure fastening without the risk of loss.

The Fibox enclosure is rated with IP66 and IP67 certification, ensuring it is dust-tight and protected against jets of water and temporary immersion, ideal for outdoor and harsh environment applications. Additionally, it has IK07 and IK08 impact ratings, confirming resistance to mechanical shocks and vibrations. The sealing gasket is made from polyurethane for enhanced protection against environmental ingress.

The ergonomic design eliminates gate marks on the surface, making the enclosure suitable for customization and branding. Accessories such as mounting plates and DIN rails are included with the base assembly. The enclosure is unshielded and does not have hazardous area certification, making it suitable for general industrial automation and electrical housing needs.

Manufactured in Finland with strict quality controls, this enclosure is sought after for use in industrial, electrical, automation, manufacturing, and commercial applications requiring durability and resilience.

The enclosure features a smooth outer surface for easy label application or screen printing. Cover screws fully tighten in four revolutions and remain captive for convenience. Equipped with polyurethane gasket and stainless steel screws for robust sealing.

Temperature range suitable from -40°C to +80°C continuous operation. IP66 and IP67 rated for dust and water ingress protection. IK07 and IK08 rated for impact resistance ensuring mechanical durability. Designed specifically for housing DIN Rail-mounted terminal blocks and sensors.

The enclosure base and lid are colored in grey, RAL 7035 standard. Unshielded enclosure body without hazardous area certification. Manufactured in Finland guaranteeing high industry standards. Explore more electrical enclosures and customizable solutions featuring Fibox products on EnvMart to enhance your industrial and automation systems.
