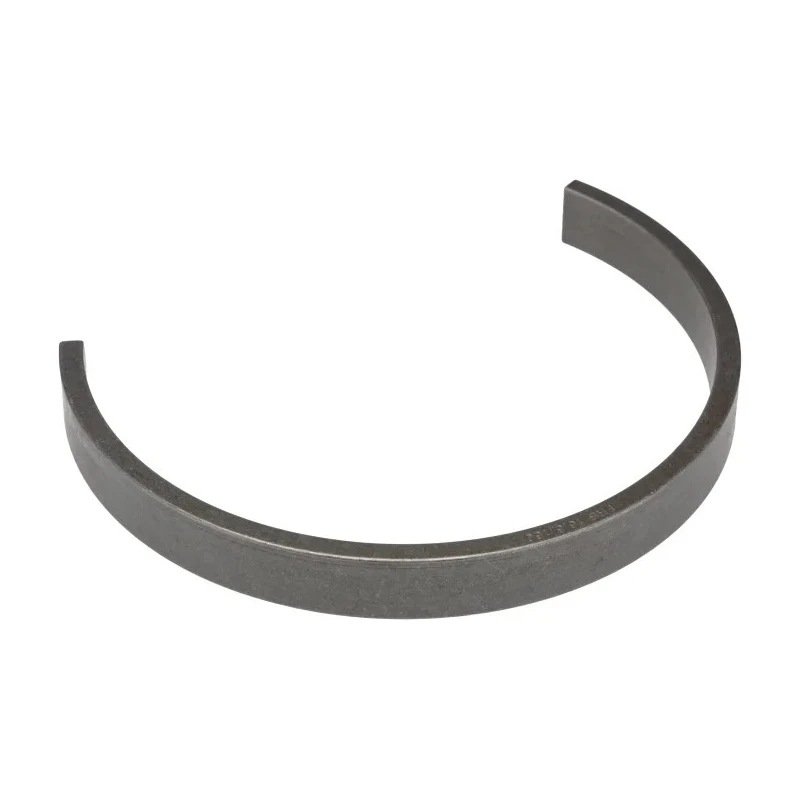

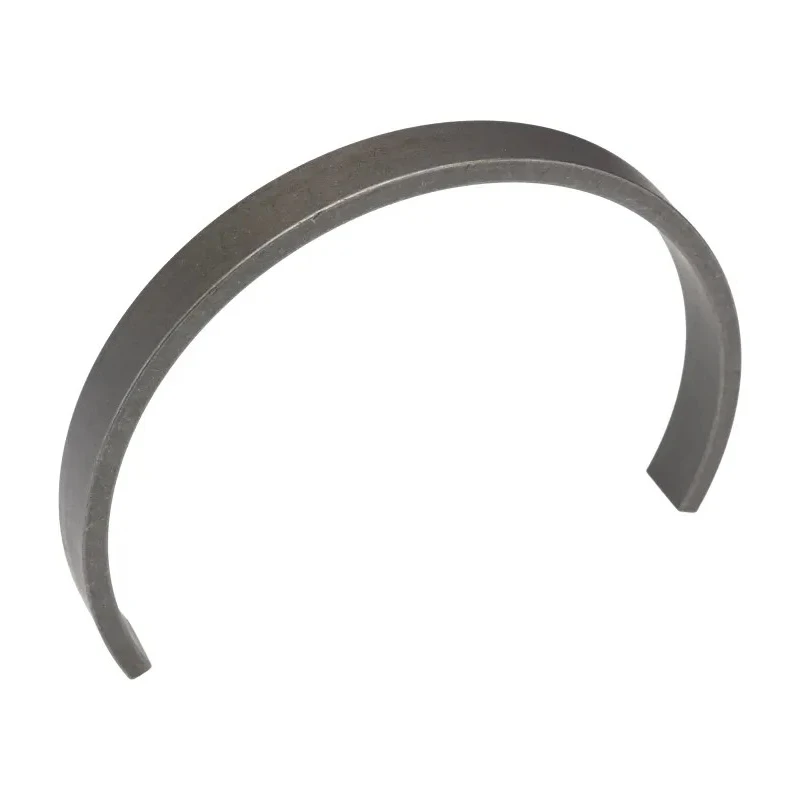

SKF Locating Ring FRB 16.5/150, 139 mm Inside Diameter, 16.5 mm Depth, 183 mm Height, 320 mm Length FRB 16.5/150

The SKF FRB 16.5/150 locating ring features a 139 mm inside diameter, 16.5 mm depth, 183 mm height, and 320 mm length, designed for axial positioning of rotating assemblies in industrial applications.

This precision component provides compact axial restraint due to its 16.5 mm depth, while the 183 mm height supplies substantial radial support. Fasteners fitting the 20 mm mount hole enable secure attachment to housings or flanges, ensuring stability.

The 95 mm center height establishes the radial reference for precise shaft alignment and consistent hub-to-shaft concentrics essential in automation and electrical drive systems. Its application includes axial location of shaft assemblies, positioning rotating modules in electronic cooling fans, and retaining components in mechanical transmission systems.

The depth of 16.5 mm enables compact axial restraint in tight assemblies. The 139 mm inside diameter supports shafts with matching bore sizes. The height of 183 mm offers substantial radial support where required. The 320 mm length secures axial positioning across wider housings.

The 20 mm mount hole size allows compatible fasteners for secure fixing. The 95 mm center height assists axial alignment for consistent operation. Suitable for automation rigs and electrical drive units requiring precise axial stops.

Manufactured under SKF FRB Series standards, providing durability and reliability. This locating ring is suited for use in industrial manufacturing, HVAC systems, and mechanical engineering applications requiring accurate shaft retention and positioning.
