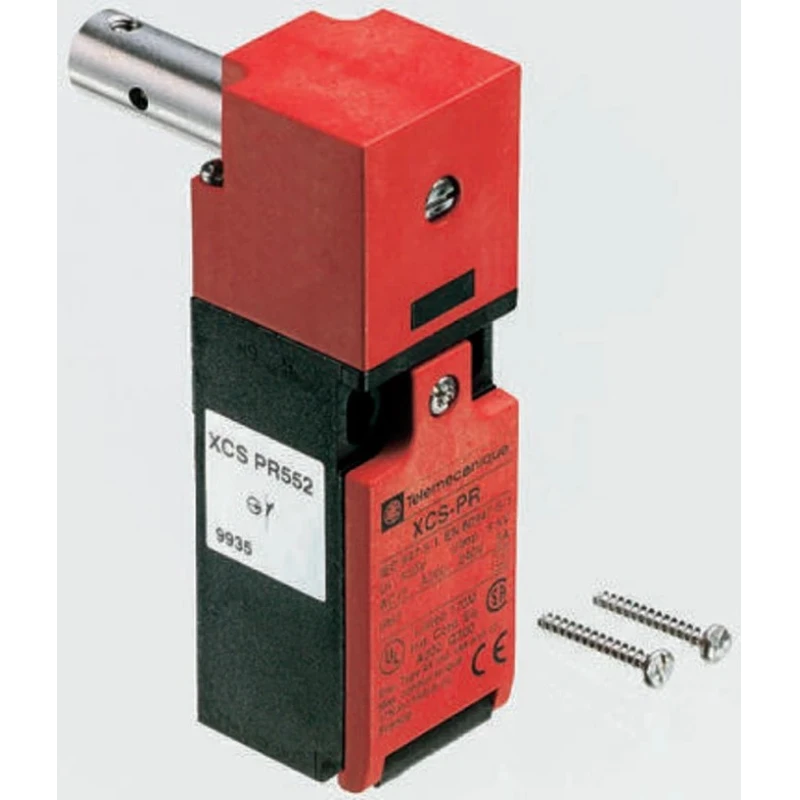

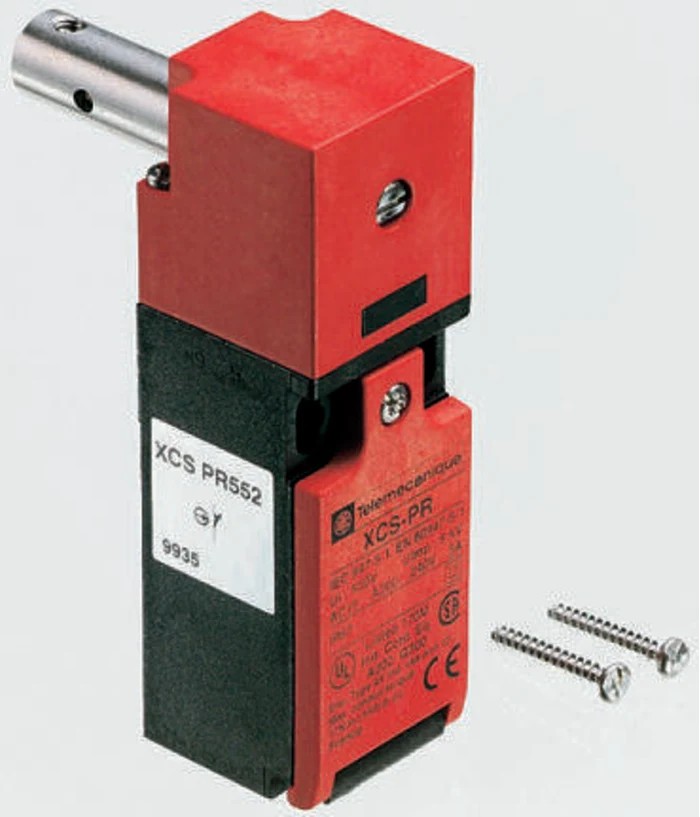

Telemecanique Sensors Safety Hinge Switch Plastic Body IP67 250V DC 3A 240V AC XCSPR551

Telemecanique Sensors XCSPR551 Safety Hinge Switch features a plastic body housing designed to offer robust protection in industrial automation and electrical safety applications.

This safety hinge switch is engineered with a single PG11 cable entry and screw clamp terminals for secure and reliable electrical connections. It supports a contact DC voltage rating of 250V and an AC voltage rating of 240V with a contact current capacity of 3A, making it suitable for varied circuit control requirements.

The device is IP67 rated, providing excellent ingress protection against dust and water, suitable for harsh environments across manufacturing, construction, and industrial safety sectors. Its operating temperature range of -25°C to 70°C offers versatility for both cold and warm conditions.

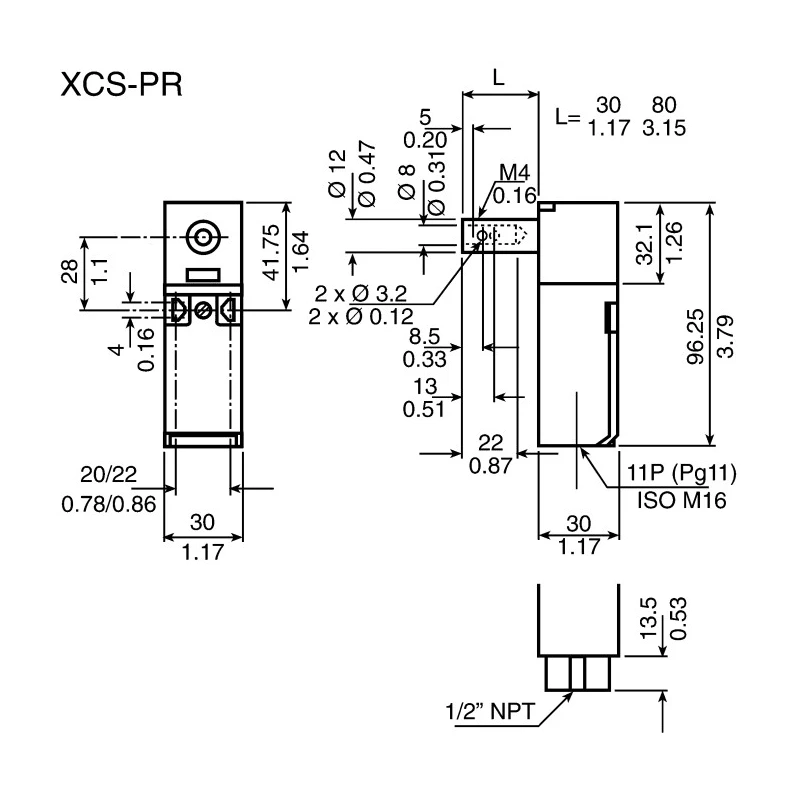

The switch includes slow break safety contacts with positive opening operation, ensuring that normally closed contacts open reliably when the shaft is displaced by more than 5°. The 30mm shaft length and compact dimensions (96mm height and 30mm width) ease integration in safety guarding systems, such as hinged doors or rotary covers with small opening radii.

With a mechanical life expectancy of 1,000,000 cycles, this hinge switch delivers dependable long-term performance. Certifications to EN/IEC 60947-5-4, CSA C22.2 No. 14, UL 508, and ISO 14119 underline its compliance with rigorous international safety and quality standards.

Constructed with durable plastic body to withstand harsh environments. Rated for 250V DC and 240V AC contact voltages with 3A contact current. Equipped with screw clamp terminals and a single PG11 cable entry. Offers IP67 ingress protection ensuring water and dust resistance.

Operating temperature range from -25°C to 70°C for versatile use. Features a shaft length of 30mm and compact dimensions 96mm height by 30mm width. Mechanical life expectancy of 1,000,000 cycles provides long-term reliability.

Slow break safety contacts with positive opening operation for secure switching. Ideal for use with hinged or rotary protective covers with small opening radius. Complies with multiple safety standards including EN/IEC, CSA, UL, and ISO certifications.

This safety hinge switch is widely used in industrial automation, electrical safety interlock systems, manufacturing plants, and equipment that require reliable safety guarding to prevent machine hazards.
