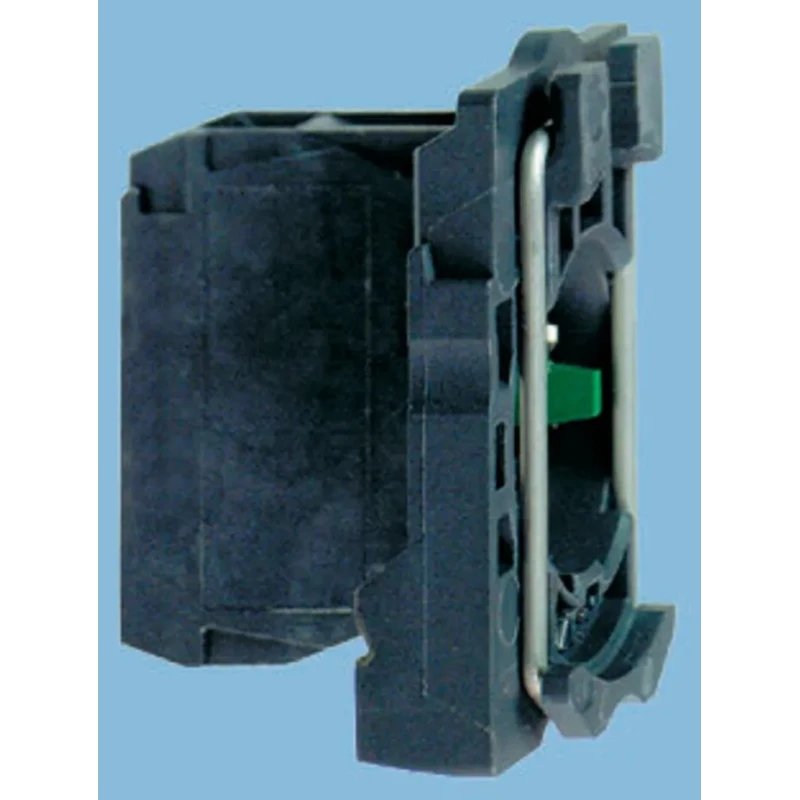

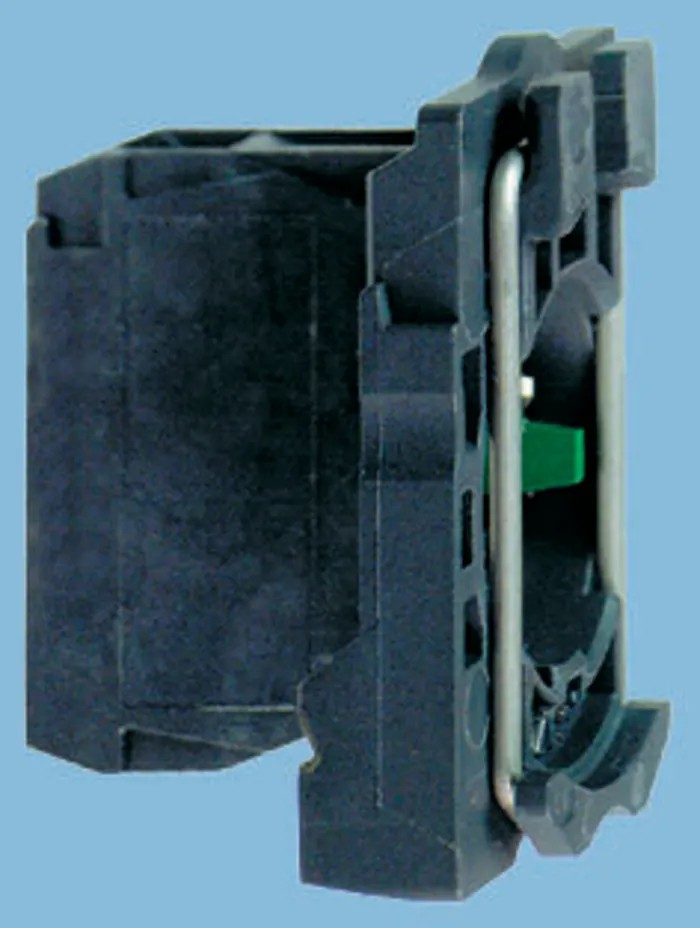

Schneider Electric Harmony XB5 Series Contact Block 1 NO ZB5AZ1015
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 32mm |
| Model | ZB5AZ1015 |
| Width | 30mm |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Standards/Approvals | CSA, RoHS, UL |
| Block Type | Contact Block |
| Different wire sizes can be used | Minimum: 1x24AWG/0.2mm2 without cable end, maximum: 2x14AWG/1.5mm2 without cable end, 2x16AWG/1.5mm2 with cable ends |
Key Features
- Contact configuration consists of 1 normally open (NO) contact.
- Features screw clamp terminals for secure wire connections.
- Built-in plastic fixing collar included for ease of mounting.
- Supports various wire sizes from 1x24AWG (0.2mm²) up to 2x14AWG (1.5mm²) without cable ends.
- Operational temperature range from -40°C to 70°C.
- Meets industry standards including CSA, RoHS, and UL approvals.
- Designed with single lever action to open both cable clamps simultaneously.
- Includes molded holes for test probes and visible indication of secure connection.
Product Description
Schneider Electric ZB5AZ1015 is a high-quality contact block from the Harmony XB5 Series designed for use in industrial electrical and automation applications. This contact block provides a 1 NO (normally open) contact configuration ensuring reliable operation in push button switch assemblies.
This component features screw clamp terminals that accept both stranded and solid wires with or without cable ends, supporting wire sizes ranging from 1x24AWG (0.2mm²) to 2x14AWG (1.5mm²). The single lever mechanism enables simultaneous opening of both cable clamps while preventing damage to wire insulation.
The robust design includes a built-in plastic fixing collar for simple attachment and molded test probe holes for easy maintenance checks. It operates efficiently within a temperature range of -40°C to +70°C, making it suitable for harsh environmental conditions encountered in industrial, manufacturing, and automation settings.
Compact form factor with dimensions of 32mm length, 30mm width, and 42mm height facilitates seamless integration into existing switchgear assemblies. Compliance with key industry approvals such as CSA, RoHS, and UL ensures safety and standards conformance.
Reliable 1 NO contact configuration for control circuits. Screw clamp terminals accommodate multiple wire gauges. Plastic fixing collar included for swift installation. Wide temperature operation supports diverse environments.
Compact size suitable for various industrial applications. Safety and quality certified by recognized standards. Visible secure connection indication enhances reliability. Molded test probe holes allow convenient system diagnostics.
This contact block is ideally suited for use in industrial automation, electrical panels, commercial machinery, and manufacturing equipment where dependable push button functionality is critical.
Explore the Electronics & Electricals category on EnvMart for a wide selection of push button contact blocks and related components tailored to meet professional engineering requirements.
Explore more products in our Push Button Contact Blocks & Light Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration consists of 1 normally open (NO) contact, ensuring reliable operation in push button switch assemblies.
It operates efficiently within a temperature range of -40°C to +70°C, making it suitable for harsh environmental conditions.
The screw clamp terminals support wire sizes ranging from 1x24AWG (0.2mm²) up to 2x14AWG (1.5mm²) without cable ends, and 2x16AWG (1.5mm²) with cable ends.
The dimensions are 32mm in length, 30mm in width, and 42mm in height, allowing for compact integration into switchgear assemblies.
It features screw clamp terminals that accept both stranded and solid wires, ensuring secure wire connections.
It meets key industry standards including CSA, RoHS, and UL approvals, ensuring safety and compliance.
The single lever mechanism enables simultaneous opening of both cable clamps while preventing damage to wire insulation.
Yes, it includes a built-in plastic fixing collar for simple attachment during installation.
The contact block includes molded holes for test probes, allowing for easy maintenance checks.
This contact block is designed for use in industrial automation, electrical panels, commercial machinery, and manufacturing equipment.
The ZB5AZ1015 is manufactured in France.
It is classified as a contact block, specifically designed for push button switch assemblies.
